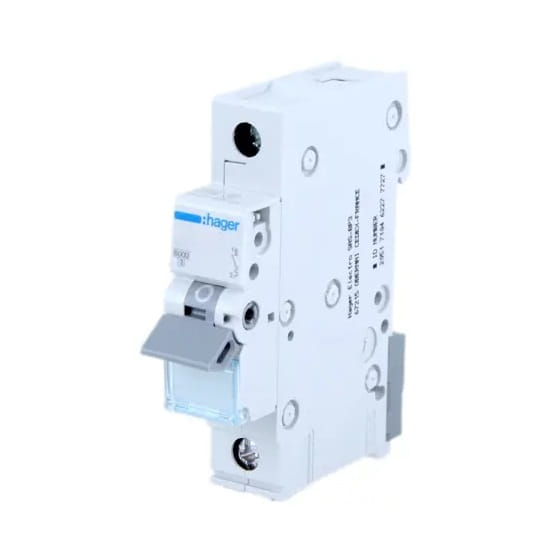

Overcurrent circuit breaker C 20A 1P 6kA MCN120E HAGER

Go to Product feedback

Overcurrent circuit breaker C 20A 1P 6kA MCN120E HAGER, also known as an installation circuit breaker, it is used to protect cables and wires from excessive loads and short circuits.

Go to full description
with VAT without VAT
Price €7.18
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

Overcurrent circuit breaker C 20A 1P 6kA MCN120E HAGER

Overcurrent circuit breaker C 20A 1P 6kA MCN120E HAGER, also known as an installation circuit breaker, it is used to protect cables and wires from excessive loads and short circuits.

It is used in both the residential and commercial sectors. This circuit breaker can be used repeatedly and offers higher sensitivity than standard fuses. The Type C overcurrent circuit breaker is distinguished by its delayed action and is designed to protect power supply installations with small capacities, up to a few kilowatts.

SPECIFICATION

Manufacturer
HAGER
Type of overcurrent circuit breaker
C
Rated current
20A
Switching capacity
6kA
Number of poles protected
1
Number of protected poles
1 P
Rated short circuit switching capacity Icn
6 kA
Rated switching voltage Ue
230 / 400 V
Rated frequency
50 / 60 Hz
Supply voltage type
AC
Rated insulation voltage Ui
500 V
Rated withstand surge voltage Uimp
4000 V
Rated short circuit breaking capacity 230 V 50 Hz
6 kA
Rated operational short-circuit breaking current Ics
6 kA
Maximum power loss per pole according to the standard
4.5 W
Total power loss for rated current
2.1 W
Power loss per pole for rated current
2.1 W
Electrical strength (number of cycles)
4000 x
Mechanical strength (number of cycles)
20000 x
Tightening torque
2.8 Nm
Connection type
With screw
Input / output terminal capacitance for rigid wire (wire)
1/25 mm²
Input / output terminal capacitance for flexible wire (cord)
1/16 mm²
Degree of protection
IP20
Dimensions
70 x 83 x 17.5 mm
Standard
EN 60898-1
RoHs Directive
Compatible
Degree of pollution according to IEC 60664 / IEC 60947-2
2
Additional information
Connection possibility with comb rails, cage terminals: - wire up to 25 mm2

Available Configuration

Product code

Catalog no.
EAN
Model
GPV-401-86
next arrow image
MCN120E/HAG
3250614313677
MCN120E
