EATON

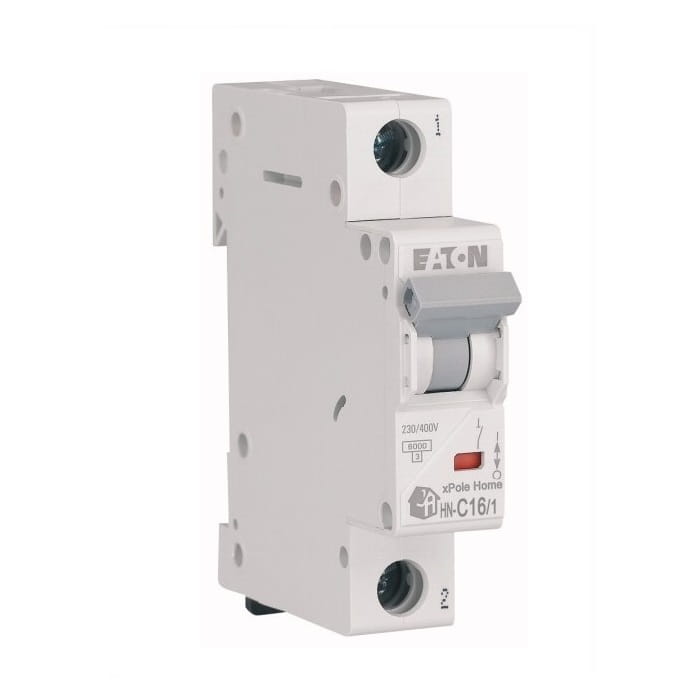

Overcurrent circuit breaker C 16A 1P 6kA HN-C16/1 xPole Home 194831 EATON

Go to Product feedback

Overcurrent circuit breaker C 16A 1P 6kA HN-C16/1 xPole Home 194831 EATON protects the electrical installation against overload and short-circuit.

Go to full description
with VAT without VAT
Price €4.42
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] wylaczniki-nadpradowe-i-silnikowe #90

  • Trip characteristic C
  • Circuit breaker type overcurrent
  • Rated current [A] 16A
  • Number of poles 1P
  • Breaking capacity [kA] 6 kA
  • Brand EATON

Description

Overcurrent circuit breaker C 16A 1P 6kA HN-C16/1 xPole Home 194831 EATON

Overcurrent circuit breaker C 16A 1P 6kA HN-C16/1 xPole Home 194831 EATON protects the electrical installation against overload and short-circuit.

When the current limit is exceeded, it automatically breaks the circuit, preventing damage. This reliable device guarantees peace of mind and safety in any home or business.

Modular apparatus xPole Home

EATON's xPole Home range of modular apparatus is the perfect choice for those looking for reliable electrical protection solutions. These products feature a high level of safety and functionality, making them ideal for even the most demanding users. The xPole Home series is appreciated for its reliability and its ability to be easily expanded with additional components such as auxiliary contacts, triggers or busbars.

Features and benefits of the equipment xPole Home

  • The high quality of the materials and the robustness of the workmanship ensure long-lasting operation.
  • Dual connection terminals (lift and rail), mounted on both sides of the apparatus, simplify installation.
  • Power supply from above or below and easy installation thanks to TH35 rail clips.
  • Aesthetic and modern design.
  • Possibility of future product expansion.

About the series of overcurrent circuit breakers xPole Home HN

The HN series, successor to the popular CLS6 models, offers excellent operation and maximum safety. Thanks to its ergonomic design, the apparatus handles heat dissipation better and is an excellent choice for electricians and designers.

Technical specifications of the switches xPole Home HN

  • Tripping characteristic: Type B and C
  • Rated current: 6 to 63 A
  • Rated breaking capacity: 6 kA
  • Configuration: Poles 1, 1+N, 2, 3, 3+N

SPECIFICATION

Manufacturer
EATON
Trigger characteristics
C
Number of poles
1
Total number of poles
1
Width expressed in number of modules
1
Pollution degree
3
Overvoltage class
3
Energy limitation class
3
Frequency
50-60 Hz
Depth of incorporation
44 mm
N pole disconnected at the same time
No
Additional equipment available
Yes
Rated voltage
230 V
Rated current
16 A
Type of voltage
AC
Degree of protection
IP 20
Rated short-circuit breaking capacity acc. to IEC 60947-2
0 k
Rated short-circuit breaking capacity in accordance with EN 60898
6 kA

Available Configuration

Product code

Catalogue no.
EAN
Model
GPV-401-115
next arrow image
194831/EAT
9010238063150
194831

Files to download

File icon Data sheet.pdf 54.22 kB
