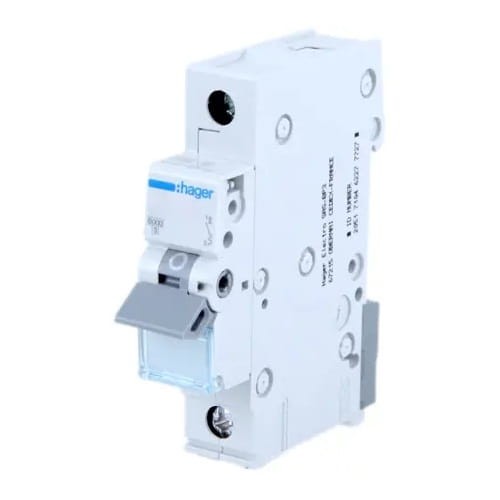

Overcurrent circuit breaker B 6A 1P 6kA MBN106E HAGER

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.1 kg

Price / pcs.: £4.58 4.58

excl. shipping costs

* Packaging options:

Piece
Package: 50 pieces
Package: 100 pieces
Package: 200 pieces

quantity pcs.

Total:

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: HAGER

Product code: GPV-401-65

recommend to a friend

Description

Overcurrent circuit breaker B 6A 1P 6kA MBN106E HAGER

- MBN106E761

Overcurrent circuit breaker B 6A 1P 6kA MBN106E HAGER also known as a circuit breaker, it is a key component in electrical systems to break the continuity of a circuit when the current exceeds the safe level for the circuit.

Known colloquially as 'Eska', this circuit breaker controls and protects the installation from the effects of overloads, such as overloads and short circuits, up to 6kA. The MBN106E Type B installation circuit breaker is distinguished by its delayed operation, which makes it particularly suitable for the protection of consumers that are not sensitive to thermal overloads and have low inrush currents.

Construction of the switch MBN106E:

1 - drive lever

2 - lock

3 - fixed and movable contact

4 - connection terminals

5 - thermobimetal (overload) release

6 - adjustment screw

7 - electromagnetic (short circuit) release

8 - extinguishing chamber (for electric arc extinguishing)

Specification

Series and type

Overcurrent circuit breaker B 6A 1P 6kA MBN106E HAGER

Number of poles protected

Number of poles

1 P

Type of overcurrent circuit breaker

Rated short-circuit breaking capacity Icn

6 kA

Rated switching voltage Ue

230 / 400 V

Rated frequency

50 / 60 Hz

Supply voltage type

Rated insulation voltage Ui

500 V

Rated withstand surge voltage Uimp

4000 V

Rated short circuit breaking capacity 230 V 50 Hz

6 kA

Rated operational short-circuit breaking current Ics

6 kA

Maximum power loss per pole in accordance with standard

3 W

Total power loss for rated current

1.3 W

Power loss per pole for rated current

1.3 W

Electrical strength (number of cycles)

4000 x

Mechanical strength (number of cycles)

20 000 x

Tightening torque

2.8 Nm

Connection type

With screw

Input/output terminal capacity for rigid wire (wire)

1/25 mm²

Input/output terminal capacity for flexible wire (cord)

1/16 mm²

Standard

EN 60898-1

Degree of protection

IP20

Dimensions

70 x 83 x 17.5 mm

Available Configuration

Product code

Catalogue no.

EAN

Model

GPV-401-65

MBN106E/HAG

3250614312731

MBN106E

Technical data

Trip characteristic	B
Circuit breaker type	overcurrent
Rated current [A]	6A
Number of poles	1P
Breaking capacity [kA]	6 kA
Brand	HAGER
