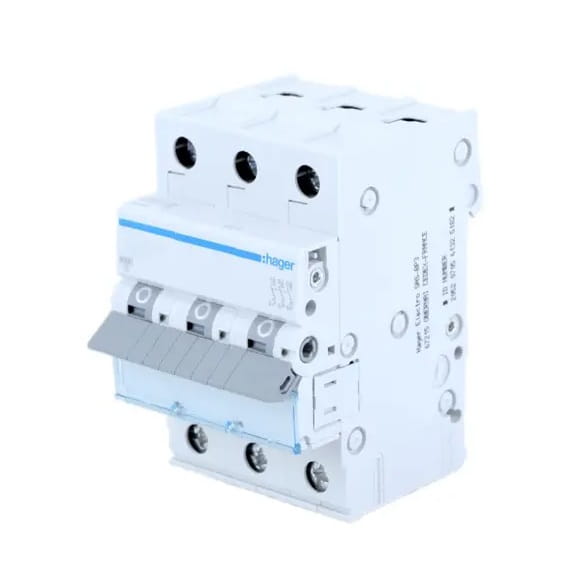

Overcurrent circuit breaker B 32A 3P 6kA MBN332E HAGER
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.365 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description
Overcurrent circuit breaker B 32A 3P 6kA MBN332E HAGER
Overcurrent circuit breaker B 32A 3P 6kA MBN332E by HAGER also known as the circuit breaker, it is a key component of any electrical installation. Its main function is to break the continuity of a circuit when the current exceeds the safe value for the circuit.
Popularly known as the 'eska', this circuit breaker protects against the effects of overloads and short circuits, up to 6kA. The MBN332E, features delayed operation, making it ideal for protecting loads that are insensitive to thermal overloads and have low inrush currents.
Construction of the switch MBN332E:
- 1 - drive lever
- 2 - lock
- 3 - fixed and movable contact
- 4 - connection terminals
- 5 - thermobimetal (overload) release
- 6 - adjustment screw
- 7 - electromagnetic (short-circuit) release
- 8 - extinguishing chamber (for electric arc extinguishing)
SPECIFICATION
Manufacturer
HAGER
Number of poles protected
3
Number of poles
3 P
Type of overcurrent circuit breaker
B
Rated short-circuit breaking capacity Icn
6 kA
Rated current
32A
Rated switching voltage Ue
230 / 400 V
Rated frequency
50 / 60 Hz
Supply voltage type
AC
Rated insulation voltage Ui
500 V
Rated withstand surge voltage Uimp
4000 V
Rated short circuit breaking capacity 230 V 50 Hz
6 kA
Rated operational short-circuit breaking current Ics
6 kA
Maximum power loss per pole according to standard
6 W
Total power loss for rated current
13 W
Power loss per pole for rated current
4.9 W
Electrical strength (number of cycles)
4000 x
Mechanical strength (number of cycles)
20000 x
Tightening torque
2.8 Nm
Connection type
With screw
Input / output terminal capacitance for rigid wire (wire)
1/25 mm²
Input / output terminal capacitance for flexible wire (wire)
1/16 mm²
Standard
EN 60898-1
Degree of protection
IP20
Dimensions
70 x 83 x 52.5 mm
Additional information
Can be connected by means of comb rails, cage clamps: - wire up to 25 mm2
Available Configuration
Technical data
| Trip characteristic | B |
| Circuit breaker type | overcurrent |
| Rated current [A] | 32A |
| Number of poles | 3P |
| Breaking capacity [kA] | 6 kA |
| Brand | HAGER |
