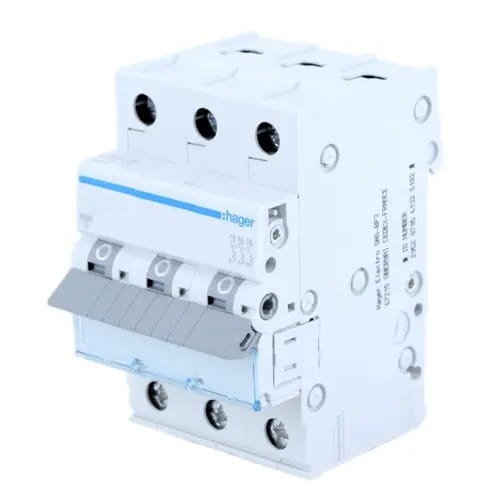

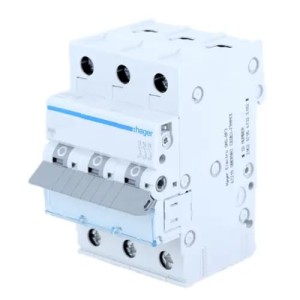

Overcurrent circuit breaker B 25A 3P 6kA MBN325E HAGER

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.314 kg

Price / pcs.: £16.50 16.50

excl. shipping costs

Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!

* Packaging options:

Piece
Package: 50 pieces
Package: 100 pieces
Package: 200 pieces

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: HAGER

Product code: GPV-401-72

recommend to a friend

Description

Overcurrent circuit breaker B 25A 3P 6kA MBN325E HAGER

- MBN325E768

Overcurrent circuit breaker B 25A 3P 6kA MBN325E by HAGER also known as the circuit breaker, is a key component of any electrical installation. Its main function is to break the continuity of the circuit when the current exceeds the safe value for the circuit.

Popularly known as the "eska," this circuit breaker protects against overloads, such as overloads and short circuits, up to 6kA. The Type B installation circuit breaker, model MBN325E, features delayed operation, making it ideal for protecting loads that are insensitive to thermal overloads and have small inrush currents.

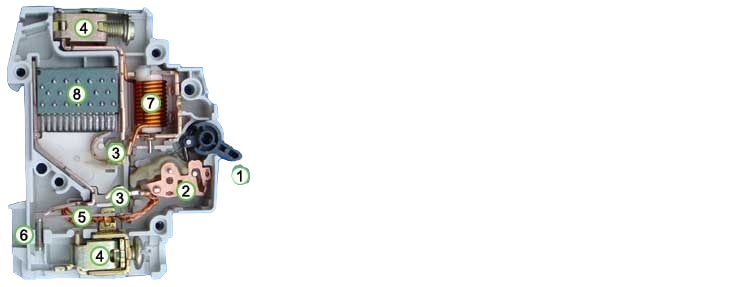

Construction of the circuit breaker MBN325E:

1 - drive lever

2 - lock

3 - fixed and movable contact

4 - connection terminals

5 - thermobimetal (overload) release

6 - adjustment screw

7 - electromagnetic (short circuit) release

8 - extinguishing chamber (for electric arc extinguishing)

Specifications

Series and type

Overcurrent circuit breaker B 25A 3P 6kA MBN325E HAGER

Number of poles protected

Number of poles

3 P

Type of overcurrent circuit breaker

Rated short-circuit switching capacity Icn

6 kA

Rated switching voltage Ue

230 / 400 V

Rated frequency

50 / 60 Hz

Supply voltage type

Rated insulation voltage Ui

500 V

Rated withstand surge voltage Uimp

4000 V

Rated short circuit breaking capacity 230 V 50 Hz

6 kA

Rated operational short-circuit breaking current Ics

6 kA

Maximum power loss per pole according to the standard

4.5 W

Total power loss for rated current

10.1 W

Power loss per pole for rated current

3.5 W

Electrical endurance (number of cycles)

4000 x

Mechanical strength (number of cycles)

20000 x

Tightening torque

2.8 Nm

Connection type

With screw

Input / output terminal capacity for rigid wire (wire)

1/25 mm²

Input /output terminal capacitance for flexible cable (wire)

1/16 mm²

Standard

EN 60898-1

Degree of protection

IP20

Dimensions

70 x 83 x 52.5 mm

Available Configuration

Product code

Catalog no.

EAN

Model

GPV-401-72

MBN325E/HAG

3250614313080

MBN325E

Technical data

Trip characteristic	B
Circuit breaker type	overcurrent
Rated current [A]	25A
Number of poles	3P
Breaking capacity [kA]	6 kA
Brand	HAGER
