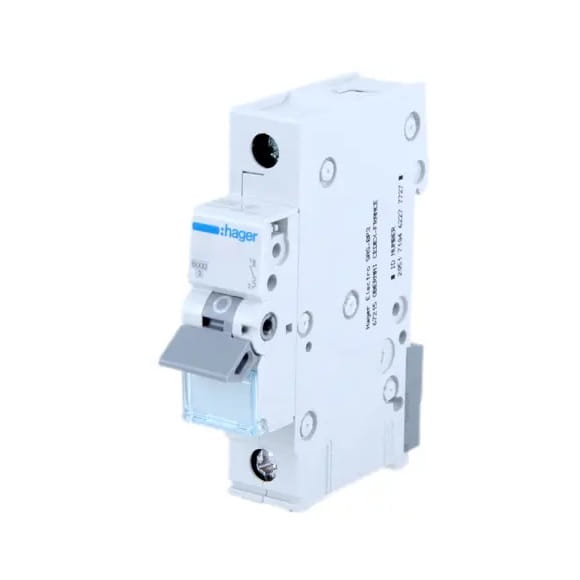

Overcurrent circuit breaker B 25A 1P 6kA MBN125E HAGER
Overcurrent circuit breaker B 25A 1P 6kA MBN125E by HAGER also known as a circuit breaker, it is a key component in an electrical installation. Its main function is to break the continuity of a circuit when the current exceeds the safe value for the circuit.
"Eska" manages and protects against the effects of overloads, i.e. overloads and short circuits, up to a value of 6kA. The MBN125E type B circuit breaker is distinguished by its delayed operation and is designed to protect loads that are not sensitive to thermal overloads and have small inrush currents.
Construction of the switch MBN125E:
- 1 - drive lever
- 2 - lock
- 3 - fixed and movable contact
- 4 - connection terminals
- 5 - thermobimetal trigger (overload)
- 6 - adjustment screw
- 7 - electromagnetic (short circuit) release
- 8 - extinguishing chamber (for electric arc extinguishing)
Specification
Manufacturer
HAGER
Characteristics
B
Rated current [A]
25 A
Series and type
Overcurrent circuit breaker B 25A 1P 6kA MBN125E HAGER
Number of poles protected
1
Number of poles
1 P
Type of overcurrent circuit breaker
B
Rated short-circuit breaking capacity Icn
6 kA
Rated switching voltage Ue
230 / 400 V
Rated frequency
50 / 60 Hz
Supply voltage type
AC
Rated insulation voltage Ui
500 V
Rated withstand surge voltage Uimp
4000 V
Rated short circuit breaking capacity 230 V 50 Hz
6 kA
Rated operational short-circuit breaking current Ics
6 kA
Maximum power loss per pole according to standard
3 W
Total power loss at rated current
4.5 W
Power loss per pole for rated current
3 W
Electrical strength (number of cycles)
4000 x
Mechanical strength (number of cycles)
20000 x
Tightening torque
2.8 Nm
Connection type
With screw
Input/output terminal capacity for rigid wire (wire)
1/25 mm²
Input/output terminal capacitance for flexible wire (cable)
1/16 mm²
Standard
EN 60898-1
Degree of protection
IP20
Dimensions
70 x 83 x 17.5 mm
Available Configuration
Technical data
| Trip characteristic | B |
| Circuit breaker type | overcurrent |
| Rated current [A] | 25A |
| Number of poles | 1P |
| Breaking capacity [kA] | 6 kA |
| Brand | HAGER |
