SCHNEIDER ELECTRIC

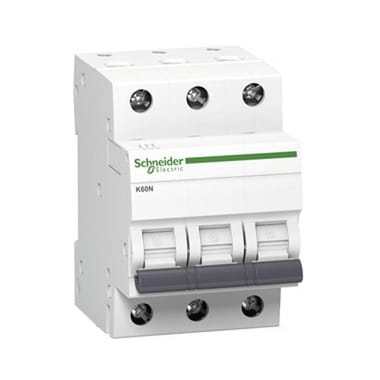

Overcurrent circuit breaker B 16A 3P 6kA K60N-B16-3 Acti9 A9K01316 SCHNEIDER ELECTRIC

Go to Product feedback

Overcurrent circuit breaker B 16A 3P 6kA K60N-B16-3 Acti9 A9K01316 by SCHNEIDER ELECTRIC provides effective protection of electrical installations against short circuits and overloads. It is ideal for protecting installations in residential buildings and similar facilities.

Go to full description
with VAT without VAT
Price €12.98
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] wylaczniki-nadpradowe-i-silnikowe #90

  • Trip characteristic B
  • Circuit breaker type overcurrent
  • Rated current [A] 16A
  • Number of poles 3P
  • Breaking capacity [kA] 6 kA
  • Brand SCHNEIDER ELECTRIC

Description

Overcurrent circuit breaker B 16A 3P 6kA K60N-B16-3 Acti9 A9K01316 SCHNEIDER ELECTRIC

Overcurrent circuit breaker B 16A 3P 6kA K60N-B16-3 Acti9 A9K01316 by SCHNEIDER ELECTRIC provides effective protection of electrical installations against short circuits and overloads. It is ideal for protecting installations in residential buildings and similar facilities.

It forms with other devices a complete set of protection tailored to the needs of residential construction, offering a short-circuit strength of 6kA. The circuit breaker has notched double connection terminals from the bottom (rail + wire), which provides certainty and stability of connection.

In addition, the snap contact means that the rate of contact closure does not depend on the speed of maneuvering the camera lever, which guarantees reliable operation.

Basic parameters

Application of the Device
Distribution
Product Range
Acti 9
Product Name
Acti9 K60
Product or Component Type
Overcurrent circuit breaker
Abbreviated Device Name
K60N
Description of Poles
3P
Number of protected poles
3
Rated Current [In]
16 A
Type of Network
Alternating current (AC)
Trigger Technology
Thermomagnetic
Characteristics
B
Shutdown Capability
6000 A Icn in 400 V alternating current (AC) 50/60 Hz according to EN/IEC 60898-1
Utilization Category
Category A according to IEC 60947-2
Isolating Function
Yes according to EN/IEC 60898-1
Standards
EN/IEC 60898-1
Product Certificates
OVE VDE

Supplementary Parameters

Network frequency
50/60 Hz
Magnetic Trigger Upper Limit
3...5 x In
[Ics] Rated operational breaking current
6000 A 100 % according to EN/IEC 60898-1 - 400 V alternating current (AC) 50/60 Hz
Restriction class
3 according to EN/IEC 60898-1
Rated Insulation Voltage [Ui]
440 V alternating current (AC) 50/60 Hz in accordance with EN/IEC 60898-1
Rated Surge Voltage [Uimp]
4 kV according to EN/IEC 60898-1
Contact Position Indication
No
Control type
Lever
Local signaling
Without
Mounting method
Stationary
Mounting Base
DIN rail
Fitting to Connecting Buses and Distribution Blocks
Bottom side: Double connection
Width In Modules 9 Mm
6
Height
81 mm
Width
54 mm
Depth
70 mm
Product Weight
0.36 kg
Color
White
Mechanical Durability
20000 cycle
Electrical Durability
20000 cycle
Length of Isolated Strip
14 mm for top or bottom connection
Tightening torque
3.5 N.m top or bottom
Differential current protection
Without

Working environment

Degree of Protection Ip
IP20 compliant with IEC 60529 standard
Degree of Pollution
2 according to IEC 60898-1 2 according to EN 60898-1
Surge Category
II
Tropicalization
2 according to IEC 60068-1
Relative Humidity
95 % at 55 °C
Operating Altitude (In Meters Above Sea Level)
0...2000 m
Ambient Temperature For Operation of the Device
-25…70 °C
Ambient Temperature For Storage
-40…70 °C

Available Configuration

Product code

Catalog no.
EAN
Model
GPV-401-74
next arrow image
A9K01316/SCH
3606480478222
K60N-B16-3
