Overcurrent circuit breaker B 16A 1P 10kA ETIMAT10 002121716 ETI
product unavailable
add to wish list
Description

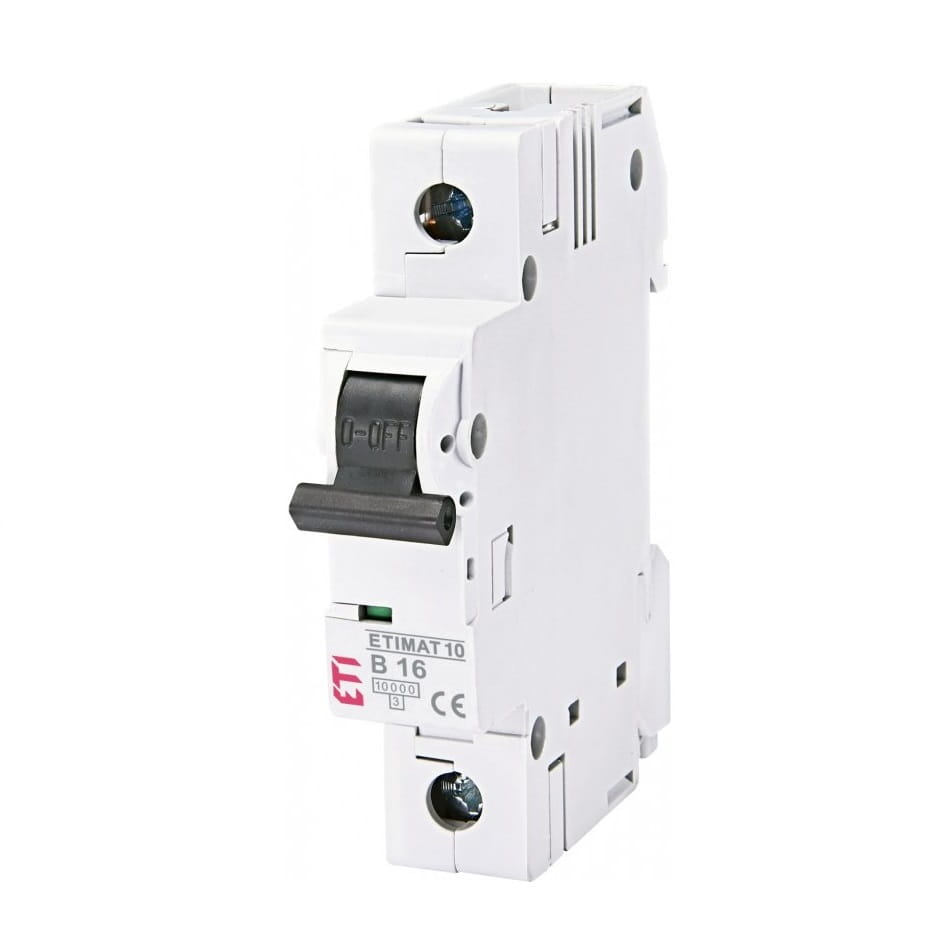

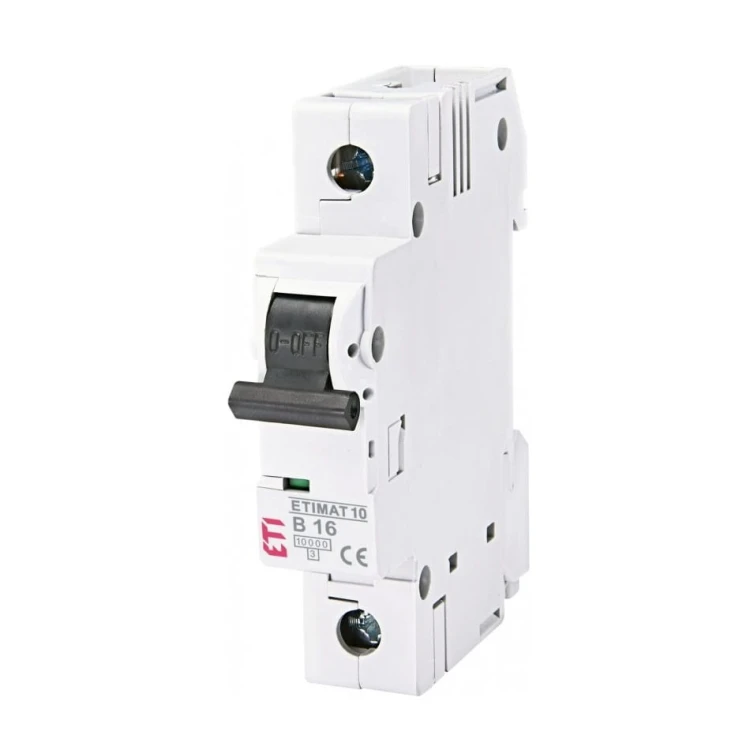

Overcurrent circuit breaker B 16A 1P 10kA ETIMAT10 002121716 ETI
Overcurrent circuit breaker B 16A 1P 10kA ETIMAT10 002121716 by ETI commonly referred to as an overcurrent device, is a key device for protecting electrical installations against the effects of short circuits and overloads.
Its main function is to cut off electricity in emergency situations, ensuring the safety of the entire installation. It is one of the most important components of an electrical installation to protect against damage and potential hazards from electrical overloads.
Overcurrent circuit breaker ETIMAT are used for installations in residential, public and industrial buildings. They allow the additional installation of auxiliary contacts and surge triggers. The lever can be sealed in both the "On" and "Off" positions.
These switches effectively protect against contact with live parts and have a contact position indicator.
Specification
Available Configuration
Technical data
| Trip characteristic | B |
| Circuit breaker type | overcurrent |
| Rated current [A] | 16A |
| Number of poles | 1P |
| Breaking capacity [kA] | 10 kA |
| Brand | ETI |
