Overcurrent circuit breaker B 10A 1P 6kA ETIMAT6 002111514 ETI
product unavailable
add to wish list
Description

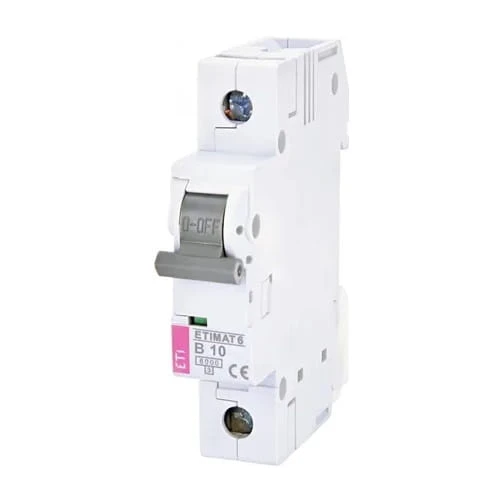

Overcurrent circuit breaker B 10A 1P 6kA ETIMAT6 002111514 ETI
Overcurrent circuit breaker B 10A 1P 6kA ETIMAT6 002111514 by ETI commonly known as an overcurrent device, is a device designed to protect an electrical system from the effects of short circuits and overloads. It is a key component of the electrical system that cuts off the flow of electricity in the event of a fault, ensuring the safety of the entire installation.
Overcurrent circuit breakers ETIMAT are particularly recommended for installations in residential buildings, public facilities and industry. They allow additional installation of auxiliary contacts and rising triggers, and the lever can be secured with a seal in both the "On" and "Off" positions.
These circuit breakers effectively protect against contact with live parts and have a contact position indicator. Mounting on a TH35 rail ensures easy replacement of the switches, which simplifies maintenance and installation upgrades.
Specification
Available Configuration
Technical data
| Trip characteristic | B |
| Circuit breaker type | overcurrent |
| Rated current [A] | 10A |
| Number of poles | 1P |
| Breaking capacity [kA] | 6 kA |
| Brand | ETI |
