Mounting kit for U/L profile L=5000 mm, glass 12-13.52 mm GlassMove
Description
KOZA Glassmove – Mounting Kit for U/L Profile 5000 mm, Glass 12–13.52 mm
The KOZA Glassmove® mounting kit is a complete solution for the professional installation of glass panels with a thickness of 12 to 13.52 mm in 5-metre aluminium profiles of the U/L type. The system ensures a stable glass position at 90°, eliminating the need for additional corrective components. Thanks to its intuitive design, installation is fast and repeatable — the ideal solution for teams working on glass balustrades, partition walls, and full-glass enclosures.
The Glassmove® system by KOZA Railing Systems stands out thanks to its thoughtfully engineered plastic components, which stabilise the glass panel within the profile and compensate for dimensional tolerances. The A and B markings embossed on the plastic clips facilitate correct installation — even a less experienced installer can quickly identify the proper orientation of each component. The use of two dedicated rubber gaskets (front and rear) ensures a tight seal and vibration damping, contributing to the durability and quiet operation of the entire glazed structure.

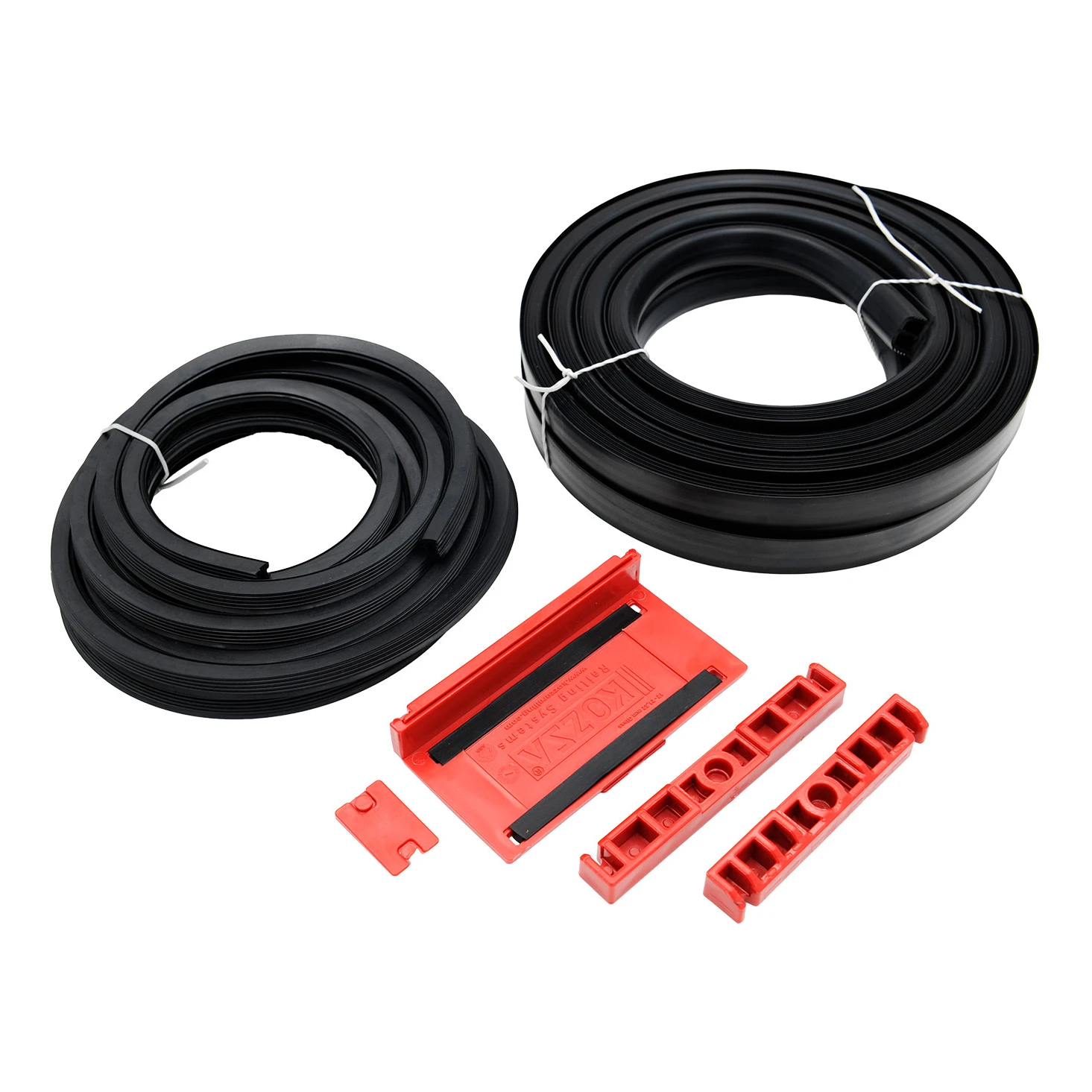

Kit Contents
The kit contains everything required to install a glass panel in an aluminium profile of 5 metres in length:

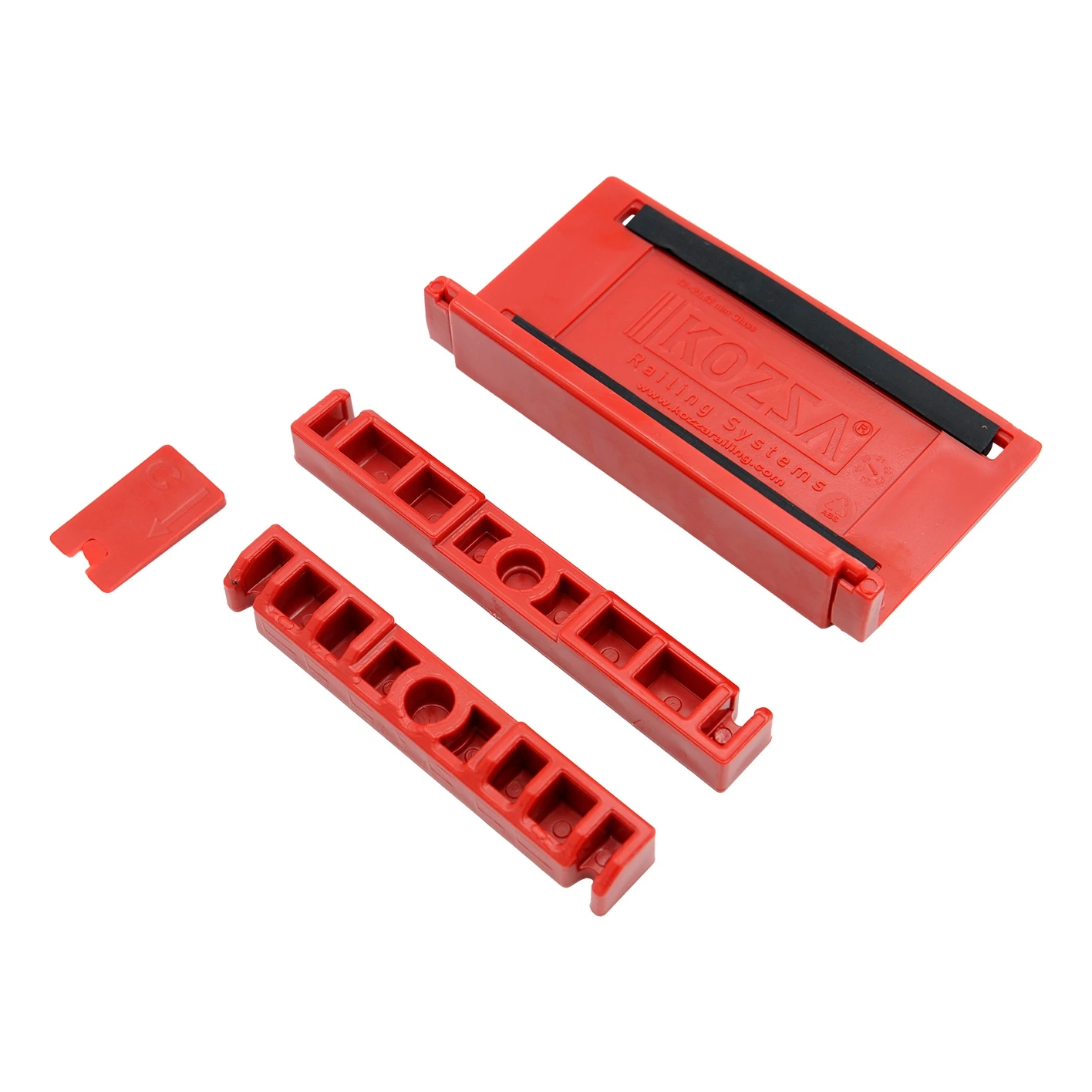

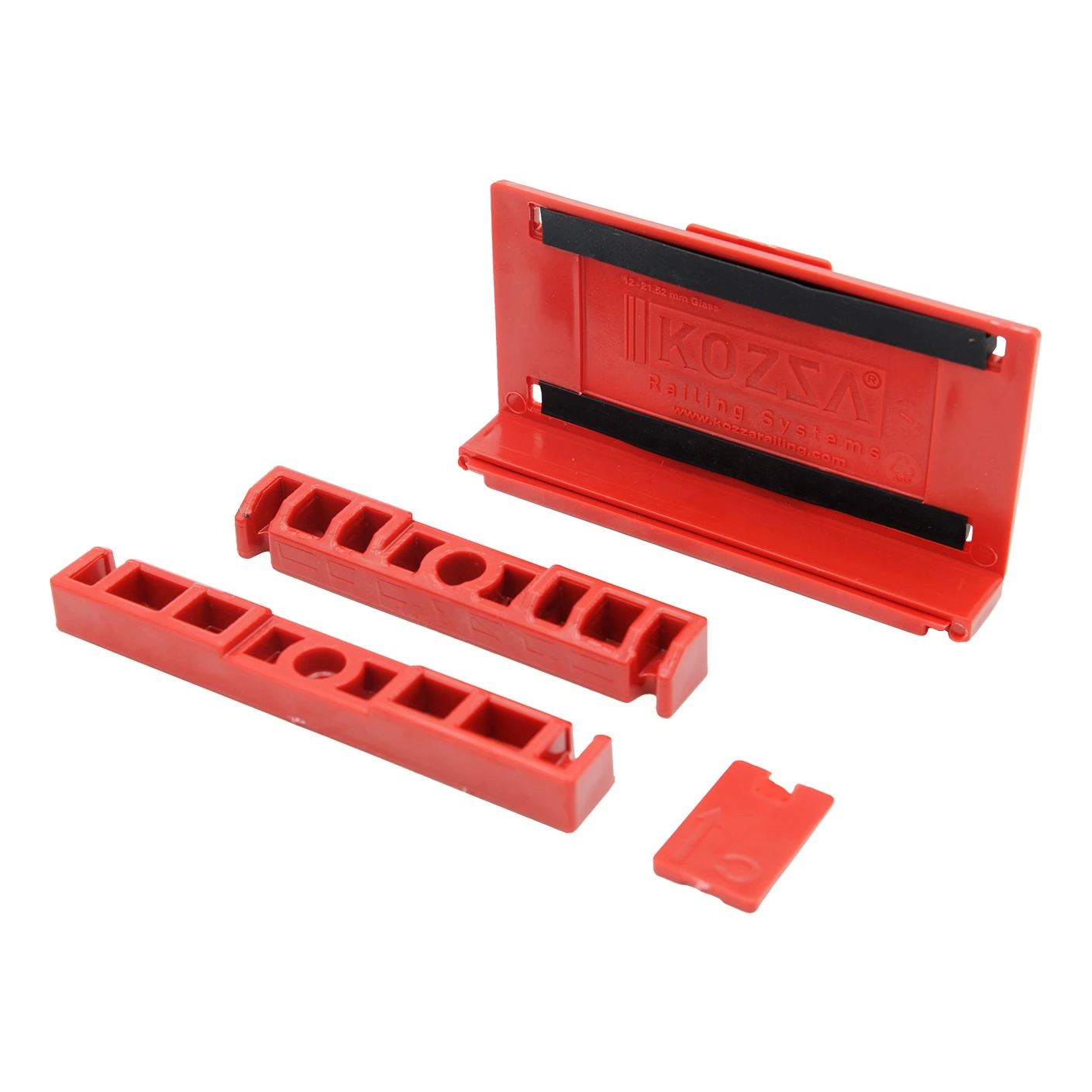

- Glassmove plastic mounting components — 15 complete sets (main body with A/B markings, two side strips and a securing clip)
- Front rubber gasket — 1 pc × 5.00 m
- Rear rubber gasket — 1 pc × 5.00 m
Each complete plastic mounting component consists of several parts which, when assembled, form a stable module securing the glass panel inside the profile. The fixing system allows for side and top mounting, providing full flexibility across different balustrade and glass enclosure configurations.

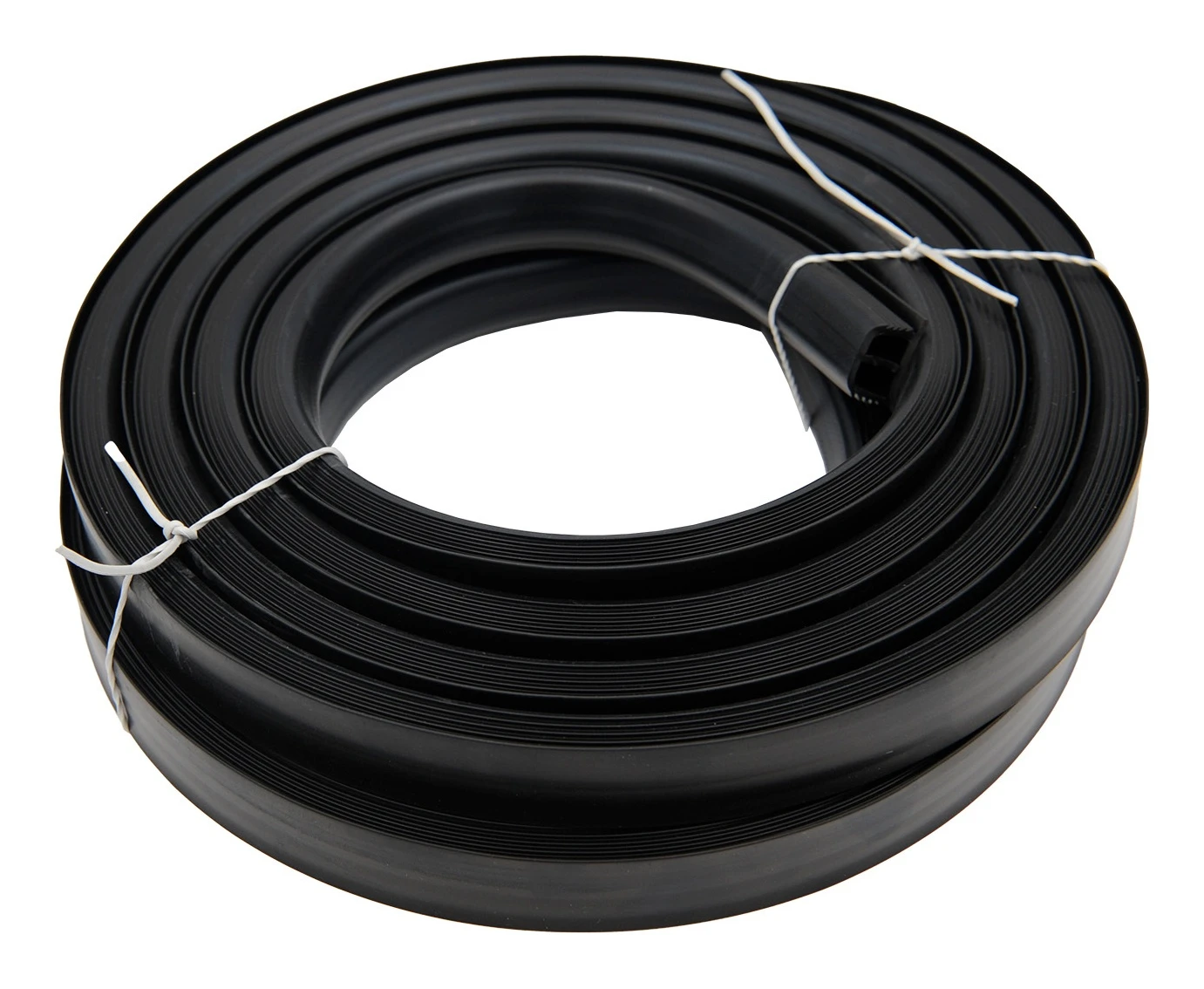

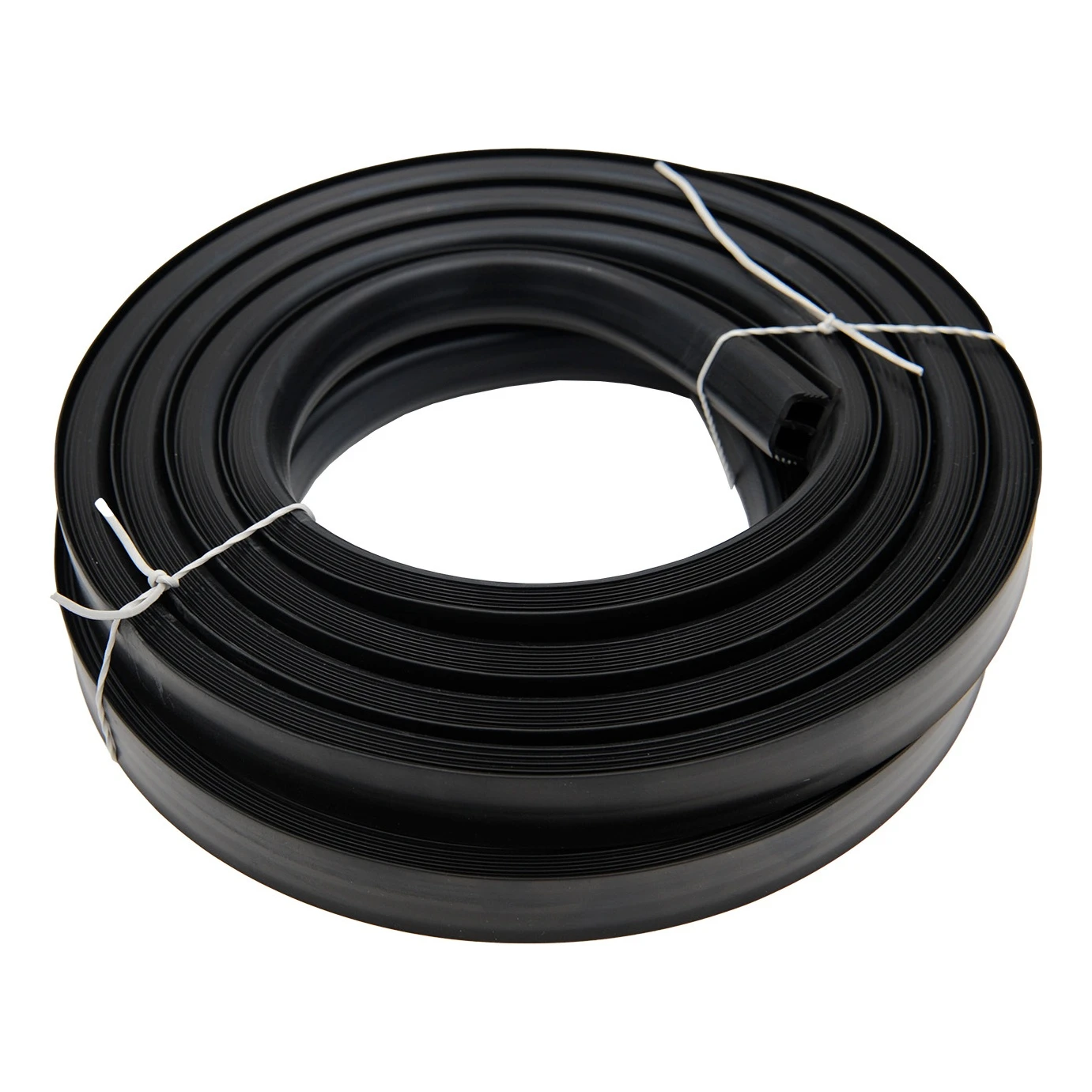

Rubber Gaskets
The kit includes two rubber gaskets in black, each 5 metres in length. The front and rear gaskets feature different cross-sectional profiles, matched to the geometry of the U/L aluminium profile. The flexible material ensures a tight fit against the glass panel across the thickness range of 12–13.52 mm, while simultaneously compensating for minor dimensional deviations. The gaskets absorb vibrations and eliminate direct metal-to-glass contact, protecting the panel edges from damage.
Technical Specifications
- Manufacturer: KOZA Railing Systems
- System: Glassmove®
- Profile type: U/L
- Supported glass thickness: 12–13.52 mm
- Profile length covered by kit: 5000 mm (5 m)
- Glass stabilisation angle: 90° (±1°)
- Fixing type: side and top
- Variant: KE
- Number of mounting sets: 15
- Gasket length: 2 × 5.00 m (front + rear)
- Mounting component material: plastic (ABS)
- Gasket material: rubber — black
- Packaging dimension (L): 330 mm
- Kit weight: 3.96 kg
- Packaging volume: 12,919.5 cm³
- EAN: 5903313202589
Mounting Component Details

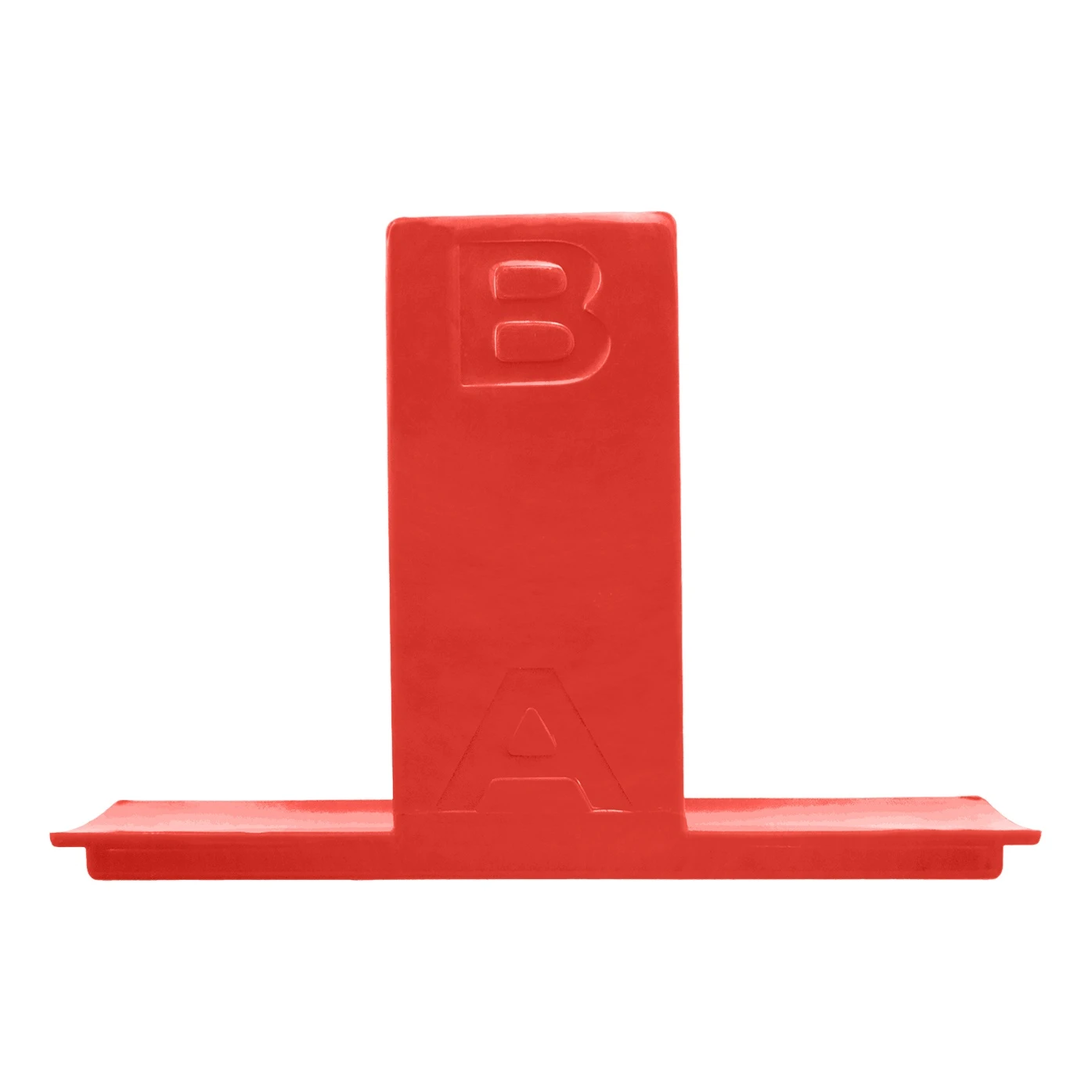

The A and B markings embossed on the mounting component body allow for quick identification of the correct orientation during installation. The side strips with multiple mounting holes enable adjustment to various profile configurations, while the small securing clip locks the entire assembly in the optimum position. The ABS plastic components are resistant to deformation and provide a durable fixing throughout the entire service life of the balustrade.
Why Choose Glassmove®?
- Fast installation — the intuitive clip system reduces the time needed to fit the glass panel in the profile
- Precise 90° stabilisation — glass set perfectly vertical without the need for manual adjustment
- Complete kit — all components for a 5 m profile in a single package, with no need to order additional accessories
- Versatility — compatible with glass thicknesses from 12 to 13.52 mm (toughened glass, laminated VSG)
- Dual gasket — front and rear rubber gaskets provide full protection of the glass edges and a secure, sealed installation
Technical data
| Accessory Type | Mounting Kit |
| Material | Plastic |
| Glass Thickness [mm] | 12-13,52 |
| Mounting System | Flat |
