Mounting kit for U/L profile L=5000 glass 16-17.52 mm Standard
Description
Mounting Kit for Aluminium U/L Profile 5000 mm – Glass 16–17.52 mm
Mounting kit for aluminium U/L profiles designed for glass panes with a thickness of 16 to 17.52 mm. It enables fast and precise installation of glass panels in 5-metre aluminium profiles with side and top fixing, providing stabilisation at 90°. The complete kit includes all necessary components — rubber gaskets and plastic mounting elements — allowing installation along the full length of the profile without the need to order additional accessories.

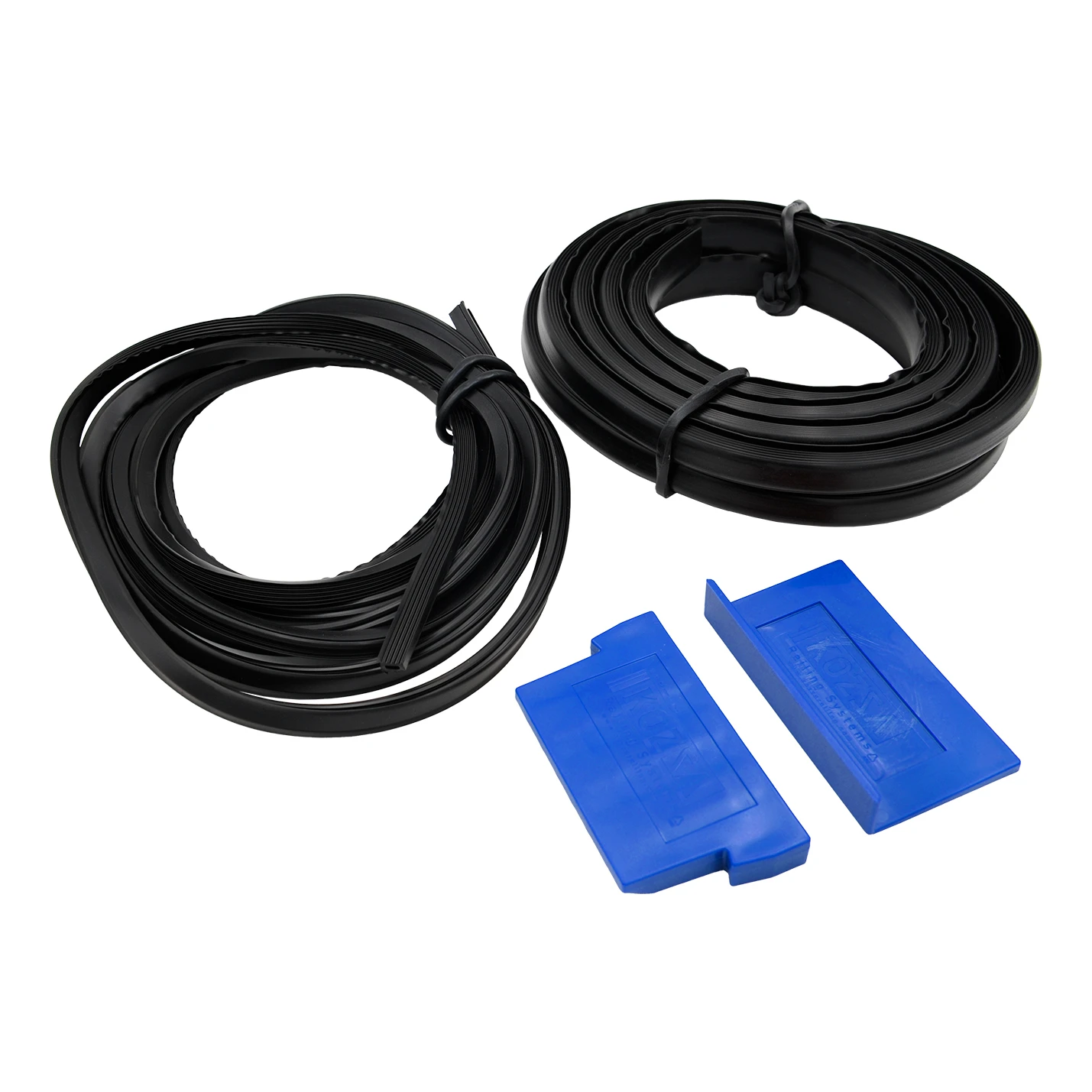

Kit contents
- Front rubber gasket: 1 pc × 5000 mm
- Rear rubber gasket: 1 pc × 5000 mm
- Plastic mounting components: 15 sets

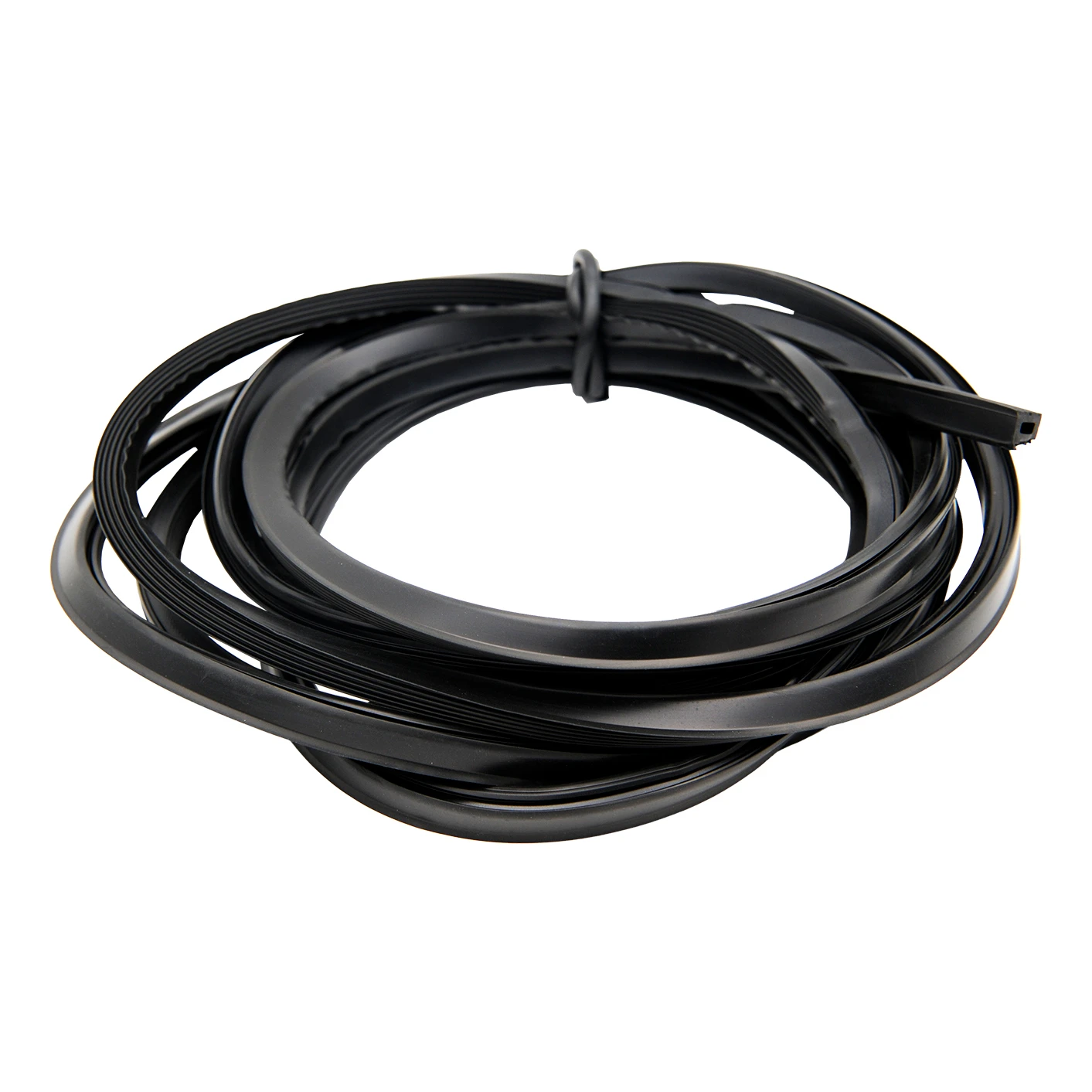

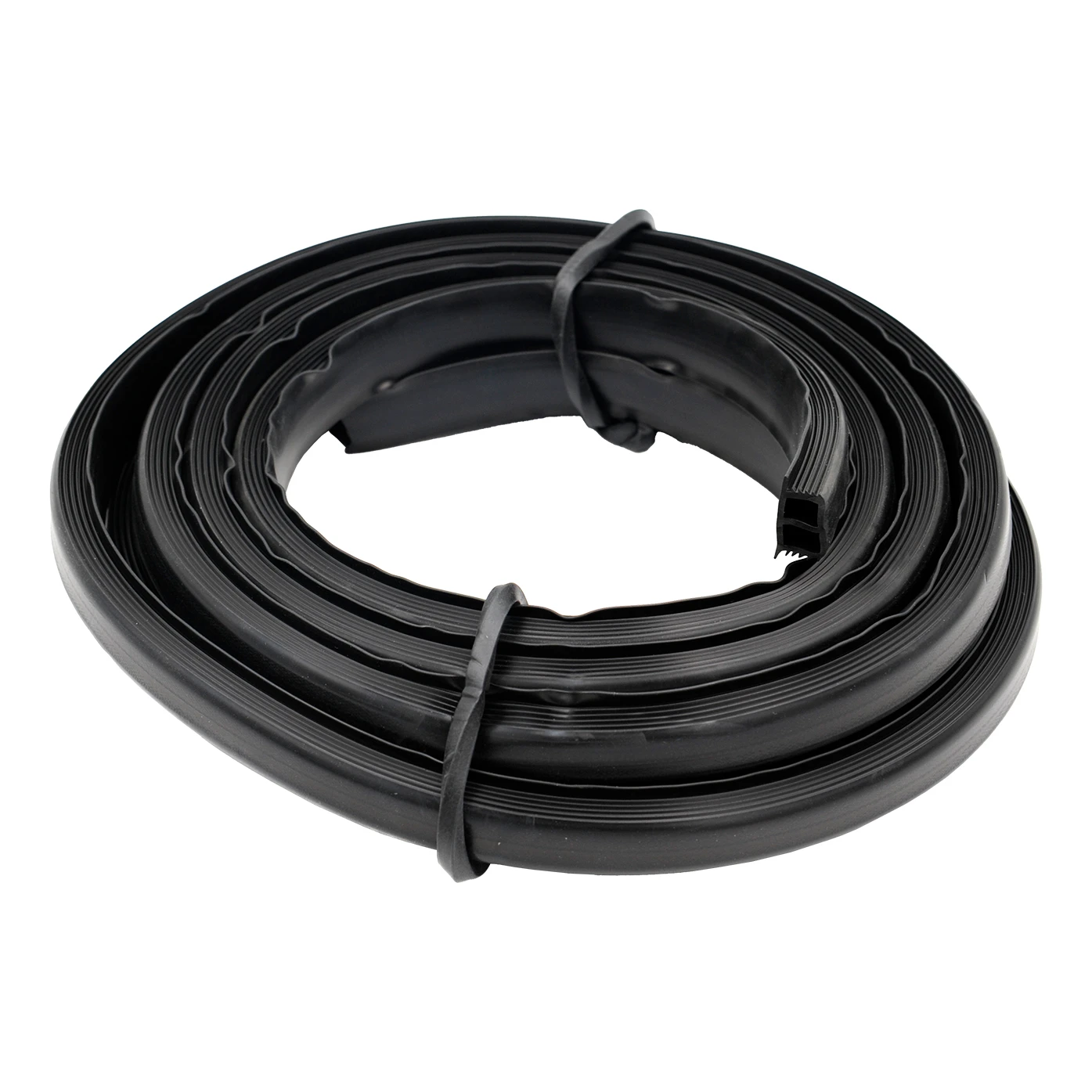

Rubber gaskets
The kit includes two types of black rubber gaskets, each 5000 mm in length. The front and rear gaskets differ in cross-sectional profile — the wider one provides clamping force and cushioning for the glass pane against the profile, while the narrower one stabilises the pane from the outer side. Both gaskets effectively eliminate vibrations and compensate for dimensional tolerances in the glass.

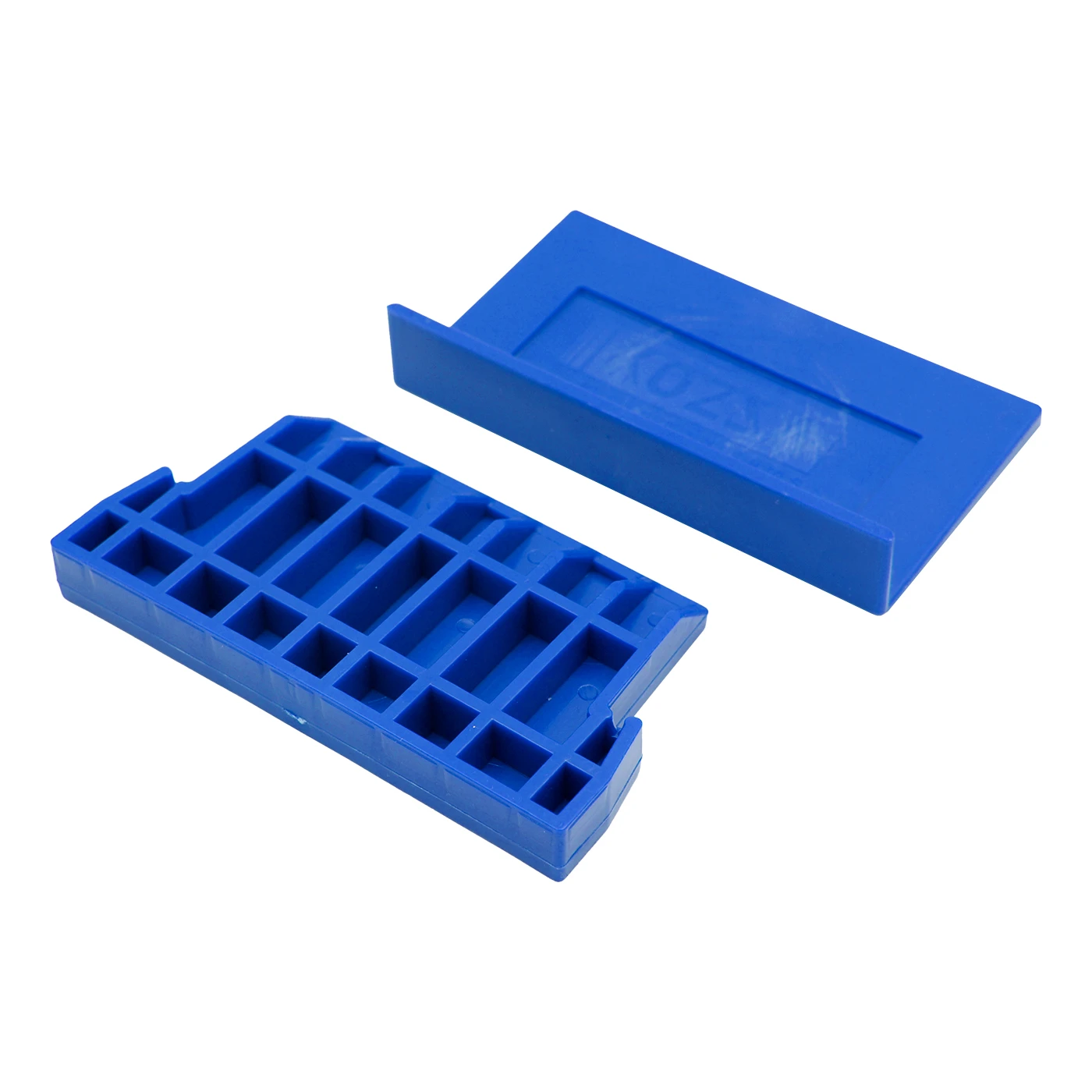

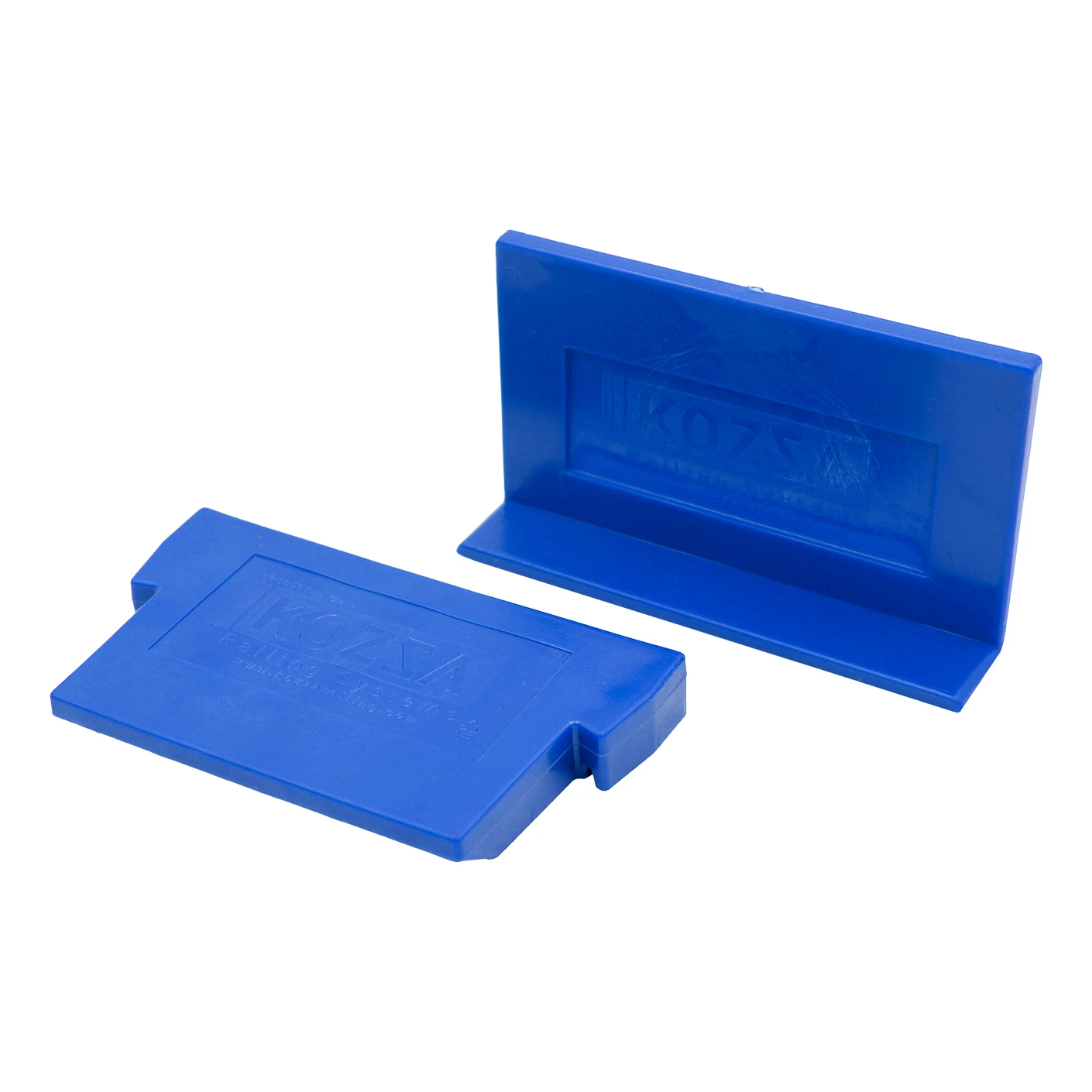

Plastic mounting components
The blue plastic mounting components serve as spacer blocks and stabilisers for the glass pane inside the aluminium profile. Their L-shaped design allows secure positioning of the glass pane for both side and top fixing. The kit contains 15 sets, enabling even distribution along the full length of the 5-metre profile.
Technical specifications
- Profile type: U/L
- Glass thickness: 16–17.52 mm
- Profile length: 5000 mm
- Glass fixing angle: 90°
- Fixing type: side and top
- Gasket material: rubber, black
- Mounting component material: plastic, blue
- Kit weight: 3.6 kg
- Packaging volume: 12,919.5 cm³
- Series: KE
- EAN: 5903313202626
Benefits for the installer
- Complete kit — all components required for installation included in a single package
- Fast installation — spacer elements and gaskets pre-matched to 5 m profiles, with no cutting or adjustment required
- Versatility — compatibility with glass thicknesses from 16 to 17.52 mm makes the kit suitable for a wide range of toughened and laminated glass
- 90° stabilisation — secure positioning of the glass pane for both side and top fixing
Technical data
| Accessory Type | Mounting Kit |
| Material | Plastic |
| Glass Thickness [mm] | 16-17,52 |
| Mounting System | Flat |
