Mounting kit for U/L profile L=2500 mm, glass 20-21.52 mm GlassMove
Leave feedback on the product
Complete installation kit for 20–21.52 mm glass in U/L profile 2500 mm. Includes 8 complete sets of mounting elements and two rubber gaskets 2500 mm. Angle adjustment ±1°.
Product code: 000-377
Product features
[PIM] balustrady-caloszklane #128
- Accessory Type Mounting Kit
- Material Plastic
- Glass Thickness [mm] 20-21,52
- Mounting System Flat
Description
GlassMove – Mounting Kit for U/L Profile 2500 mm, Glass 20–21.52 mm
The GlassMove mounting kit is a complete set of components designed for installing glass panels with a thickness of 20 to 21.52 mm in 2.5-metre aluminium U/L profiles. The system allows for both side and top fixing, providing great flexibility across a variety of glass balustrade configurations. With the ability to adjust the glass seating angle by ±1°, you can achieve precise panel alignment and a perfect level finish even on uneven surfaces.
The installation process is quick and intuitive — stabilising the glass at 90° ensures it is correctly and securely seated within the profile. This is an ideal solution for installation teams carrying out glass balustrade projects in residential, commercial, and public buildings.

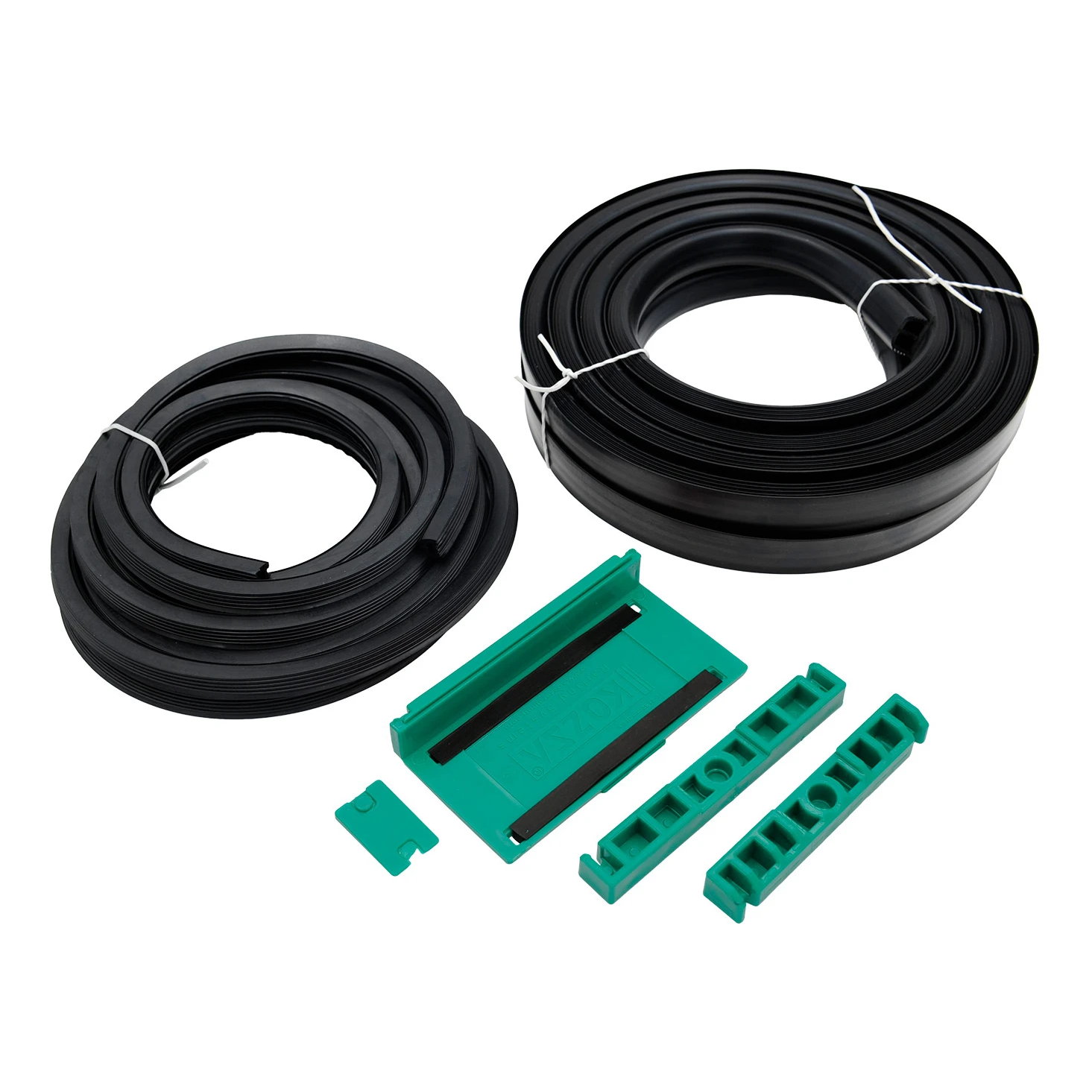

Kit Contents
- Plastic mounting components: 8 sets
- Front rubber gasket: 1 pc × 2500 mm
- Rear rubber gasket: 1 pc × 2500 mm
Rubber Gaskets

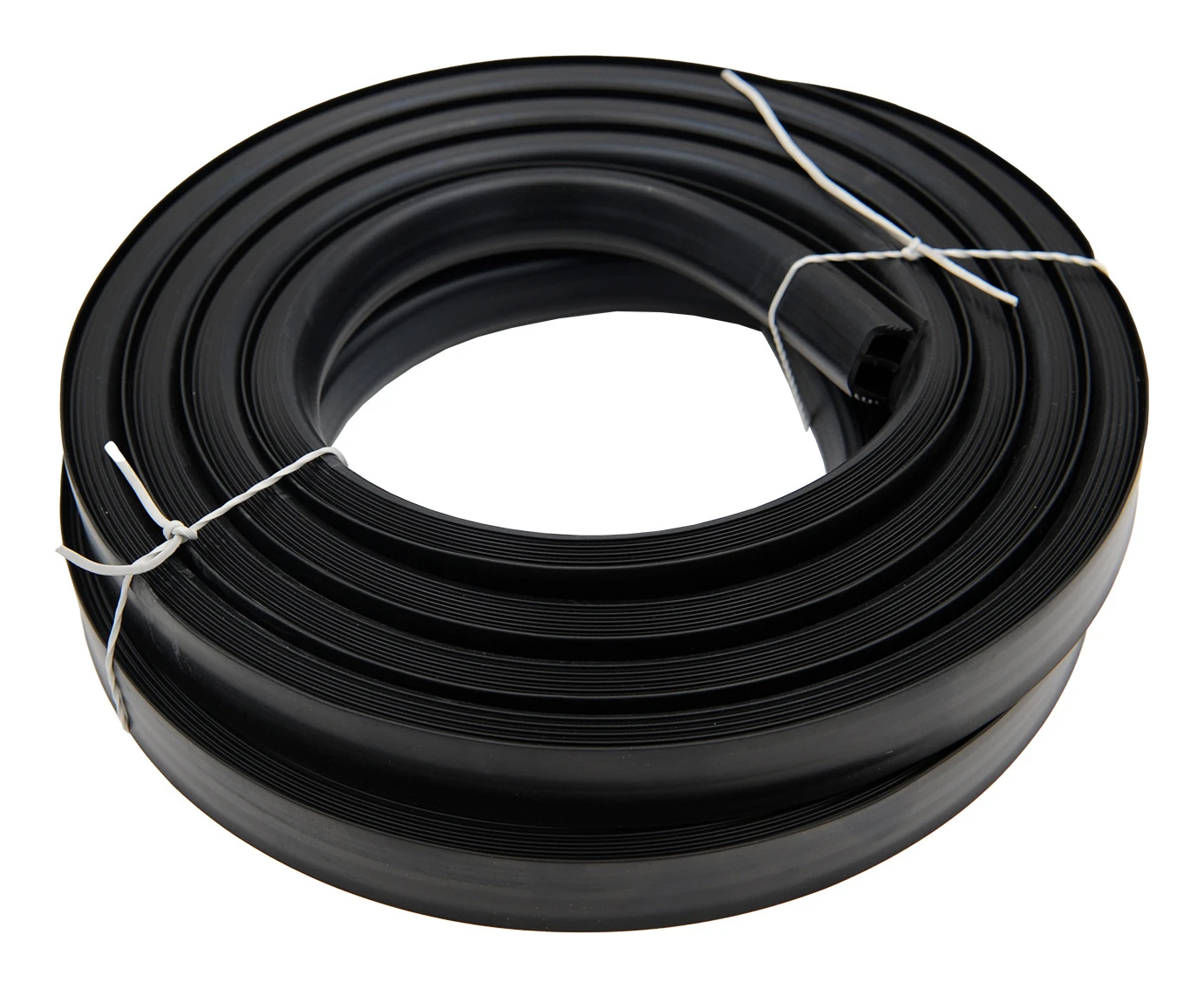

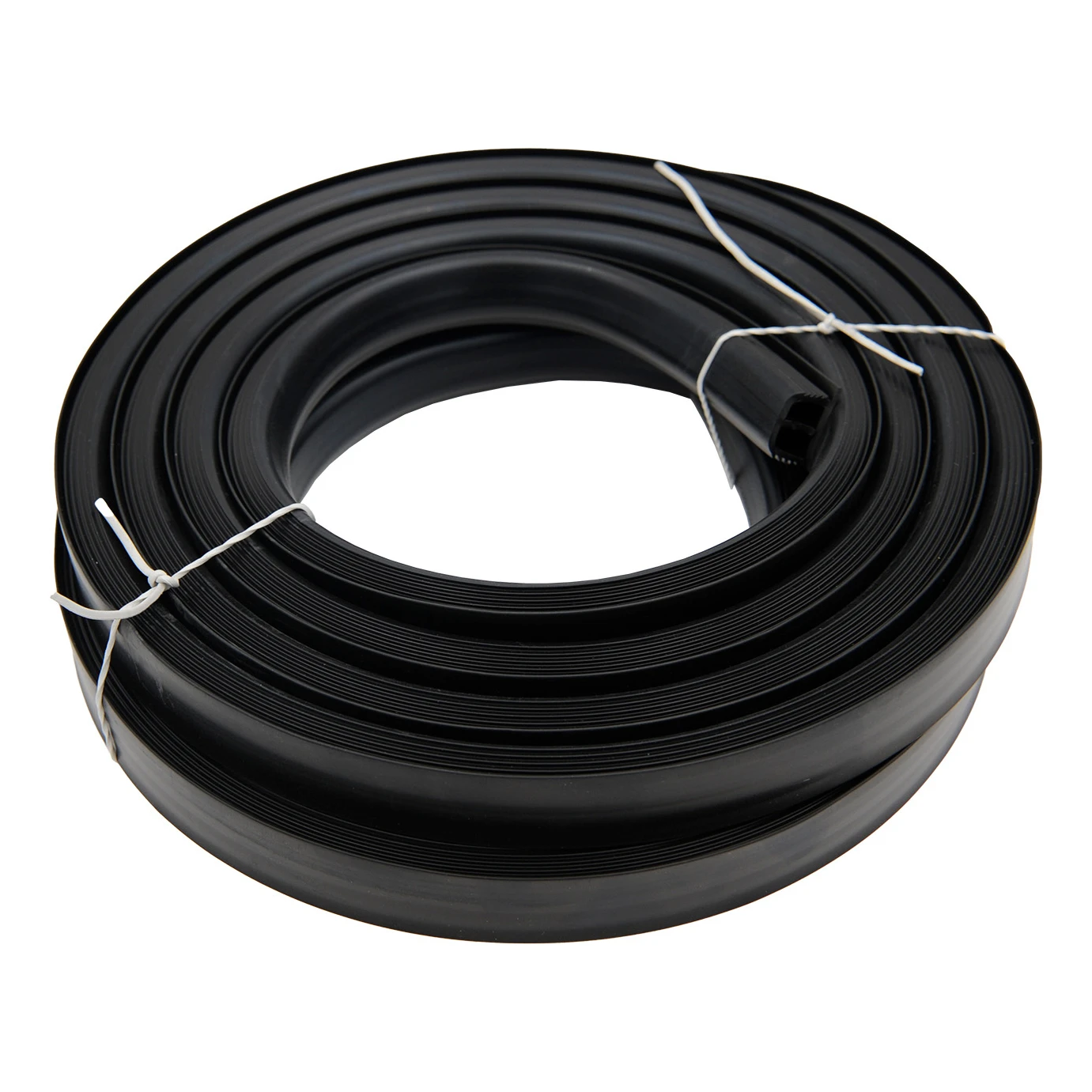

The kit includes two black rubber gaskets, each 2.5 m in length — one fitted to the front and one to the rear of the glass panel. The gaskets provide stable, even pressure along the full length of the profile, eliminating vibration and protecting the glass edge from direct contact with the aluminium.
Plastic Mounting Components

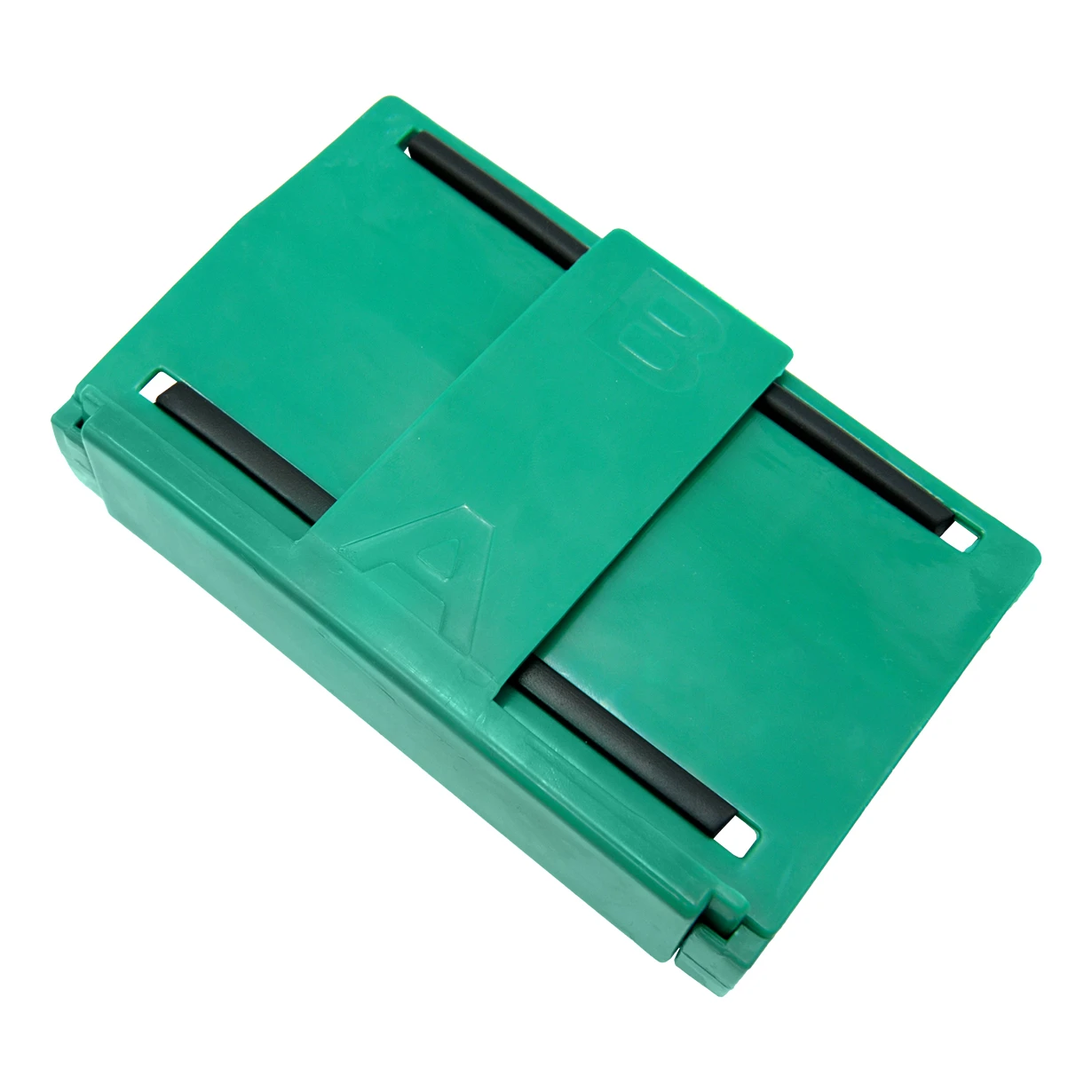

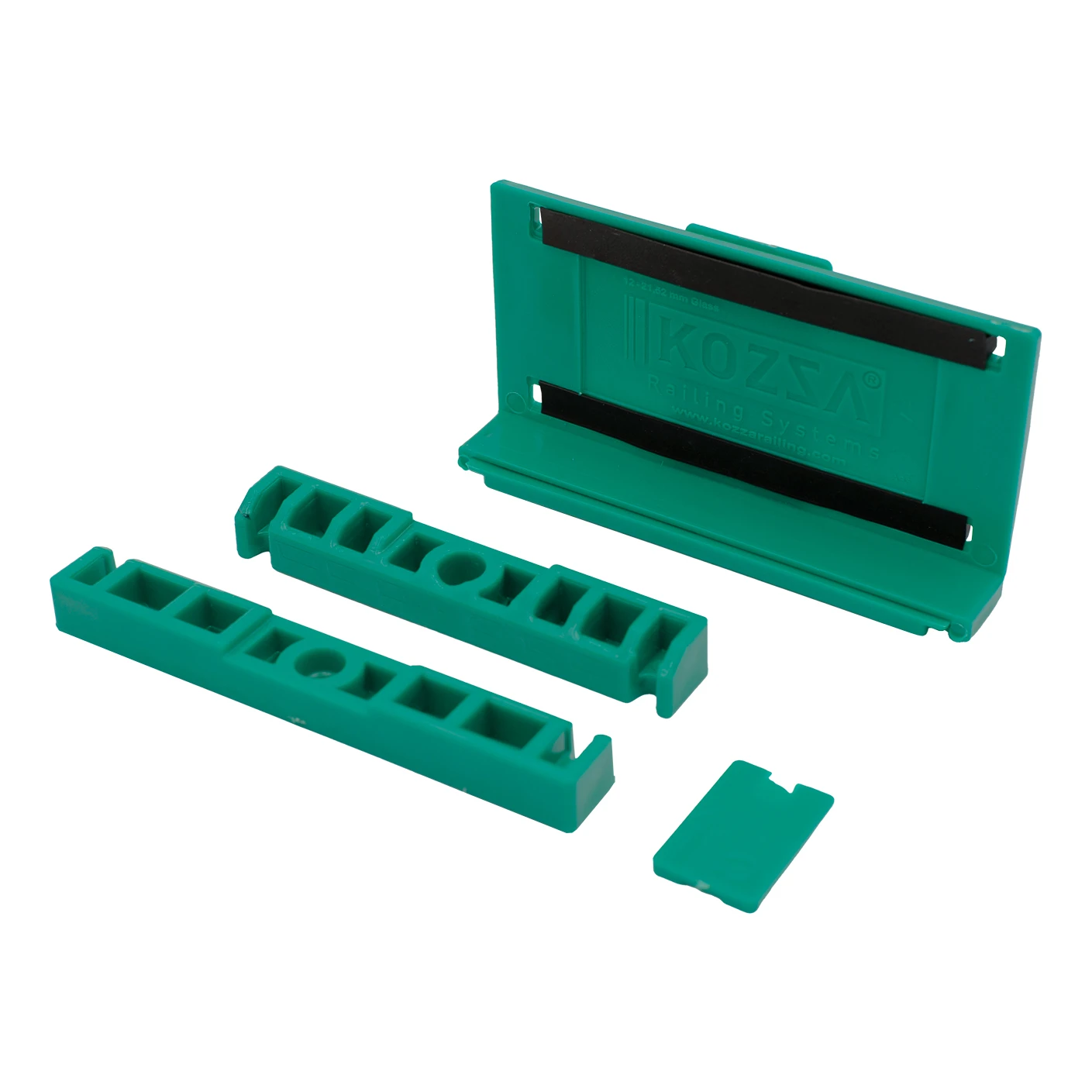

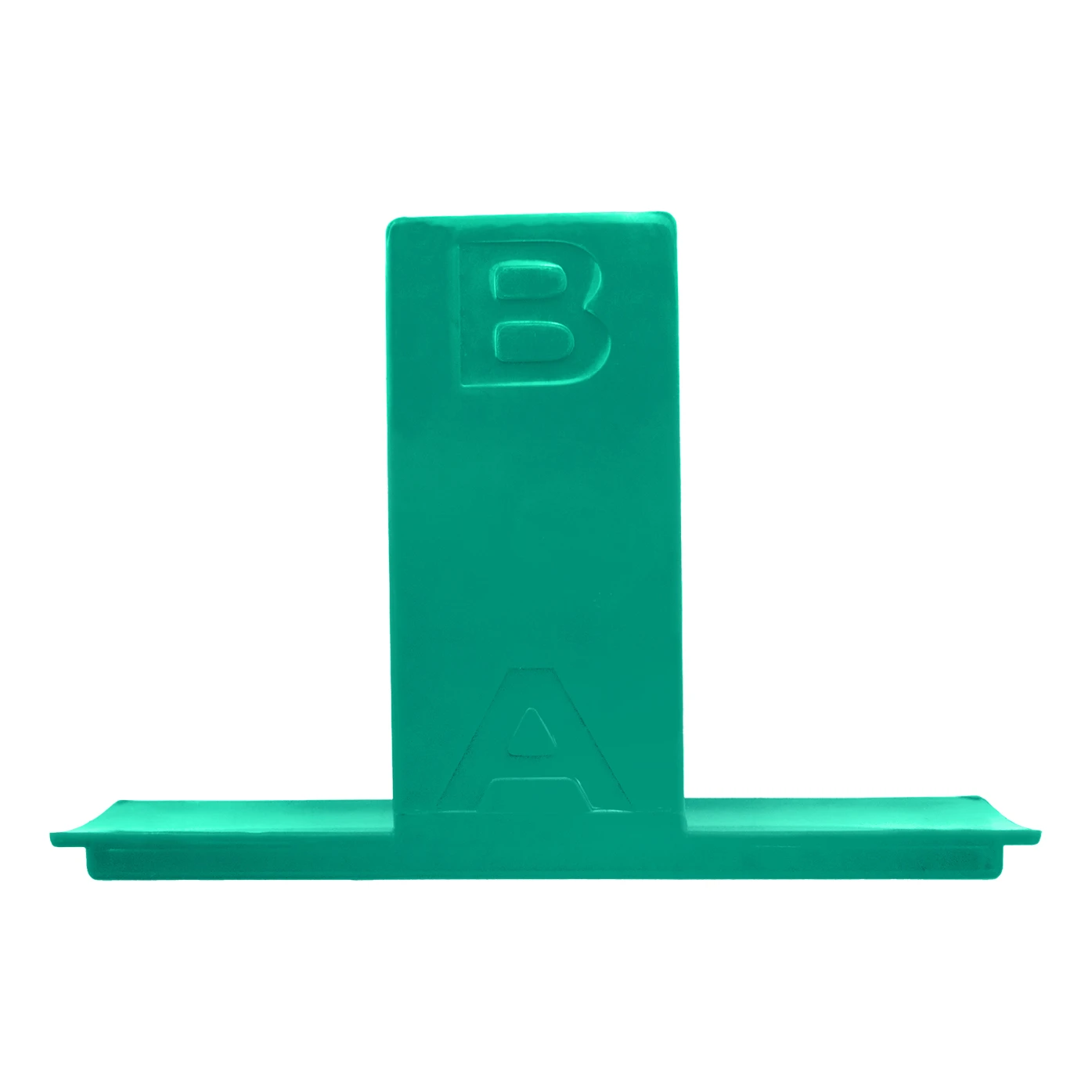

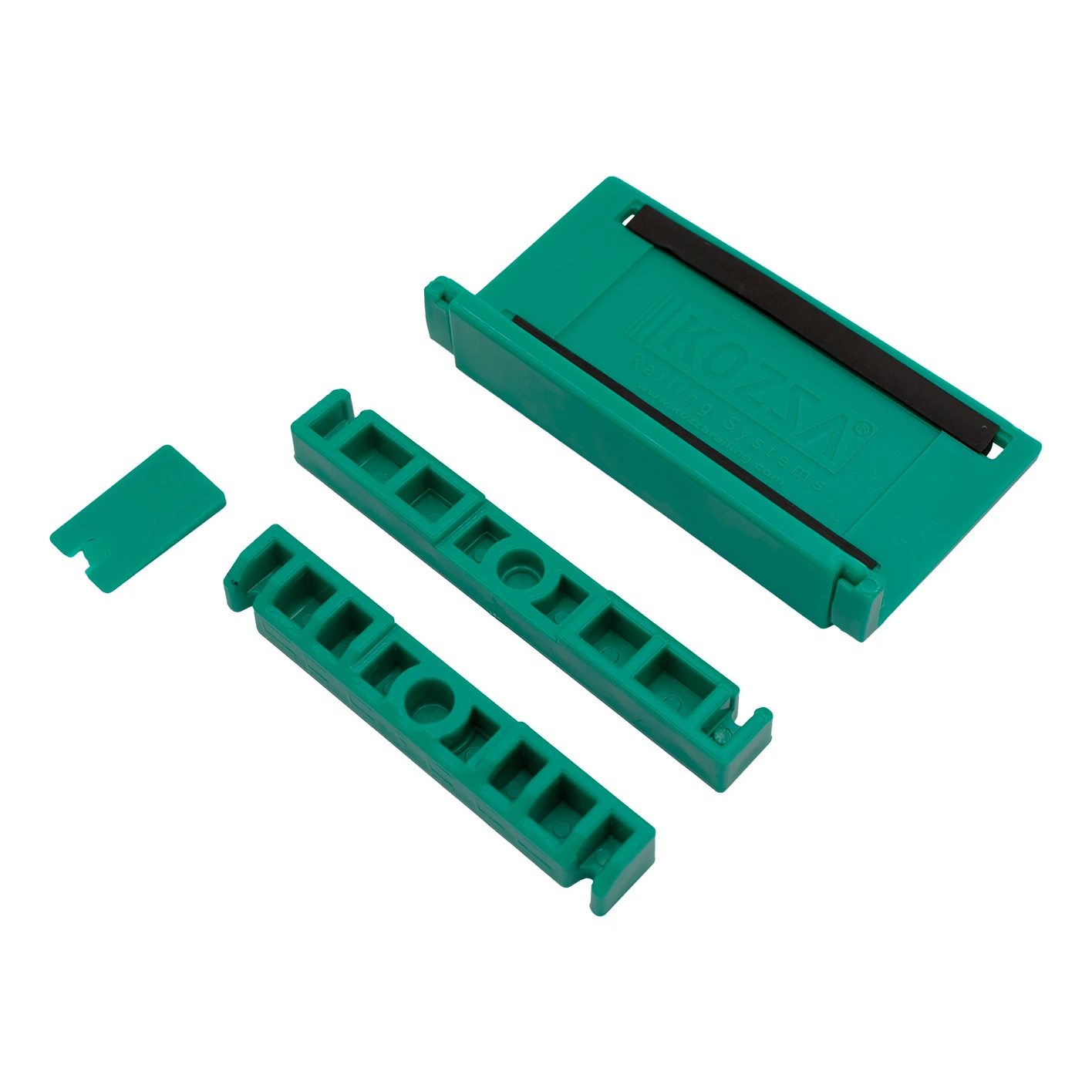

The kit contains 8 sets of dedicated mounting components made from durable plastic. Each set consists of a main stabilising block with a rubber gasket, two side guides, and an end cap. Components marked with letters A and B make correct assembly straightforward — simply match the corresponding parts according to the markings, which significantly speeds up work on site.
Technical Specifications
- System: GlassMove
- Profile type: U/L
- Profile length: 2500 mm
- Glass thickness: 20–21.52 mm
- Seating angle adjustment: ±1°
- Fixing method: side and top
- Kit weight: 3.14 kg
- Packaging volume: 12,919.5 cm³
- Gasket colour: black
- Mounting component colour: green
