Mounting kit for U/L profile, L=2500 mm, glass 12-13.52 mm GlassMove
Leave feedback on the product
Mounting kit for aluminium profiles U/L 2500 mm, designed for glass 12–13.52 mm. Stabilisation at 90° with ±1° adjustment. Includes 8 complete sets of plastic components and 2 rubber seals 2500 mm.
Product code: 000-381
Product features
[PIM] balustrady-caloszklane #128
- Accessory Type Mounting Kit
- Material Plastic
- Glass Thickness [mm] 12-13,52
- Mounting System Flat
Description
GlassMove – Mounting Kit for U/L Profiles 2500 mm, Glass 12–13.52 mm
The GlassMove mounting kit for aluminium U/L profiles with a length of 2500 mm — a complete solution enabling fast and precise installation of glass panels with thicknesses from 12 to 13.52 mm. The system provides solid stabilisation of the glass panel at 90°, and thanks to an adjustment range of ±1°, it allows for perfect vertical correction. This ready-to-use kit eliminates the need to source components from multiple suppliers — everything you need to install a glass panel along the full length of the profile is included in a single package.
Key system advantages
- Glass stabilisation at 90° with ±1° adjustment capability
- Compatible with glass thicknesses from 12 to 13.52 mm — supports both single-pane and laminated (bonded) panels
- Designed for aluminium U/L profiles with a length of 2500 mm
- Side and top mounting — versatile application
- Efficient, hassle-free installation without the need for additional components
Technical Specification
- System: GlassMove
- Profile type: U/L
- Profile length: 2500 mm
- Glass thickness: 12–13.52 mm
- Glass mounting angle: 90° (adjustment ±1°)
- Fixing method: side and top
- Version: KE
- Kit weight: 2.05 kg
- Packaging volume: 12,919.5 cm³
Kit Contents
The kit includes all components required for the correct installation of a glass panel along the full length of a 2500 mm profile.
Plastic Mounting Components

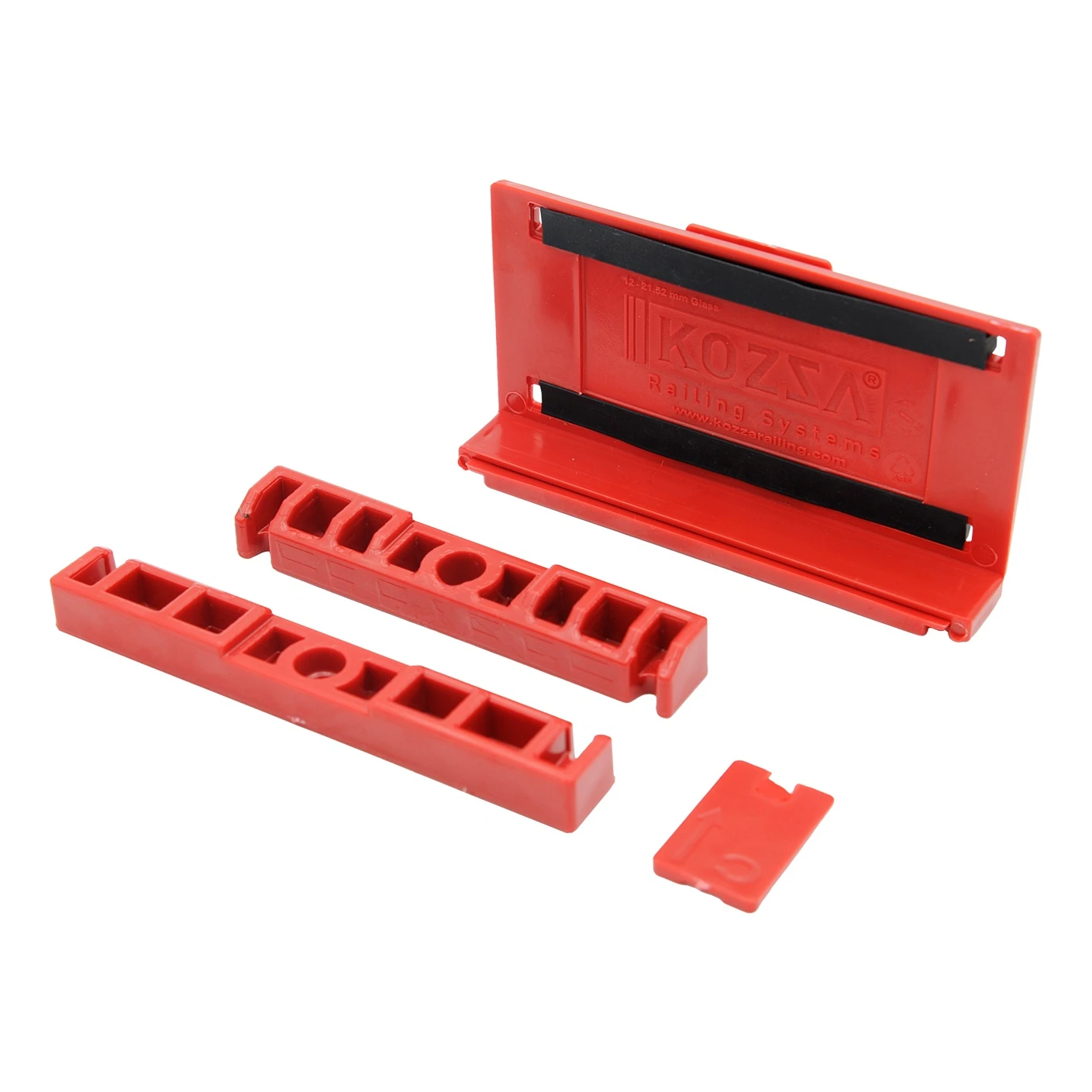

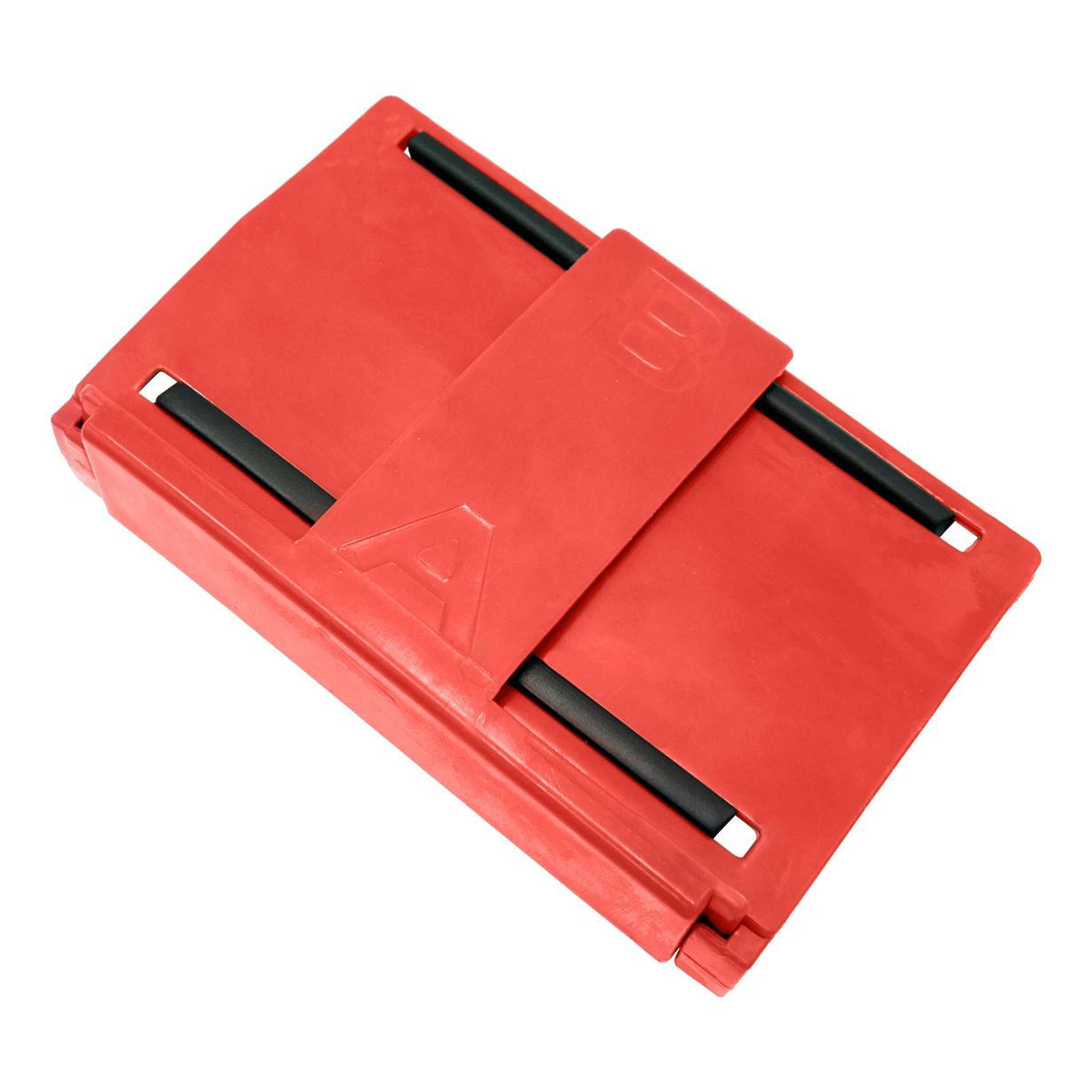

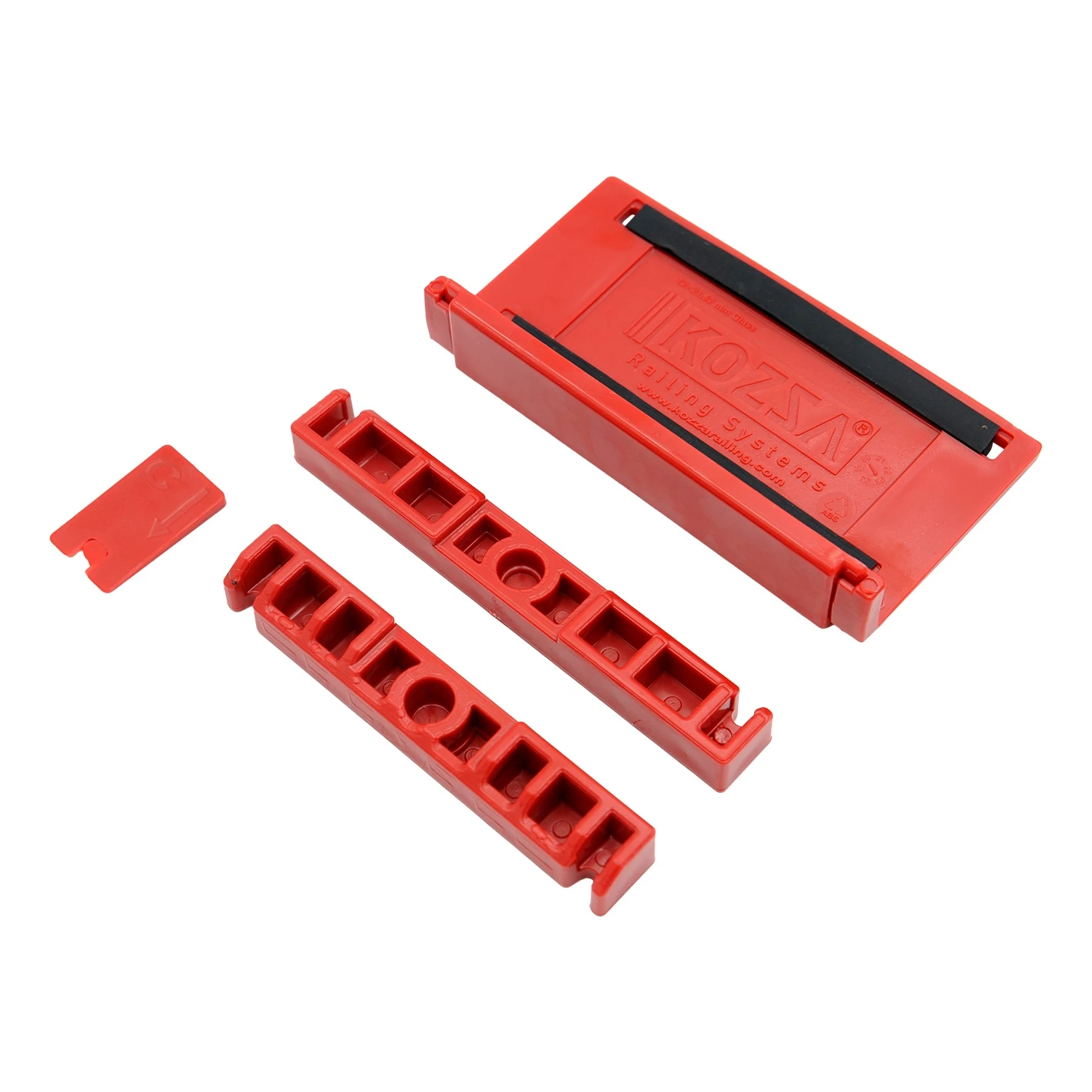

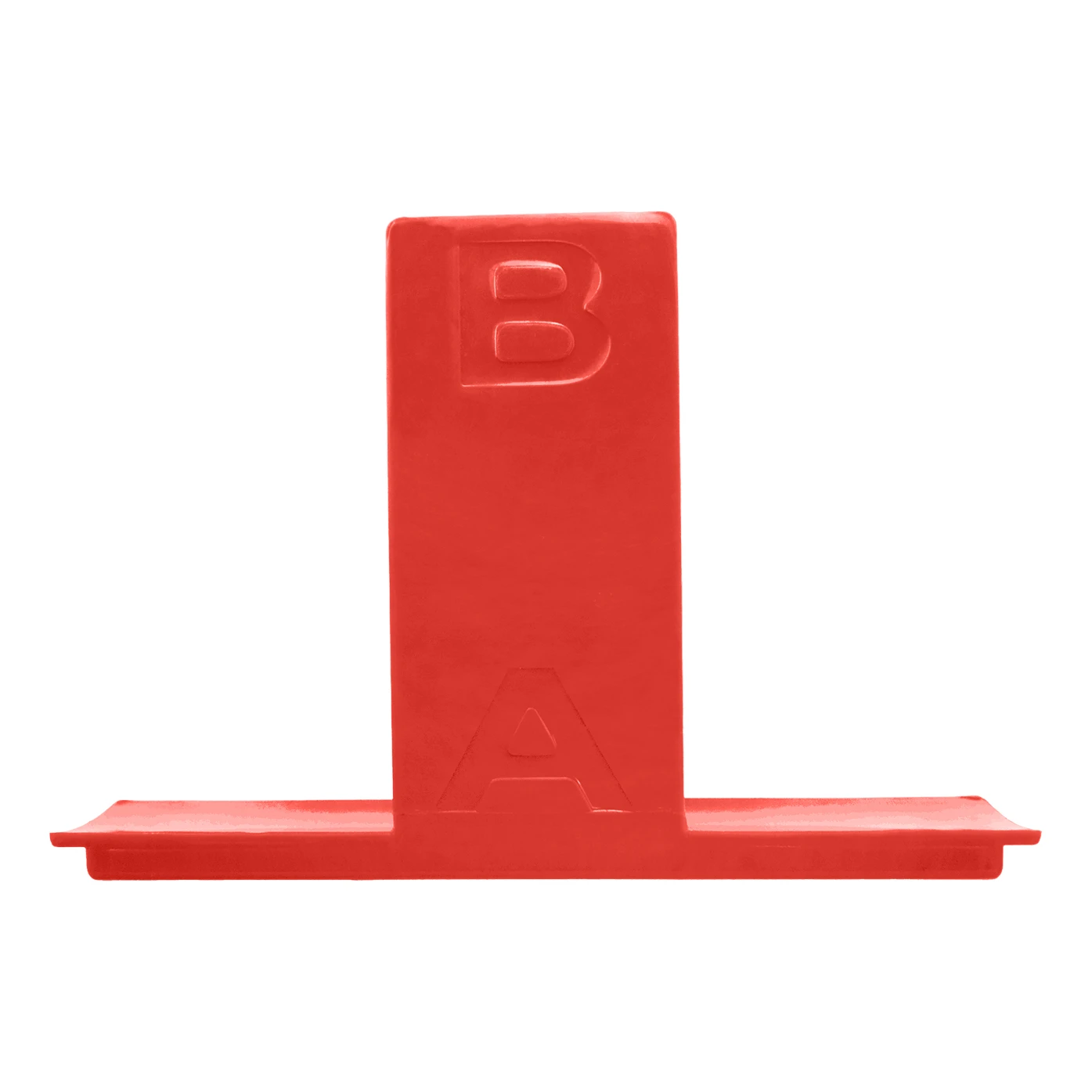

The kit contains 8 complete sets of plastic mounting components. Each set consists of several matched parts — a main fixing block with a rubber insert, two spacer strips, and an end cap. Components labelled A and B facilitate correct orientation during installation. The fixing block features a hinged opening design, allowing convenient glass seating and precise clamping via the rubber inserts.
Rubber Seals

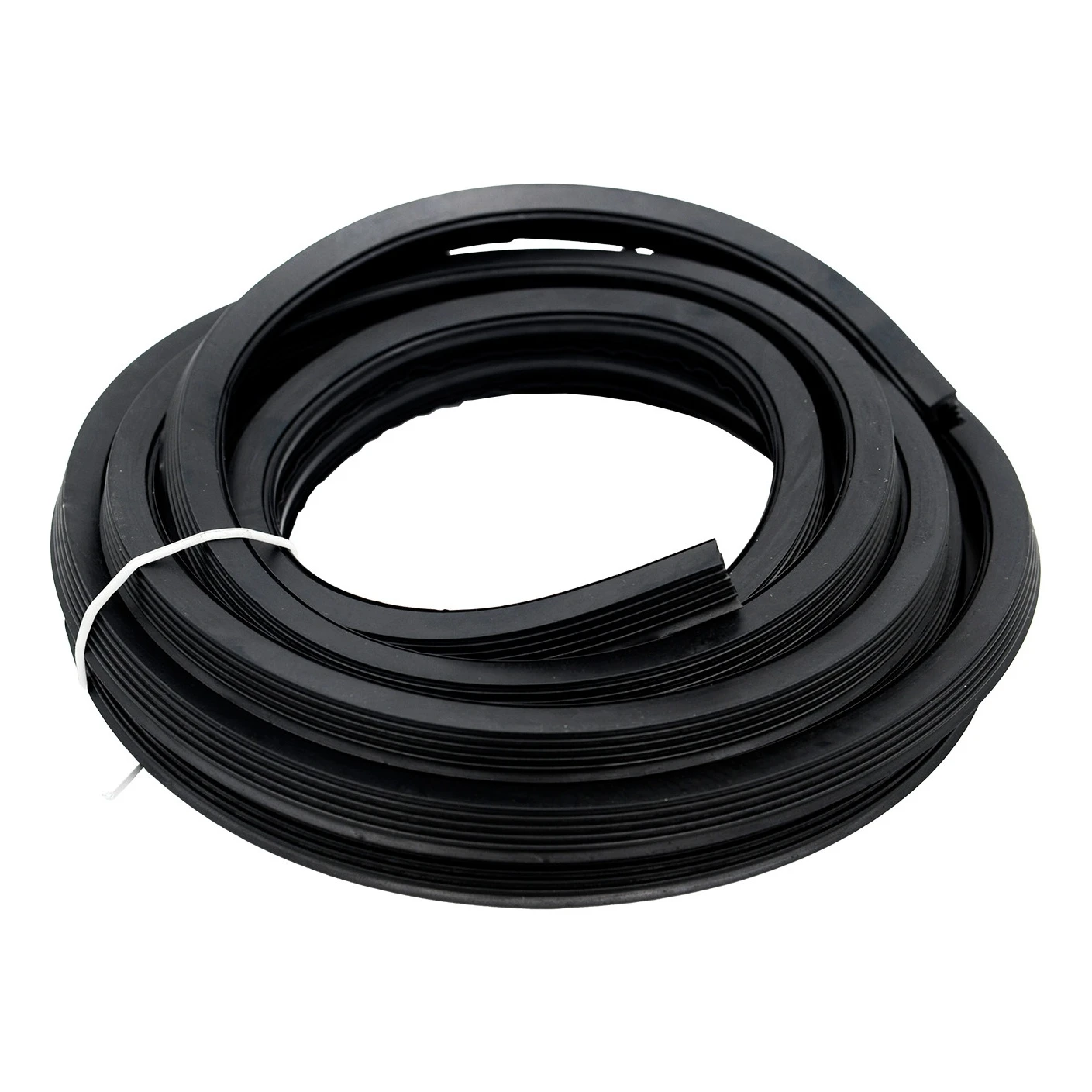

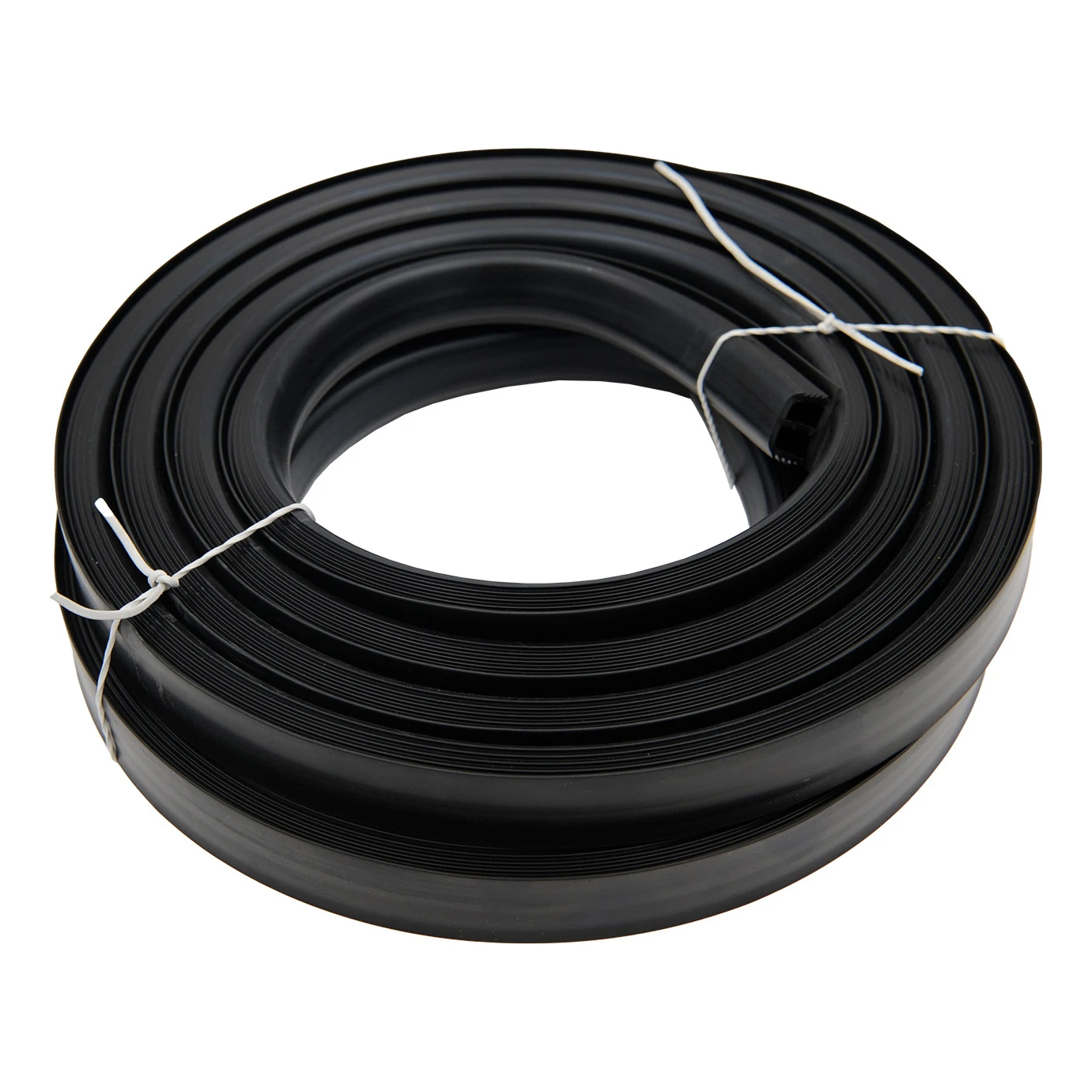

The kit includes 2 rubber seals, each 2500 mm in length — designed for installation at the front and rear of the glass panel. The seals provide comprehensive protection of the glass edges, absorb vibrations, and eliminate direct contact between the glass and the aluminium profile. Made from flexible material, they conform precisely to the profile shape and ensure stable, play-free seating of the glass panel along its entire length.
By using two independent seals — front and rear — the glass is protected on both sides, contributing to the durability of the installation and the aesthetic appearance of the finished balustrade. The flexible seals also compensate for minor profile irregularities, greatly simplifying installation and ensuring even clamping pressure along the entire length.

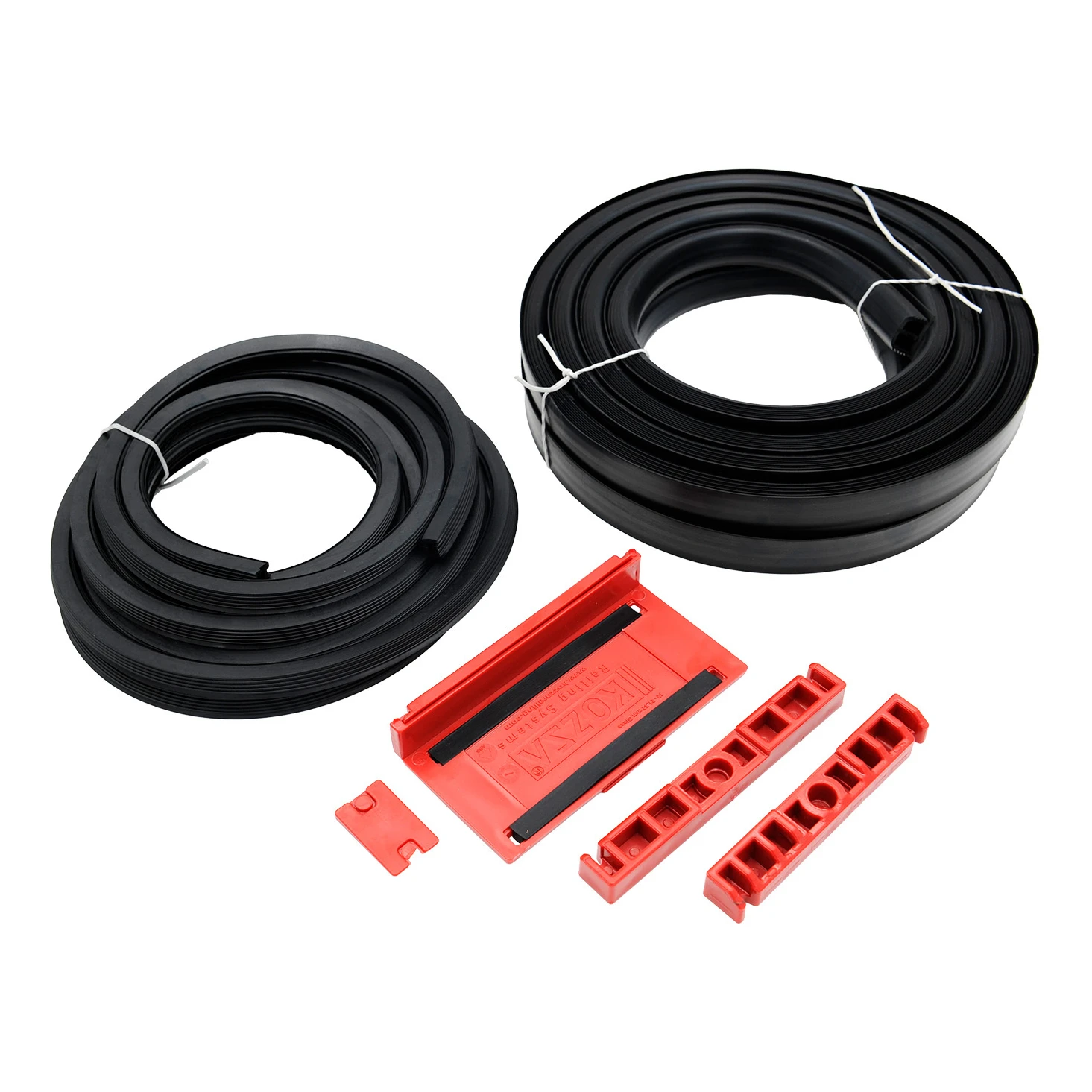

Kit Contents Summary
- Plastic mounting components — 8 complete sets
- Front rubber seal — 1 pc × 2500 mm
- Rear rubber seal — 1 pc × 2500 mm
The GlassMove kit is a ready-made solution for professional installation teams who value speed of execution, consistent quality, and ease of installation. A complete set of components in a single package eliminates delays caused by missing parts and allows you to focus on efficient work on site.
