Mounting kit for KFL profile L=5000 mm glass 20-21.52 mm GlassMove
Description
GlassMove – KF Mounting Kit for Aluminium Profile 5000 mm
The GlassMove mounting kit is a complete solution for the quick and durable installation of glass panels with a thickness of 20 to 21.52 mm in KF-type U, L and Y aluminium profiles. The kit is designed for profiles up to 5 metres in length and ensures precise levelling of the glass panel at 90° — an ideal solution for installation companies working on glass balustrade, partition wall and divider projects.
Fast installation and reliable stability
The GlassMove system has been designed with comfortable and effective installation of large glass panels in mind. Specialist plastic mounting components, combined with dedicated rubber gaskets, guarantee precise levelling of the glass panel at 90° and long-term immobilisation. The kit's construction protects the glass against shifting, vibration and mechanical damage, while also allowing angular adjustment of ±1°, enabling a perfect fit even where minor installation deviations occur.

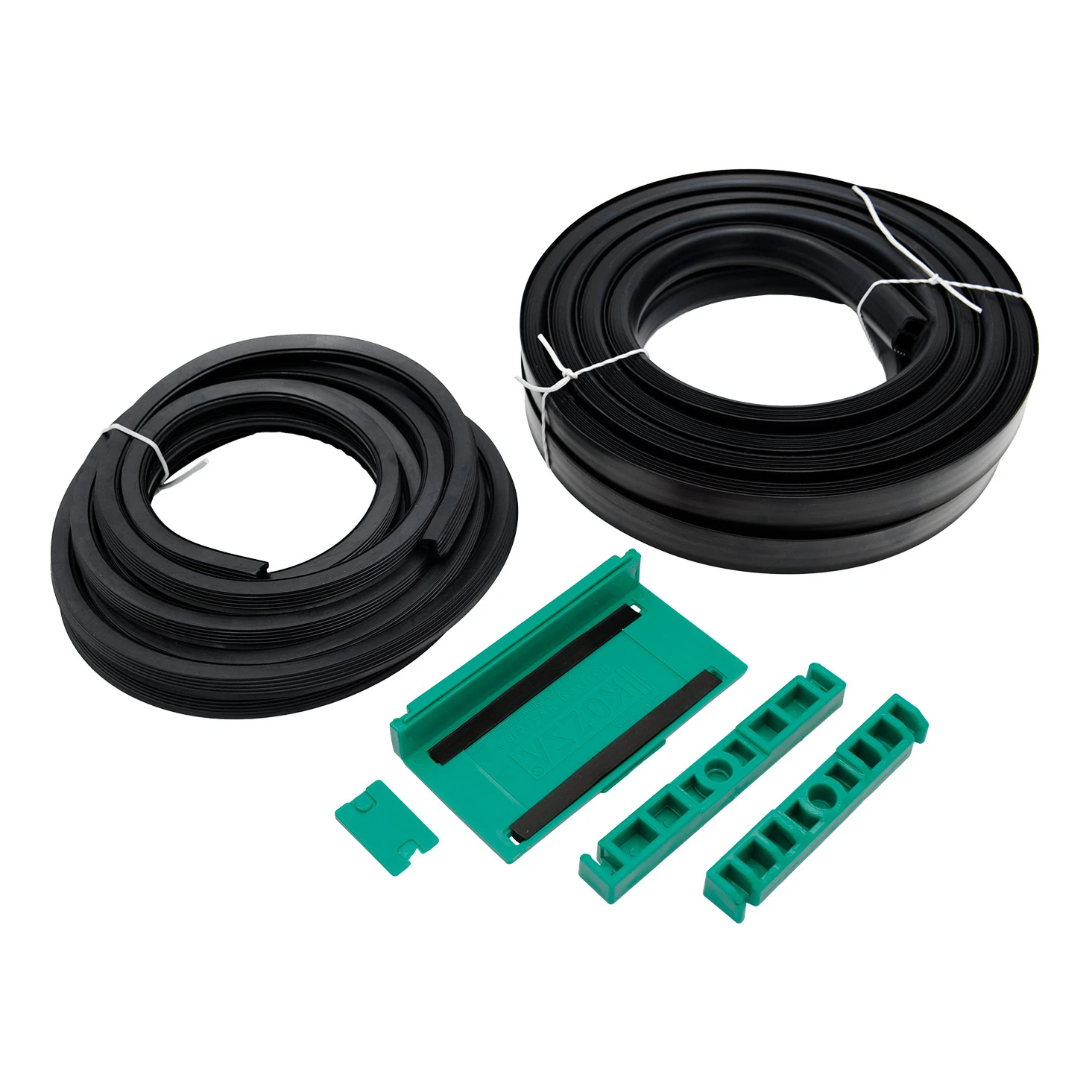

Kit contents
The GlassMove kit includes precisely matched components that allow for comprehensive glass installation along the full length of a 5-metre aluminium profile:
- Front rubber gasket: length 5 m, black
- Rear rubber gasket: length 5 m, black
- Plastic mounting components: 20 complete sets (positioning blocks + end caps)

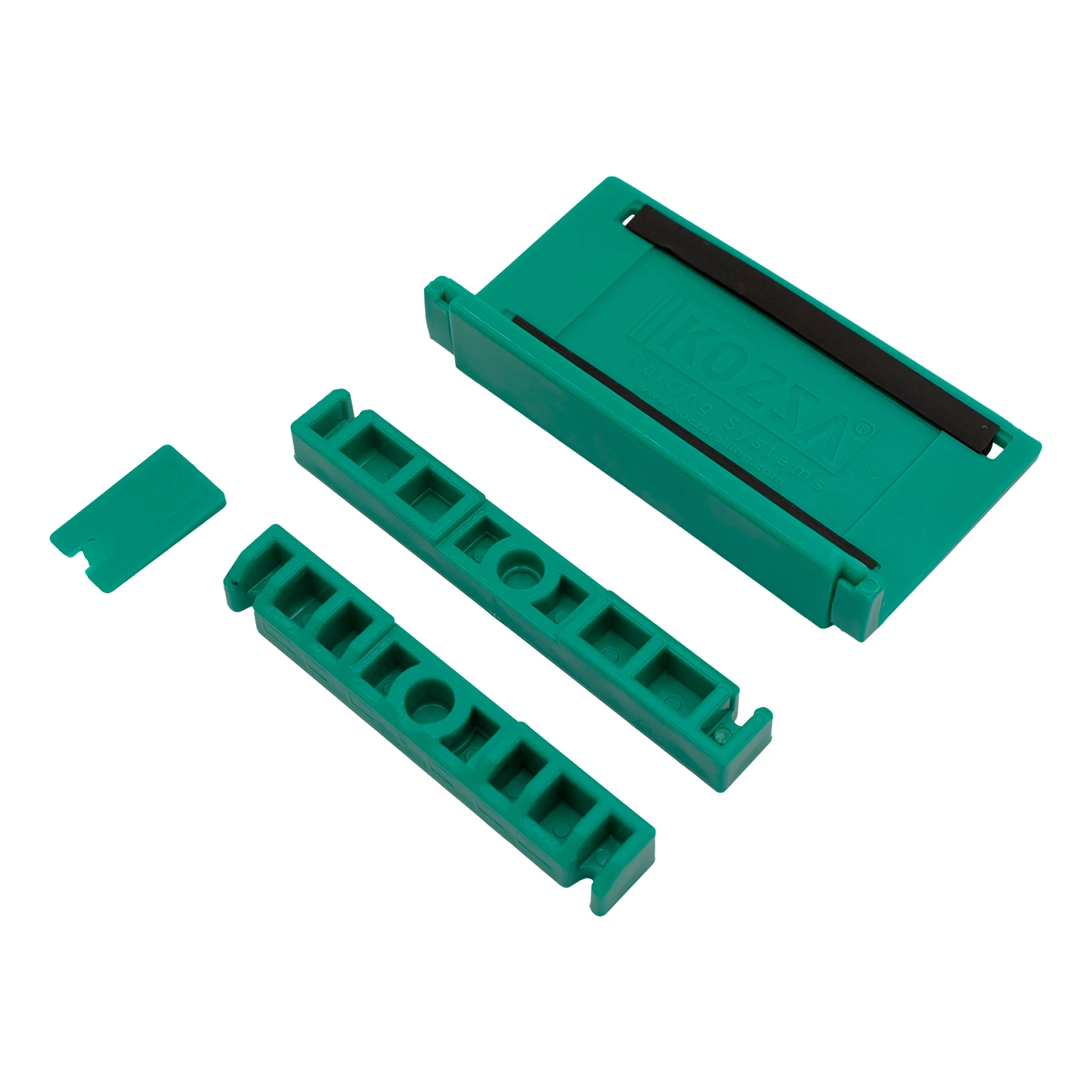

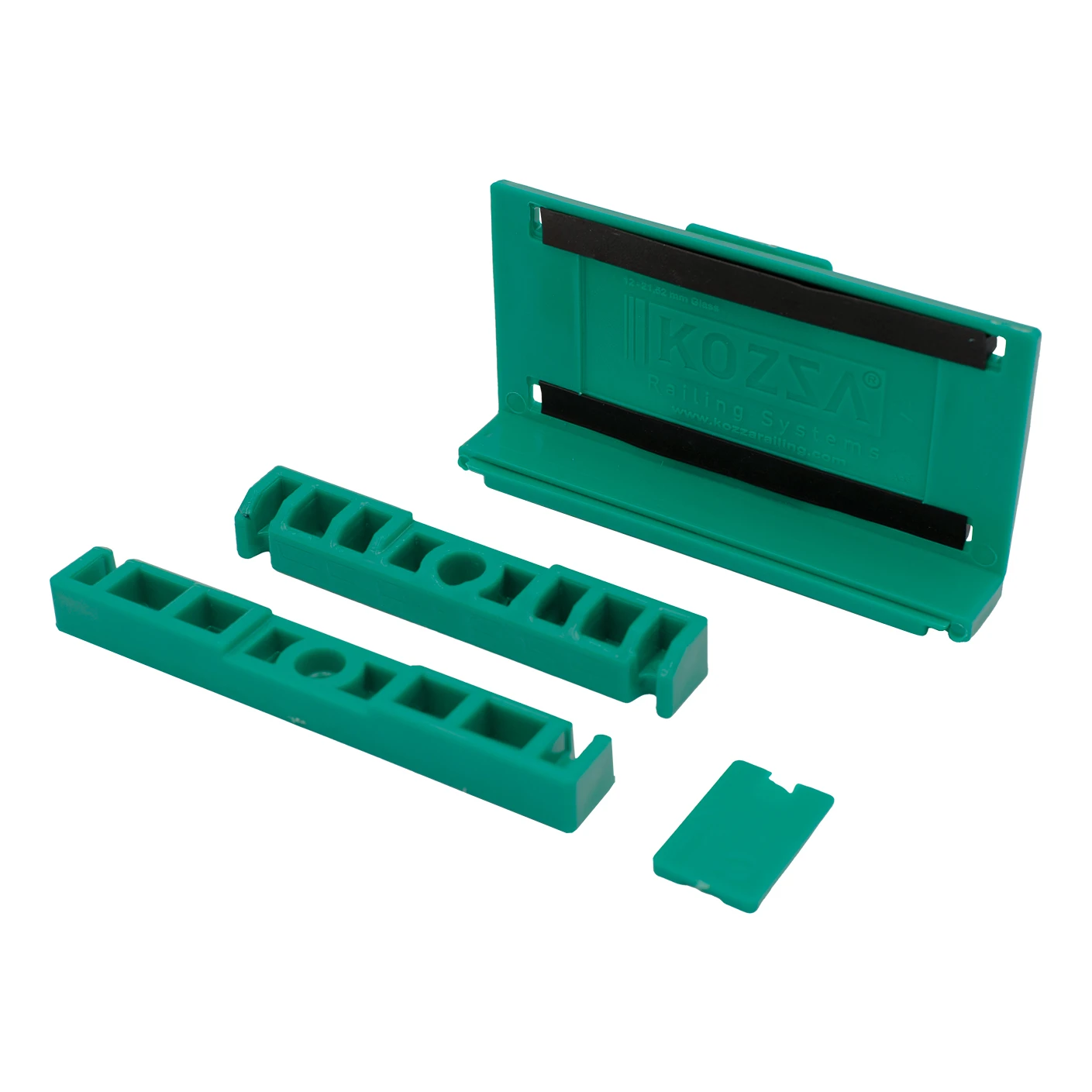

Plastic mounting components
Each complete set of mounting components consists of a positioning block with a glass panel seat and a securing end cap. These components are distributed evenly within the aluminium profile, providing stable support and centring of the glass panel along the full length of the structure. The precisely formed seats allow for rapid press-fit installation — with no additional tools required.

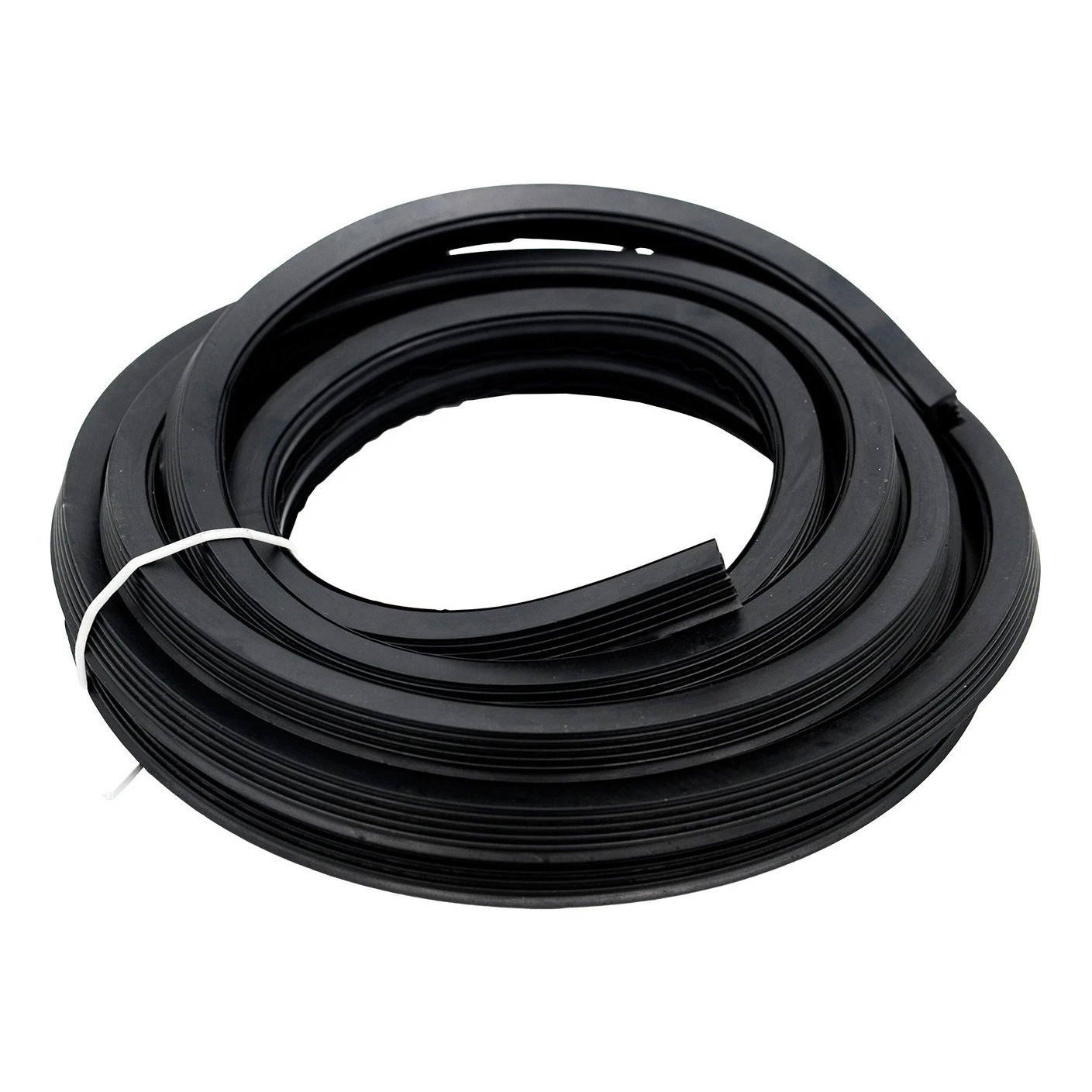

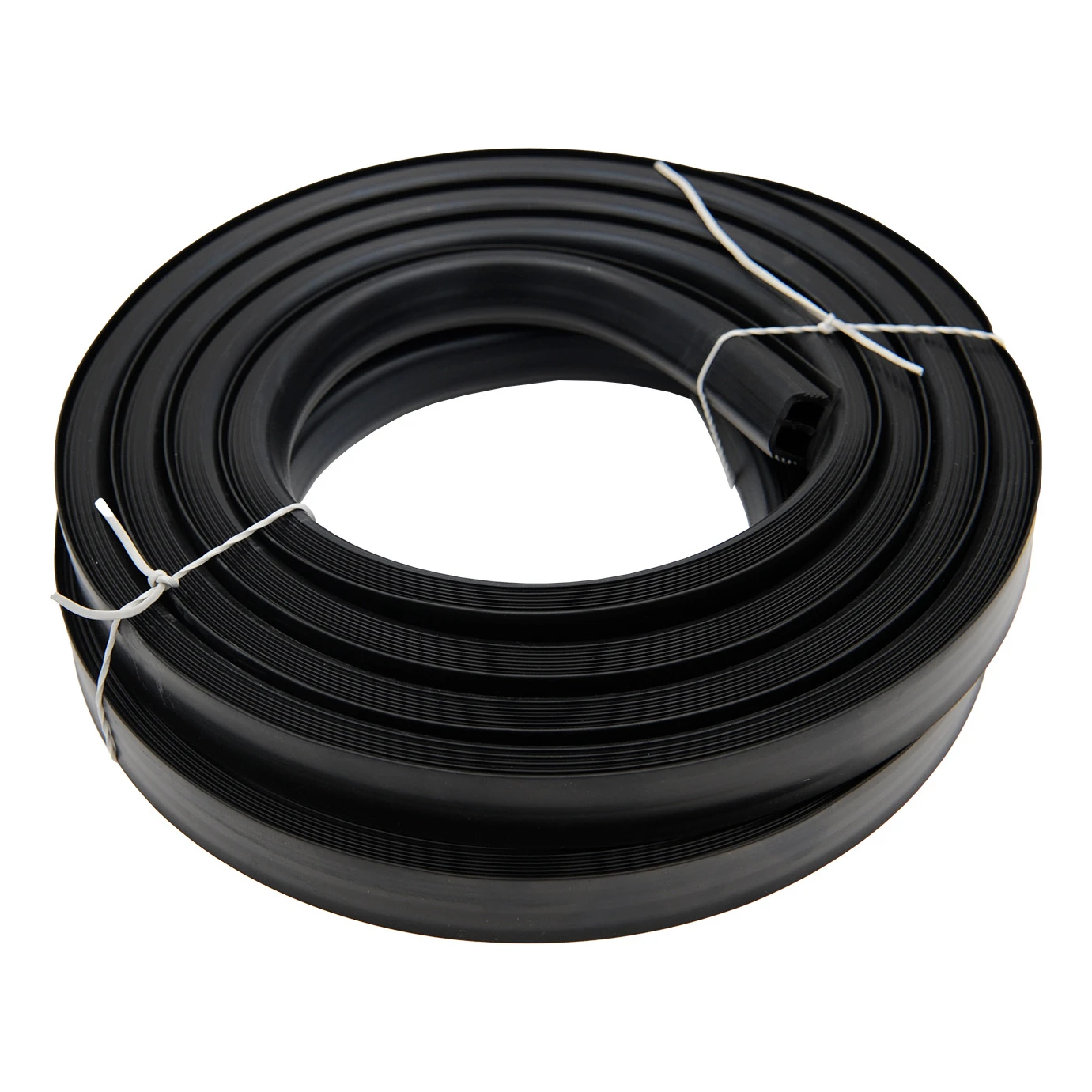

Rubber gaskets
The kit includes two separate rubber gaskets — front and rear — each 5 metres in length. The gaskets provide a tight and aesthetically clean finish along the entire structure, eliminating any play between the glass panel and the aluminium profile. Thanks to the flexibility of the material, they adhere perfectly to the glass surface, damping vibrations and protecting the edges of the panel.
Technical specification
- Series: GlassMove
- Profile variant: KF (side and top fixing)
- Compatible profile types: U / L / Y
- Glass thickness: 20–21.52 mm
- Maximum profile length: 5000 mm
- Glass fixing angle: 90° (adjustment ±1°)
- Number of mounting sets: 20 pcs.
- Gasket length: 2 × 5 m (front + rear)
- Mounting component material: plastic
- Gasket material: rubber
- Gasket colour: black
- Packaging dimension (L): 330 mm
- Kit weight: 3.14 kg
- EAN: 5903313207492
Applications
The GlassMove KF kit is suitable wherever professional glass installation in aluminium profiles is required — in particular for glass balustrades, partition walls, glass dividers and enclosures using toughened and laminated glass with a thickness of 20–21.52 mm. Thanks to the completeness of the kit and its intuitive installation system, you can reduce project lead times and minimise the risk of on-site errors.
Technical data
| Accessory Type | Mounting Kit |
| Material | Plastic |
| Glass Thickness [mm] | 20-21,52 |
| Mounting System | Flat |
