Mounting kit for KFL profile L=5000 mm, glass 12-13.52 mm GlassMove
Description
GlassMove – Mounting Kit for KFL Profile 5000 mm, Glass 12–13.52 mm
The GlassMove mounting kit is a complete solution for the professional installation of glass panels in aluminium KF-series U, L and Y profiles. Designed for glazing with a thickness of 12 to 13.52 mm in profiles up to 5000 mm in length, it is ideally suited for balustrades, glass partitions and dividing screens. The kit supports both side fixing and top fixing, giving installers full flexibility in their approach.
The GlassMove system enables precise stabilisation of the glass panel at 90°, with an adjustment range of ±1°, ensuring perfect levelling of the pane. Thanks to dedicated mounting components and precisely matched rubber gaskets, installation is quick and straightforward — the glass is securely seated and effectively protected against shifting and vibration.

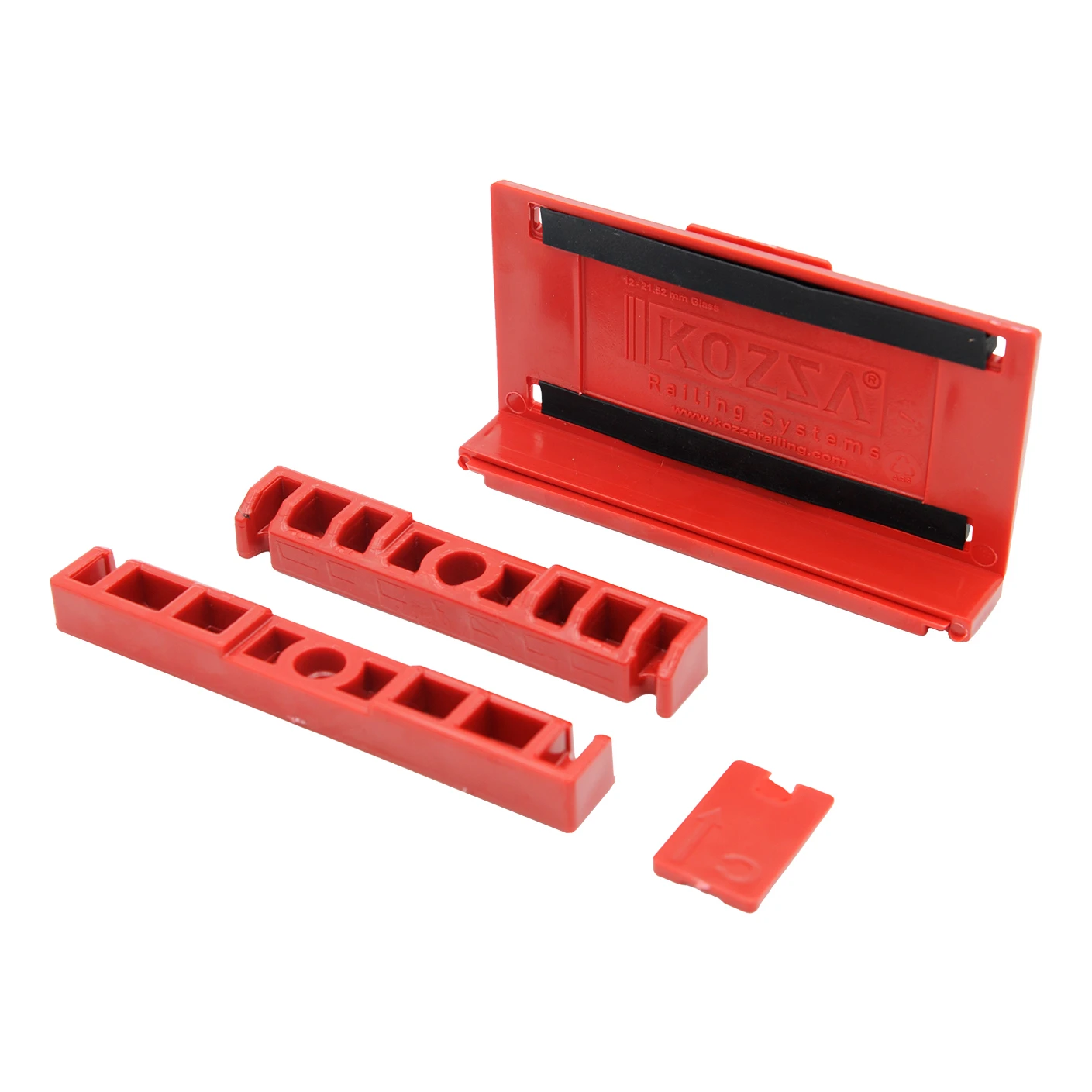

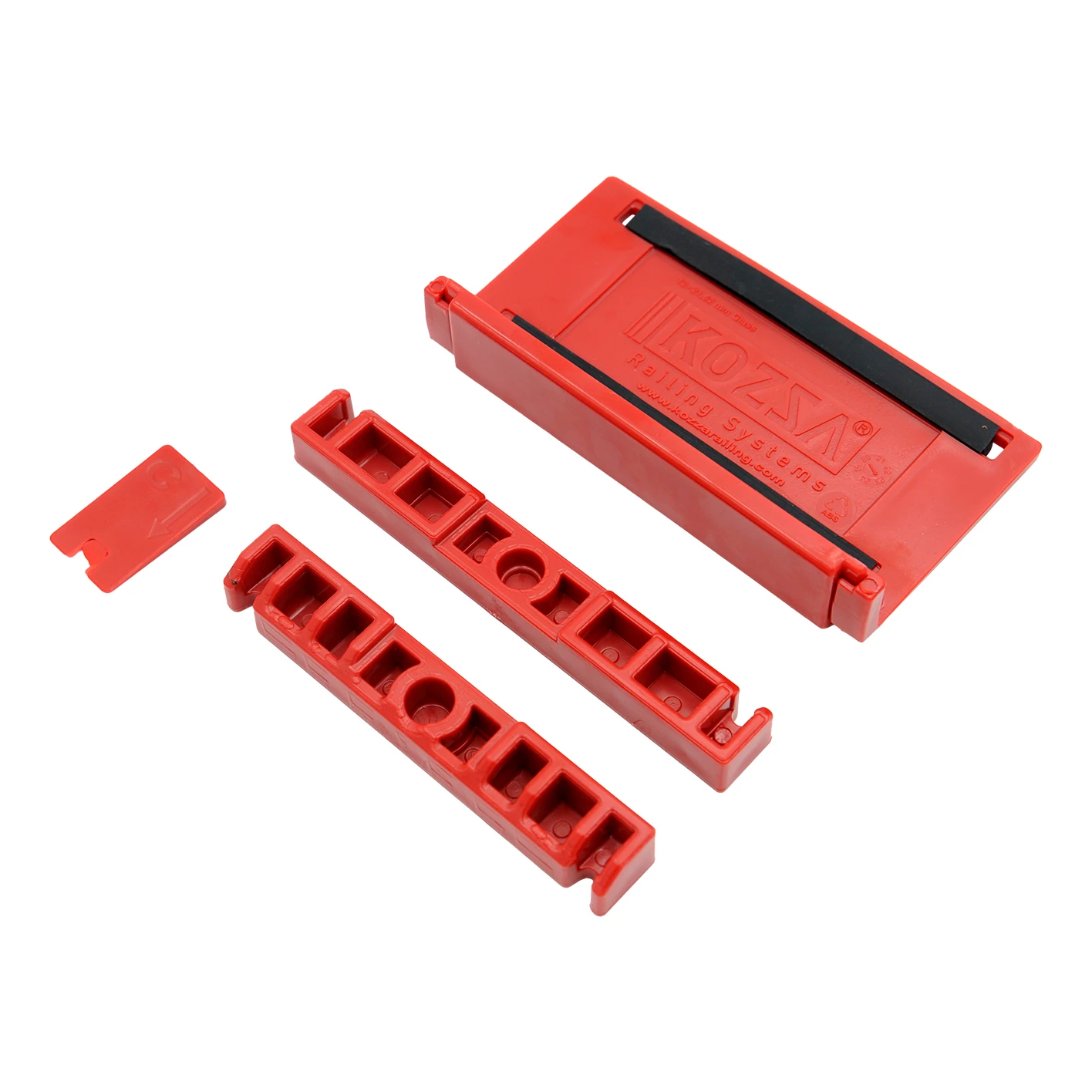

Plastic mounting components
The kit includes specially designed plastic mounting components that provide reliable and repeatable positioning of the glass panel along the full length of the profile. Each set consists of a main stabilising element, two side guides and a securing clip — 20 complete sets in total, sufficient for a 5-metre profile.

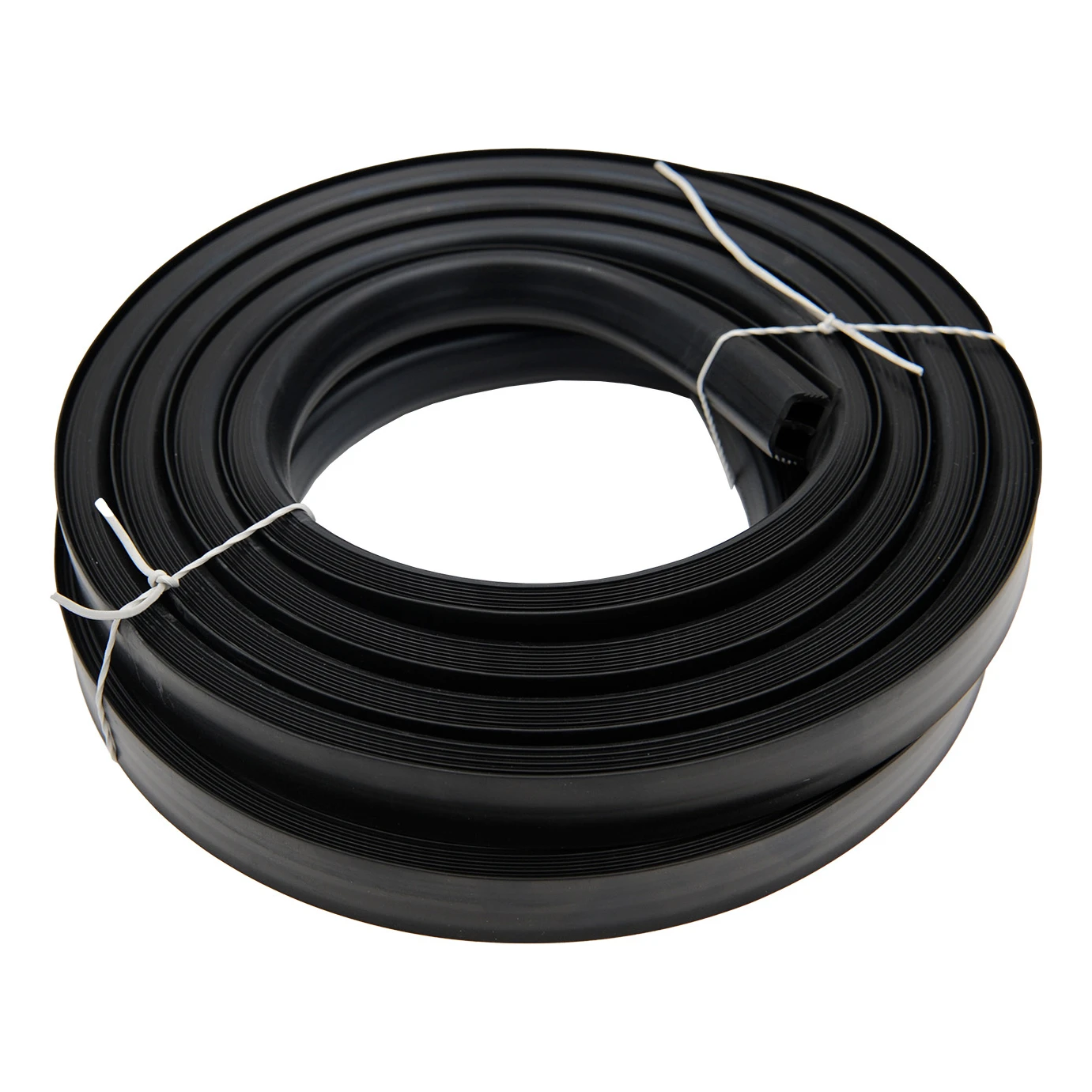

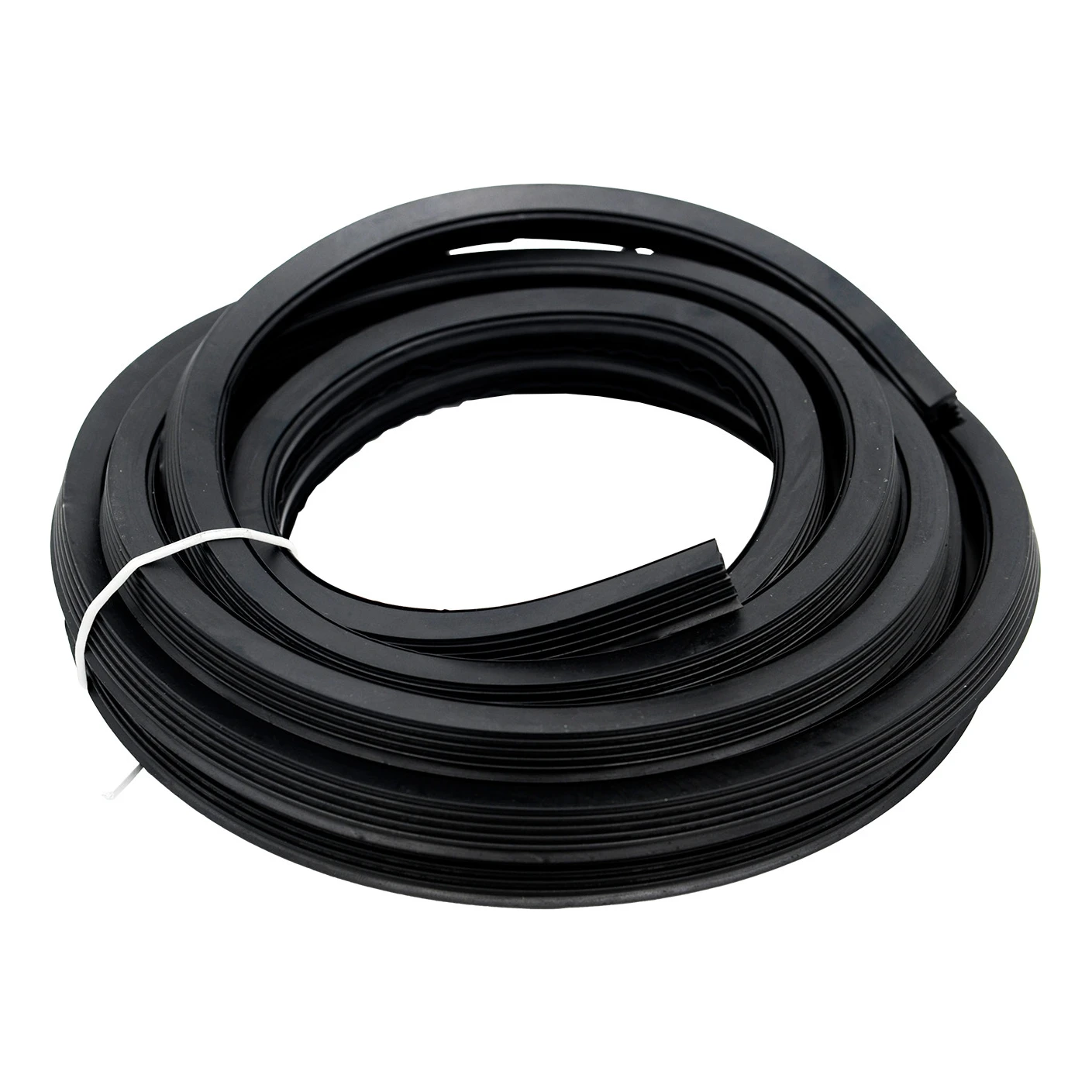

Rubber gaskets
The kit includes two rubber gaskets, each 5 metres in length — one front and one rear. The gaskets provide a neat, weathertight finish to the entire system, effectively eliminating any play between the glass and the aluminium profile. The flexible material conforms to the profile shape, resulting in a durable and vibration-free fixing.
Technical specification
- Glass thickness: 12–13.52 mm
- Maximum profile length: 5000 mm
- Profile type: KF – U/L/Y series
- Glass fixing angle: 90° (adjustment ±1°)
- Fixing method: side and top
- Mounting component colour: red
- Gasket colour: black
- Kit weight: 3.14 kg
- EAN: 5903313207478

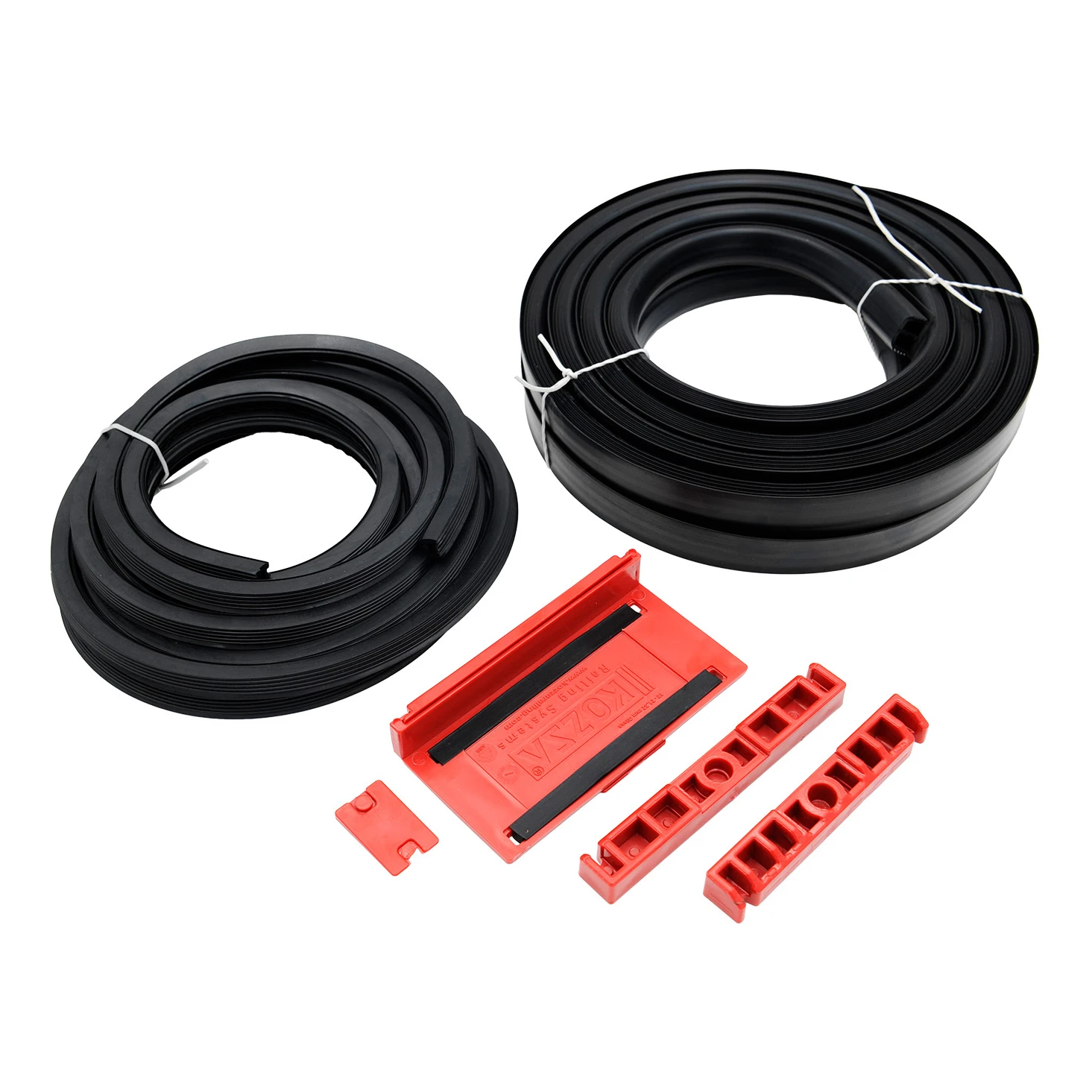

Kit contents
- Plastic mounting components — 20 complete sets (main stabilising element + side guides + clip)
- Front rubber gasket — 1 pc., 5 m
- Rear rubber gasket — 1 pc., 5 m
Technical data
| Accessory Type | Mounting Kit |
| Material | Plastic |
| Glass Thickness [mm] | 12-13,52 |
| Mounting System | Flat |
