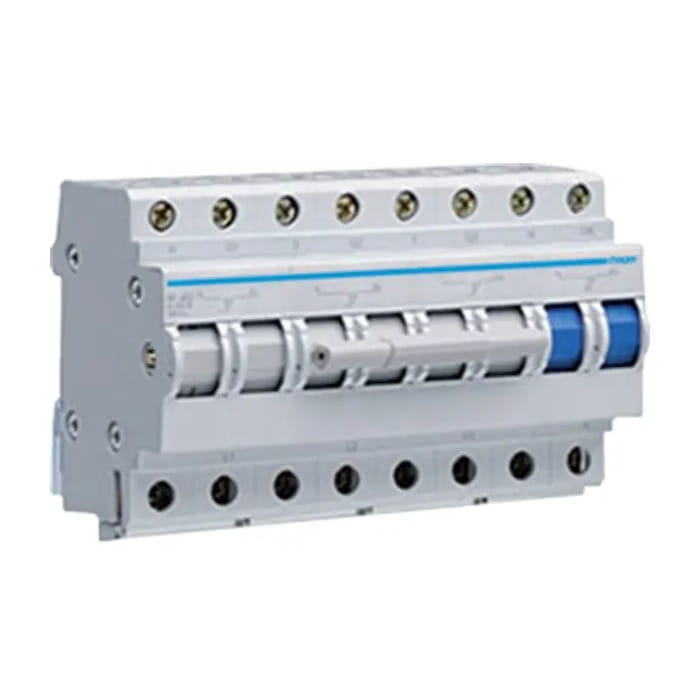

Modular power switch I-0-II (1-0-2) 3P+N 63A 400VAC SF463 HAGER

Go to Product feedback

Modular power switch I-0-II (1-0-2) 3P+N 63A 400VAC SF463 HAGER enables easy and safe switching of power sources in emergency situations.

Go to full description
with VAT without VAT
Price €138.95
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

Modular power switch I-0-II (1-0-2) 3P+N 63A 400VAC SF463 HAGER

Modular power switch I-0-II (1-0-2) 3P+N 63A 400VAC SF463 HAGER enables easy and safe switching of power sources in emergency situations.

The SF463 model is designed for switching power and control circuits up to 63 A.

SPECIFICATION

Manufacturer
HAGER
Number of poles
4 P
Rated current
63 A
Rated switching voltage Ue (AC)
400 V
Rated frequency
50 / 60 Hz
Rated insulation voltage Ui
500 V
Voltage input type 1
AC
Rated withstand surge voltage Uimp
4000 V
Total power loss for rated current
7.2 W
Mechanical strength (number of cycles)
100 000
Cross-section of flexible wire (cable) at the terminal
16 mm²
Cross-section of rigid conductor (wire) in the terminal
25 mm²
Connection type
With screw
Contact type
Switch with zero position
Degree of protection
IP20
Dimensions
90x143x72mm
European directive RoHs
Compatible

Available Configuration

Product code

Catalogue no.
EAN
Model
GPV-401-187
next arrow image
SF463/HAG
3250615561015
SF463

Files to download

File icon Data sheet.pdf 157.58 kB
