Modular contactor 230V AC 4NO 40A ESC440 HAGER
Availability:
Temporarily unavailable
Weight:
0.361 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
Description

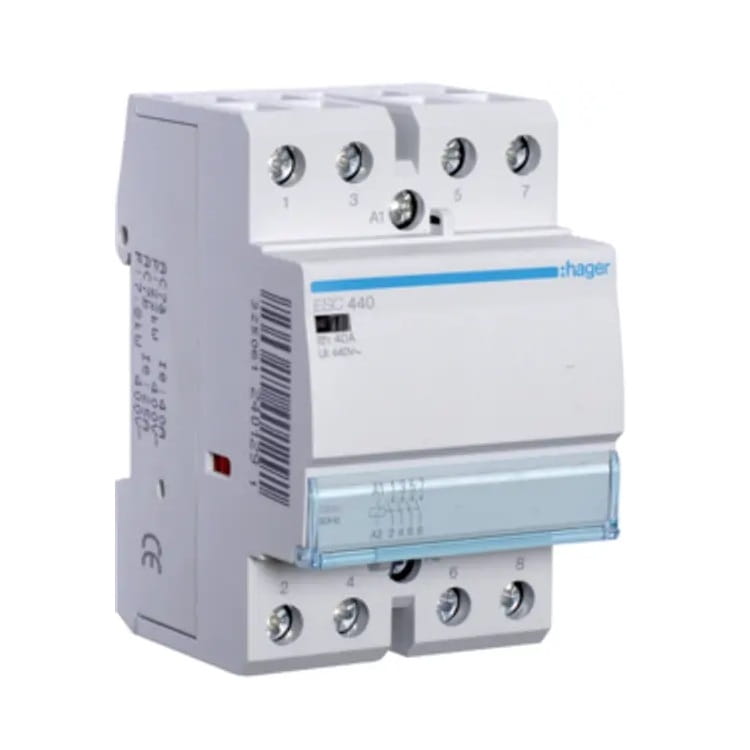

Modular contactor 230V AC 4NO 40A ESC440 HAGER
Modular contactor 230V AC 4NO 40A ESC440 HAGER is a device used to switch on and off electrical circuits that carry heavy loads.
The four-pole modular contactor in the standard version is designed for controlling lighting and ventilation systems. It is ideal for use with incandescent lamps, fluorescent lamps, discharge lamps and LED light sources. It features high mechanical and electrical strength and has a contact position indicator on the front.
Contactors are most commonly used in industry, where they operate motors, lighting, pumps and other high-powered electrical equipment.
SPECIFICATION
Manufacturer
HAGER
Number of NO contacts [NO]
4Z
Number of poles
4 P
Number of modules
3
Rated switching voltage Ue (AC)
400 V
Control voltage AC
230 V
Rated current In
40 A
Depth
60 mm
Height
85 mm
Width
54 mm
Degree of protection
IP20
Additional information
Contact position indicator via window indicator
Available Configuration
Technical data
| Device Type | modular contactor |
| Rated current [A] | 40A |
| Contact configuration | 4NO |
| Coil voltage [V] | 230V AC |
| Brand | HAGER |
