Modular contactor 230V AC 2NO 25A ESC225 HAGER
product unavailable
add to wish list
Description

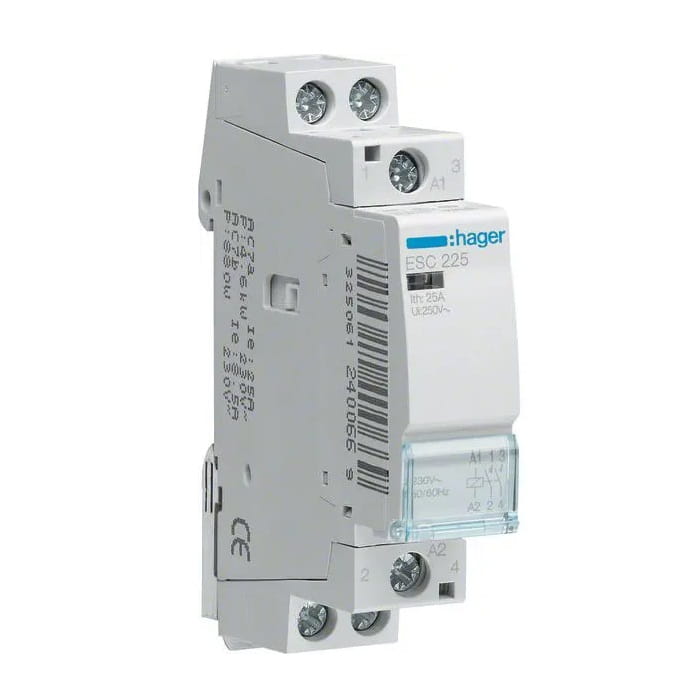

Modular contactor 230V AC 2NO 25A ESC225 HAGER
Modular contactor 230V AC 2NO 25A ESC225 by HAGER also known as an electrical switch, is a device designed to switch on and off circuits with high electrical loads. It is most often used in industry to operate motors, lights, pumps and other high-powered electrical equipment.
A single-mode contactor in a standard version, designed to control lighting systems, ventilation and similar applications. It is ideal for use with incandescent lamps, fluorescent lamps, discharge lamps and LED light sources.
The contactor is characterized by high mechanical and electrical strength, which ensures long-lasting and reliable operation. There is a contact position indicator on the front of the device. The rated switching voltage (Ue) is 230 V AC, and the rated current (In) is 25 A.
Specification
Available Configuration
Technical data
| Device Type | modular contactor |
| Rated current [A] | 25A |
| Contact configuration | 2NO |
| Coil voltage [V] | 230V AC |
| Brand | HAGER |
