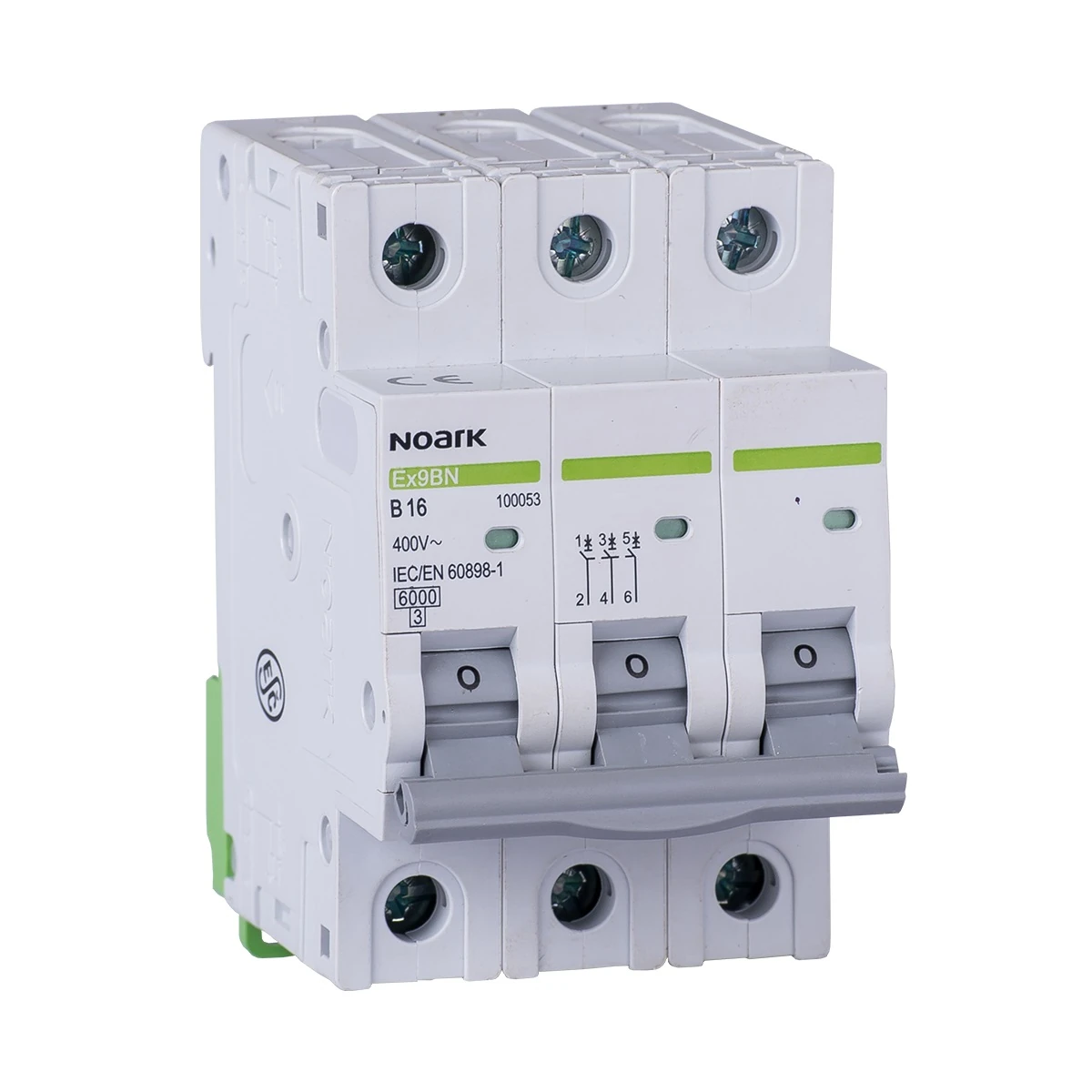

Miniature circuit breaker 6 kA, B-curve, 16 A, 3-pole
Leave feedback on the product
3-pole miniature circuit breaker with rated current 16 A and B characteristic. Breaking capacity 6 kA in accordance with IEC/EN 60898-1. Operating voltage 240/415 V AC, expandable with accessories.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Trip characteristic B
- Circuit breaker type overcurrent
- Rated current [A] 16A
- Number of poles 3P
- Breaking capacity [kA] 6 kA
Description
Miniature Circuit Breaker 6 kA, B-curve, 16 A, 3-pole
Miniature Circuit Breaker 6 kA, B-curve, 16 A, 3-pole. Suitable for use in photovoltaic systems.
Ex9BN miniature circuit breakers are suitable for both domestic and industrial applications. They can be combined with a wide range of accessories, including auxiliary and signalling contacts, shunt releases, under-voltage and over-voltage releases, or additional RCD blocks. Various accessory combinations are possible. These combinations are limited only by the total number, not the type of accessories - all components are compatible with each other. Up to three auxiliary or alarm contact modules and up to two release modules can be used.
General Parameters
- Standards: IEC/EN 60898-1 and IEC/EN 60947-2 (partial)
- Rated short-circuit breaking capacity: 6 kA
- Number of poles: 3
- Tripping characteristic: B, C, D
- Rated current: 16 A
- Rated operating voltage: 240/415 V AC, 48 V DC per pole (3P)
- Accessories: Wide range of accessories
