Miniature Circuit Breaker B 16A 3P 6kA
Leave feedback on the product
3-pole miniature circuit breaker with B 16A characteristic and 6kA breaking capacity. xPole Home series with dual terminals for wire and busbar connection, IP20 protection rating.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Trip characteristic B
- Circuit breaker type overcurrent
- Rated current [A] 16A
- Number of poles 3P
- Breaking capacity [kA] 6 kA
Description
Miniature Circuit Breaker B 16A 3P 6kA

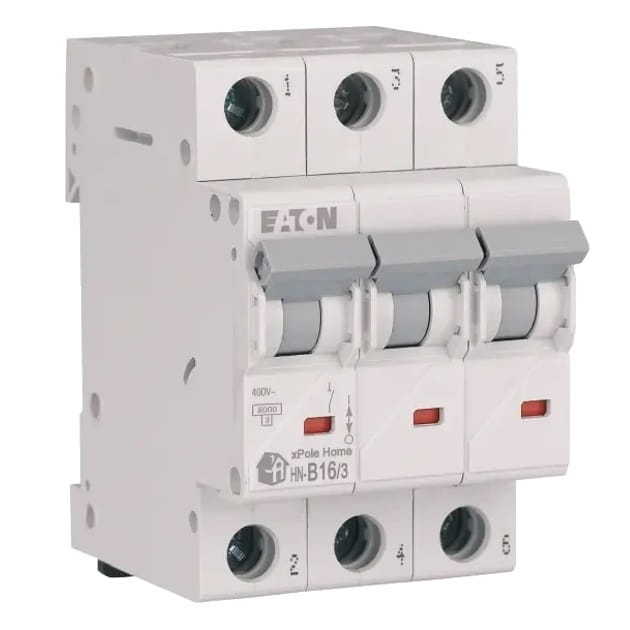

Miniature circuit breaker B 16A 3P 6kA HN-B16/3 xPole Home 194881 EATON
The xPole Home series from EATON ensures safety and trouble-free operation of electrical systems, making it an excellent choice for demanding users thanks to its reliability and versatility. These products are characterised by easy expansion capability through optional auxiliary contacts, releases and busbars, which extends their application. xPole Home miniature circuit breakers offer a rich set of features improving user comfort and increasing the safety level of the electrical system, which includes:
Advantages of xPole Home products:
- double screw and busbar connection terminals, located on both sides of the device
- mounting clips allowing quick installation
- high quality materials used in production
- solid construction
- ease of installation
- device supply from top or bottom
- safety and reliability
- easy product selection and subsequent expansion
- modern appearance
Parameters of xPole Home HN miniature circuit breakers:
- tripping characteristic: type B and C,
- rated current: 6 – 63 A
- rated breaking capacity: 6 kA
- configuration: Poles 1, 1+N, 2, 3, 3+N
What is the EATON miniature circuit breaker used for
The EATON miniature circuit breaker, such as the B 16A 3P 6kA HN-B16/3 xPole Home 194881 model, is an essential component in every electrical installation as it provides protection against overload and short circuit. Its main function is to automatically disconnect the electrical circuit when current exceeding the set permissible values is detected, which can occur as a result of overload or short circuit. This action protects the installation from damage and also prevents the risk of fire or electric shock. Using the EATON miniature circuit breaker guarantees safe and reliable operation of electrical systems, minimising the risk of failure and ensuring protection for both equipment and users.
TECHNICAL PARAMETERS
| Parameter | Value |
|---|---|
| Tripping characteristic | B |
| Number of poles | 3 |
| Total number of poles | 3 |
| Width expressed in number of modules | 3 |
| Pollution degree | 3 |
| Overvoltage category | 3 |
| Energy limiting class | 3 |
| Frequency | 50-60 Hz |
| Installation depth | 44 mm |
| Simultaneously disconnected N pole | no |
| Possibility of additional equipment | yes |
| Rated voltage | 230 V |
| Rated current [A] | 16A |
| Voltage type | AC |
| Degree of protection | IP 20 |
| Package weight | 0.15 kg |
| Series | xPole Home HN |
| Breaking capacity [kA] | 6kA |
| rated short-circuit making capacity according to IEC 60947-2 | 0 kA |
| rated short-circuit breaking capacity according to EN 60898 | 6 kA |
