MC4 EVO2 Connector Set Socket and Plug 4-6mm² IP68 1500V DC
Leave feedback on the product
MC4 EVO2 connector set for PV panels: plug and socket for cables 4-6 mm². IP68 waterproof, max 1500V DC, current 45-53A. Certificates TÜV, UL, CSA. Operating temperature -40°C to +85°C.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Description
MC4 EVO2 Connector Set Socket and Plug

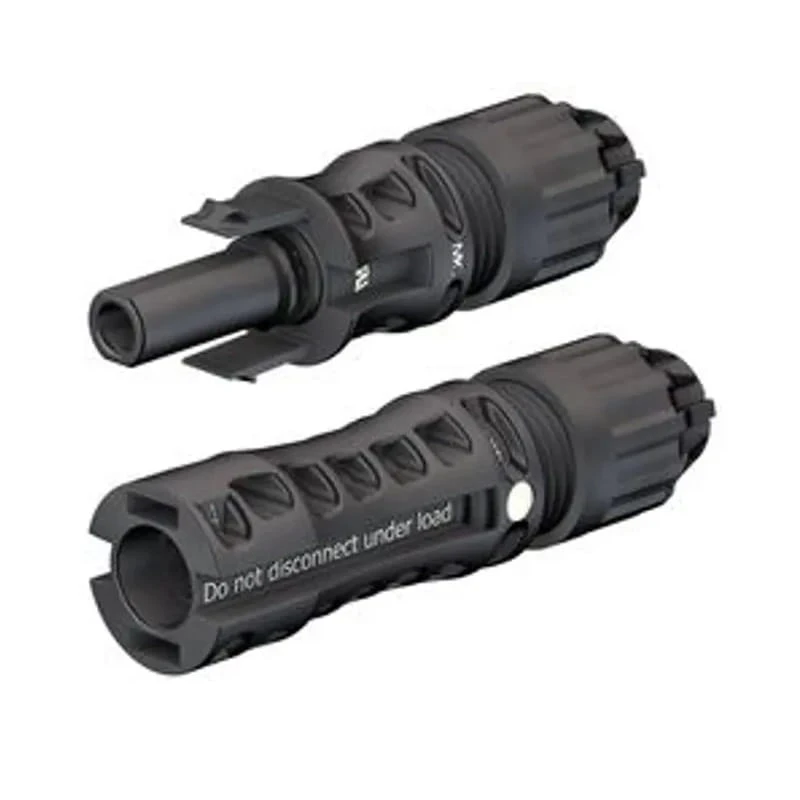

The photovoltaic panel connector set includes one PV-KST4-EVO 2/6I-UR plug and one PV-KBT4-EVO 2/6I-UR socket, designed for use with cables with a cross-section of 4 or 6 mm² and an outer cable diameter (including insulation) between 4.7 and 6.4 mm.
These connectors are characterised by waterproofing, resistance to high temperatures and UV radiation. The durable plastic housing with a snap-lock system guarantees protection against electrical and fire hazards. The internal construction ensures reliability and long-term operation with minimal performance loss. Certifications such as TÜV-Rheinland, UL, CSA, CQC, JET confirm their high quality, including resistance to sea salt and ammonia in the air.
SPECIFICATION
| Parameter | Value |
|---|---|
| Max system voltage | 1500 V DC (IEC) |
| Rated current IEC | (85°C) – 45A / 4 mm² or 53A / 6 mm² |
| Operating temperature | −40°C… + 85°C (IEC) |
| Protection rating | IP65/IP68 (1 hour / 1 metre) / IP2X (disconnected state) |
| Contact resistance | <0.2 mΩ |
