MC4 Connector Set Socket and Plug 2.5-6mm² 1000V DC 30A IP67
Leave feedback on the product
MC4 connector set (plug + socket) for 2.5-6 mm² cables in PV installations. 1000V DC voltage, max current 30A, IP67 protection class. TUV certified.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Description

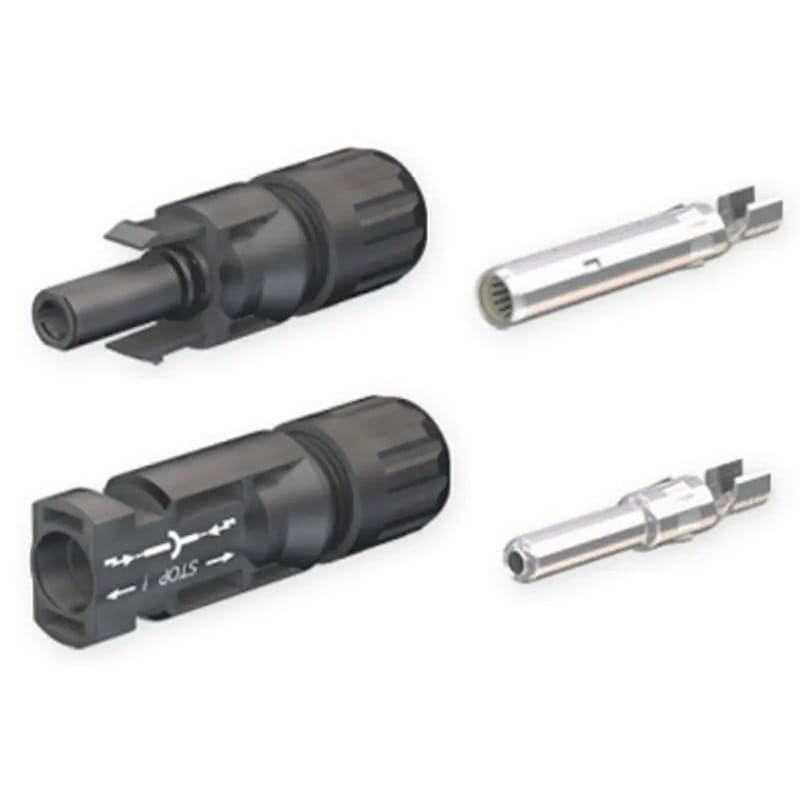

MC4 Connector Set Socket and Plug
The MC4 connector set, model ZXX-0008 by BRUK-BET, is a comprehensive solution consisting of a plug and socket, used to create sealed electrical connections in photovoltaic systems.
It is designed for connecting solar cables that integrate solar panels, ensuring continuous energy flow. The connector is compatible with cables of 2.5 mm², 4 mm² and 6 mm² cross-sections, allowing flexible adaptation to various installation requirements. Made from high-quality materials, it guarantees reliability and long-term durability. Thanks to IP 67 protection class, the connector is fully protected against dust and water ingress, which is crucial for maintaining performance and safety of outdoor installations. The product holds TUV certification, confirming its compliance with rigorous quality and safety standards.
SPECIFICATION
| Parameter | Value |
|---|---|
| Series and type | MC4 connector set socket+plug ZXX-0008 BRUK-BET |
| Material | plastic |
| Rated voltage | 1000 V DC |
| Max current | 30 A |
| Cable cross-section | 4 - 6 mm² |
| Protection rating | IP67 |
| Package weight | 0.05 kg |
| Input connector | MC4 |
