Locinox wall mounting set for Interio self-closing hinge – hot-dip galvanised steel
Description
Locinox wall mounting set for Interio self-closing hinge – hot-dip galvanised steel
Wall mounting set for the Interio self-closing hinge by Locinox — a complete mounting package enabling permanent anchoring of self-closing hinges directly into a masonry or concrete post. The set eliminates the need for welding, allowing quick and secure installation on fences with infill between masonry posts.
The set includes two steel mounting plates with a black coating, eight expansion anchors for anchoring into concrete or masonry substrate, and four countersunk screws (two per plate) for fixing the self-closing hinge. Each plate has four elongated holes for the expansion anchors and two threaded holes for the hinge fixing screws. Thanks to the elongated holes, the installer can adjust the plate position, making it easier to precisely align the hinge even with minor masonry inaccuracies.

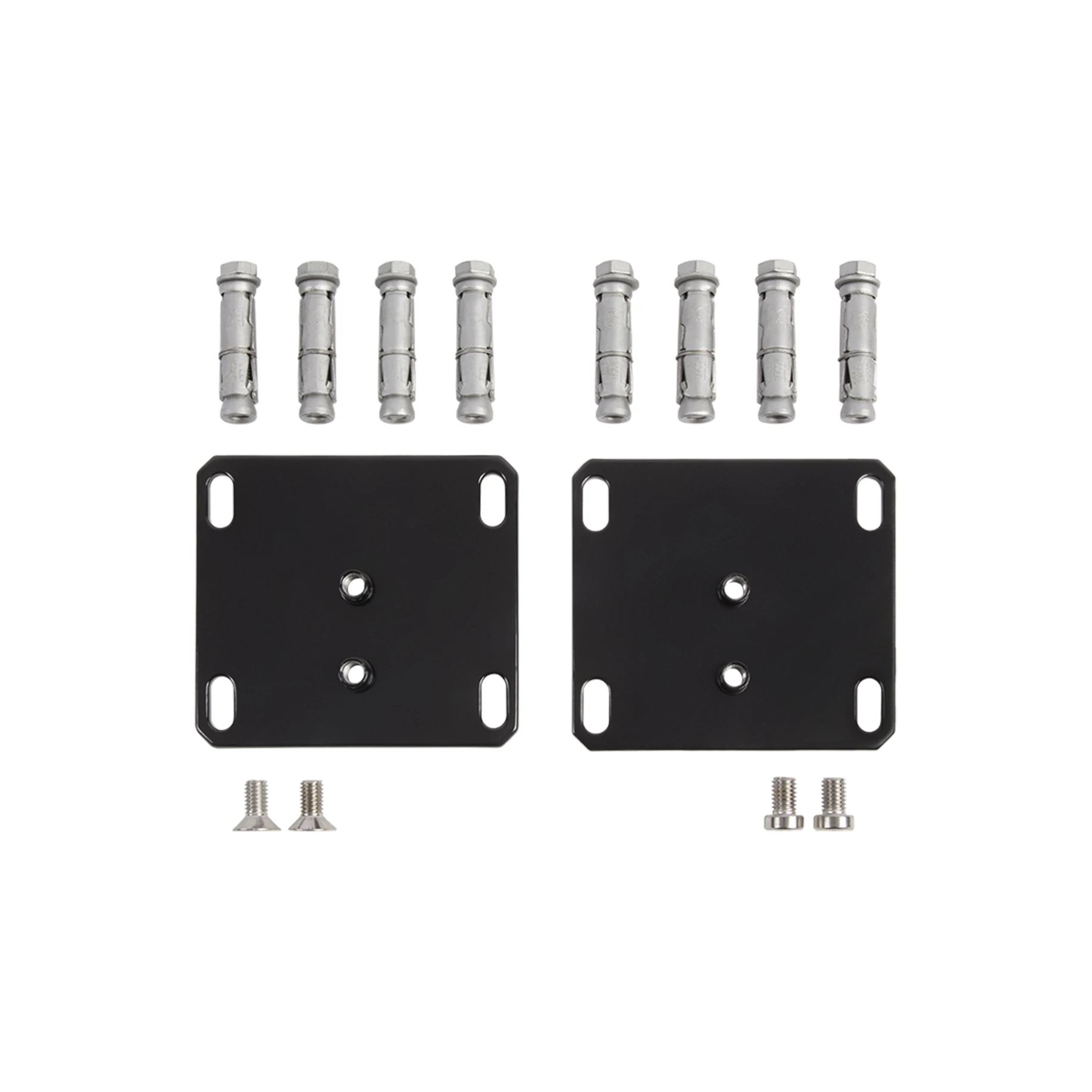

Set contents
- Mounting plates: 2 pcs (top and bottom)
- Steel expansion anchors: 8 pcs (4 per plate)
- Stainless steel countersunk screws: 4 pcs (2 per plate)

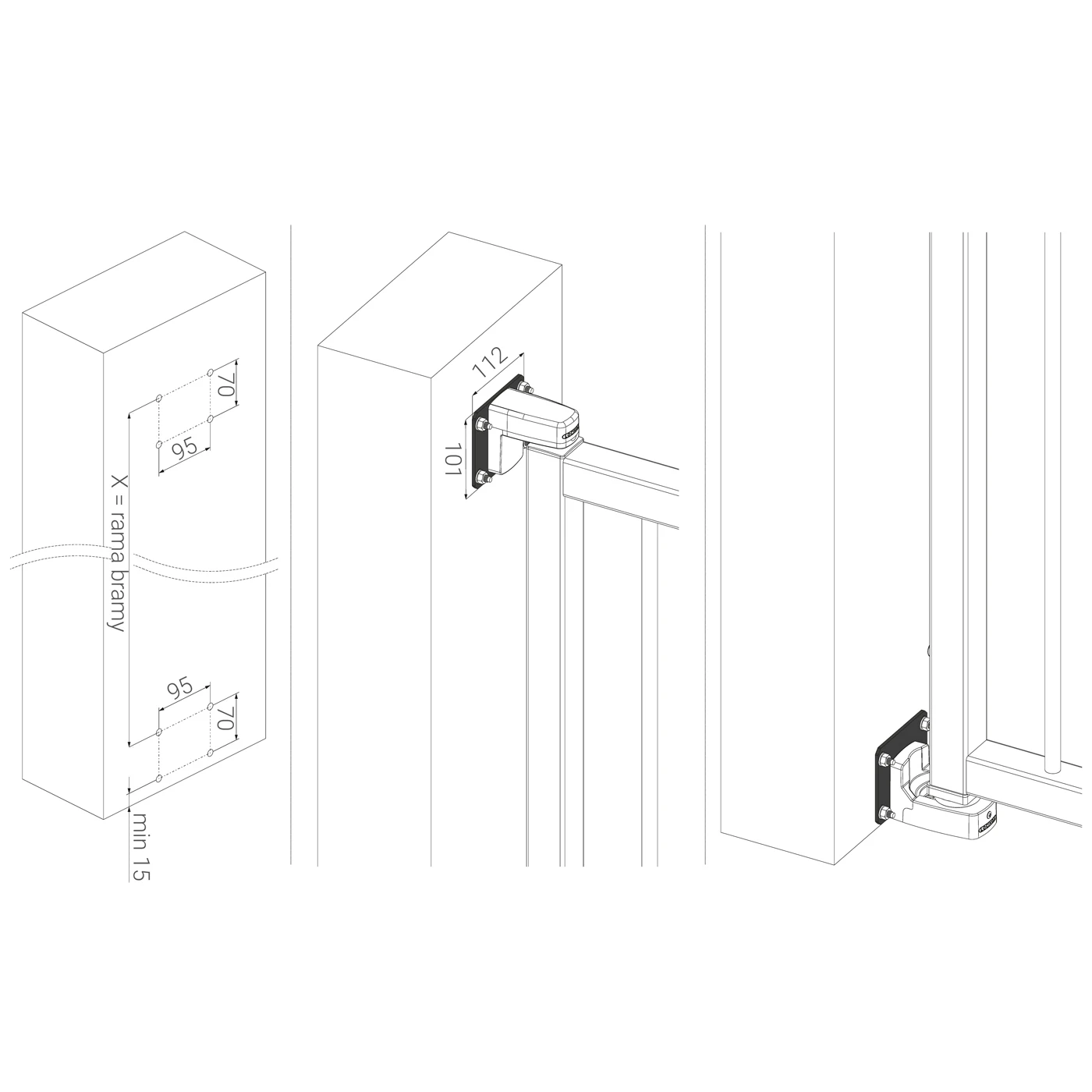

Dimensions and mounting diagram
- Mounting plate dimensions: 112 × 101 mm
- Mounting hole spacing (horizontal): 95 mm
- Mounting hole spacing (vertical): 70 mm
- Minimum distance of the bottom plate from ground level: min. 15 mm
- Distance between plates (X): matched to the gate frame height
Both plates are mounted on the fence post — top and bottom — at a distance matching the gate frame (dimension X). The mounting diagram indicates a hole spacing of 95 × 70 mm, allowing precise preparation of drilling points. Once the plates are anchored to the post, simply screw on the Interio self-closing hinges using the included countersunk screws.
Application and compatibility

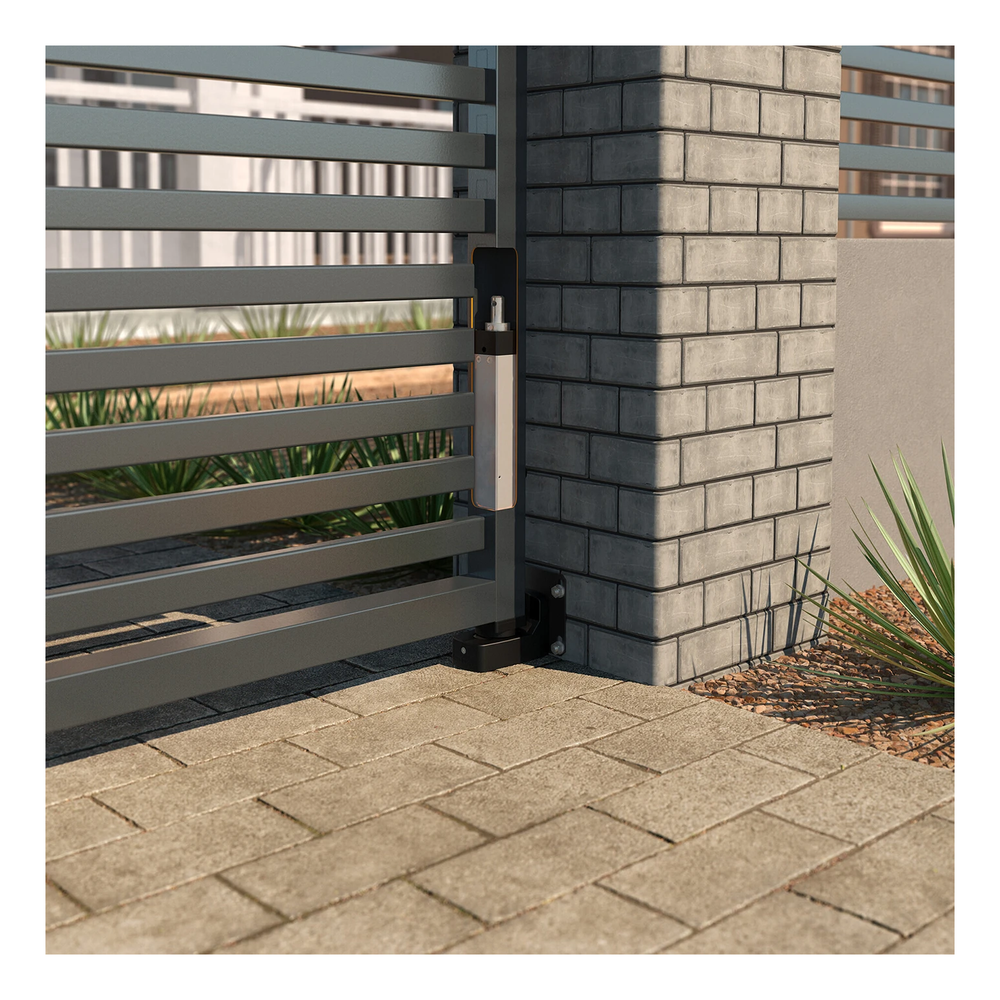

The set is designed for mounting Locinox Interio self-closing hinges on masonry, concrete or brick posts. It is ideal for installations where the gate or wicket gate is set between masonry posts and there is no possibility of fixing the hinges directly to a steel profile. This solution is particularly useful for installation companies working on fences with palisade panels, picket panels or horizontal slats on clinker brick or concrete block posts.
Technical data
- Manufacturer: Locinox
- Plate material: hot-dip galvanised steel with black coating
- Anchor material: galvanised steel
- Countersunk screw material: stainless steel
- Net weight of the set: 1.08 kg
- EAN: 5414768056677
