Locinox – universal hydraulic self-closing hinge for gates and pedestrian gates
Description
Locinox – universal hydraulic self-closing hinge for gates and pedestrian gates
The Locinox universal self-closing hinge is a reliable solution providing automatic closing of swing gates and pedestrian gates. The device works well both on fences of private properties and on public facilities — sports fields, parks, school grounds or industrial sites. Thanks to its universal design, it can be mounted on posts and gate leaves made of various materials: steel, aluminium, wood and fencing profiles.
The hydraulic damping mechanism ensures smooth and quiet closing of the gate, eliminating slamming. The adjustable closing speed allows the self-closing hinge to be tailored to the conditions on site and the preferences of the end user — a key feature especially in locations with heavy pedestrian traffic.
Key product features
- Universal mounting — compatible with various types of posts and gate leaves
- Hydraulic mechanism providing smooth, controlled closing
- Adjustable closing speed tailored to installation conditions
- Compact housing resistant to weather conditions
- Can be mounted on chain-link fences as well as panel or louvre fences
- Simple installation using standard tools
Applications
The Locinox self-closing hinge is ideal wherever automatic gate closing is required without the need for electric drives. Typical applications include entrance gates for residential properties, gates for sports and recreational areas, entrances to restricted access zones, and fencing for municipal facilities.

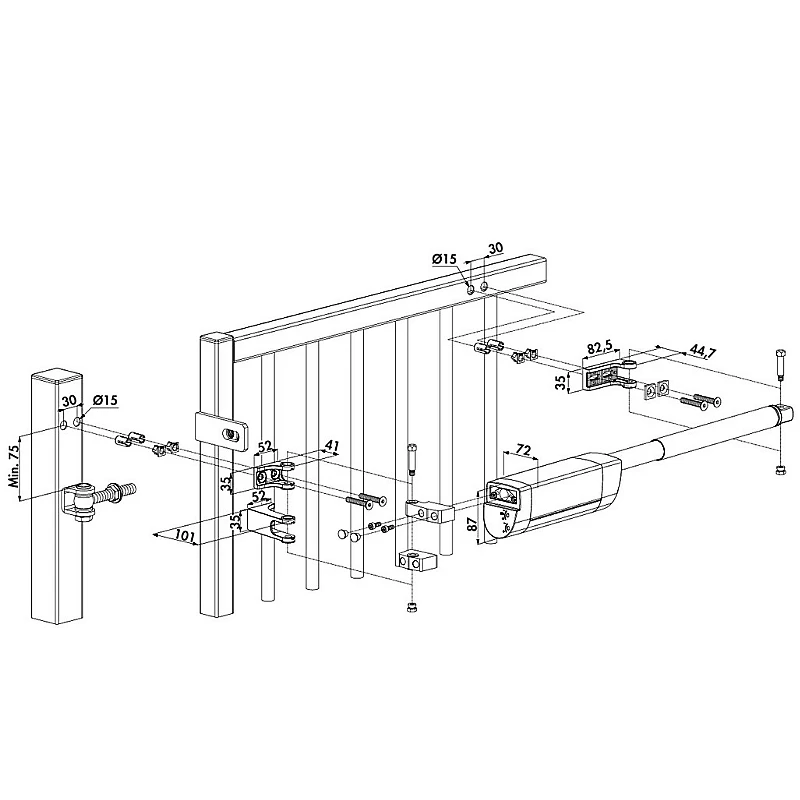

Dimensions and installation data
- Width of self-closing hinge body: 72 mm
- Height of self-closing hinge body: 87 mm
- Diameter of mounting holes (post and gate): Ø15 mm
- Spacing of mounting holes on the post: 30 mm
- Spacing of mounting holes on the gate leaf: 30 mm
- Vertical spacing of bracket holes: 35 mm
- Length of post bracket: 52 mm
- Axis offset of post bracket: 41 mm
- Length of gate leaf bracket: 82.5 mm
- Axis offset of gate leaf bracket: 44.7 mm
- Distance from pivot axis to hinge: 101 mm
- Minimum mounting height from hinge: 75 mm
Technical data
- Manufacturer: Locinox
- Net weight: 5.08 kg
- EAN: 5414768018057
- Sales unit: pcs.

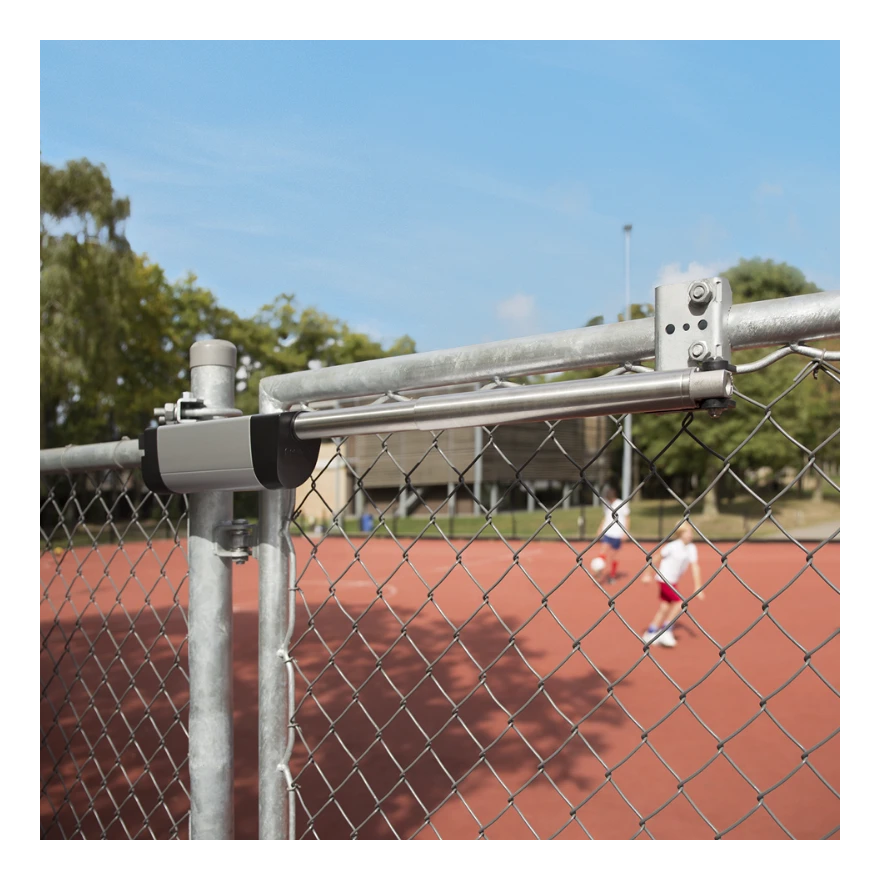

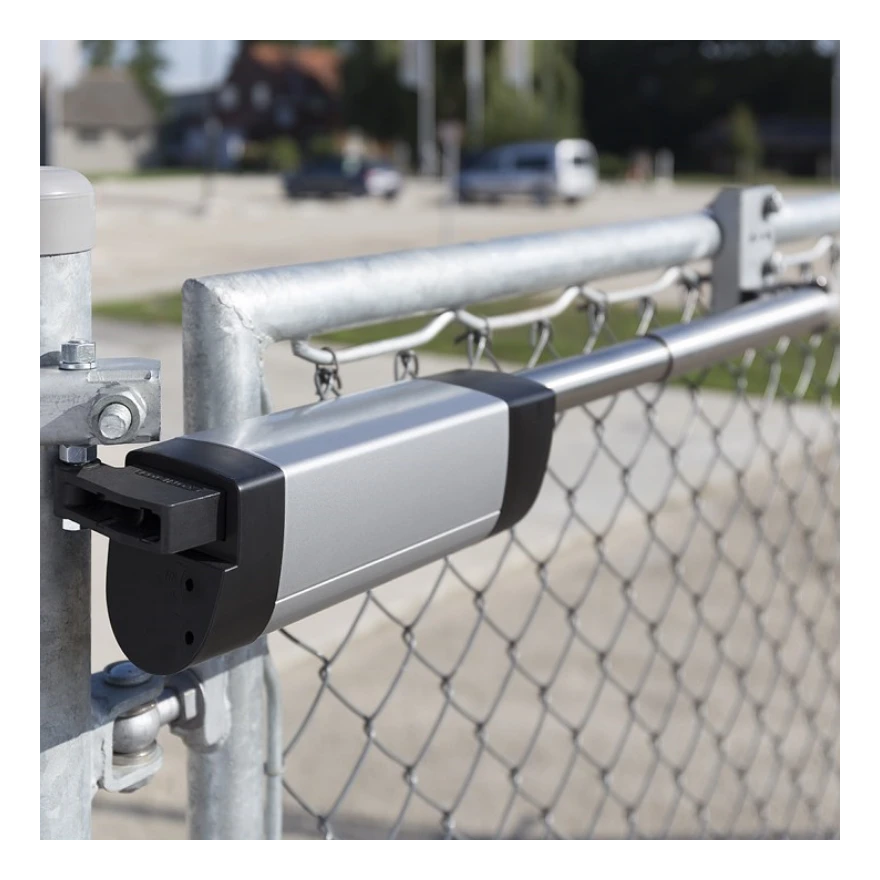

Installation on chain-link fencing
The self-closing hinge is fully compatible with chain-link fencing — popular on sports facilities, industrial sites and car parks. The mounting brackets allow fitting to both round tubular posts and rectangular profiles. The robust steel and aluminium construction guarantees long-lasting, trouble-free operation even in heavily used installations.
Why choose the Locinox self-closing hinge?
Locinox is a Belgian manufacturer renowned for the highest quality fittings and fencing accessories. This universal self-closing hinge is a product that shortens installation time, requires no electric power supply, and provides the end user with comfortable operation from day one. For installation companies, this means fewer complaints, simpler installation and a broad range of applications — from residential gates to gates on public facilities.
