Locinox mounting adapter for gate closers on non-standard fences – silver
Description

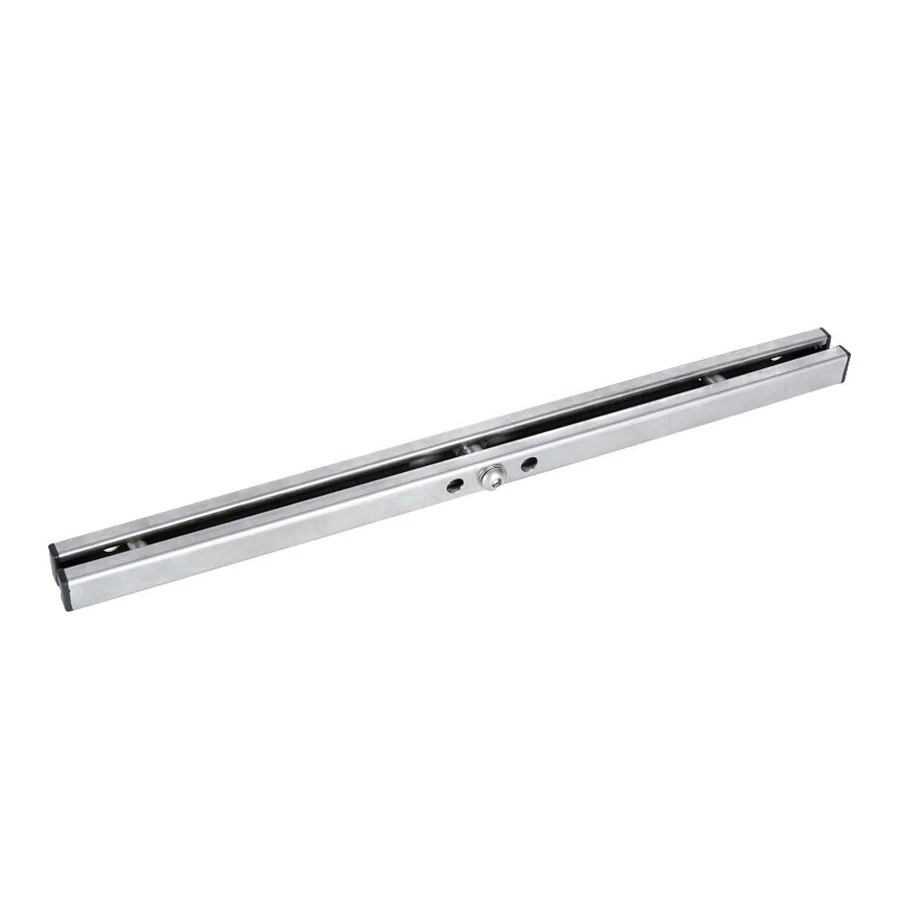

Locinox mounting adapter for gate closers on non-standard fences – silver
The Locinox mounting adapter is a dedicated accessory that enables the installation of gate closers (e.g. the PANTHER series) on non-standard fence constructions — including gates with round and square bars. Thanks to its adjustable clamping system, the adapter eliminates the need for welding and allows a gate closer to be fitted to virtually any type of fence with vertical elements.
The product is particularly useful for installation companies carrying out projects on existing fences, where standard mounting of a gate closer directly to a post is not possible. The two-rail clamping system allows the adapter to be securely fixed to bars of varying thickness — from 12 to 25 mm — without drilling or modifying the fence.

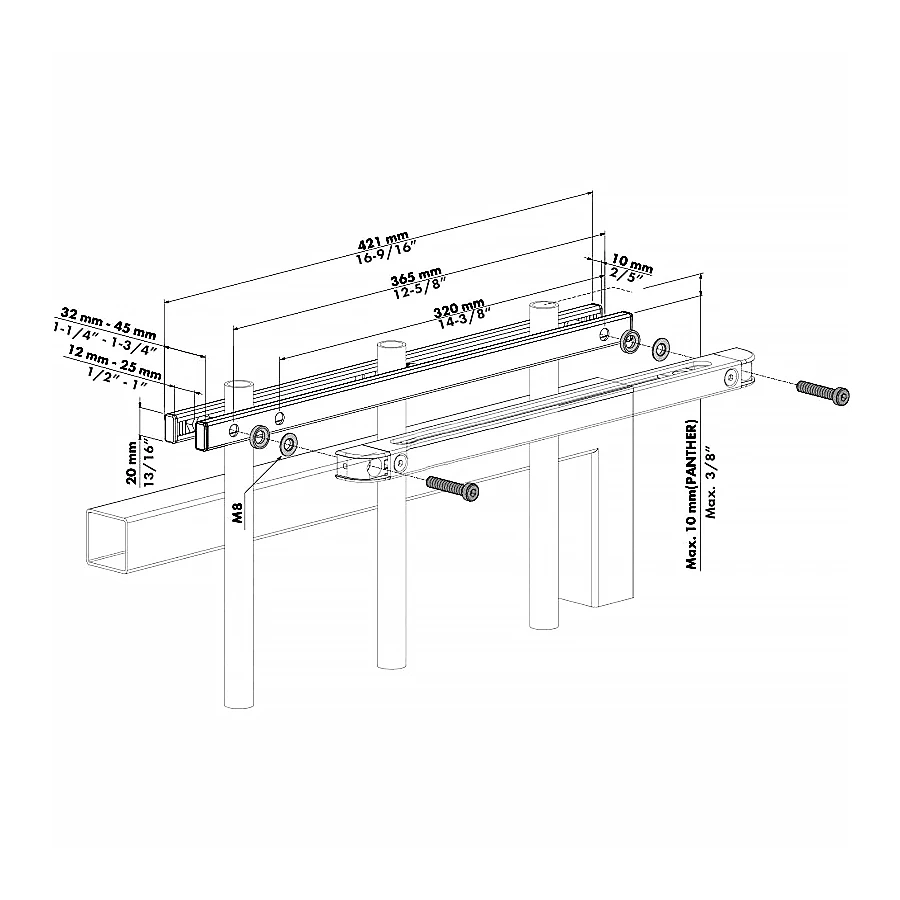

Dimensions and compatibility
- Total rail length: 421 mm
- Product dimensions (L × H): 550 × 100 mm
- Outer hole spacing: 365 mm
- Inner hole spacing: 320 mm
- Rail profile height: 20 mm
- Rail profile thickness: 10 mm
- Bar thickness/diameter range: 12–25 mm
- Clamp range (distance between rails): 32–45 mm
- Maximum gate closer arm gap (PANTHER): 10 mm
- Mounting thread: M8
Product features
- Manufacturer: Locinox
- Colour: silver
- Net weight: 0.47 kg
- Sales unit: piece
- EAN: 5414768119532
Practical application

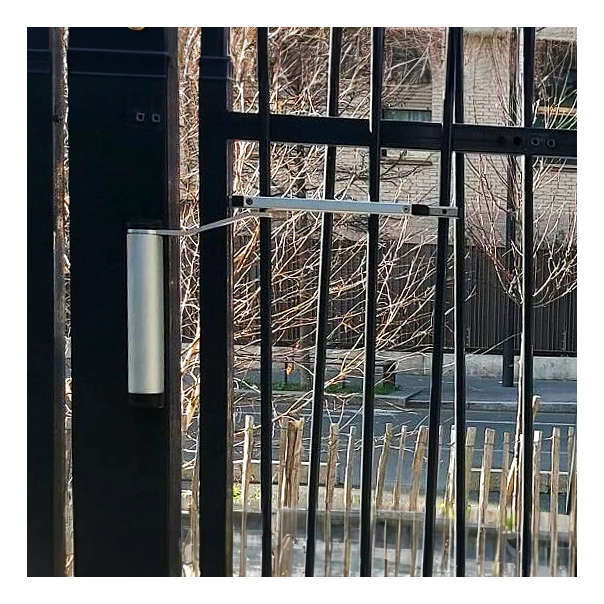

The adapter is mounted directly onto the vertical bars of the fence using M8 clamping screws. Two parallel rails grip the bar from both sides, forming a stable base for the gate closer arm. This solution works equally well on fences with round bars and square profiles — all that is required is that the element thickness falls within the 12–25 mm range, and the distance between the bars falls within the 32–45 mm range. Installation is fully mechanical, requiring no welding or drilling of the fence, which significantly reduces working time and preserves the integrity of the structure.
