Locinox – hydraulic wall-mounted gate closer, silver
Description
Locinox – hydraulic wall-mounted gate closer, silver

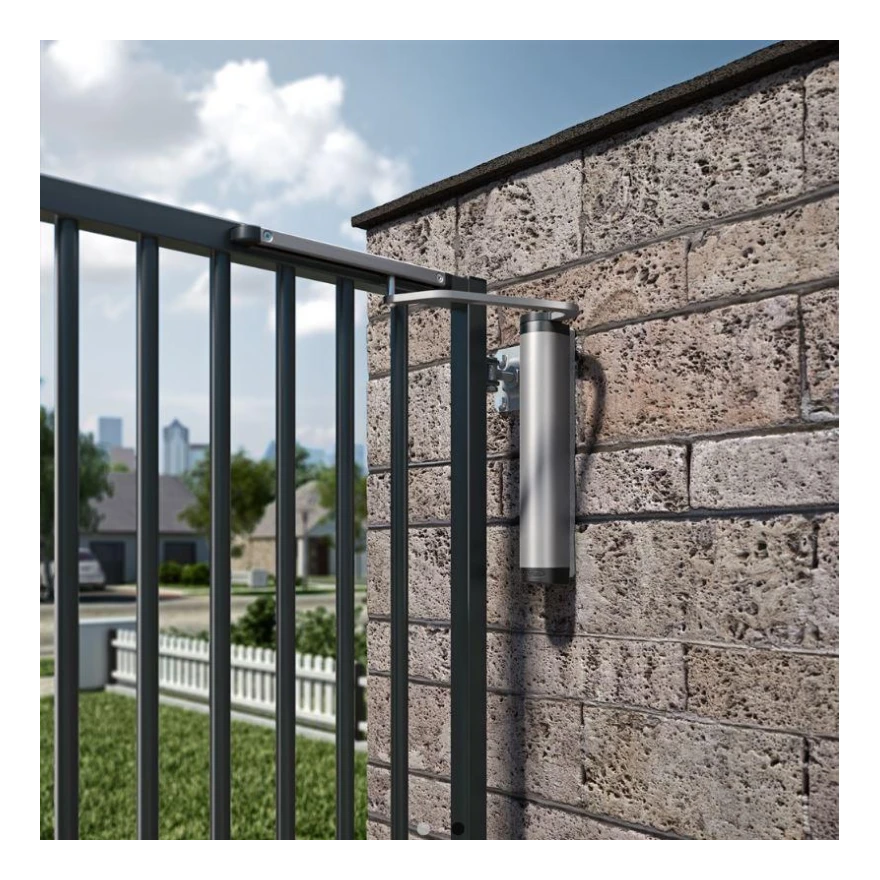

Locinox – hydraulic gate closer is a professional solution for automatically closing pedestrian and swing gates. The device is mounted directly on a wall or fence post, eliminating the need to interfere with the hinge structure. Thanks to its hydraulic damping mechanism, the gate closes smoothly and quietly, without slamming — making it ideal for commercial properties, residential estates, and anywhere self-closing gates are required.
The set is complete and ready for installation — the package includes a hydraulic cylinder, mounting plate, articulated arm, gate fixing bracket and expansion dowels. The installation company does not need to order additional components, which shortens the time needed to complete the job.
Versatile mounting
The gate closer supports two opening angle configurations — 90° and 180°. Depending on the chosen variant, the method of mounting the arm on the gate leaf changes, allowing the device to be adapted both to standard pedestrian gates and to gates that open through their full range. The technical drawings included with the product precisely indicate the required mounting distances for both configurations.
Professional appearance and durability
The silver, anodised cylinder housing looks modern and blends aesthetically with both metal and brick fence posts. The Locinox brand is a Belgian manufacturer recognised in the fencing industry for high-quality finishing and reliable mechanisms — an important argument when talking to demanding investors.
Dimensions and mounting parameters

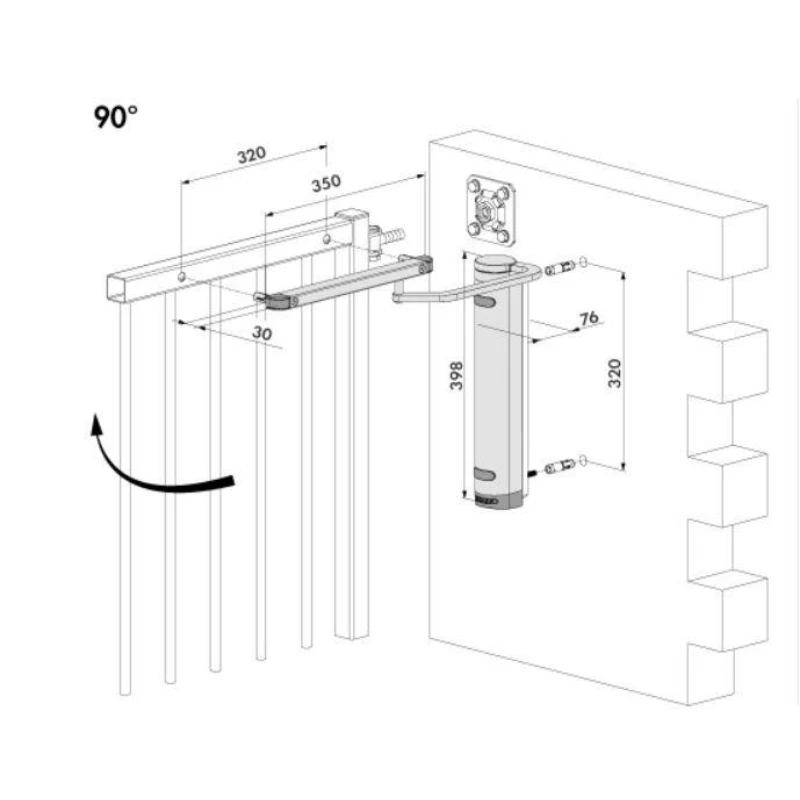

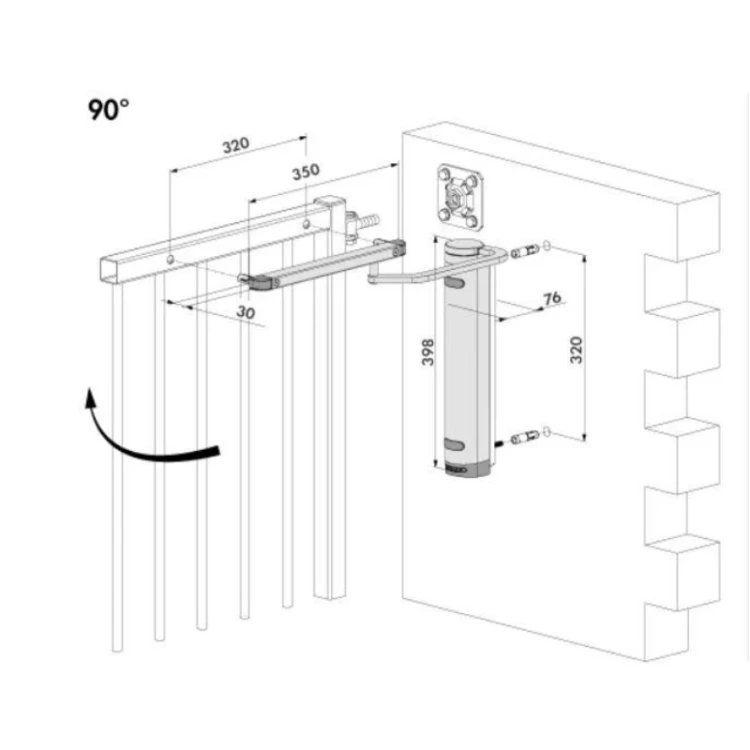

90° configuration (standard opening):
- Body height: 398 mm
- Mounting hole spacing (vertical): 320 mm
- Distance from wall to body axis: 76 mm
- Distance from arm to gate hinge axis: 350 mm
- Spacing of arm fixing holes on the gate: 30 mm

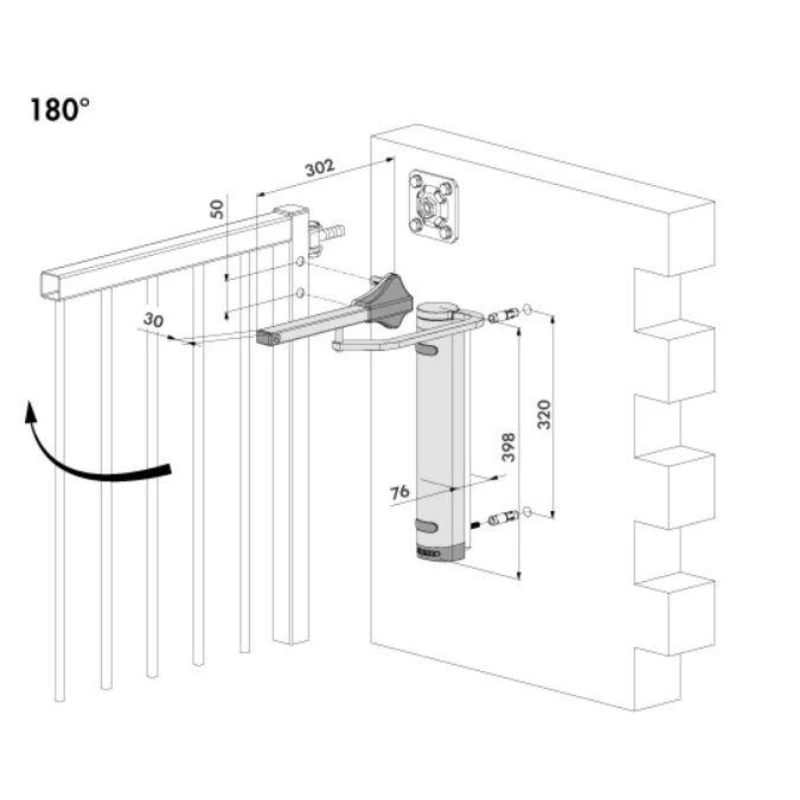

180° configuration (full opening):
- Body height: 398 mm
- Mounting hole spacing (vertical): 320 mm
- Distance from wall to body axis: 76 mm
- Distance from arm to gate hinge axis: 302 mm
- Offset of arm fixing axis below the top edge of the gate: 50 mm
- Spacing of arm fixing holes on the gate: 30 mm
Mounting diagrams
Technical data
- Manufacturer: Locinox
- Type: hydraulic wall-mounted gate closer
- Colour: silver
- Opening angle: 90° / 180°
- Net weight: 5.945 kg
- EAN: 5414768056370
- Sales unit: piece

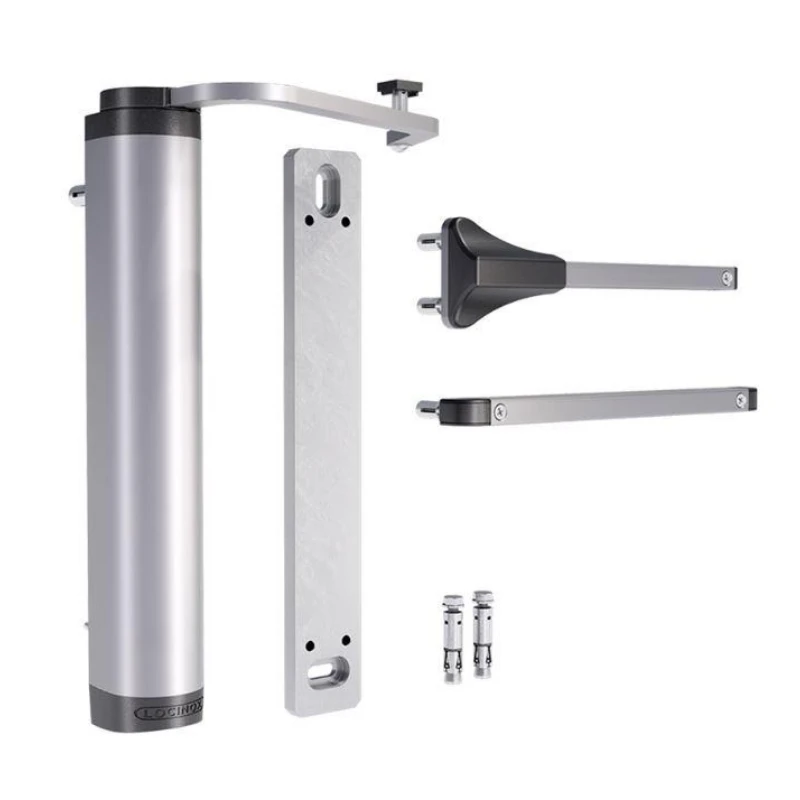

Set contents
- Hydraulic cylinder with housing
- Wall/post mounting plate
- Articulated arm (2 parts)
- Gate leaf fixing bracket
- Expansion dowels (2 pcs)
