Locinox – hydraulic self-closing hinge for gates and garden gates 180° black
Description
Locinox – hydraulic self-closing hinge for gates and garden gates 180° black
Locinox – a hydraulic self-closer and hinge in one is a robust 2-in-1 solution designed for swing gates and garden gates. The integrated hydraulic mechanism ensures controlled, smooth closing without the need for a separate self-closer, significantly reducing installation time and the number of components on site.
This product from Locinox – a Belgian manufacturer renowned for top-quality gate fittings – guarantees reliable operation for years in outdoor conditions. The 180° opening angle allows the gate or garden gate to open fully, while the hydraulic mechanism closes it automatically and quietly.
Key product features
- 2-in-1 function – hinge and hydraulic self-closer in a single housing
- Opening angle: 180° – full opening of the gate leaf or garden gate
- Smooth, controlled closing – the hydraulic mechanism eliminates slamming
- Colour: black – universal, elegant finish that suits modern fencing
- Manufacturer: Locinox (Belgium)
Application and installation
The self-closer is designed for fitting on swing gates and garden gates – both on steel profiles and masonry posts. It is fixed using 8 screws in holes with a diameter of Ø15 mm. Thanks to its compact, cylindrical design, the element blends discreetly with the gate structure and requires no additional covers.

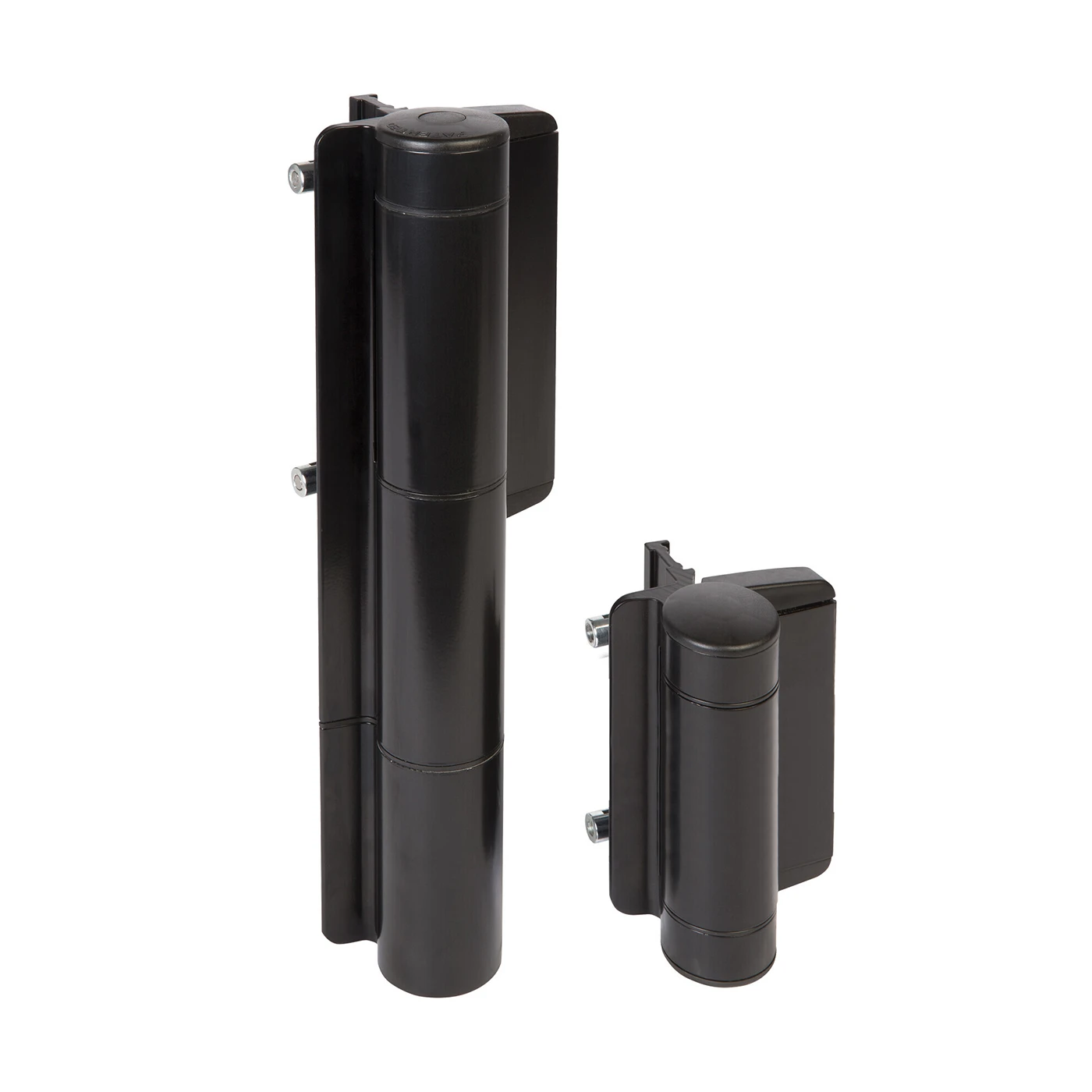

The set consists of two elements fitted in pairs – the upper hinge with hydraulic self-closer (taller element) and the lower hinge (shorter element), ensuring stable suspension of the gate leaf and an even distribution of loads.

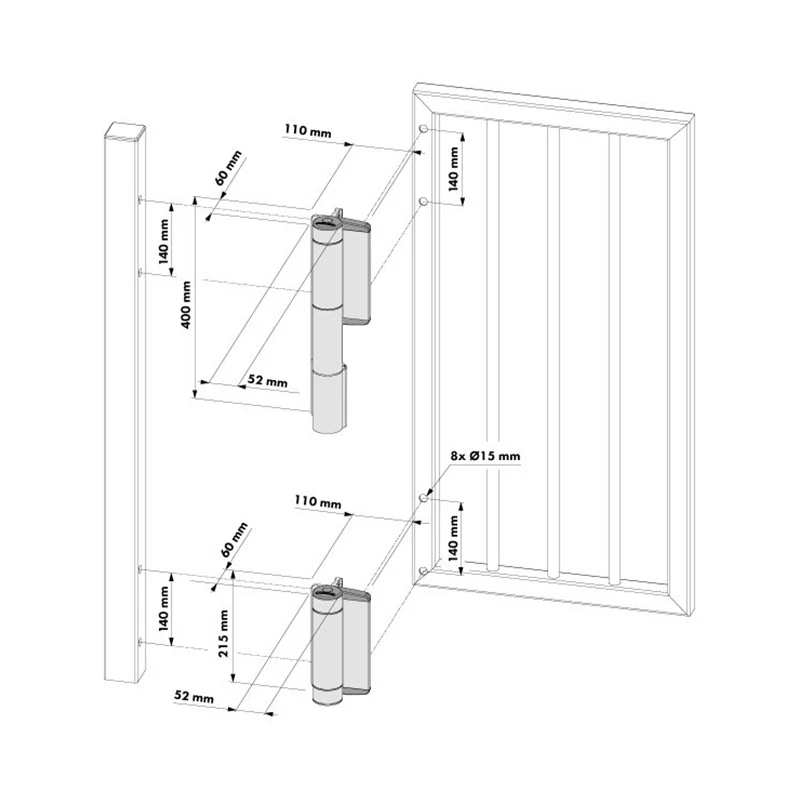

Dimensions and installation data
- Height of upper hinge (with self-closer): 400 mm
- Height of lower hinge: 215 mm
- Distance from pivot axis to post: 60 mm
- Distance from pivot axis to gate: 110 mm
- Hinge axis offset: 52 mm
- Mounting hole spacing (vertical): 140 mm
- Mounting hole diameter: Ø15 mm
- Number of holes: 8 pcs
Technical parameters
- Net weight: 5.47 kg
- Height (H): 180 mm
- Colour: black
- Opening angle: 180°
- Manufacturer: Locinox
- EAN: 5414768066270
Benefits for installers
- Fast installation – one element instead of a separate hinge and self-closer
- Fewer components – simplified logistics and reduced risk of mistakes
- Professional appearance – black, cylindrical finish suits any fencing
- Durability – hydraulic mechanism resistant to intensive use in outdoor conditions
- Reputable manufacturer – Locinox guarantees quality and availability of spare parts
