Locinox – hydraulic self-closing hinge for 180° gate, silver
Description
Locinox – hydraulic self-closing hinge for 180° gate, silver
Locinox – a hydraulic self-closing mechanism and hinge in one is a professional solution combining the function of a load-bearing hinge and a hydraulic self-closer in a single, compact housing. The product is designed for garden gates and small gates, providing controlled closing within a 180° range. Thanks to the integrated design, you eliminate the need to install a separate self-closer — saving installation time and reducing the number of components on site.

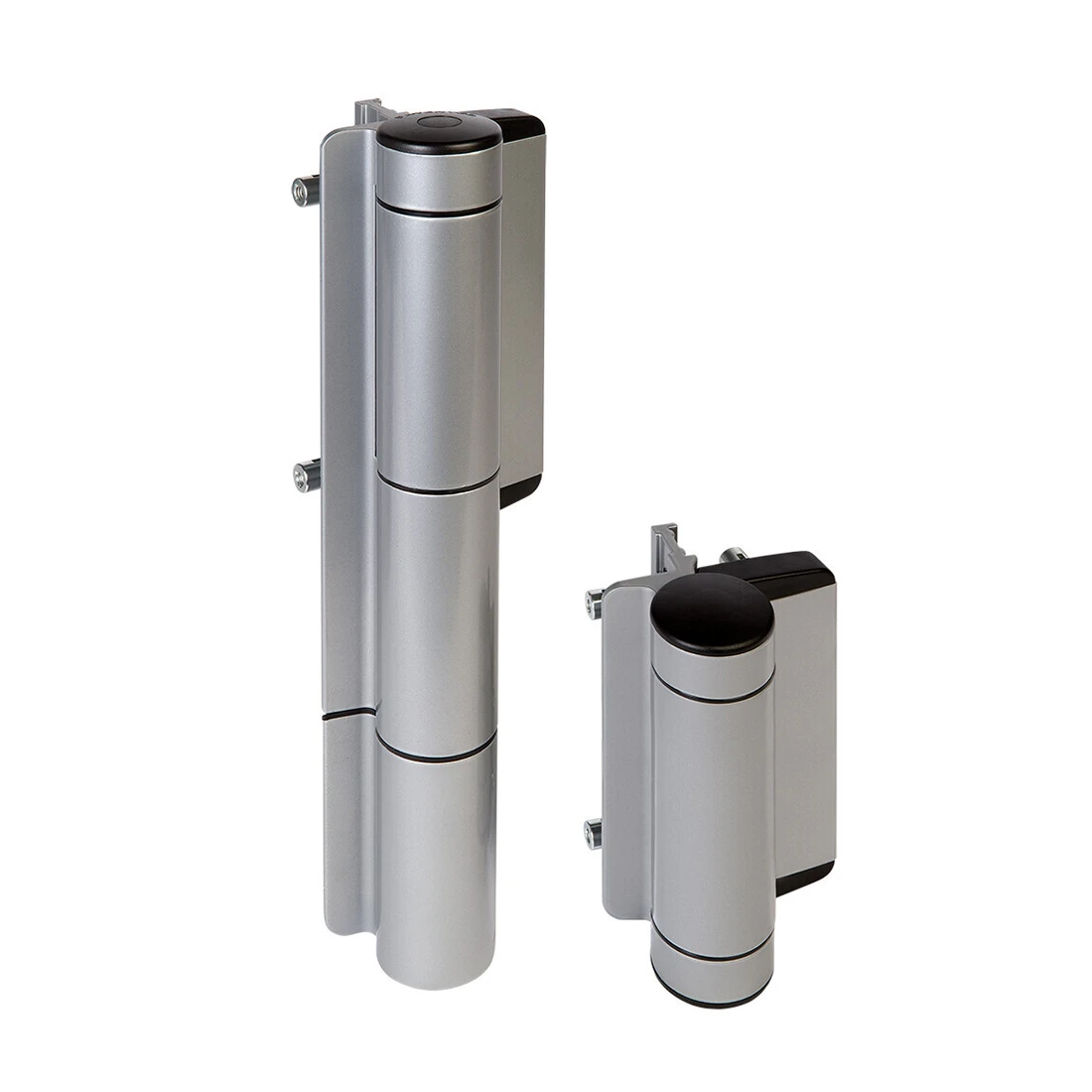

The set consists of two elements: a taller module with a self-closing mechanism (400 mm) and a shorter lower hinge (215 mm). Both elements are mounted onto the post and gate frame using screws — the mounting holes have a diameter of Ø15 mm (a total of 8 holes). The sturdy aluminium housing in silver with black end caps gives it an aesthetic, modern look that blends harmoniously with popular fencing systems.

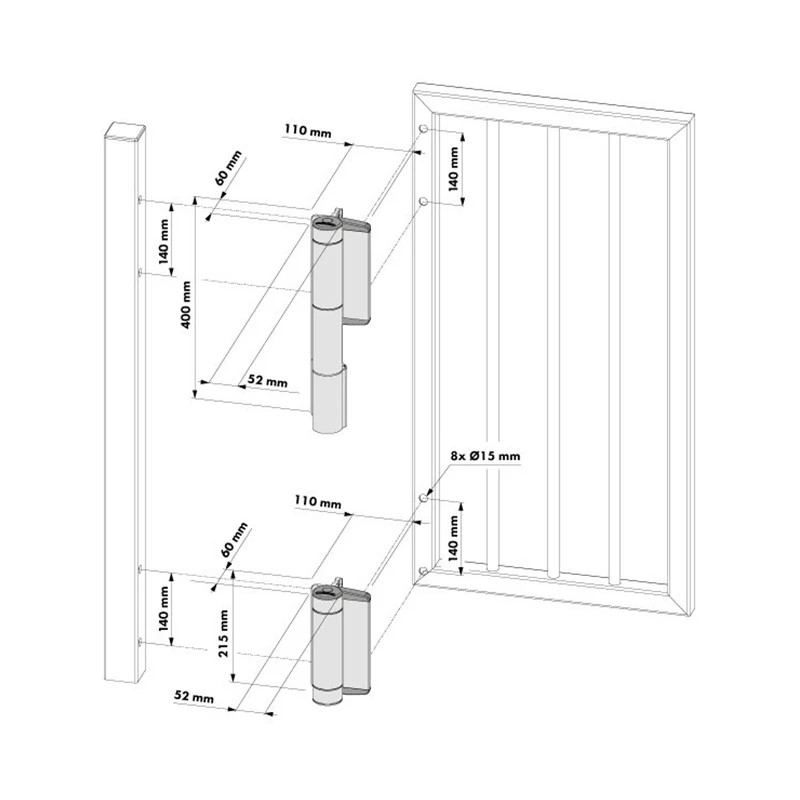

Dimensions and installation
- Height of upper module (self-closer): 400 mm
- Height of lower module (hinge): 215 mm
- Offset from post (mounting axis): 60 mm
- Offset from gate frame (mounting axis): 110 mm
- Body width: 52 mm
- Mounting hole spacing (vertical): 140 mm
- Mounting hole diameter: Ø15 mm (8 pcs)
- Opening angle: 180°
Installation is based on four mounting points — two on the post and two on the gate frame — for each of the modules. The vertical hole spacing of 140 mm ensures stable load transfer. The Ø15 mm holes allow the use of standard metric screws with suitable washers, making it easier for installers to select fittings from stock.
Technical specifications
- Manufacturer: Locinox
- Colour: silver
- Net weight: 5.47 kg
- Height (H): 180 mm
- EAN: 5414768066287
- Sales unit: pc.
Application and benefits for installers

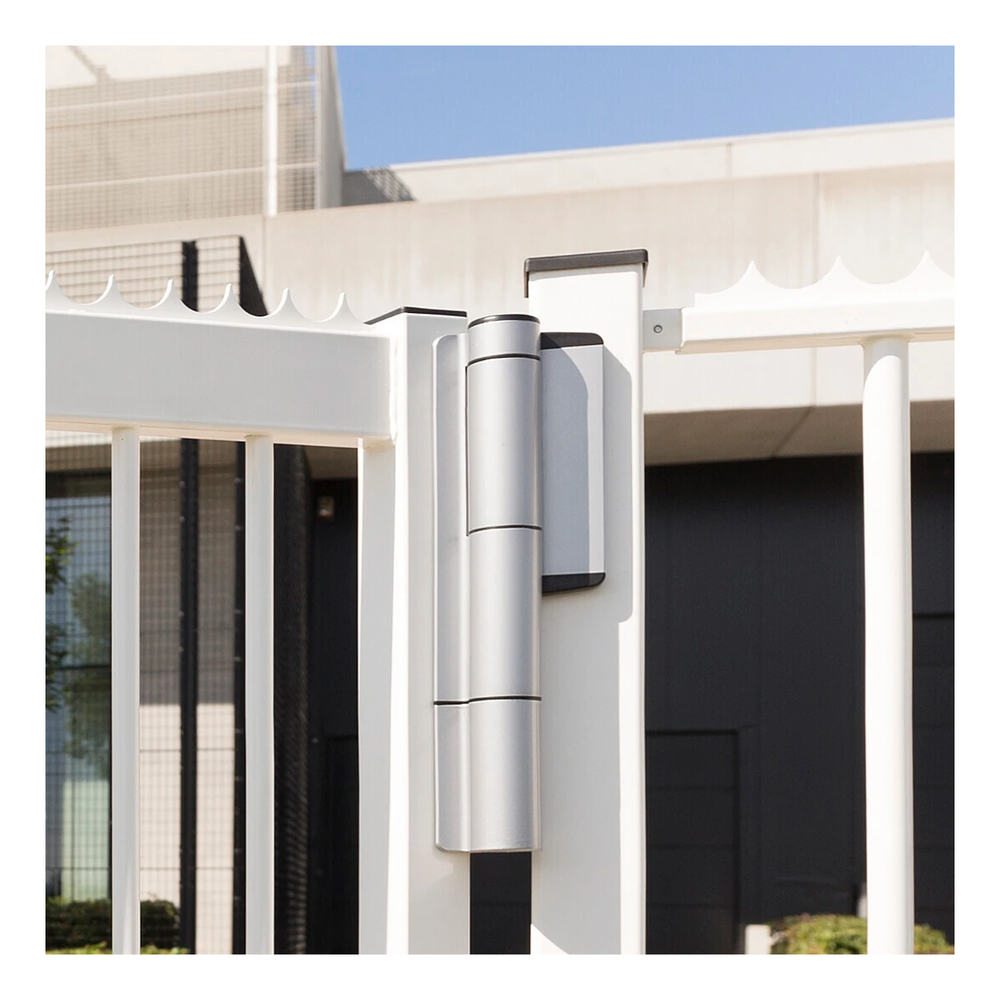

The Locinox self-closer is an ideal solution for garden gates, entrance gates, and gates in fence panel systems. The hydraulic mechanism ensures smooth and quiet closing — without slamming, which is particularly important in residential developments. The 180° opening angle allows the gate leaf to swing fully open, making it easier to pass through with a trolley, bicycle, or when carrying materials.
The Locinox brand is a Belgian manufacturer known for top-quality gate and fence fittings, used by professional installers around the world. Locinox products stand out for their durability, resistance to weather conditions, and thoughtful design that reduces installation time and minimises the need for servicing.
