Locinox – hydraulic self-closing hinge 180° for gates, black
Description
Locinox – hydraulic self-closing hinge 180° for gates, black
The Locinox hydraulic self-closing hinge with 180° opening angle is a complete solution integrating the function of a hinge and a self-closing mechanism in one compact housing. The product is designed for installation on metal, wooden and composite gates — wherever reliable, controlled closing is required without the need to install separate components.
Thanks to the hydraulic mechanism, the gate closes smoothly and quietly, without slamming. The 180° opening angle provides full freedom of passage, and the built-in adjustment allows precise setting of the closing speed. The black, anodised housing with the Locinox logo gives the gate a modern, aesthetic appearance and provides resistance to weather conditions.

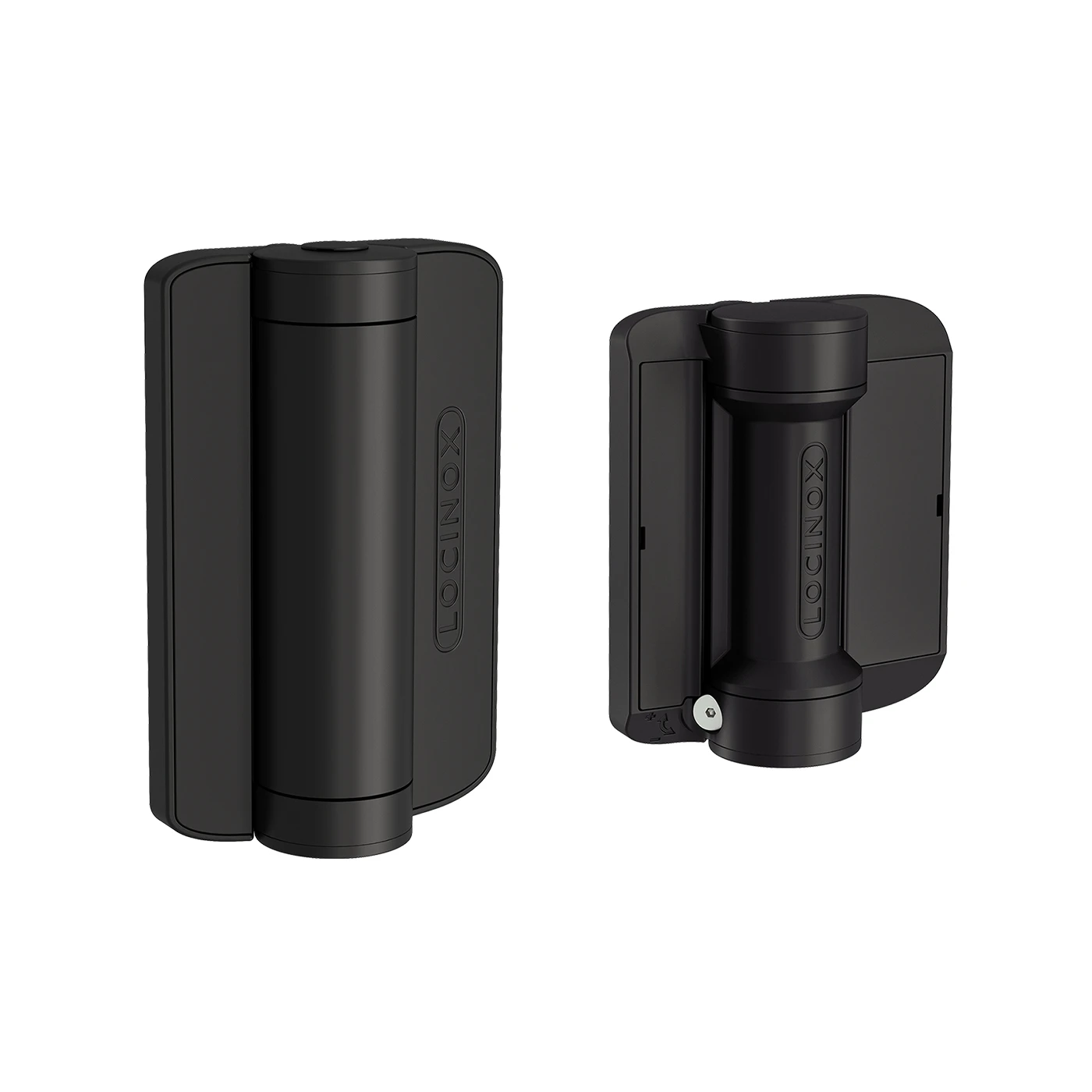

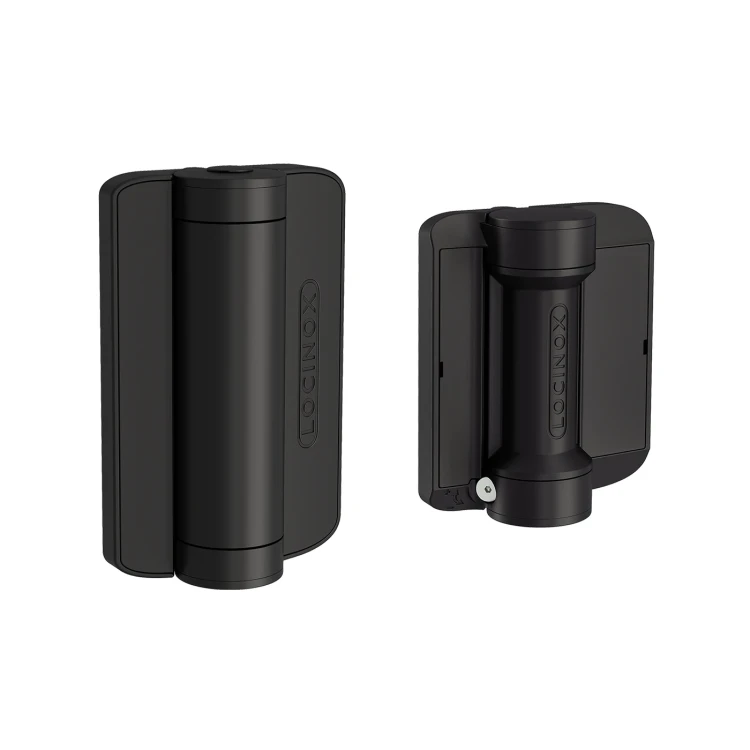

Two-part construction — upper and lower module

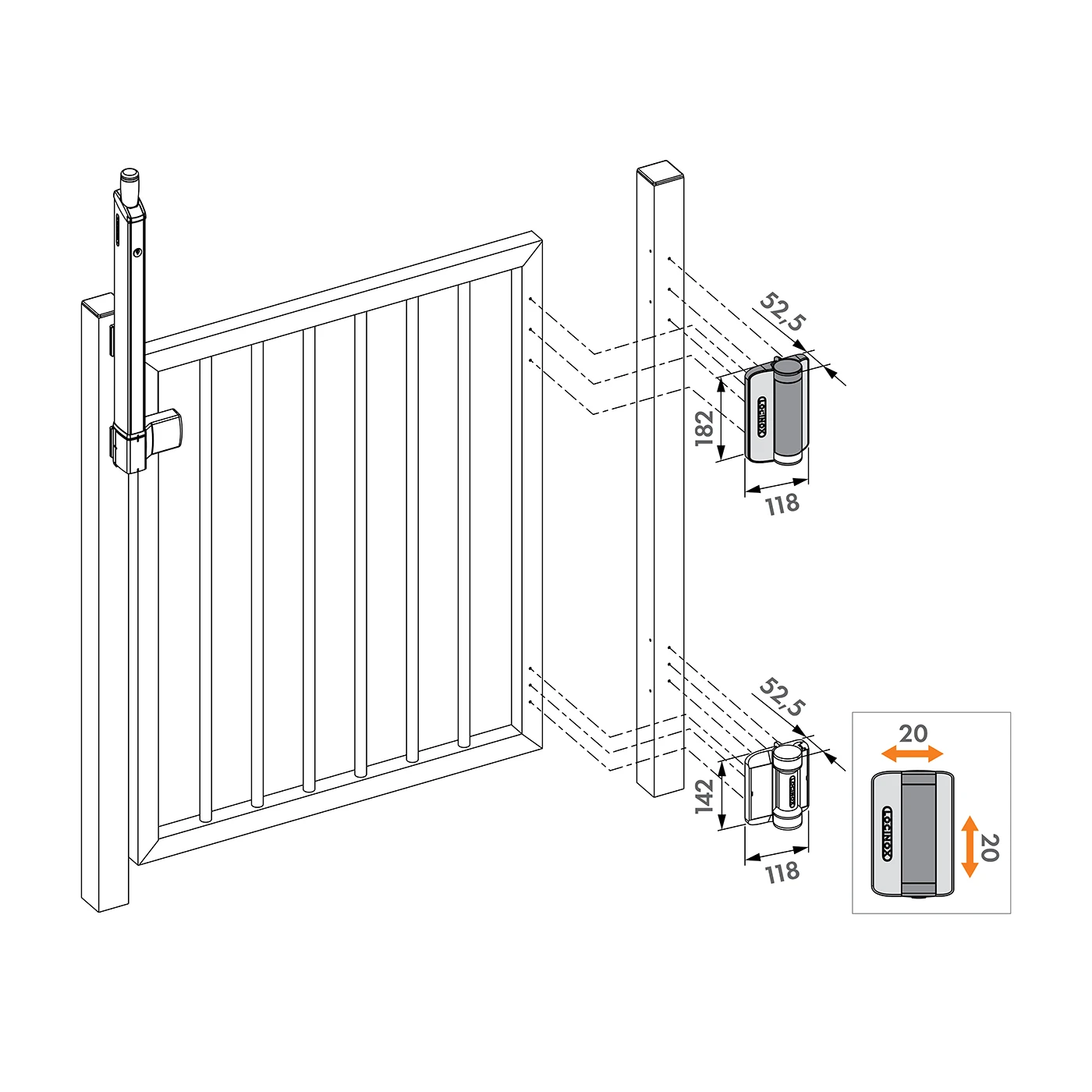

The set consists of two modules mounted on the post and the gate frame. The upper module (height 182 mm) functions as the hydraulic self-closer, while the lower module (height 142 mm) works as the load-bearing hinge. Both modules have an identical width of 118 mm and an offset of 52.5 mm, which ensures symmetrical installation and even load distribution.
Dimensions and installation adjustment
- Upper module (self-closer): 182 × 118 mm, offset 52.5 mm
- Lower module (hinge): 142 × 118 mm, offset 52.5 mm
- Vertical adjustment: ±20 mm
- Horizontal adjustment: ±20 mm
- Overall set dimensions: 380 × 120 mm (L × H)
Three-dimensional adjustment (20 mm vertically and 20 mm horizontally) allows precise levelling of the gate after installation — even if the post is not perfectly vertical or the gate frame requires adjustment. This represents a significant time saving on the construction site.
Professional installation and aesthetics

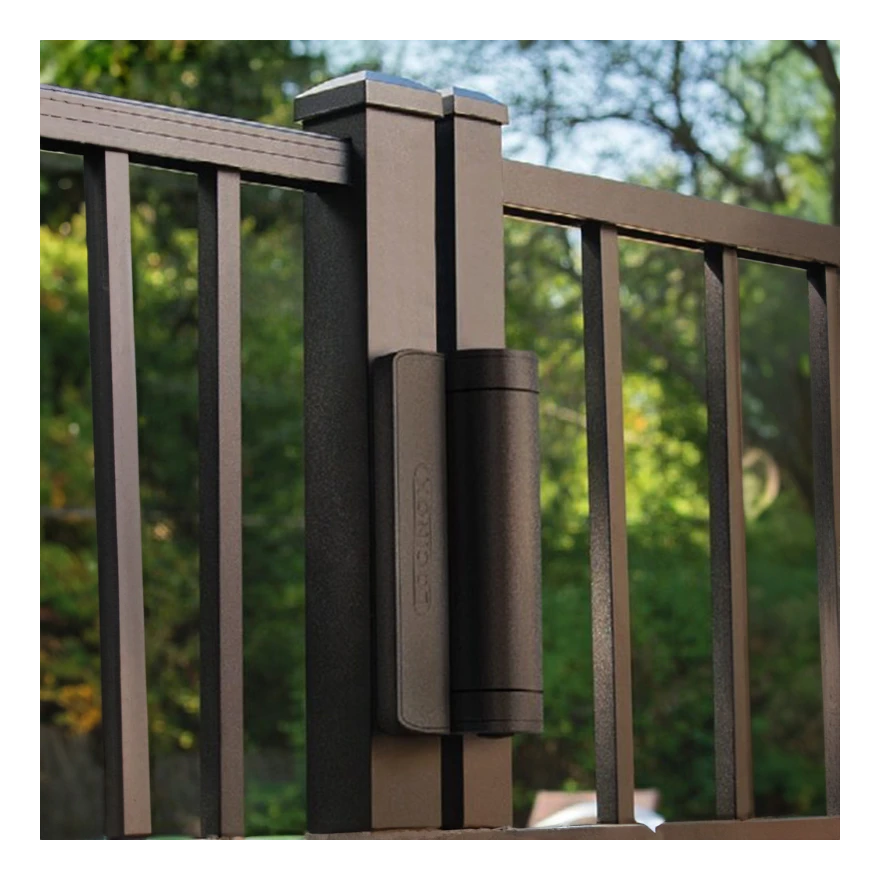

The Locinox self-closer is mounted directly onto the post profile and the gate frame — without milling, welding or complicated preparation. The black colour blends perfectly with popular panel and wrought iron fencing systems, and the solid construction ensures many years of trouble-free operation in outdoor conditions.
Technical specification
- Manufacturer: Locinox
- Type: hydraulic self-closing hinge with 180° opening
- Colour: black
- Dimensions (L × H): 380 × 120 mm
- Net weight: 1.69 kg
- Opening angle: 180°
- Vertical adjustment: 20 mm
- Horizontal adjustment: 20 mm
- Application: fence gates – metal, wooden, composite
- Installation: surface-mounted on post and gate frame
- EAN: 5414768076859
Benefits for the installer:
- Two in one — hinge and self-closer in a single housing shorten installation time
- 3D adjustment after installation — no need for disassembly and re-drilling
- Hydraulic damping — quiet operation, no gate impact against the post
- Locinox brand — European manufacturer with a long-standing quality guarantee
- Versatility — compatible with various types of fencing profiles
