Locinox – hydraulic gate closer for Interio 180° hinges, silver

The Locinox hydraulic gate closer for Interio hinges is a professional solution providing automatic, smooth closing of gates and doors with an opening angle of up to 180°. The integrated hydraulic mechanism with adjustable end closing ensures that the gate leaf always returns to the closed position — quietly, without slamming and without the need for manual closing. The product is designed for installation with hinges from the Locinox Interio series.

Thanks to its compact silver and orange aluminium alloy housing, the gate closer is weather-resistant and blends aesthetically into modern fencing systems. The set is complete — it includes all necessary brackets, hinge inserts, seals, washers and mounting screws, allowing for quick and easy installation without the need to order additional components.

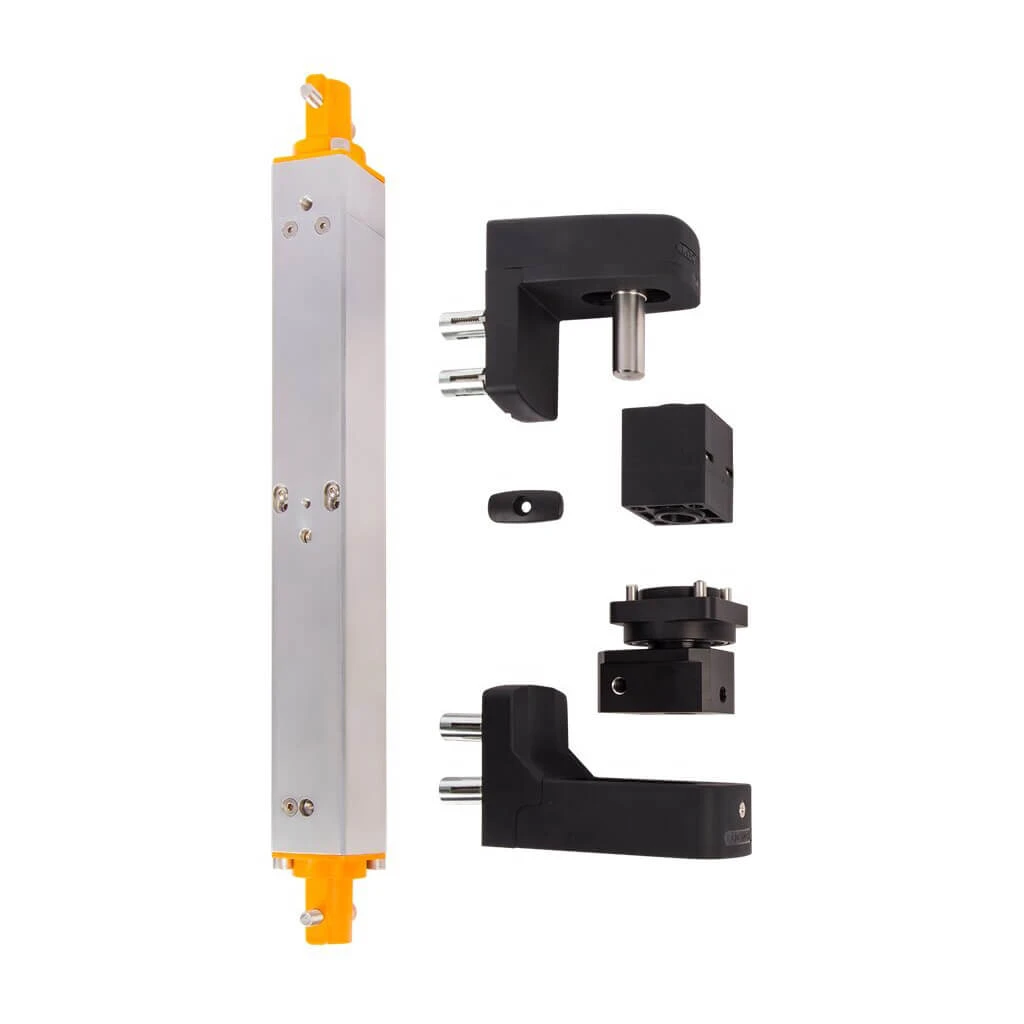

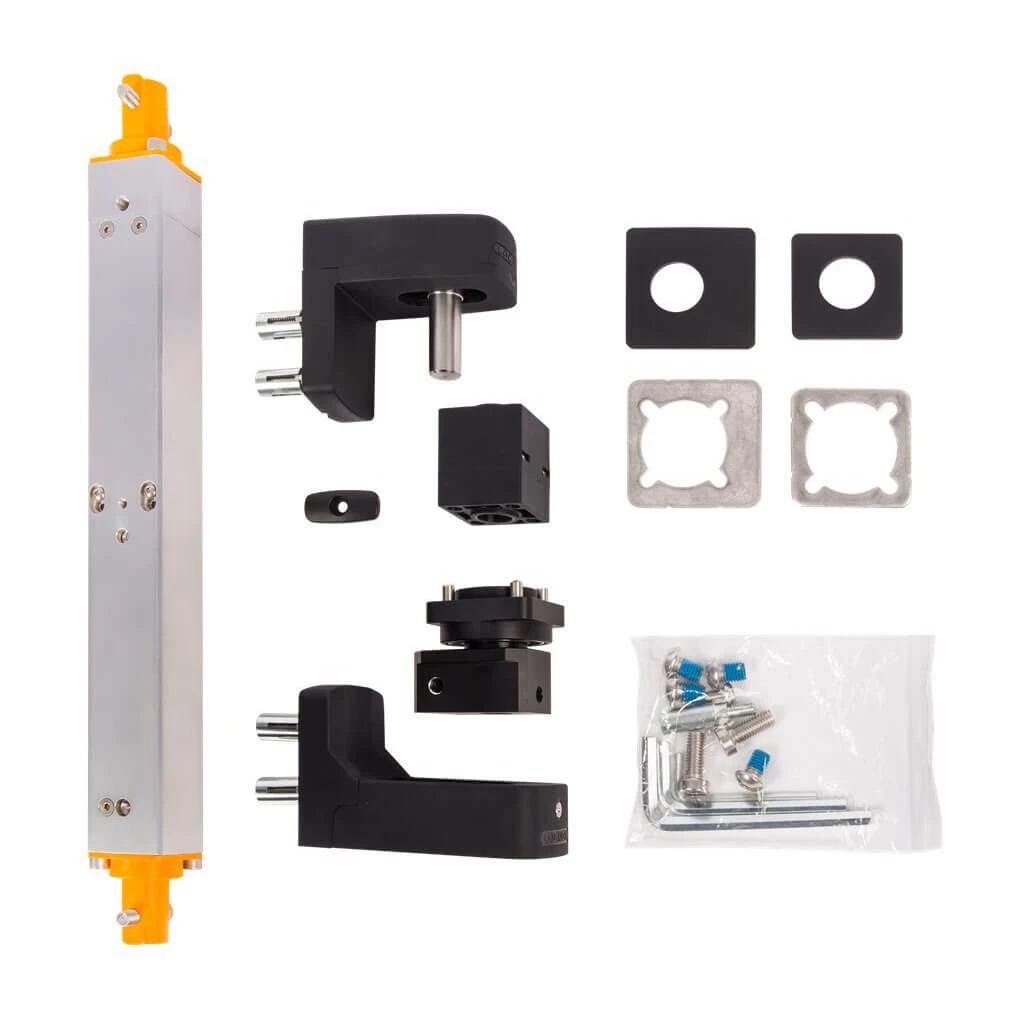

Set contents

Installation and dimensions

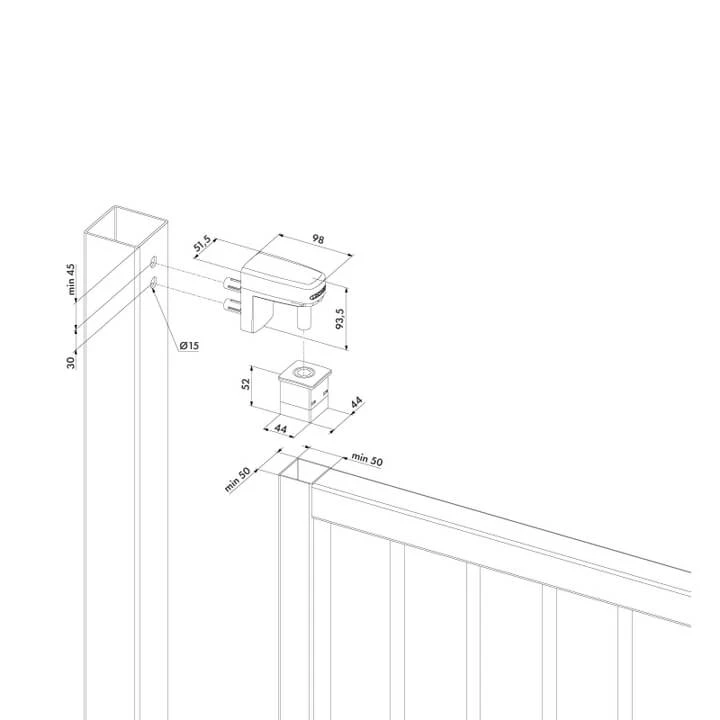

The gate closer is installed between the fence post and the gate leaf. The upper bracket is fixed to the post with two screws, while the lower bracket is fixed to the leaf frame. Key installation dimensions are shown below:

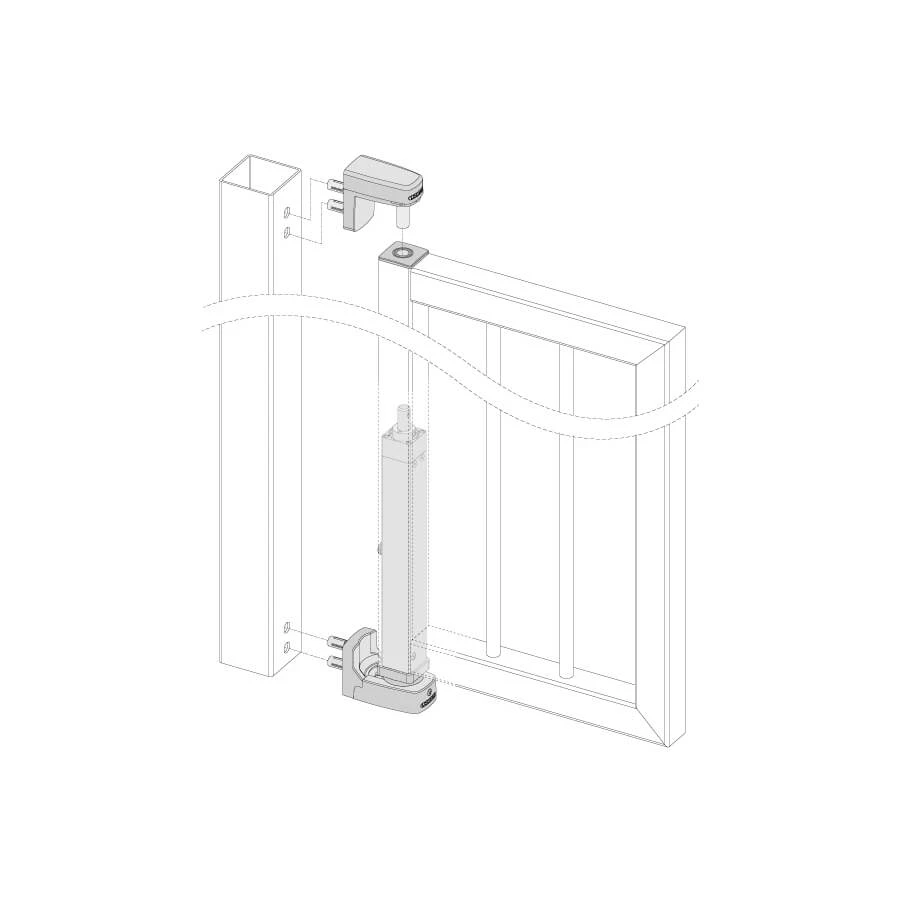

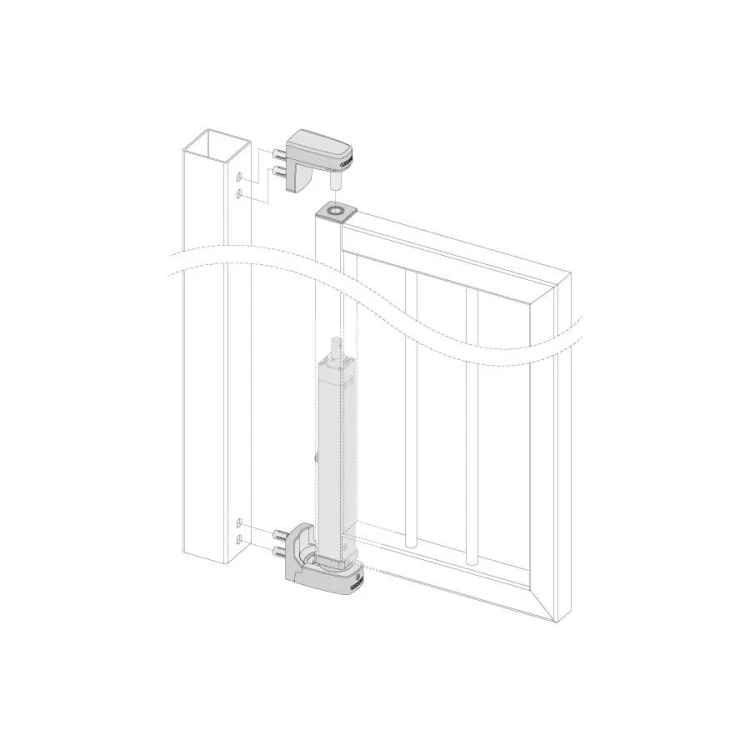

The installation diagram shows how the gate closer is built into the frame of a single-leaf gate. The hydraulic actuator is hidden inside the leaf structure, ensuring an aesthetic appearance and protecting the mechanism from mechanical damage. The upper hinge bracket is fixed to the post, and the leaf moves through a full 180° arc with a controlled closing speed.

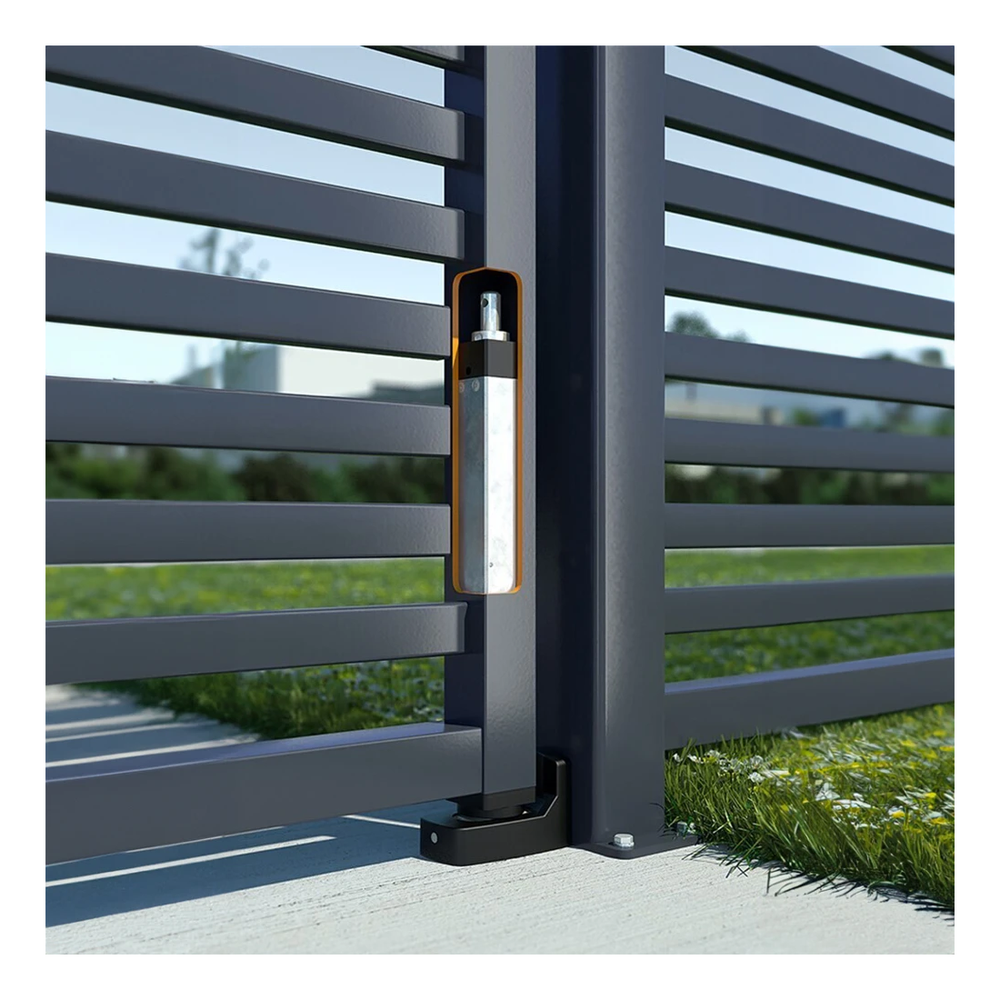

Practical application

The gate closer works perfectly with modern fencing systems — both with horizontal infills (louvred, slatted) and panel infills. Once installed, it is practically invisible from the outside, which will be appreciated by end customers who care about the appearance of their property. For an installation company, this is an element that adds value to the project — automatic gate closing is a comfort that the customer will notice in everyday use.

Technical specification
