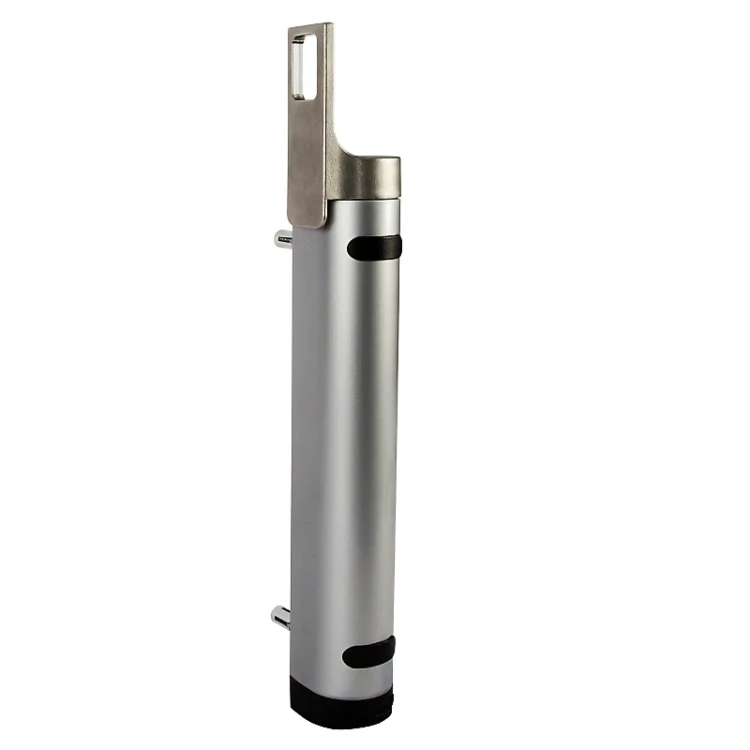

Locinox Rhino – 180° hydraulic gate self-closer with latching action adjustment, silver
Description
Locinox Rhino – 180° hydraulic gate self-closer with latching action adjustment, silver
The Locinox Rhino hydraulic self-closer is a professional solution for automatically closing gates and wicket gates with an opening angle of up to 180°. Thanks to its built-in latching action adjustment, it ensures a quiet and reliable closing of the leaf — without slamming and without the need for manual pulling. It is an ideal choice for installation companies fitting property fencing, industrial gates and gates in public facilities.
Why choose the Locinox Rhino?
The Rhino self-closer has been designed for use with Locinox Rhino hinges, guaranteeing full mechanical compatibility and trouble-free installation. The hydraulic damping mechanism ensures smooth, controlled closing of the leaf regardless of weather conditions. The latching action adjustment allows the closing force pulling the gate towards the lock to be precisely adjusted — eliminating the problem of gates not fully closing, which is crucial in access control systems.
- Opening angle: up to 180°
- Hydraulic closing speed adjustment
- Latching action adjustment
- Designed for: Rhino Locinox hinges
- Mounting: on the fence post (vertical)
- Colour: silver

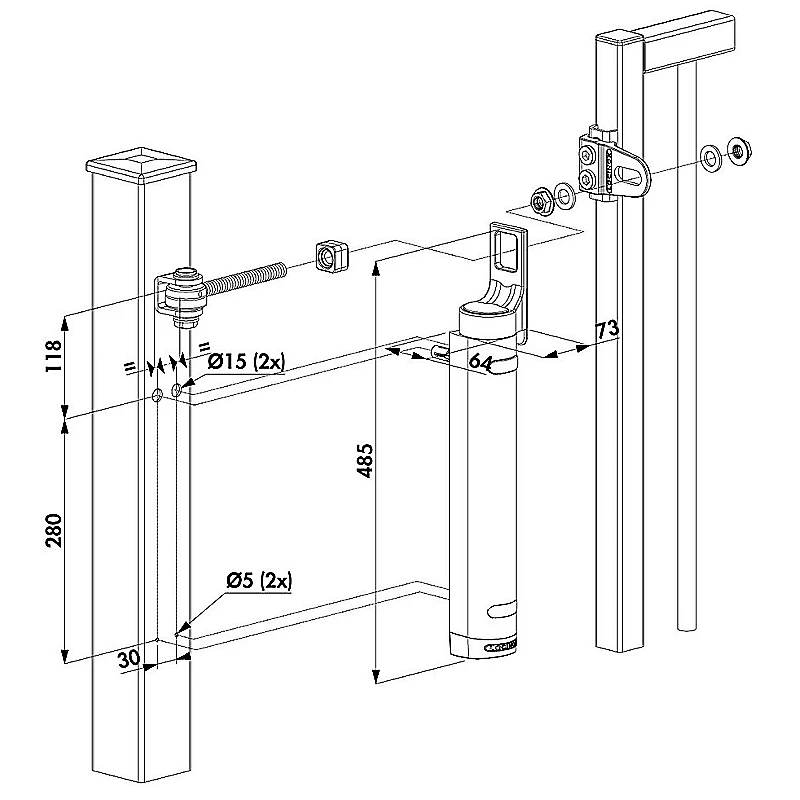

Dimensions and mounting data
- Overall height of the self-closer: 485 mm
- Mounting hole spacing (vertical): 280 mm
- Distance from the upper hinge axis to the upper holes: 118 mm
- Mounting hole spacing (horizontal): 30 mm
- Upper hole diameter: Ø15 mm (2 pcs)
- Lower hole diameter: Ø5 mm (2 pcs)
- Fixing element depth: 64 mm
- Distance between body and frame bracket: 73 mm
Application and installation

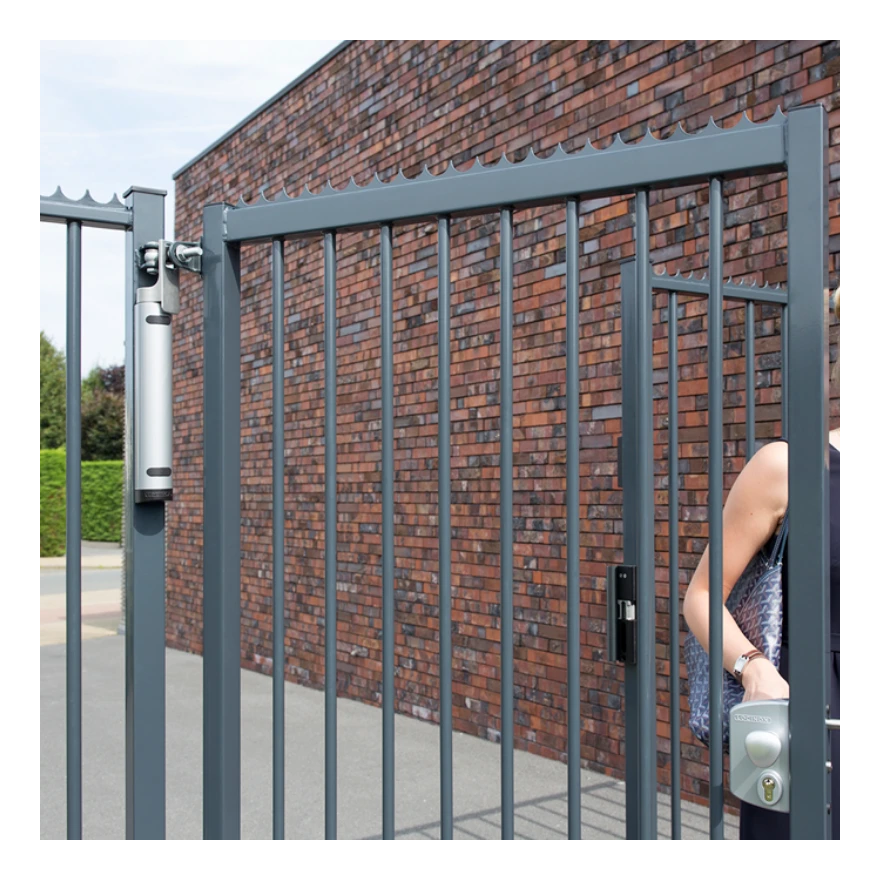

The Locinox Rhino self-closer is mounted vertically on the gate post and works together with Rhino hinges from the same manufacturer. Thanks to its solid construction and hydraulic mechanism, it performs well both in residential installations (garden gates) and in commercial or industrial facilities with heavy traffic. Proper selection of closing force and latching adjustment allow it to be used with leaves of various weights and dimensions.
Product data
- Manufacturer: Locinox
- Type: hydraulic gate self-closer
- Opening angle: 180°
- Compatibility: Rhino Locinox hinges
- Colour: silver
- Weight: 5.045 kg
- EAN: 99915358
