Locinox Puma – 180° Hydraulic Self-Closing Hinge for Gates up to 75 kg, Silver
Description
Locinox Puma – 180° Hydraulic Self-Closing Hinge for Gates up to 75 kg, Silver

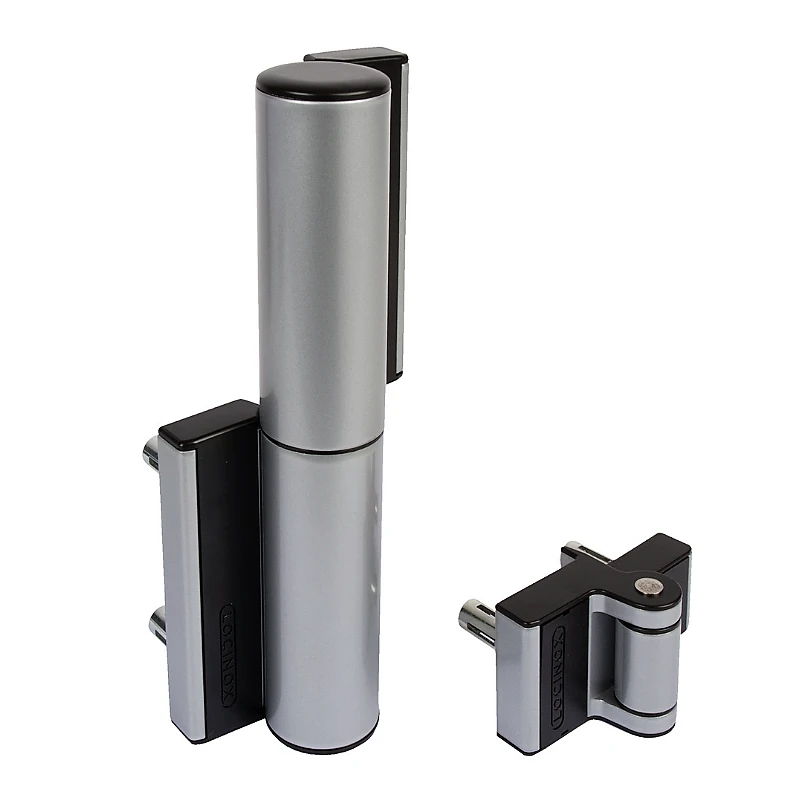

Locinox Puma is an advanced hydraulic self-closer with built-in 180° hinge, designed for gates weighing up to 75 kg. The device combines the function of a hinge and a self-closer in one compact body, significantly simplifying installation and reducing the number of components on the gate. An ideal solution for pool enclosures, residential fencing and public utility facilities where reliable, automatic gate closing is required.
Thanks to the hydraulic damping mechanism, the gate closes smoothly and quietly, without slamming. The Quick-Fix system enables express installation — fitting takes just a few minutes, translating into real time savings on site. The hinge opens across the full 180° range, ensuring free passage in both directions.
Key product features
- Type: hydraulic self-closer with 180° hinge
- Maximum gate weight: 75 kg
- Mounting system: Quick-Fix — quick installation without welding
- Closing mechanism: hydraulic — smooth, controlled closing
- Opening angle: 180°
- Colour: silver
- Manufacturer: Locinox
- Net weight: 2.425 kg
- EAN: 5414768032589

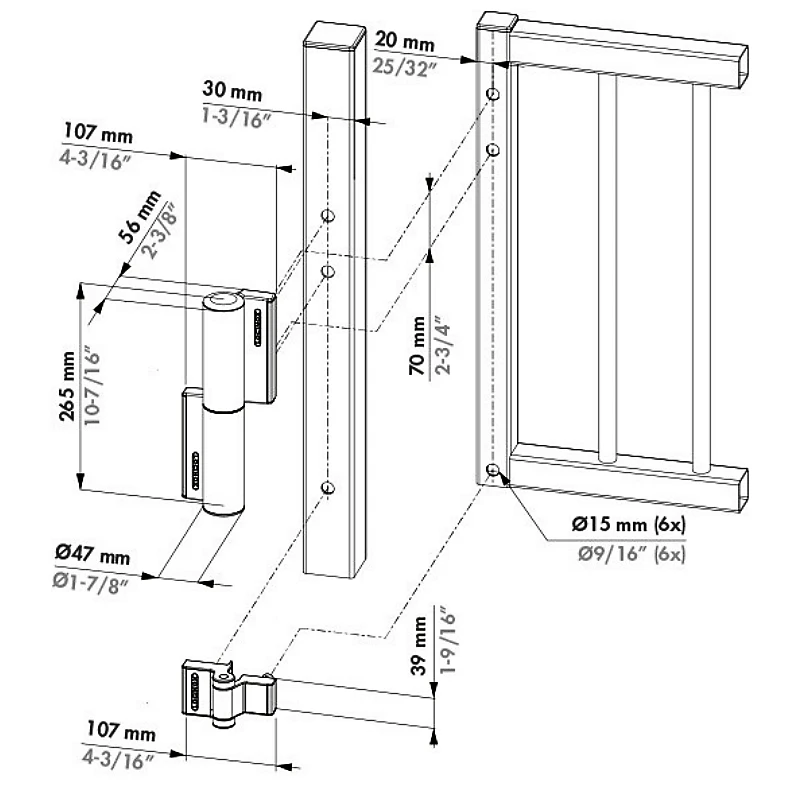

Dimensions and installation
- Total hinge height: 265 mm
- Body diameter: Ø47 mm
- Distance from pivot axis to post: 56 mm
- Distance from pivot axis to gate frame: 107 mm
- Mounting hole spacing (vertical): 70 mm
- Mounting hole diameter: Ø15 mm (6 pcs)
- Axis offset from post edge: 30 mm
- Axis offset from frame edge: 20 mm
- Mounting profile depth: 39 mm
Locinox Puma is compatible with square and rectangular profiles — standard in aluminium and steel fencing. Six mounting holes with a diameter of 15 mm ensure stable and secure fastening both on the post side and on the gate frame side.
Applications
The Locinox Puma self-closer proves its worth wherever automatic gate closing is required for safety or convenience reasons:

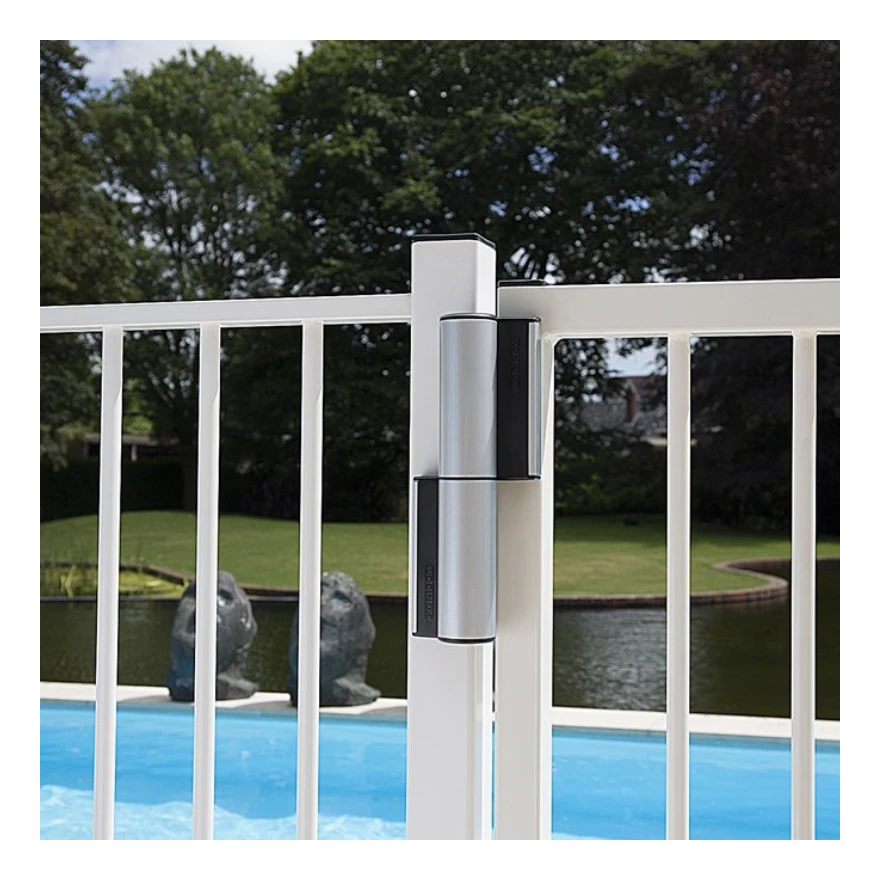

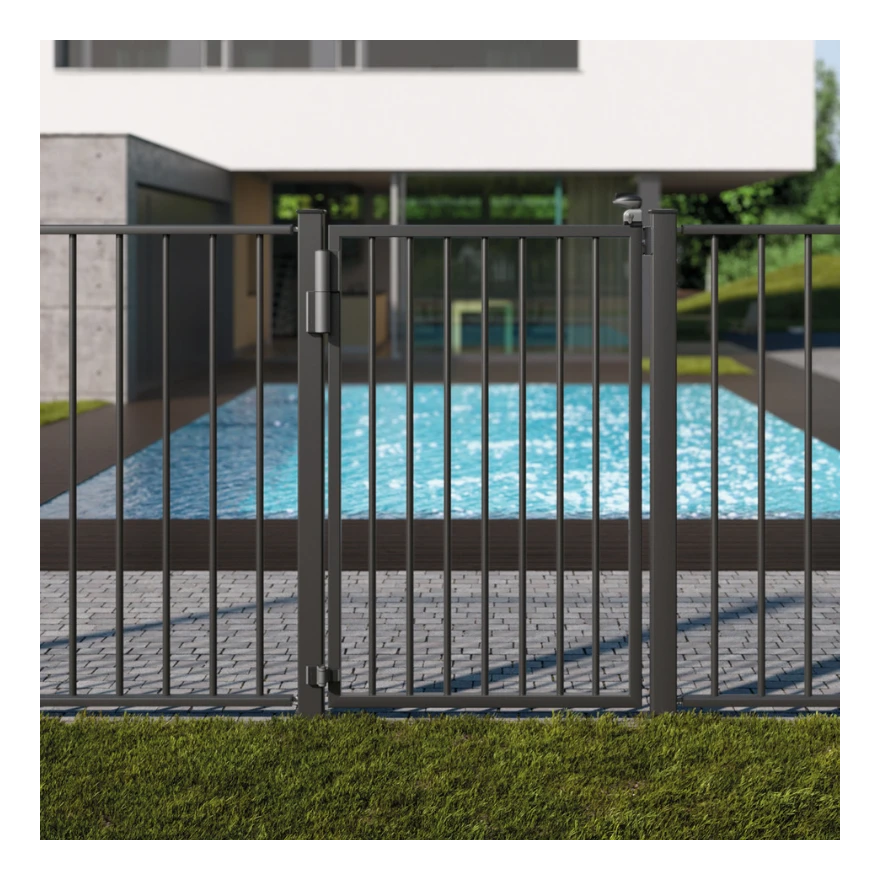

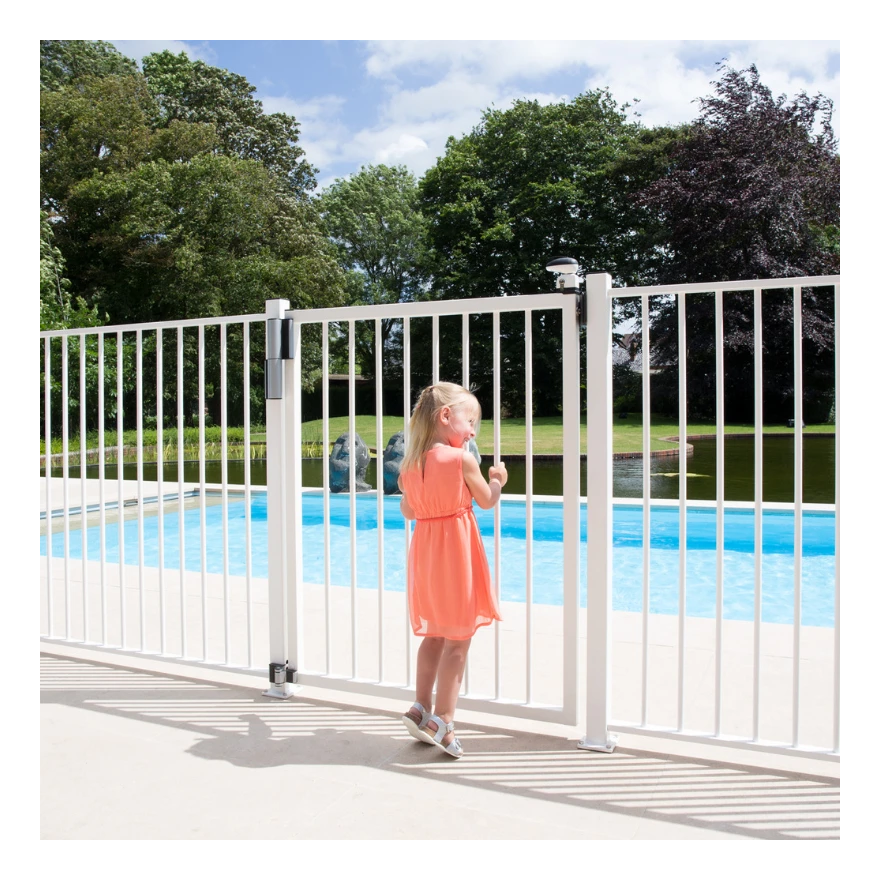

- Pool enclosures — automatic closing secures the pool area, particularly important where children are present
- Residential and garden gates — everyday convenience without the need for manual closing
- Commercial and public facilities — compliance with safety requirements for fencing around pools, playgrounds and restricted-access areas
Why choose Locinox Puma?
The Locinox brand is a Belgian manufacturer specialising in professional fencing accessories. Locinox products stand out for their high build quality, resistance to weather conditions, and well-thought-out installation solutions that speed up the work of installation teams. The Quick-Fix system in the Puma model allows a complete hinge with self-closer to be fitted in a matter of minutes — without the need for welding, drilling additional holes or using specialist equipment.
