Locinox Mammoth-180 – hydraulic self-closing hinge for gates 180° black
Description
Locinox Mammoth-180 – hydraulic self-closing hinge for gates 180° black

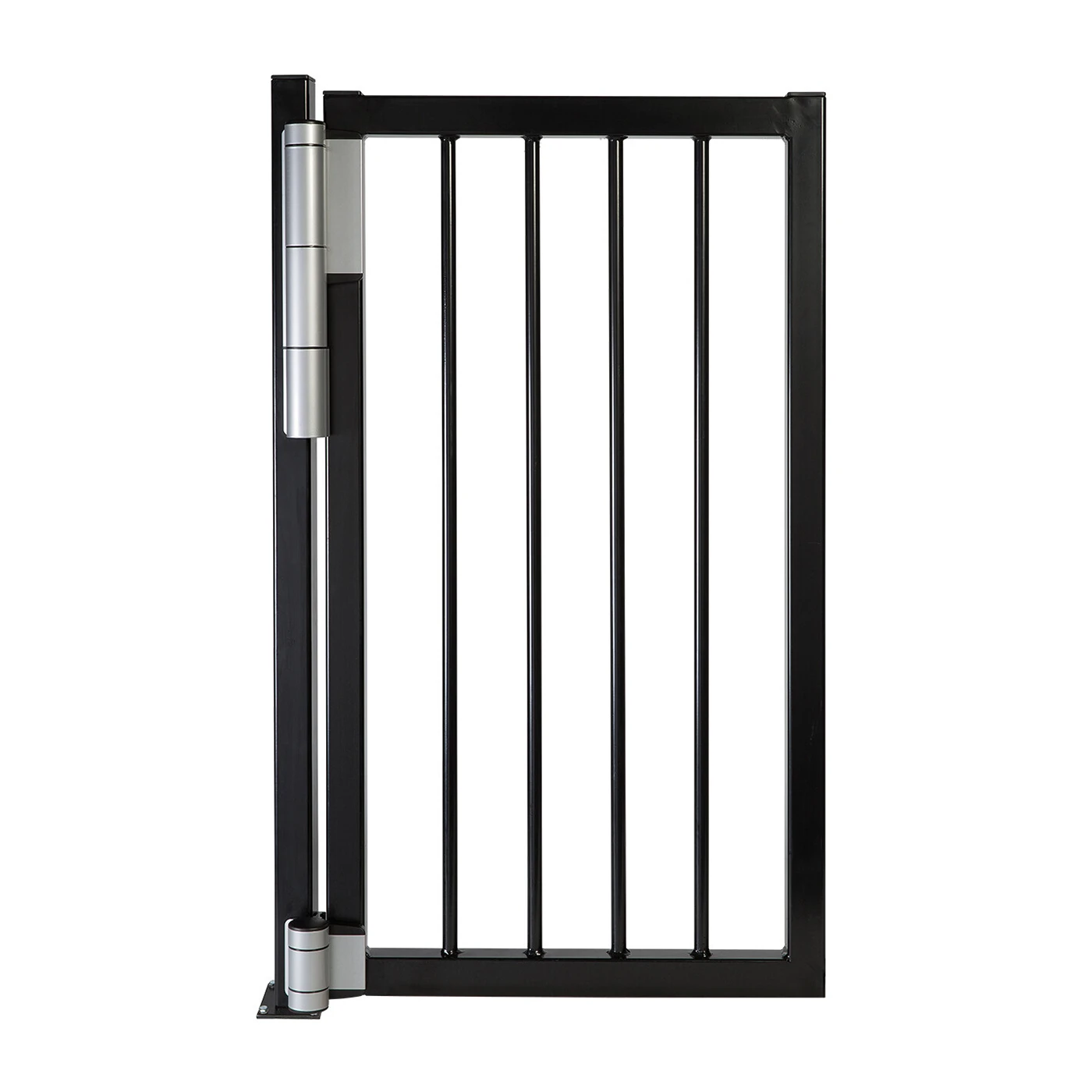

Locinox Mammoth-180 is a professional hydraulic self-closing hinge integrated with a hinge mechanism designed for pedestrian gates and doors. The device combines the function of a load-bearing hinge with controlled self-closing in one compact module, eliminating the need to install a separate self-closer. Thanks to the 180° opening angle, the gate opens in both directions, providing free passage for prams, movement with materials, or evacuation in an emergency.

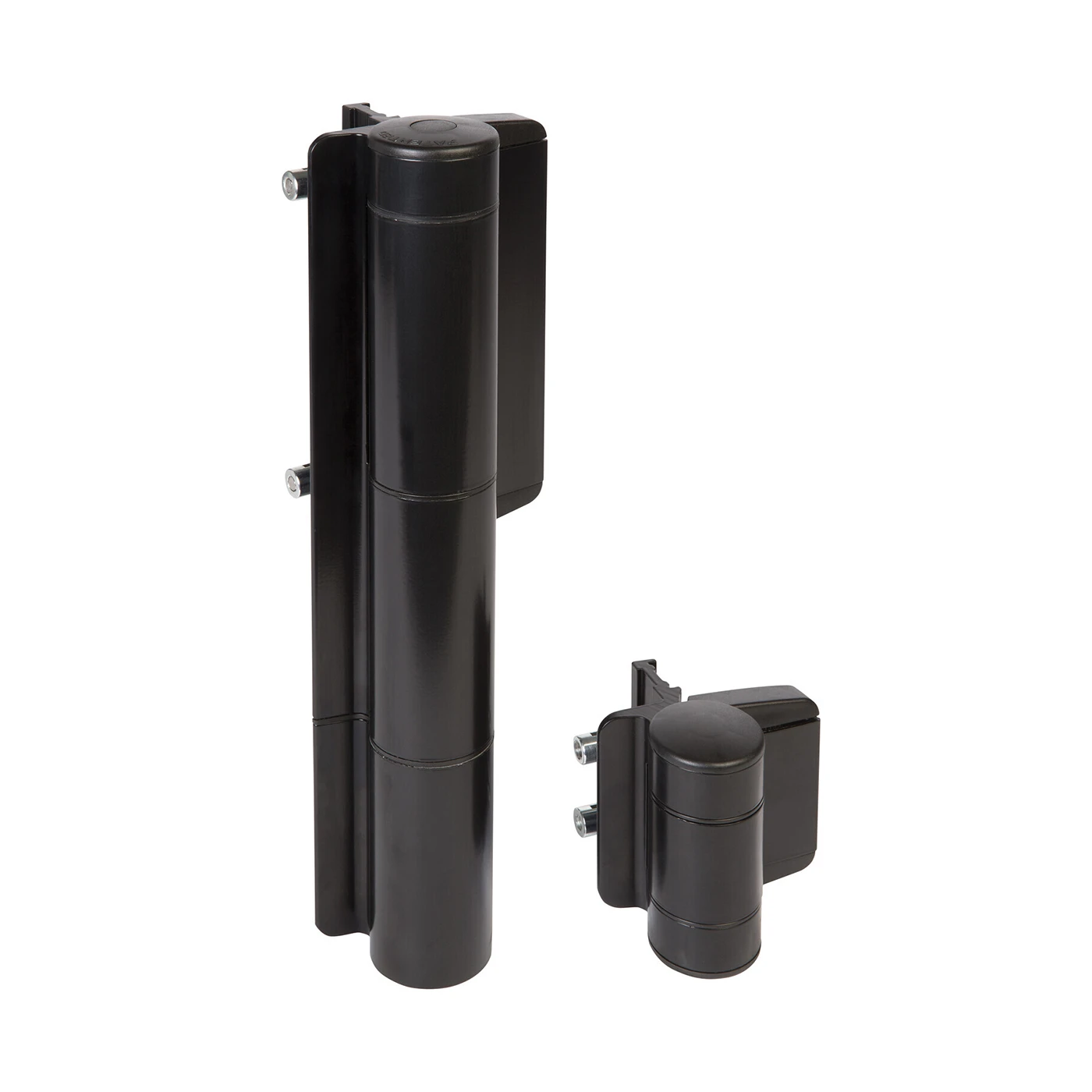

The system consists of two modules — an upper one (with built-in hydraulic mechanism) and a lower one (load-bearing hinge), which together guarantee stable guidance of the leaf and smooth closing. The patented internal construction ensures quiet and controlled operation throughout the entire service life, even with intensive use at industrial sites, pool enclosures, or entrances to protected zones.
Key advantages
- 2 in 1 — load-bearing hinge and hydraulic self-closer in a single housing, no additional components needed
- Opening angle: 180° — the leaf opens in both directions
- Closing speed adjustment — the hydraulic mechanism allows precise adjustment of the closing pace
- Adjustment in 3 axes — horizontal (±20 mm) and vertical (±20 mm) without dismounting the hinge
- Compatibility with square, rectangular and round profiles — thanks to dedicated adapters

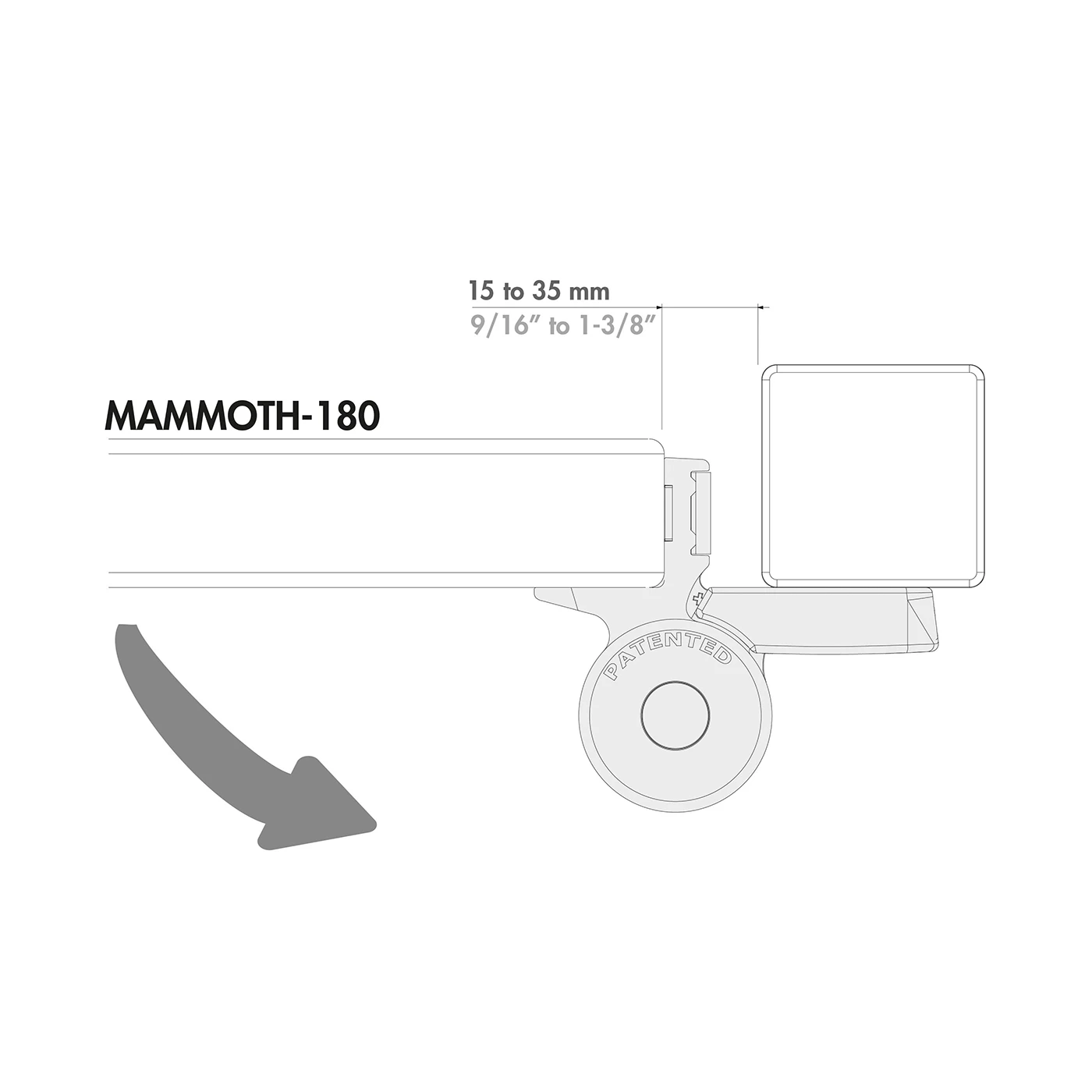

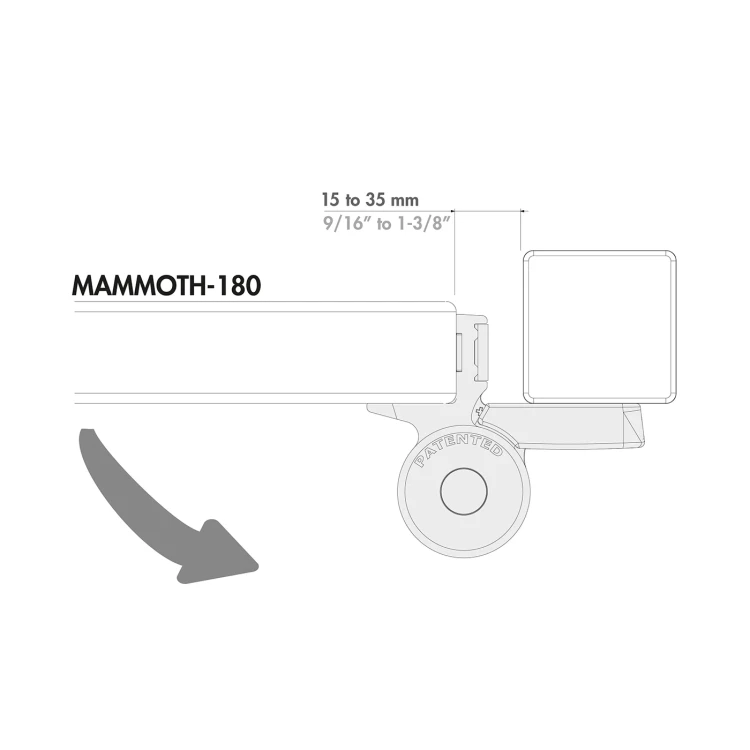

- Required mounting gap: 15–35 mm
- Patented, fully enclosed construction — resistant to weather conditions and dirt

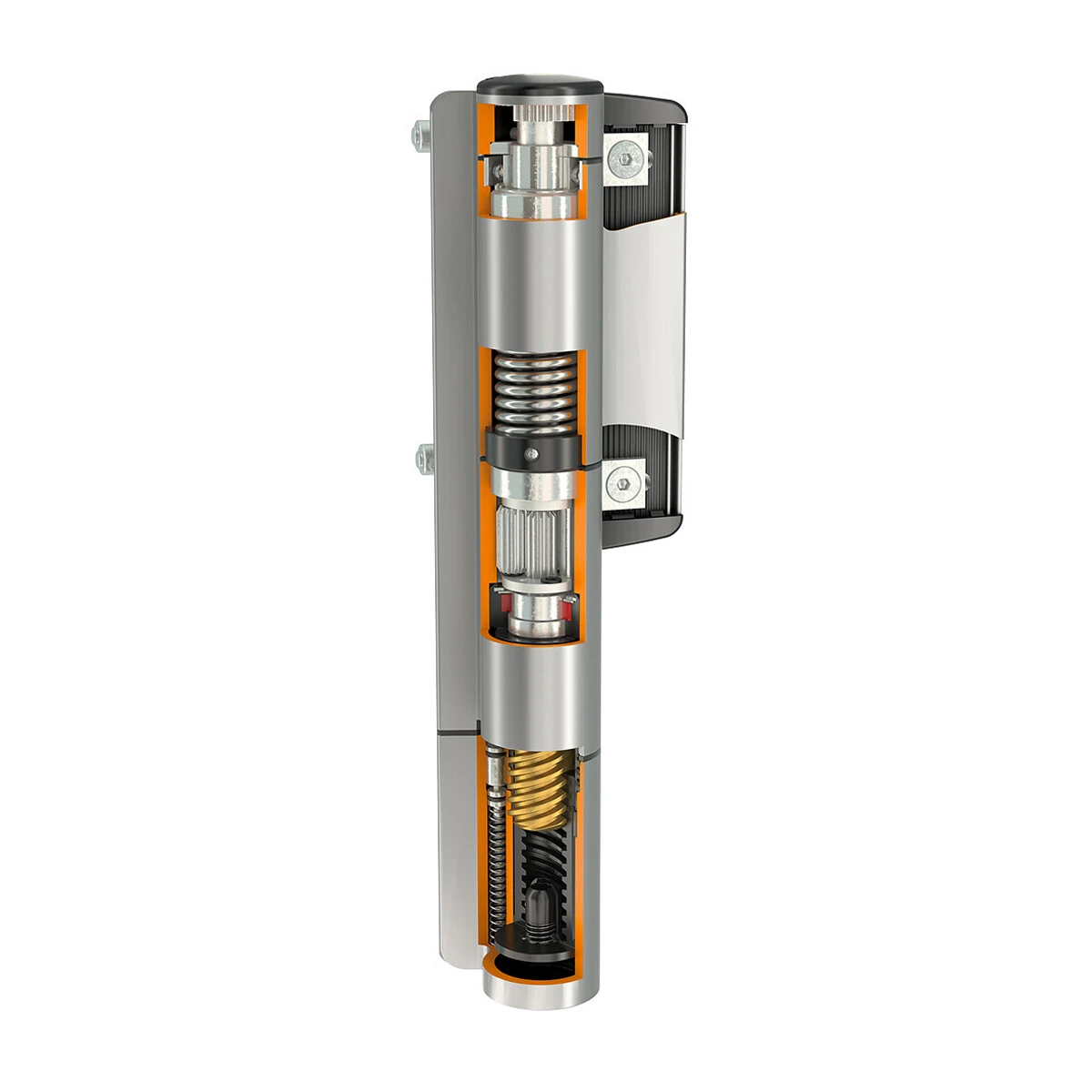

Internal construction and operating principle
The interior of the upper module houses a precision hydraulic mechanism with a multi-stage system of springs and gears. The springs are responsible for the automatic return of the leaf to the closed position, while the hydraulic damper controls the speed of this movement — eliminating slamming and excessive strain on the gate structure. Thanks to the enclosed housing, the mechanism is protected from dust, water and corrosion, guaranteeing many years of trouble-free operation without the need for lubrication or maintenance.

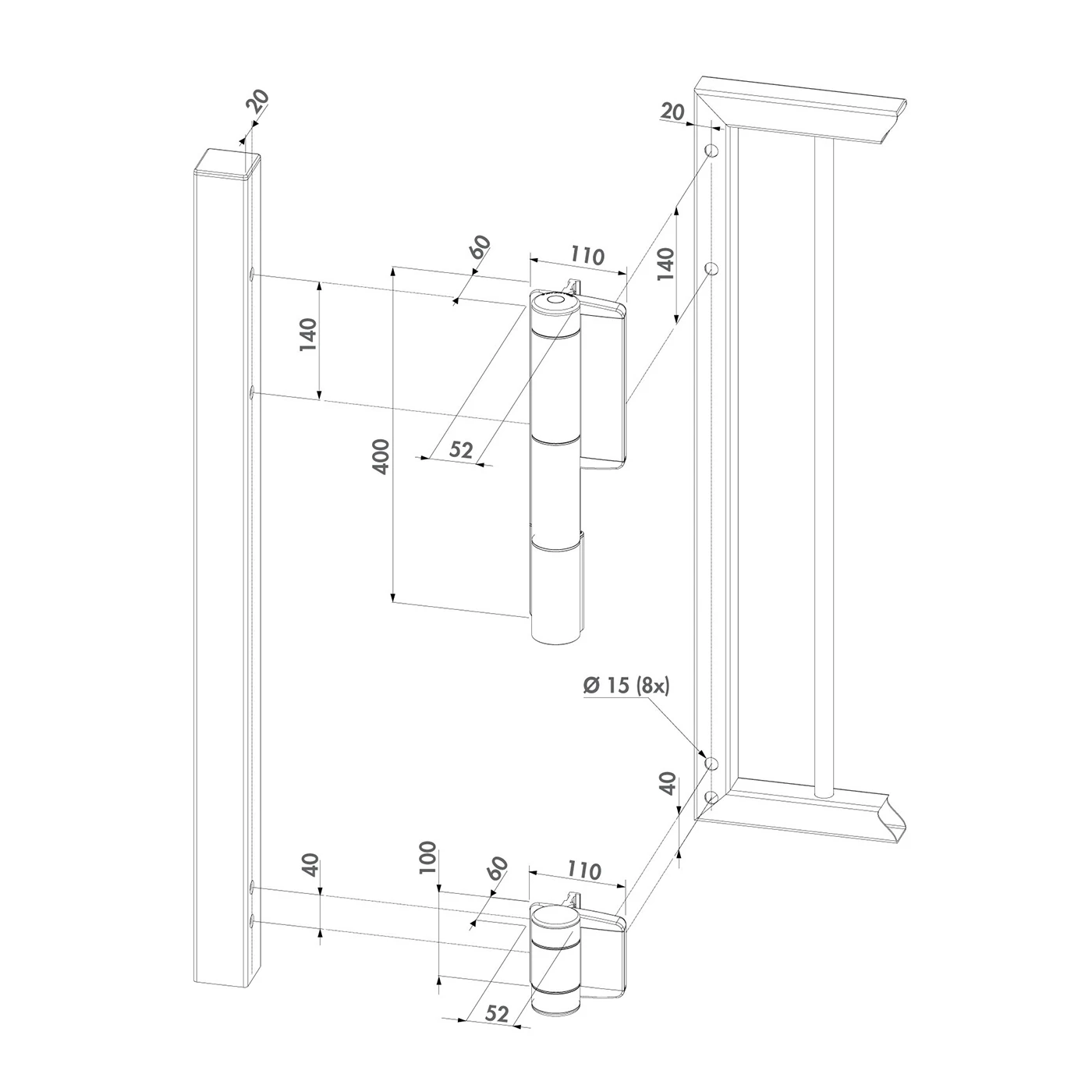

Dimensions and installation data
Upper module (self-closer + hinge):
- Module height: 400 mm
- Module width: 110 mm
- Offset of the pivot axis from the profile: 52 mm
- Mounting hole spacing: 140 mm
- Distance from the top hole to the module edge: 60 mm
Lower module (load-bearing hinge):
- Module height: 100 mm
- Module width: 110 mm
- Offset of the pivot axis from the profile: 52 mm
- Mounting hole spacing: 40 mm
- Distance from the hole to the module edge: 60 mm
General data:
- Mounting hole diameter: Ø 15 mm (8 pcs.)
- Mounting gap (between the post and the gate frame): 15–35 mm
- Horizontal adjustment: ±20 mm
- Vertical adjustment: ±20 mm
- Overall length of the set (L): 500 mm
- Net weight: 4.82 kg
- Colour: black
- Manufacturer: Locinox
- EAN: 5414768015698

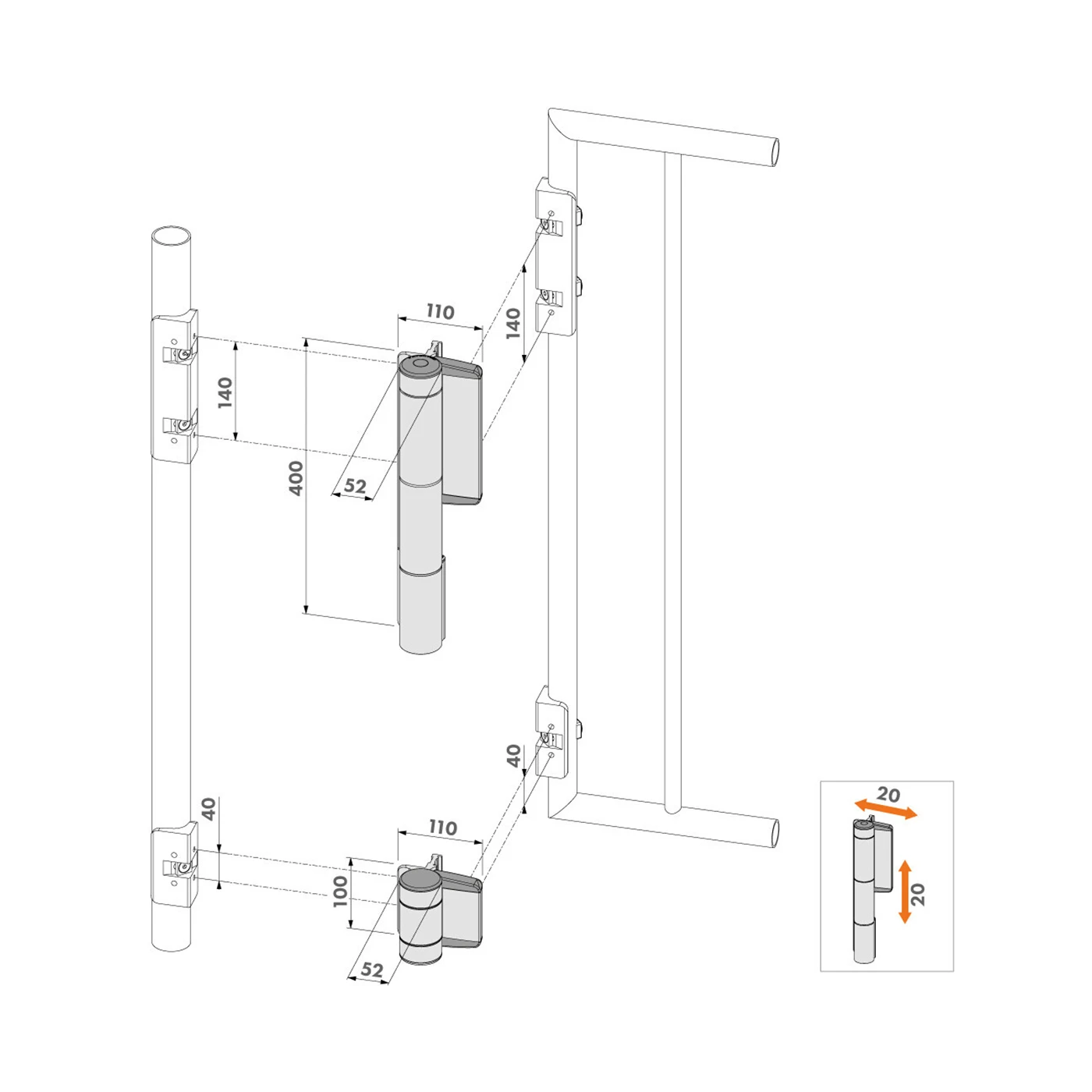

Installation on different types of posts

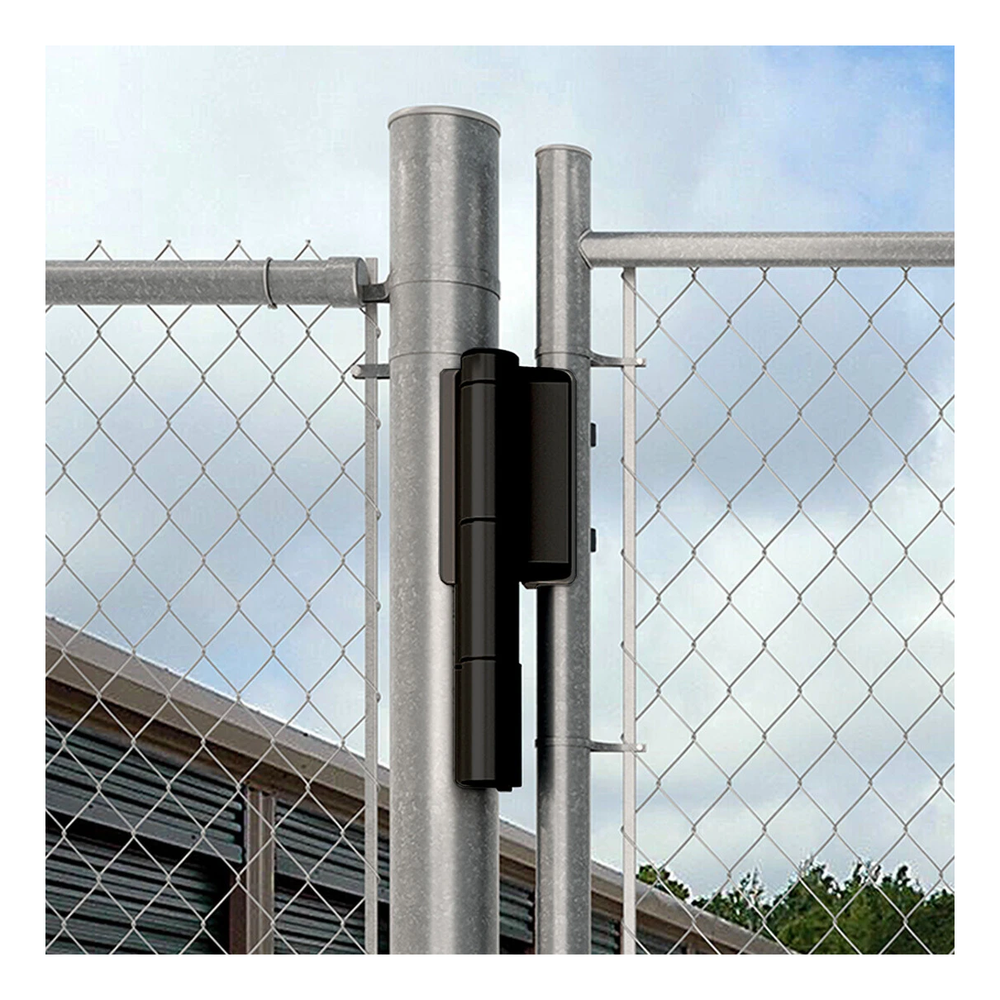

The Mammoth-180 can be installed on both square and rectangular profiles and on round posts — in the latter case, dedicated clamp adapters are used. Regardless of the post type, after installation three-dimensional adjustment (horizontal and vertical, each ±20 mm) is available, allowing precise positioning of the gate leaf without the need to dismount the hinge. This is particularly useful when levelling the gate position after foundation settling or when installing on posts with dimensional deviations.
Applications

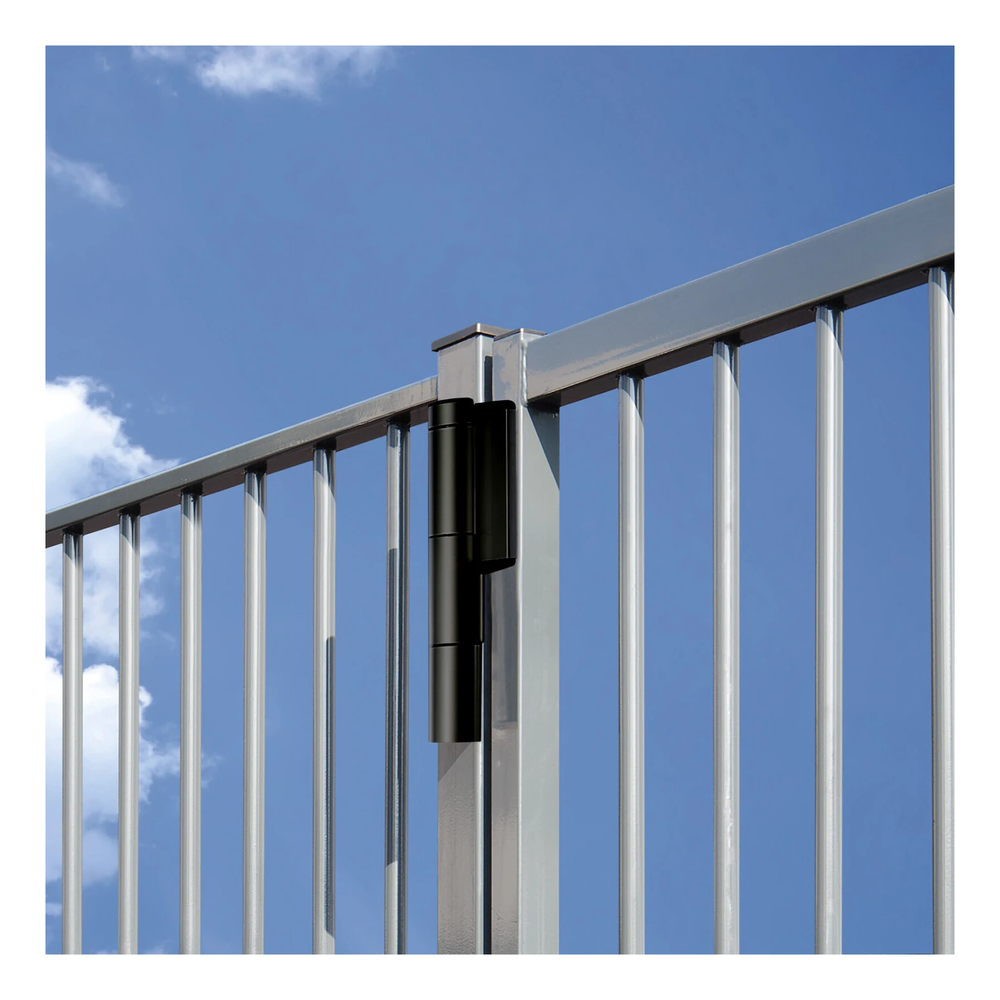

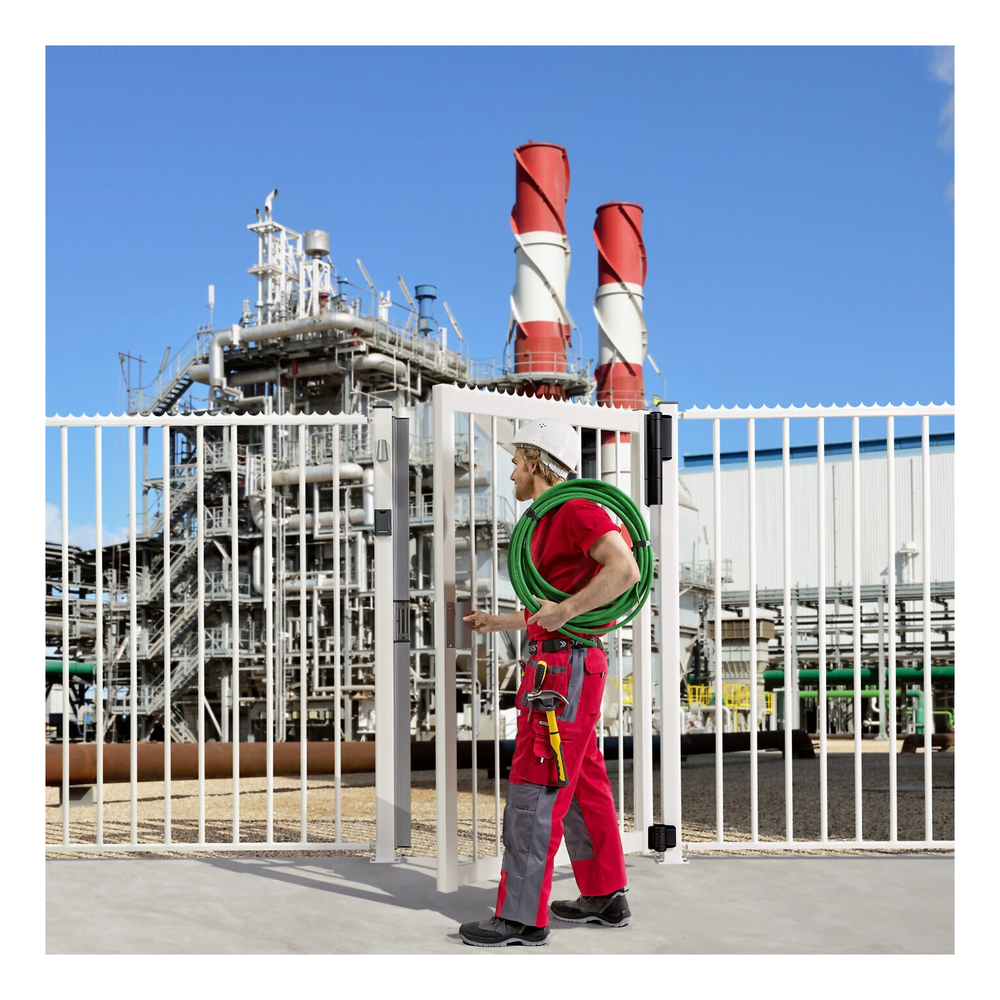

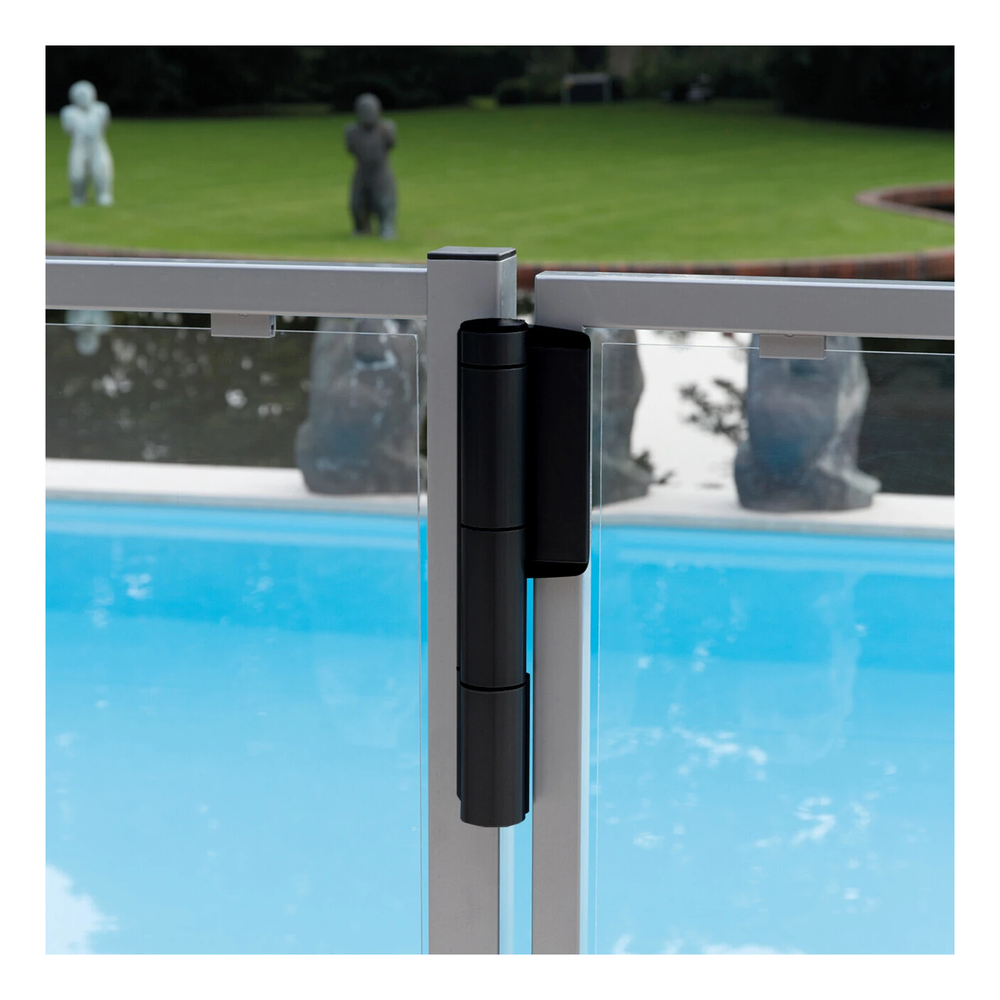

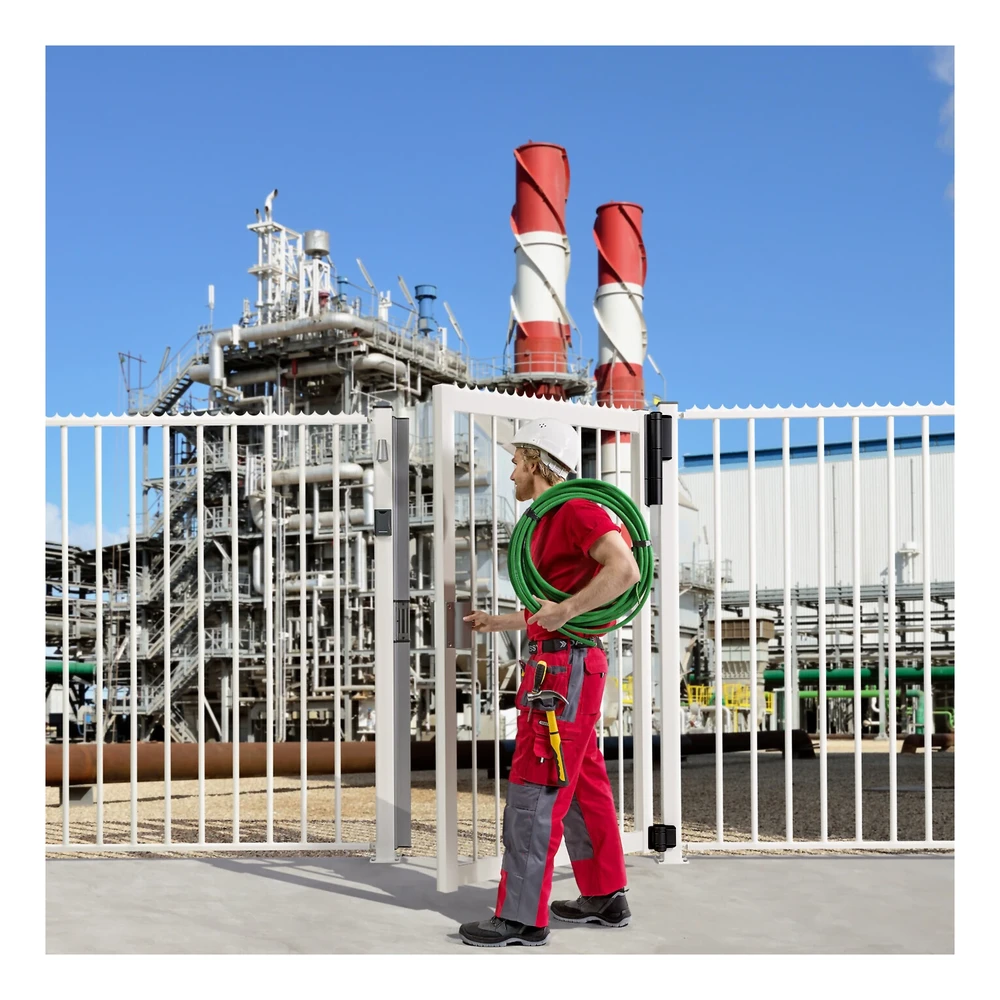

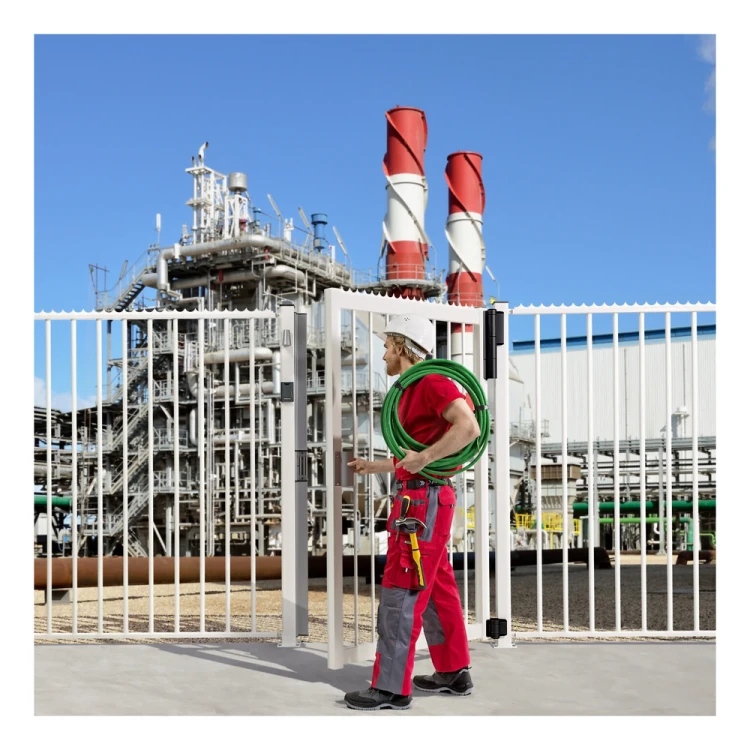

The Mammoth-180 works well wherever reliable self-closing of a gate is required — from private property fences, through pool enclosures (self-closing requirement in line with safety standards), to industrial, warehouse and logistics facilities where gates operate continuously. The hinge design allows installation on metal picket fences, mesh fences, panel fences, as well as on gates with toughened glass.
Why choose the Mammoth-180?
- Time saving — one component instead of two (hinge + self-closer), faster installation
- Aesthetics — compact, black housing blends into modern fences
- Maintenance-free — enclosed construction requires no lubrication or mechanism adjustment
- Versatility — adapters for square and round posts in one set
- Durability — the Locinox brand with a long-standing quality guarantee confirmed on the European market
