Locinox Magnus – hydraulic self-closing hinge 180° for gates up to 200 kg, black
Description
Locinox Magnus – hydraulic self-closing hinge 180° for gates up to 200 kg, black
Locinox Magnus is a professional hydraulic self-closing hinge integrated with a hinge offering a 180° opening angle, designed for gates weighing up to 200 kg. The product combines the function of a hinge and a self-closer in one compact solution, eliminating the need to install separate components. This allows installers to save time during installation, while giving the gate an aesthetic, consistent appearance.
The system consists of two modules — an upper one (containing the hydraulic self-closing mechanism) and a lower one (acting as the load-bearing hinge). Hydraulic closing speed adjustment ensures quiet and controlled closing of the gate, regardless of weather conditions. The 180° opening angle allows for full deflection of the leaf, which is particularly important for wide passages and heavy traffic.
Key product features
- Manufacturer: Locinox
- Type: hydraulic self-closing hinge with 180° opening
- Maximum gate weight: 200 kg
- Colour: black
- Overall length (L): 470 mm
- Net weight: 9.93 kg
- Sales unit: piece
- EAN: 5414768134184

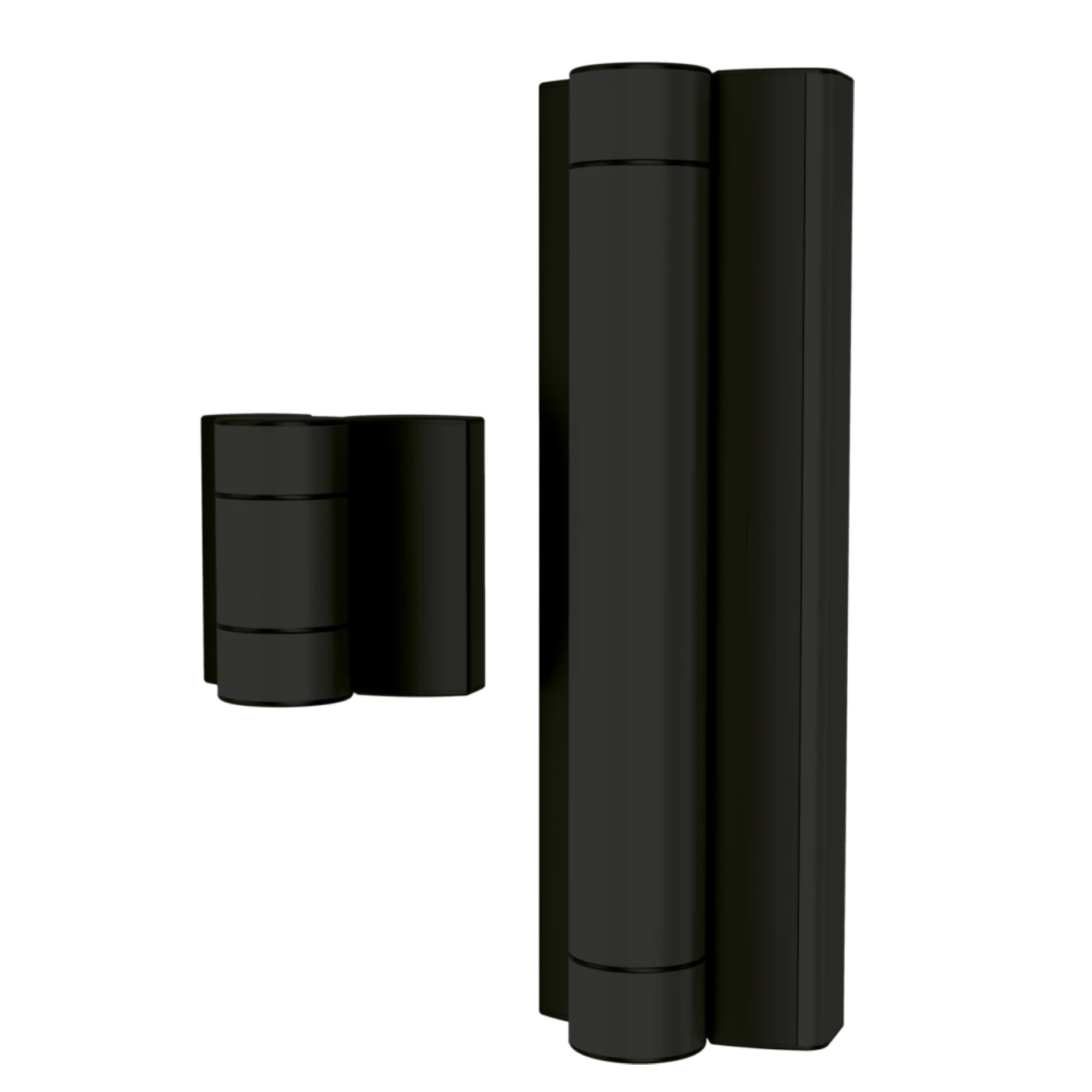

- Two-module construction: upper module (self-closer) + lower module (hinge)
- Mounted on the post using 14 Ø15 mm mounting holes
Application and installation

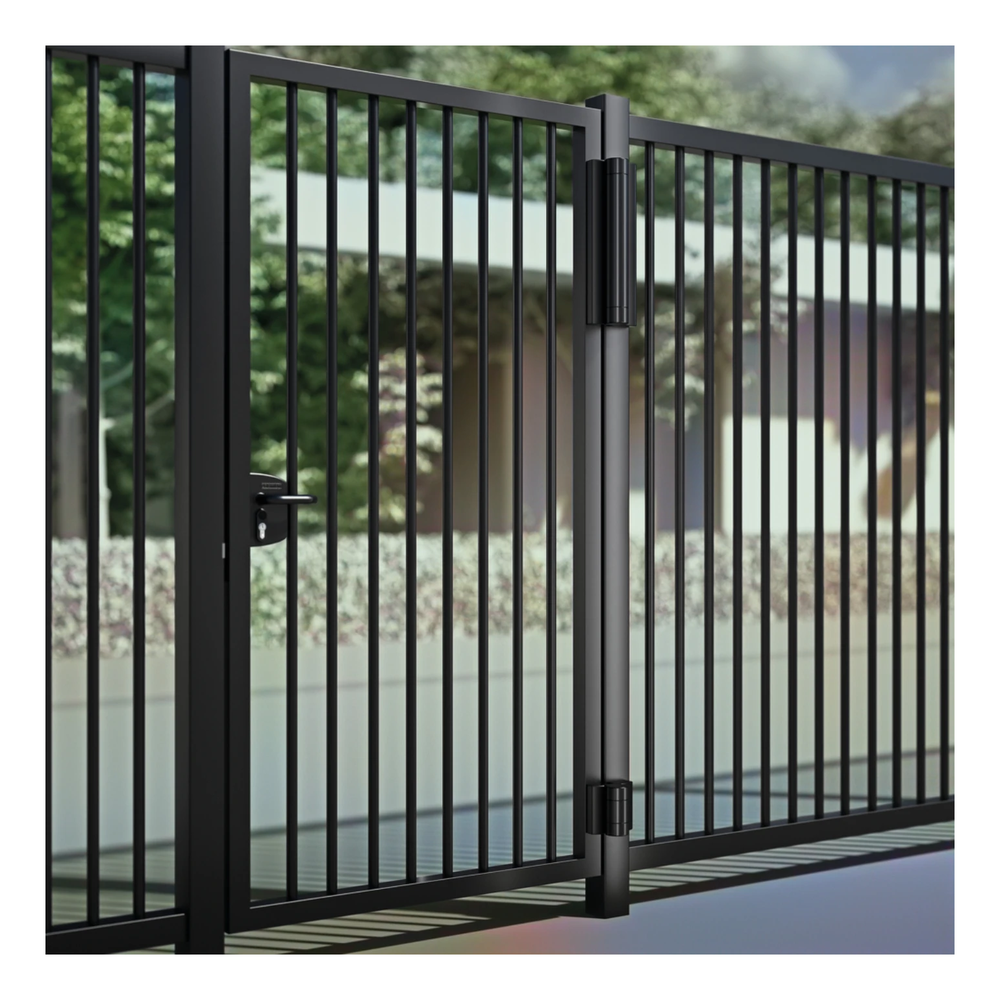

Locinox Magnus is designed for garden gates made of steel and aluminium profiles. The system is mounted directly on the fence post, and the gate leaf is attached to the cylindrical hinge. Thanks to its precise design, installation is repeatable and quick — particularly important when carrying out larger projects with multiple gates.
The hydraulic self-closing mechanism eliminates the need for users to close the gate manually, increasing property security and everyday convenience. Adjustable closing speed allows the operation to be tailored to the weight and size of the specific leaf.

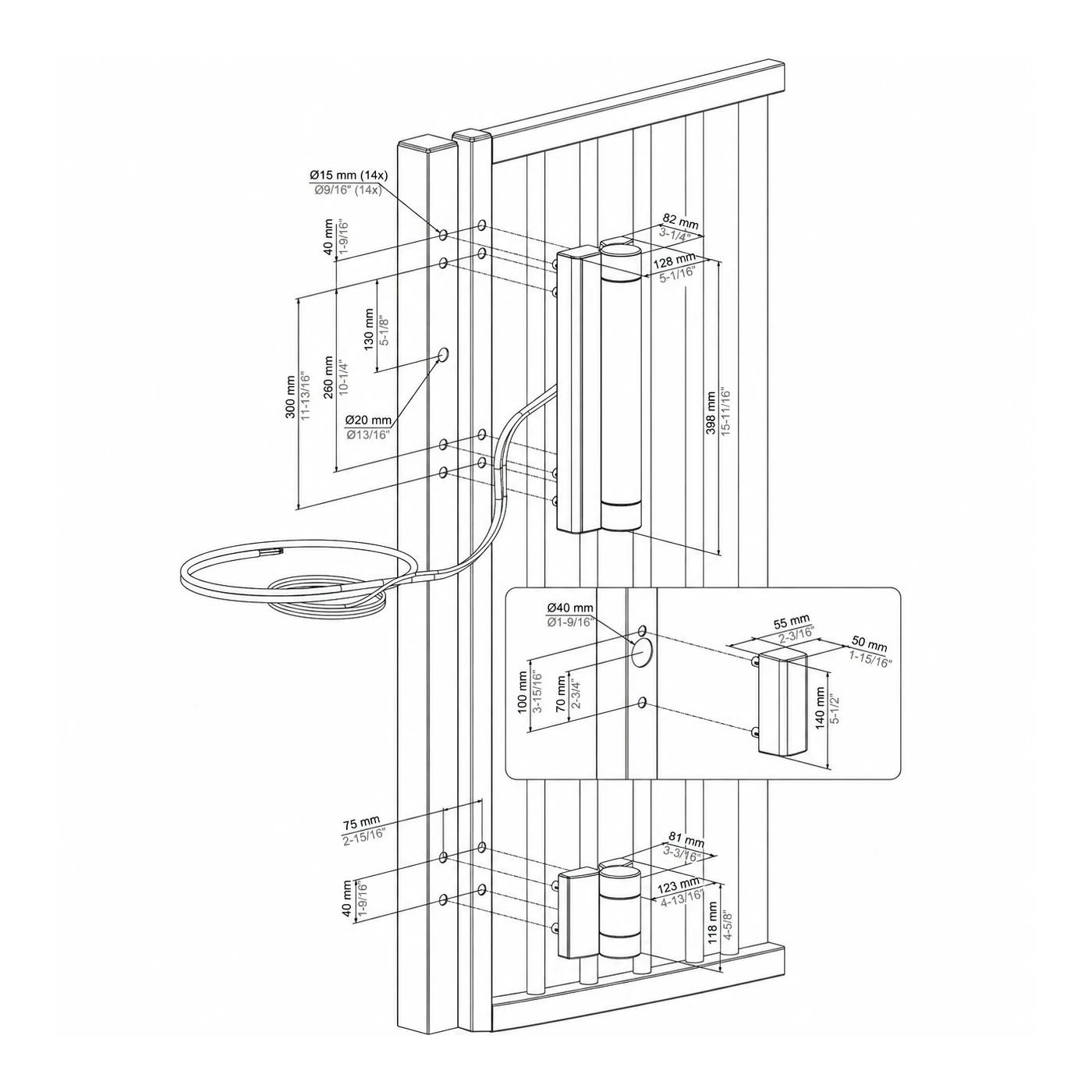

Mounting dimensions — upper module (self-closer)
- Height of the upper module: 398 mm
- Depth without hinge pin: 82 mm
- Depth with hinge pin: 128 mm
- Mounting hole spacing (vertical): 300 mm (total), 260 mm, 130 mm, 40 mm
- Mounting hole diameter: Ø15 mm (14 pieces)
- Central hole diameter: Ø20 mm
- Distance of holes from post edge: 75 mm
Mounting dimensions — lower module (hinge)
- Height of the lower module: 118 mm
- Depth without hinge pin: 81 mm
- Depth with hinge pin: 123 mm
- Mounting hole spacing (vertical): 40 mm
Mounting bracket dimensions (detail)
- Height: 140 mm
- Width: 55 mm
- Depth: 50 mm
- Central hole diameter: Ø40 mm
- Inner hole spacing: 70 mm
- Outer hole spacing: 100 mm
The black finish of the product harmonises well with popular metal fence colours (RAL 9005, RAL 7016) and provides resistance to weather conditions. The Locinox brand is a Belgian manufacturer with an established position in the fencing hardware market — synonymous with durability, precision workmanship, and reliability in professional applications.
