Locinox Lion – Compact Hydraulic Gate Closer, Silver
Description
Locinox Lion – Compact Hydraulic Gate Closer, Silver
Locinox Lion is a compact hydraulic gate closer designed for garden gates and entrance gates. Thanks to its fully hydraulic mechanism, it ensures smooth and controlled closing of the gate regardless of the hinge opening angle. The robust construction with a cylindrical aluminium body makes the device resistant to weather conditions and keeps its attractive appearance for years of use.

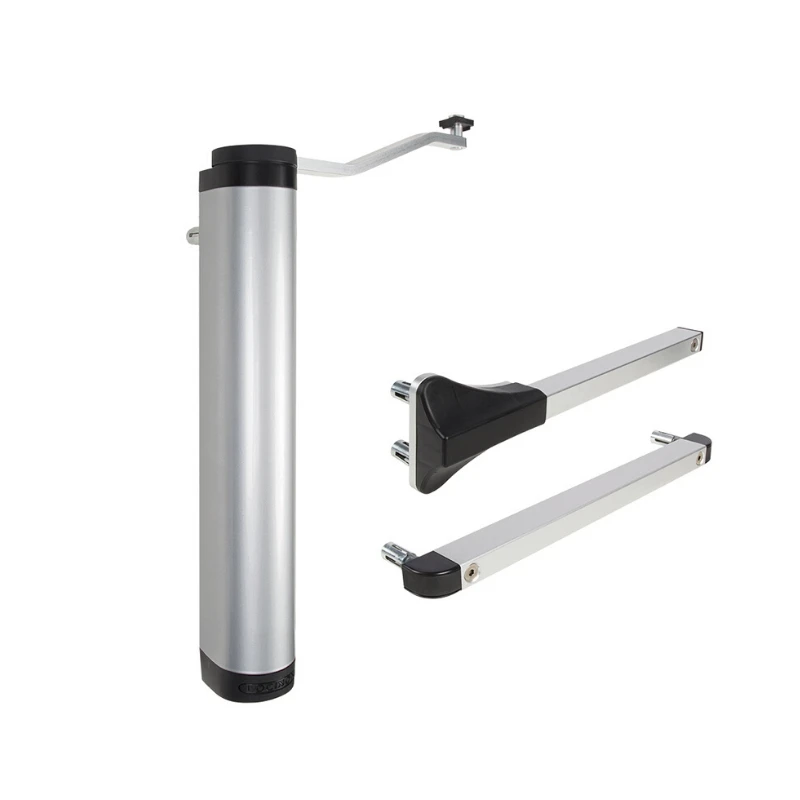

The Lion stands out for its installation versatility — it works with hinges of any opening angle, eliminating the need to select a specific closer model for a particular hinge type. The set includes an arm with sliding rail and an alternative direct mounting bracket for the gate profile, giving the installer full flexibility to adapt to various fence structures.
Application and benefits for the installer

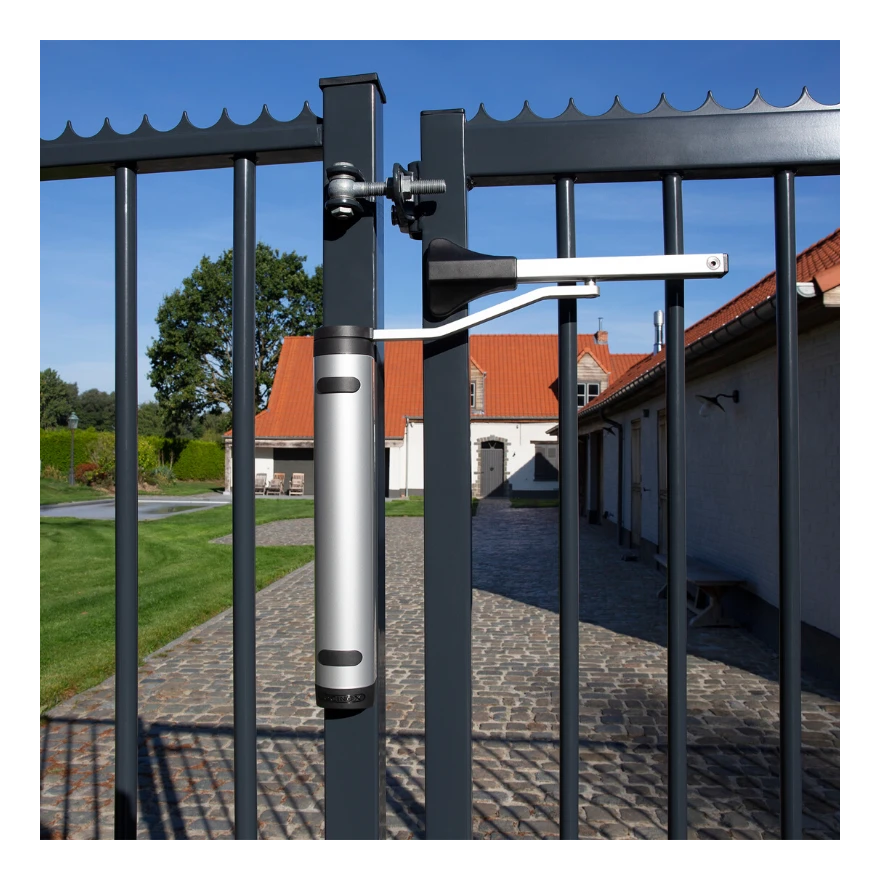

The Lion gate closer is the ideal solution wherever a gate needs to close automatically — in private property fences, commercial site fencing, swimming pools or playgrounds. The hydraulic damping mechanism eliminates gate slamming, increasing user comfort and extending the lifespan of the hinges. The Locinox brand guarantees the highest quality — products from this Belgian manufacturer are valued by installers throughout Europe for their reliability and precision of workmanship.
Two mounting modes
The Lion gate closer offers two ways of attaching the arm to the gate, allowing it to be adapted to different types of fence structures:
- Sliding rail mounting — the arm runs in a rail 350 mm long, mounted horizontally on the gate. Rail mounting hole spacing: 320 mm, rail profile: 30 mm. Ideal solution for picket gates and wide leaves
- Direct mounting — the arm is attached using a compact bracket screwed to the gate profile. Arm length: 302 mm, bracket hole spacing: 50 mm vertically. Recommended for gates with closed profiles

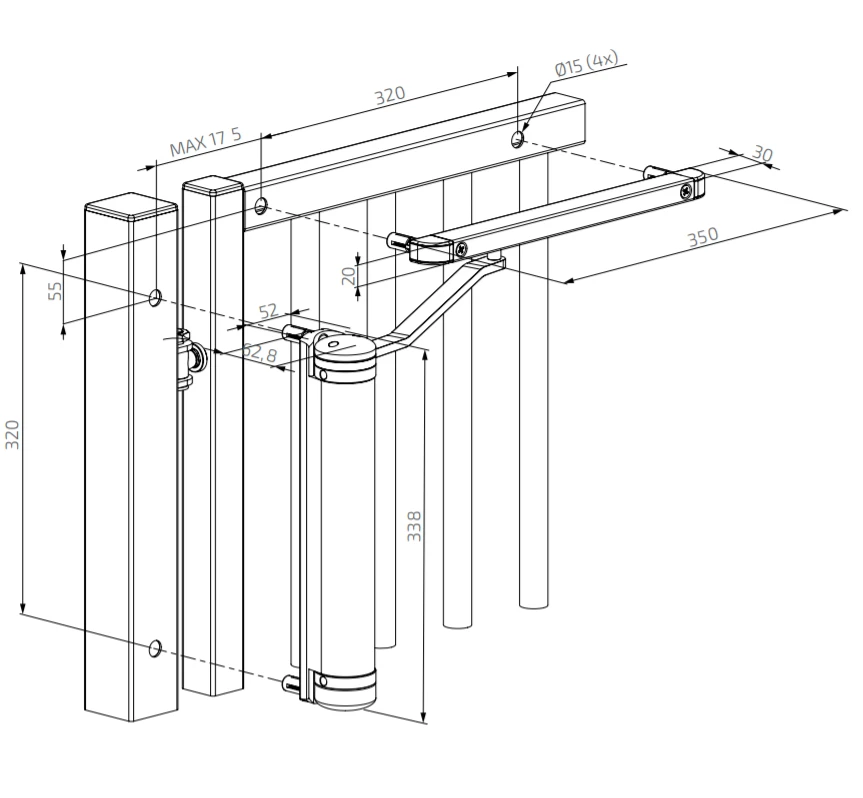

Mounting dimensions — sliding rail
- Mounting hole spacing on the post (vertical): 320 mm
- Height of the closer body: 338 mm
- Total length of sliding rail: 350 mm
- Rail hole spacing (horizontal): 320 mm
- Rail profile: 30 mm
- Diameter of mounting holes: Ø15 mm (4 pcs)
- Max. distance of hinge axis from gate profile edge: 17.5 mm
- Distance from hinge axis to mounting plane: 52 mm
- Distance from hinge axis to closer pivot axis: 62.8 mm

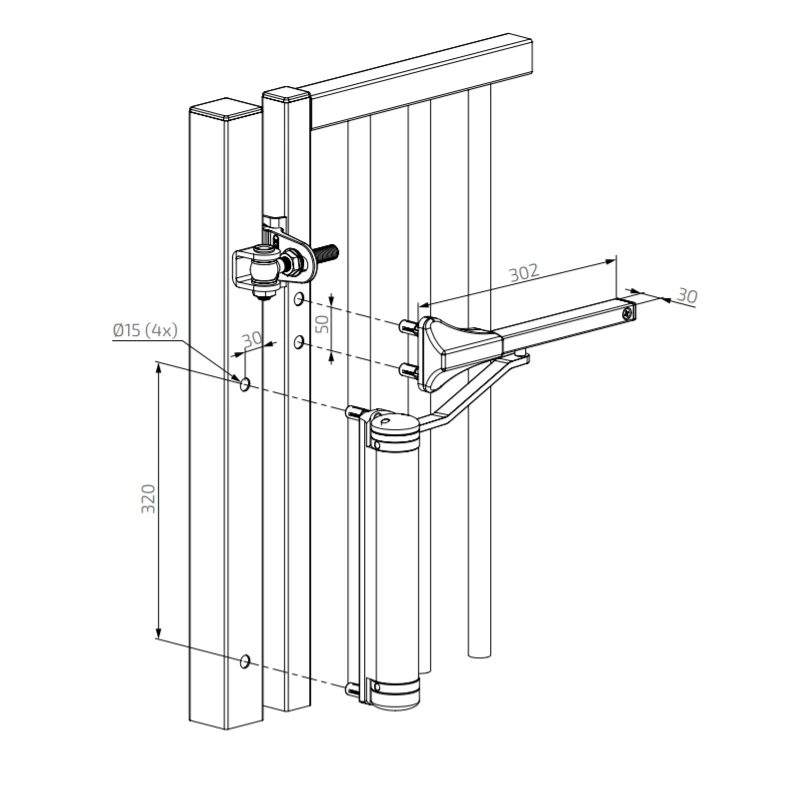

Mounting dimensions — direct bracket
- Mounting hole spacing on the post (vertical): 320 mm
- Arm length: 302 mm
- Bracket hole spacing on the gate (vertical): 50 mm
- Distance from gate edge to hole axis: 30 mm
- Arm profile: 30 mm
- Diameter of mounting holes: Ø15 mm (4 pcs)
Technical specifications
- Manufacturer: Locinox
- Model: Lion
- Type: hydraulic gate closer
- Colour: silver
- Net weight: 3.28 kg
- Compatibility: hinges with any opening angle
- EAN: 5414768049419
