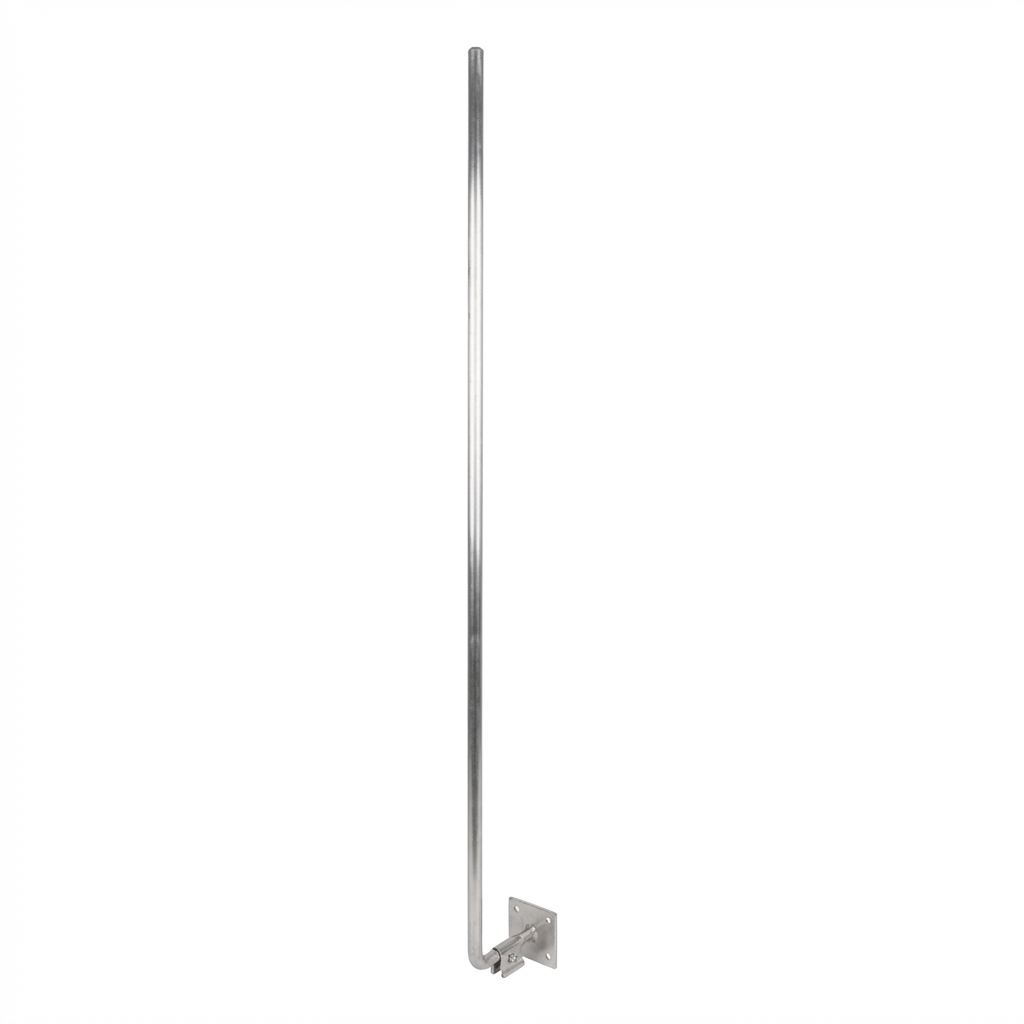

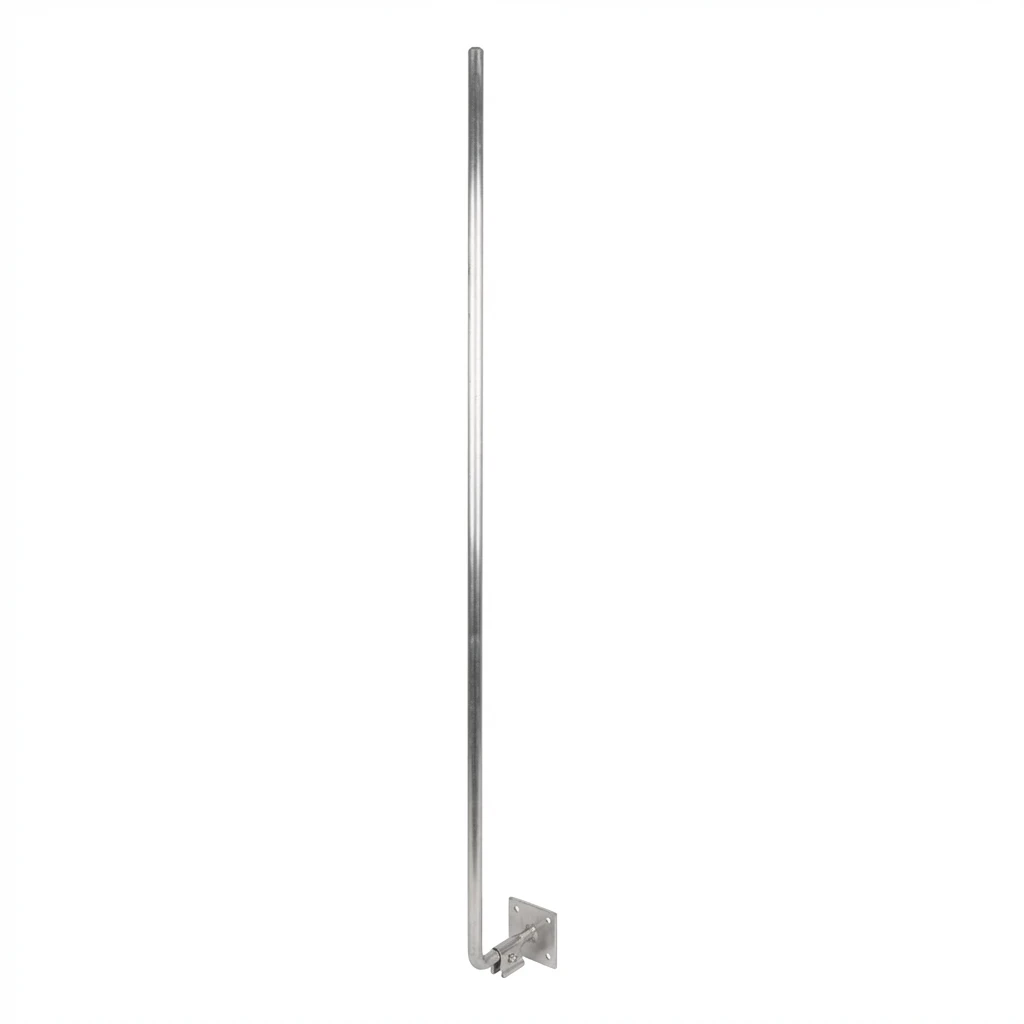

Chimney Lightning Rod H1500 mm – Aluminium
Chimney Lightning Rod H1500 mm is a lightweight and durable component of a lightning protection system, designed to protect chimneys and equipment mounted on them. Thanks to its aluminium construction, the rod combines low weight with high corrosion resistance, resulting in a long service life with no maintenance required.

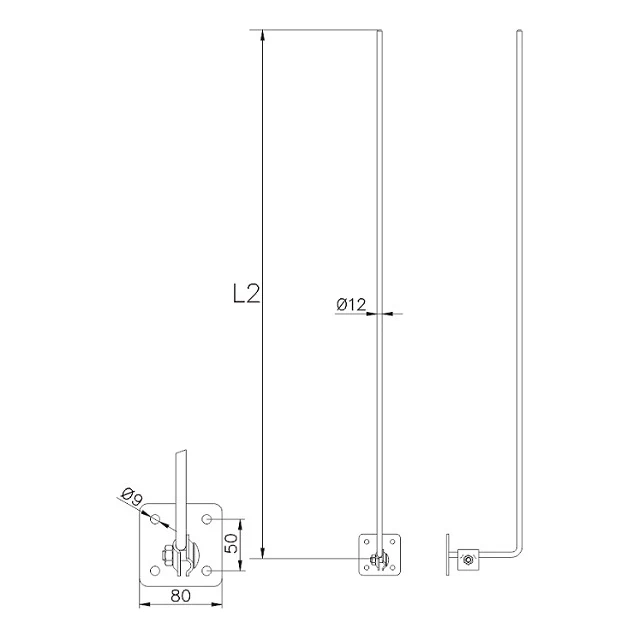

The lightning rod is equipped with a mounting bracket with a Ø9 mm hole and an integrated connector allowing direct connection to a round or flat lightning conductor in the range of Ø8–10 mm. This makes installation quick and eliminates the need for additional connecting accessories.
Where to use it? The lightning rod is ideal wherever lightning protection is required for masonry, ventilation, and flue chimneys. It can be mounted on the edge of a chimney using a bracket with a hole spacing of 80 mm.
Technical Specifications
- Material: aluminium
- Rod height: 1500 mm
- Rod diameter: Ø12 mm
- Conductor range: Ø8–10 mm (round/flat)
- Weight: 1.4 kg
Easy installation – the mounting bracket with an 80 mm base allows the rod to be securely fixed to the chimney. The screw connector ensures a reliable connection to the down conductor. The entire installation can be completed by a single person in just a few minutes.
Benefits for the installer
- Low weight: only 1.4 kg – comfortable to work with at height
- Universal connector: compatible with Ø8–10 mm conductors
- Corrosion resistance: aluminium requires no additional protective coating
- Wide applicability: suitable for wind zones I, II and III
