Lightning rod chimney h=1500mm aluminium
Description

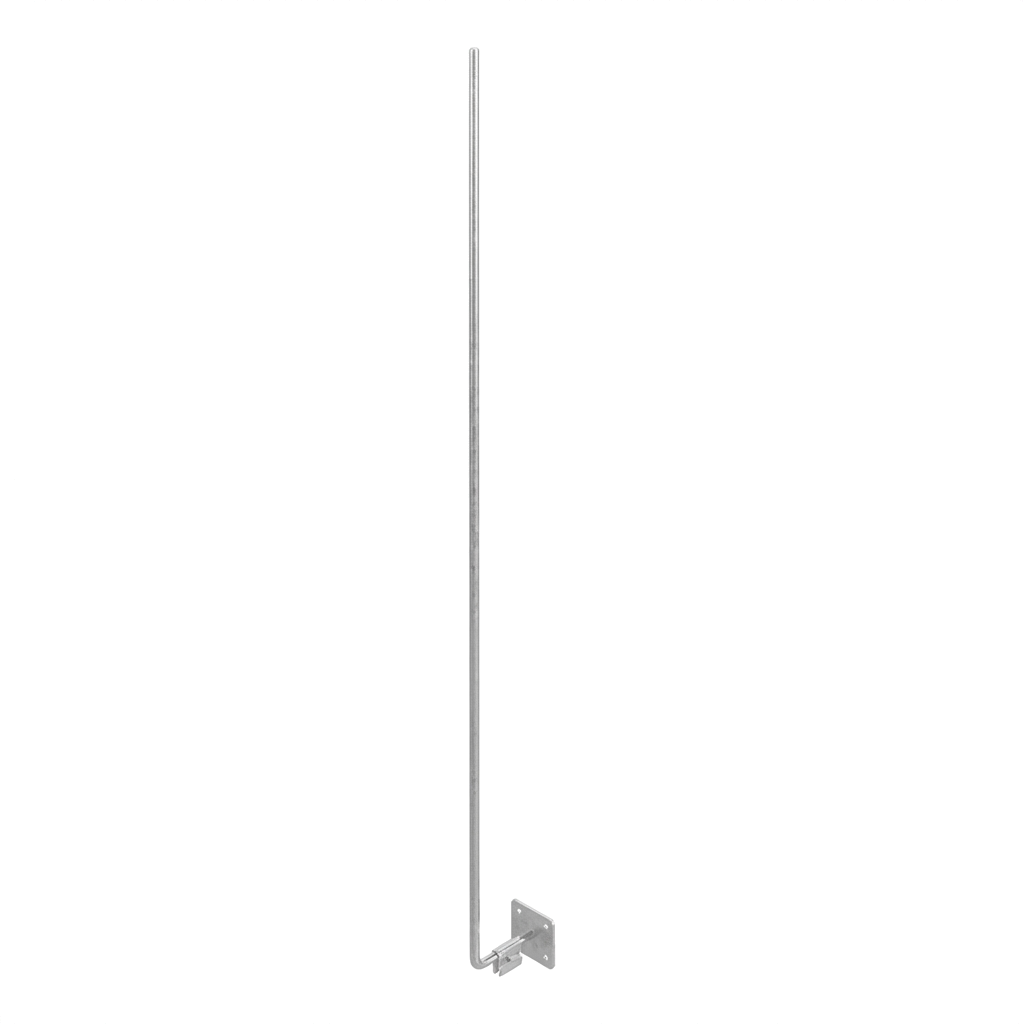

Chimney Lightning Rod H1500 mm, Aluminium
The chimney lightning rod H1500 mm is a component of a lightning protection system designed to safeguard chimneys and equipment mounted on them. Thanks to the integrated mounting bracket and lightning conductor connector, installation is quick and requires no additional accessories.
The rod is manufactured entirely from aluminium, ensuring a low self-weight (1.4 kg) and excellent corrosion resistance. The rod diameter is Ø12 mm, and the integrated connector accepts round and flat conductors with a cross-section of Ø8–10 mm. The total height of the rod is 1500 mm, providing effective protection of the zone surrounding the chimney.
Technical Specifications
- Material: aluminium
- Height: 1500 mm
- Rod diameter: Ø12 mm
- Conductor range: Ø8–10 mm (round/flat)
- Weight: 1.4 kg
- GTIN: 5907675564293

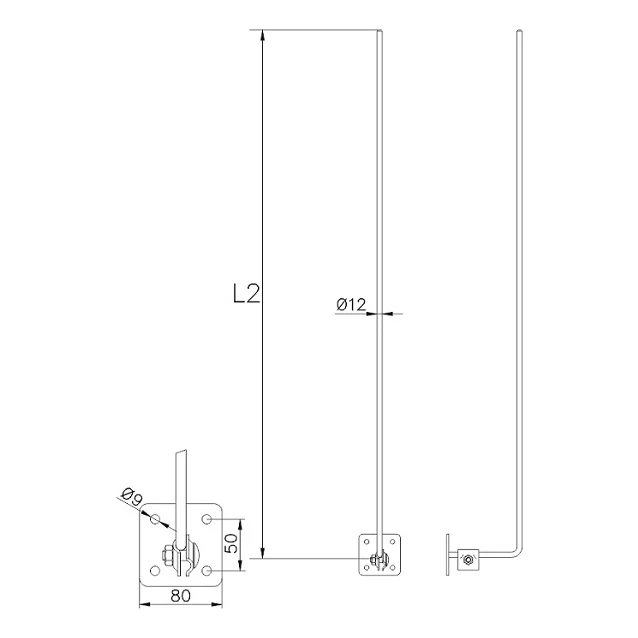

The mounting bracket with an 80 mm base enables secure fixing of the rod to the chimney. Mounting holes of Ø9 mm diameter allow the use of standard anchor bolts. The bracket height above the base is 50 mm, providing adequate clearance from the chimney surface.
Application: protection of masonry chimneys, ventilation flues and rooftop elements (aerials, chimney cowls) in residential and industrial buildings. The rod meets the requirements for wind zones I–III, making it suitable for installation in the vast majority of locations across the UK.
