Lightning rod chimney h=1000mm aluminium
Description

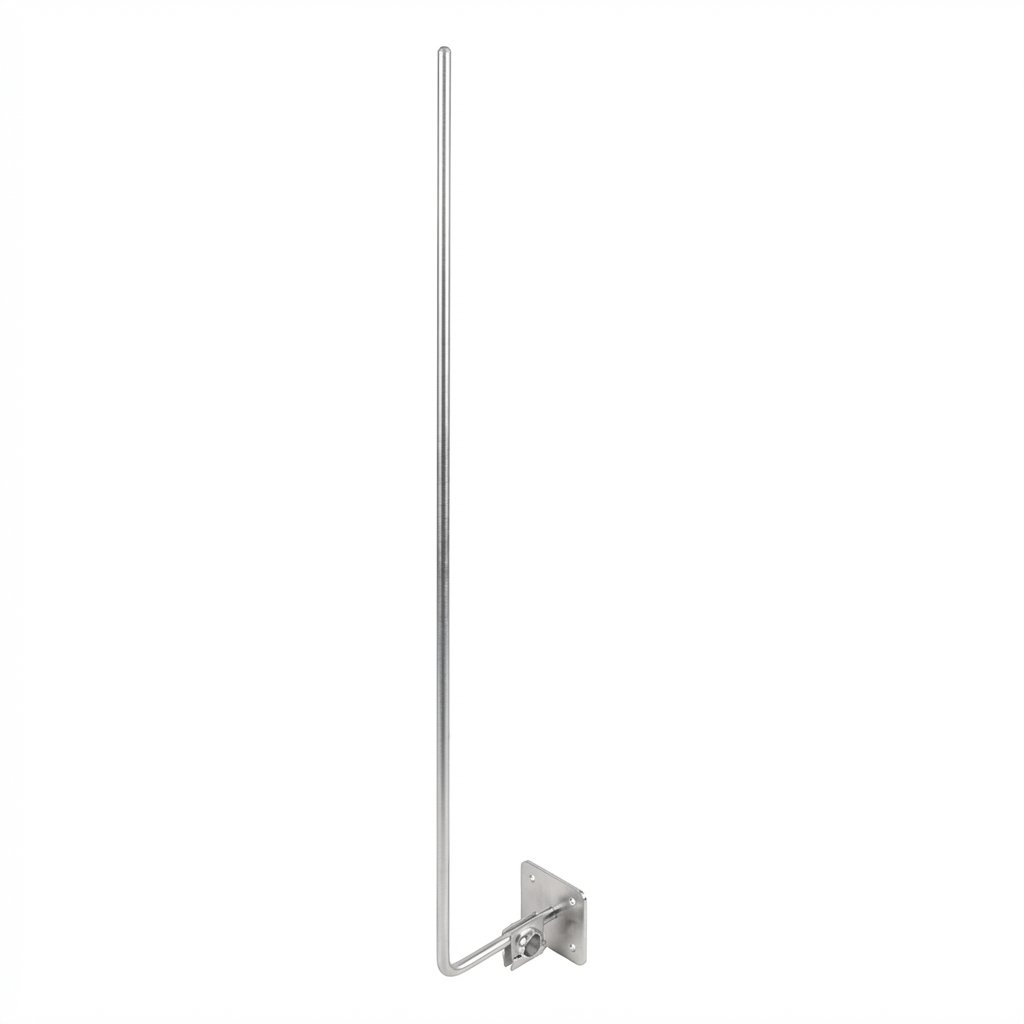

Chimney Lightning Rod H1000 mm, Aluminium
The chimney lightning rod H1000 mm is a component of a lightning protection system designed to safeguard chimneys and any equipment mounted on them. Thanks to its lightweight aluminium construction and integrated mounting bracket, installation is quick and requires no additional fixing elements.
The rod features a built-in connector that allows direct connection to a lightning conductor with a diameter of Ø8–10 mm, eliminating the need for additional connectors and reducing working time on the roof. The product complies with the EN 62305 standard, ensuring it meets the requirements for professional lightning protection installations.

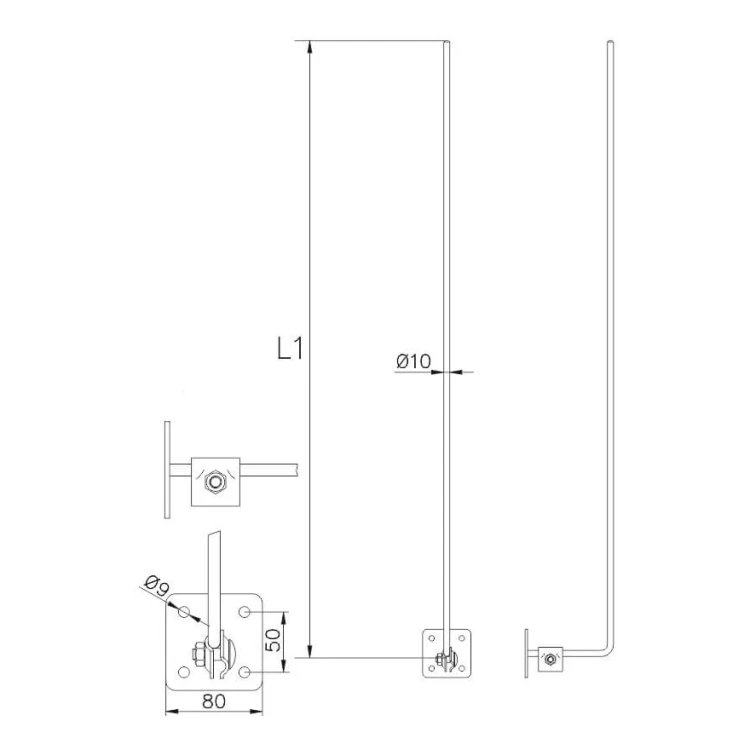

Technical Specifications
- Material: aluminium
- Rod height: 1000 mm
- Rod diameter: Ø10 mm
- Conductor range: Ø8–10 mm (round/flat)
- Weight: 0.3 kg
Why choose this product? The aluminium construction provides excellent corrosion resistance whilst keeping the weight impressively low at just 0.3 kg. The mounting bracket with fixing hole ensures a secure and stable attachment to the chimney. The rod is suitable for use across all three wind load zones, making it a truly versatile solution.
