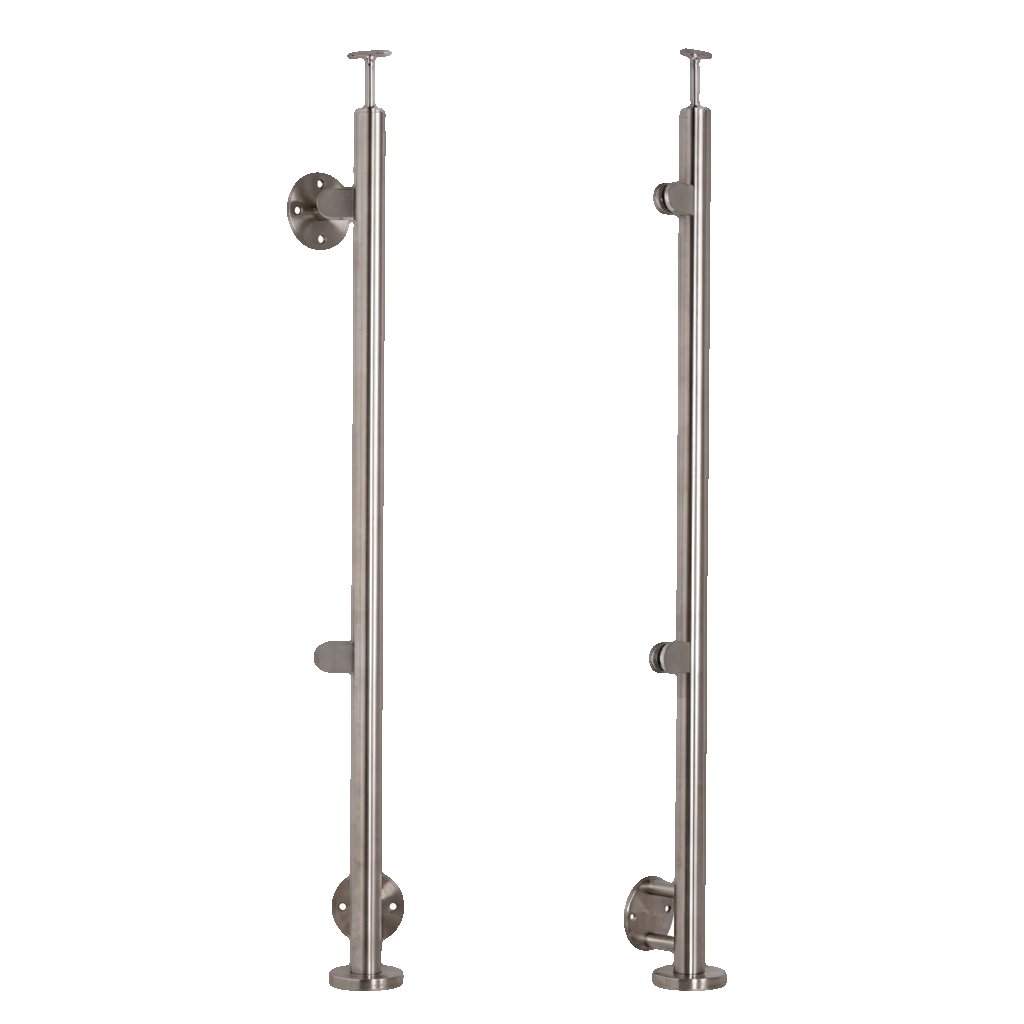

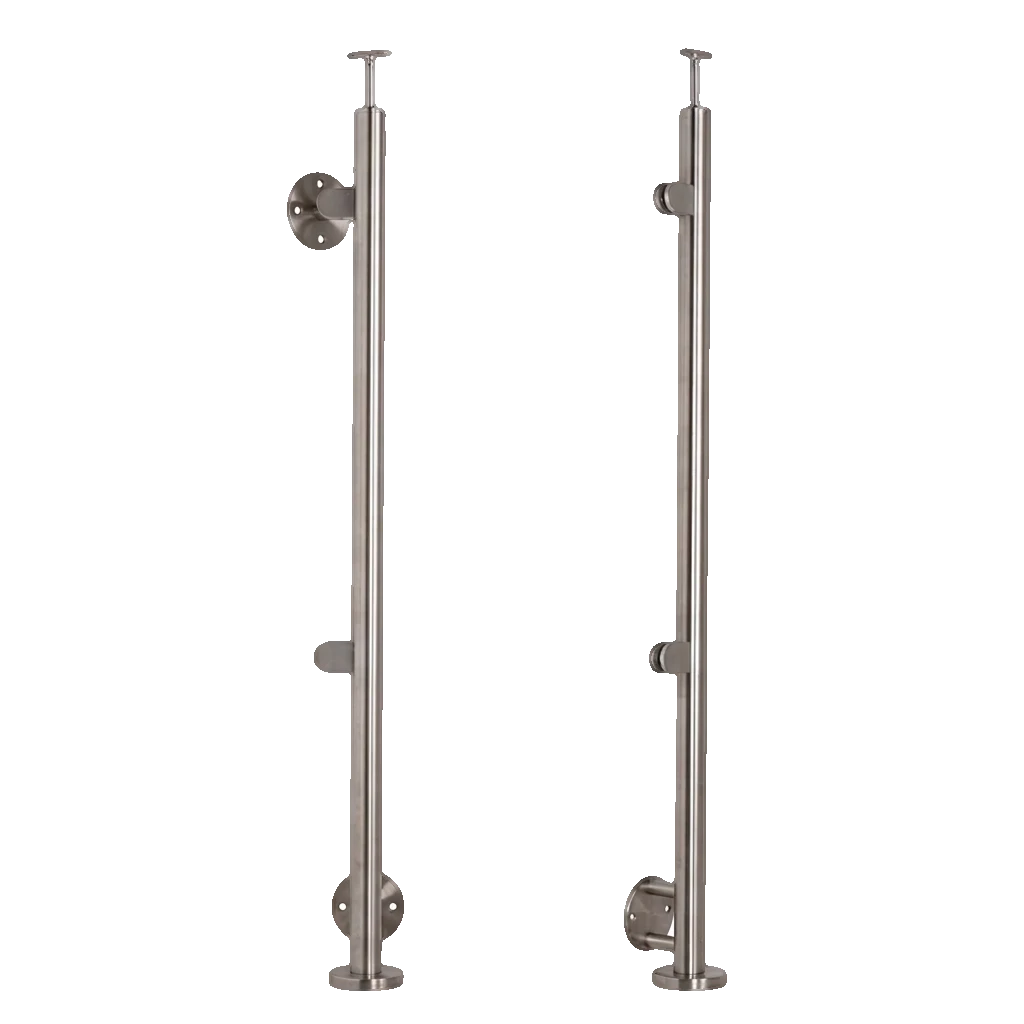

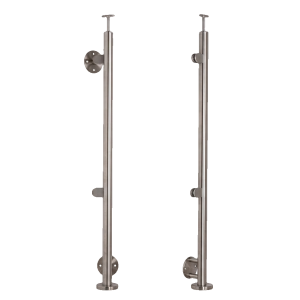

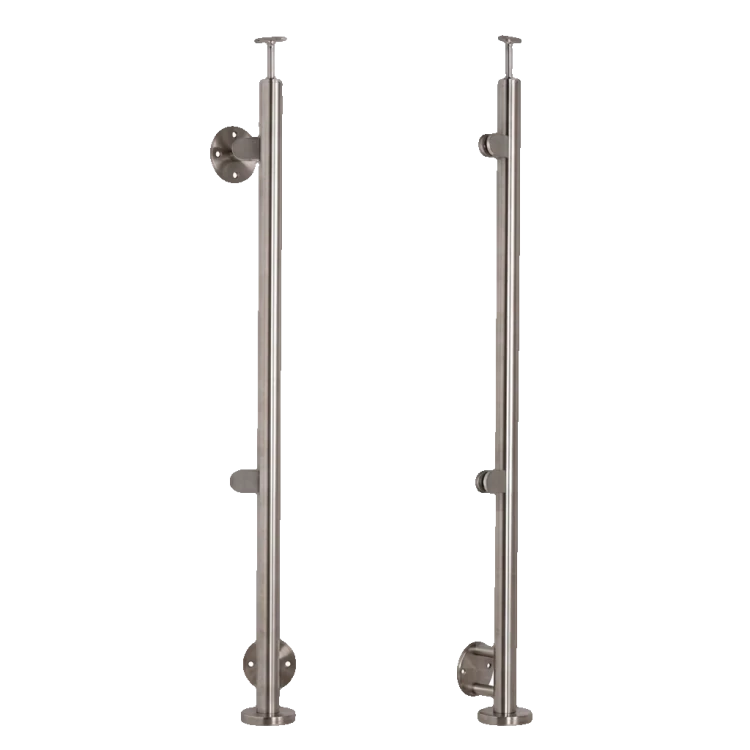

Left end post ø42.4×1230mm AISI304 side mounting satin
Description
Left end post ø42.4 mm made from stainless steel with glass clamps
Stainless steel left end post with diameter ø42.4 mm and height 1230 mm, designed for building elegant glass balustrades. Made from high-quality stainless steel AISI 304 in satin finish, ensuring durability and aesthetic appearance both indoors and outdoors. The post is equipped with two glass clamps and side mounting to the wall, allowing for quick and stable installation without the need for floor anchoring.
Complete mounting kit
The post is supplied as a ready-to-install mounting kit containing all necessary elements. The kit includes side mounting (wall rosette), two glass clamps with dimensions 40×50 mm and post connector with adjustable handrail support. Thanks to the complete kit, the installer does not need to order additional components – simply prepare appropriate toughened or laminated glass and handrail.
Glass clamps accommodate glass thickness from 6 mm to 10.76 mm, covering both single toughened glass and popular laminated glass configurations (e.g. 2×5 mm with PVB interlayer). This means one post model will work in many balustrade projects. Glass clamp seal from 50D1 series must be purchased separately

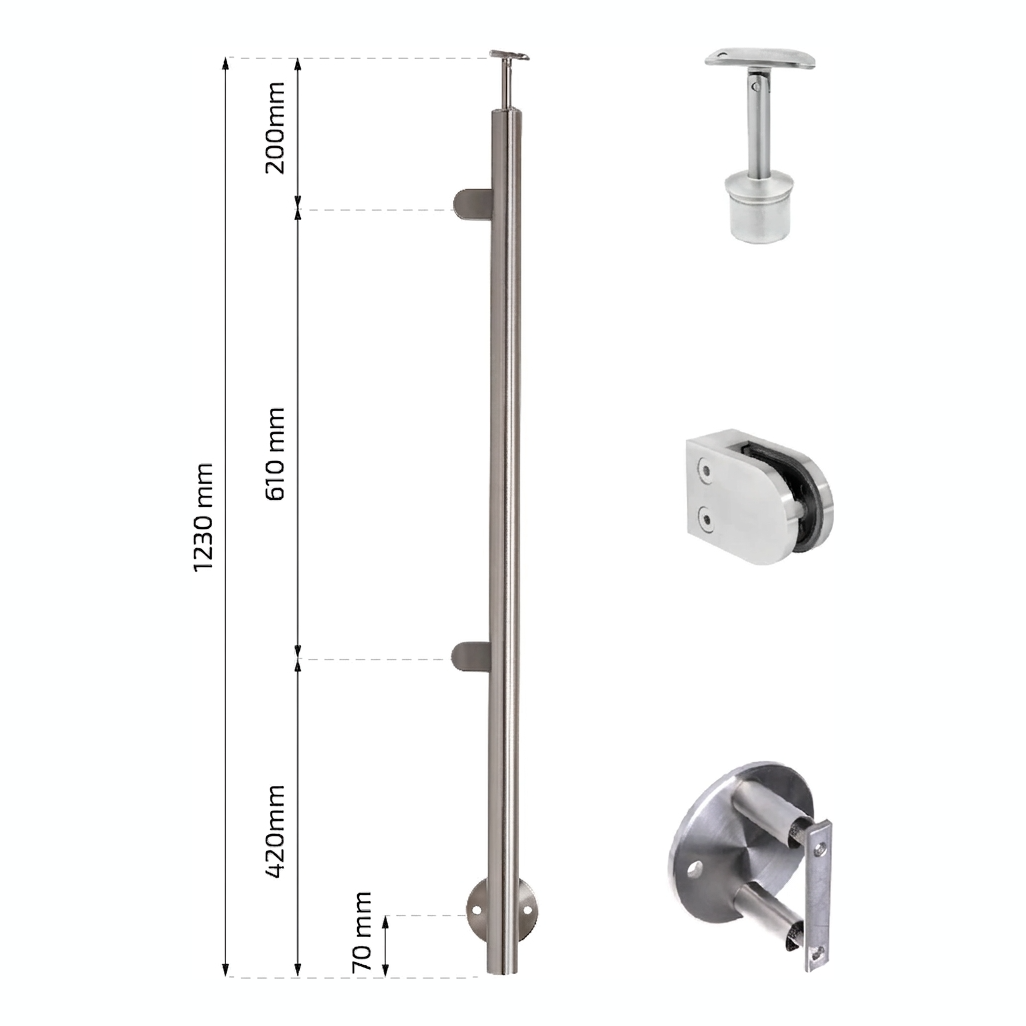

Dimensions and component layout on the post
- Total post height: 1230 mm
- Post tube diameter: ø42.4 mm
- Distance from bottom of post to side mounting centre: 70 mm
- Distance from bottom of post to lower glass clamp centre: 420 mm
- Centre-to-centre distance of glass clamps: 610 mm
- Distance from upper clamp centre to top edge of tube: 200 mm
- Kit weight: 3.45 kg
Side mounting — wall rosette
Mounting rosette with diameter ø100 mm provides stable and aesthetic attachment of the post to the wall. The mounting standoff of 51 mm (from wall surface to post centre) guarantees appropriate spacing for free movement of glass panels. Mounting holes in the rosette allow secure anchoring to masonry, concrete and other load-bearing structures.
Handrail support connector
The connector mounted at the top of the post serves to fix a handrail with diameter ø42.4 mm. Total connector height is 80 mm, and the mounting stud has diameter ø14 mm. The upper support plate features angle adjustment, enabling adaptation to different stair configurations and gradients. Adjustment is carried out using a built-in Allen screw.

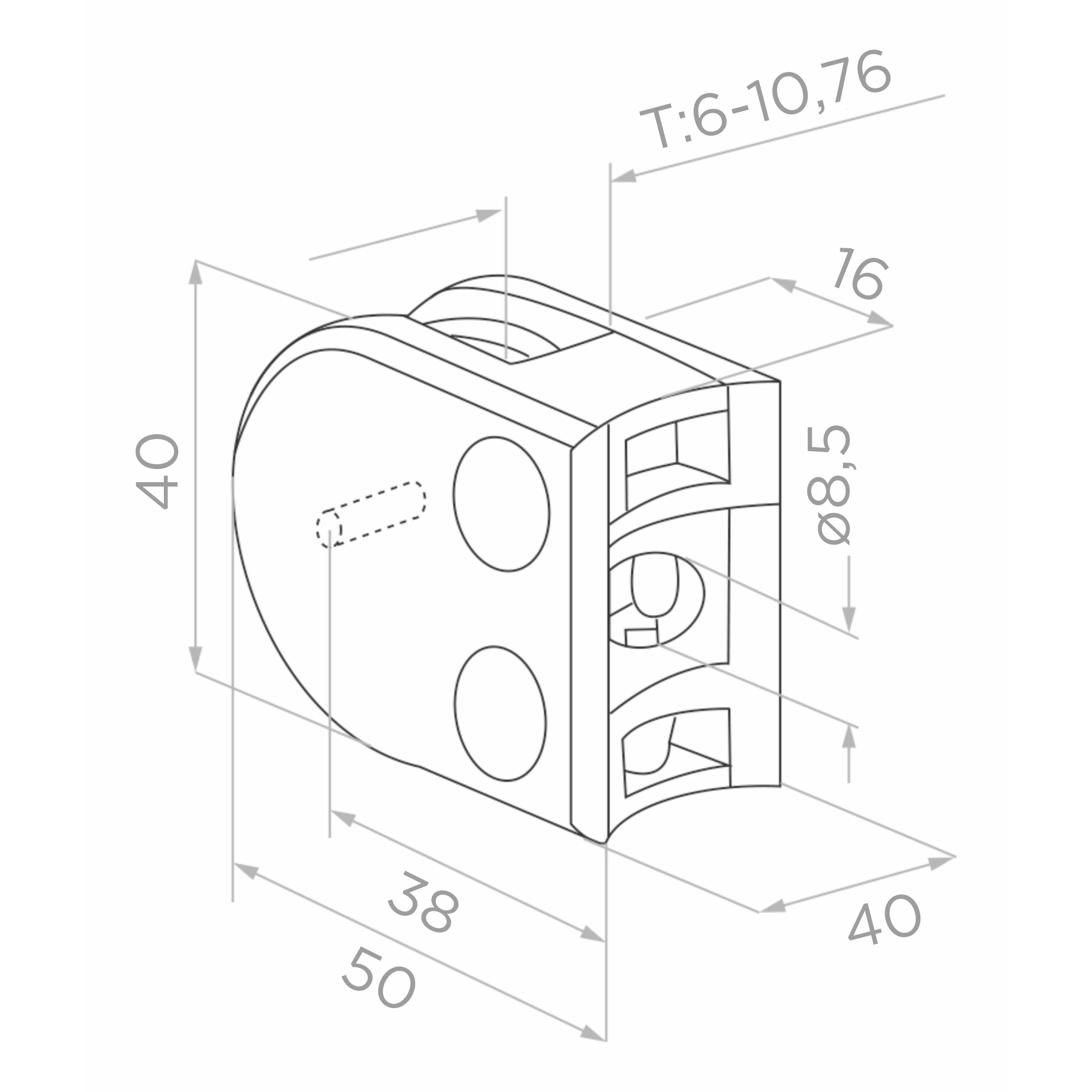

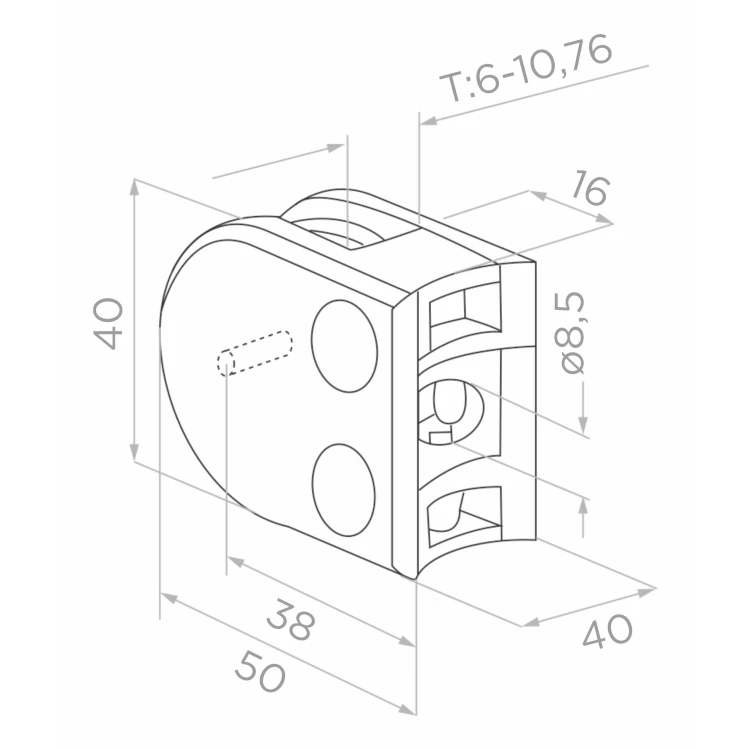

Glass clamps — parameters
- Clamp dimensions: 40 × 50 × 40 mm (h × l × w)
- Mounting hole centres: 38 mm
- Mounting hole diameter: ø8.5 mm
- Glass thickness range: 6–10.76 mm
- Number of clamps in kit: 2 pcs
Technical specification
- Type: left end post
- System: ø42.4 mm
- Total height: 1230 mm
- Material: stainless steel AISI 304
- Surface finish: satin (brushed)
- Mounting type: side (wall)
- Mounting rosette diameter: ø100 mm
- Wall standoff: 51 mm
- Supported glass thickness: 6–10.76 mm
- Handrail diameter: ø42.4 mm
- Kit weight: 3.45 kg
- EAN: 5903313202213
Kit contents: side mounting (wall rosette), 2× 40×50 mm glass clamp, handrail support connector with angle adjustment.
Technical data
| Finish | Satin |
| Mounting System | 42.4 mm |
| Material | AISI 304 |
