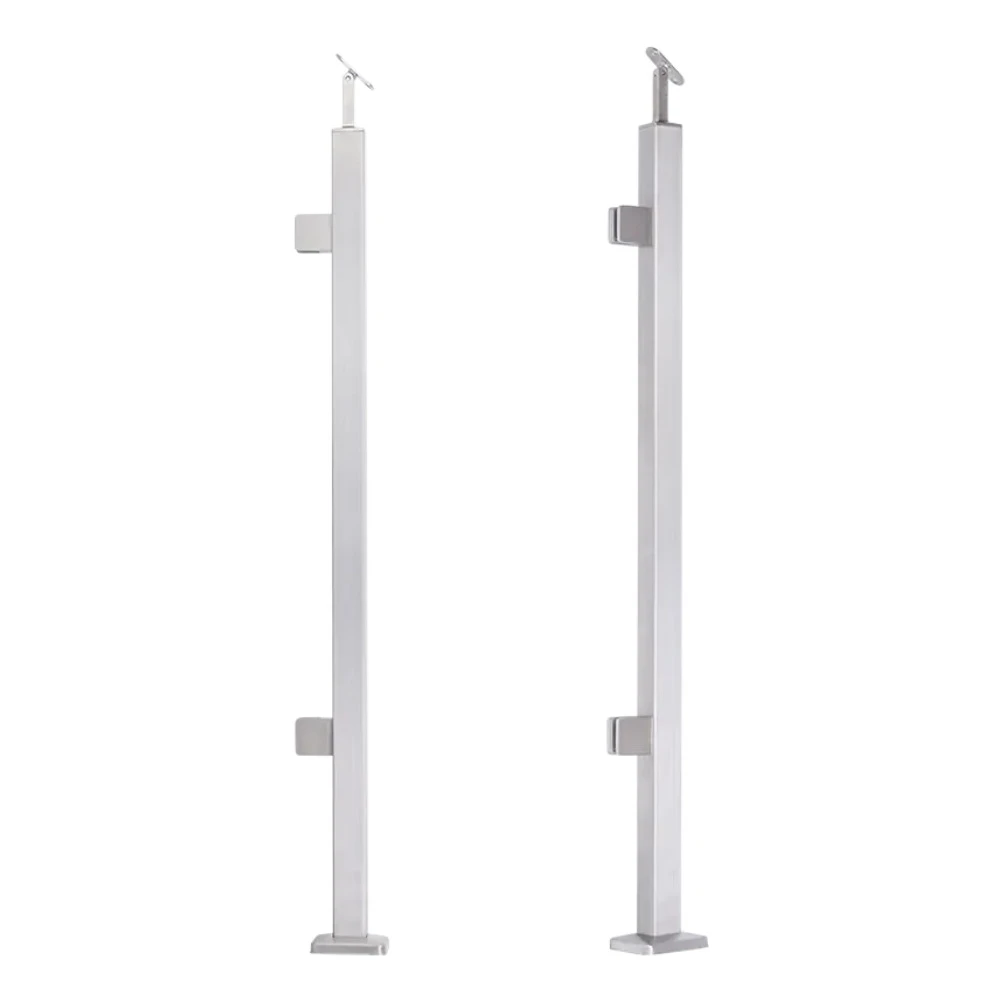

Left end balustrading post 40x40x1060/1100mm 2 glass clamps
Description
Left end balustrading post 40×40 mm stainless steel – 2 glass clamps
Left end balustrading post manufactured from high-quality AISI 304 stainless steel, designed for constructing glass balustrades — balcony and stair applications. Square profile 40×40×2 mm with brushed satin finish ensures aesthetic, modern appearance and high corrosion resistance. The post is supplied complete with glass clamps, cover plate and connector — ready for quick installation on site.
Universal application and easy installation
The post is a universal solution for balustrades with total height including handrail of 1100 mm. The handrail support is not permanently bonded — anaerobic adhesive for stainless steel should be used for its attachment. This solution provides complete freedom during installation: the post position can be adjusted to suit site conditions, and in case of uneven flooring the post can be cut to the required length. The set includes rubber gaskets for 8 mm glass — when using glass of different thickness, simply select the appropriate size seals.

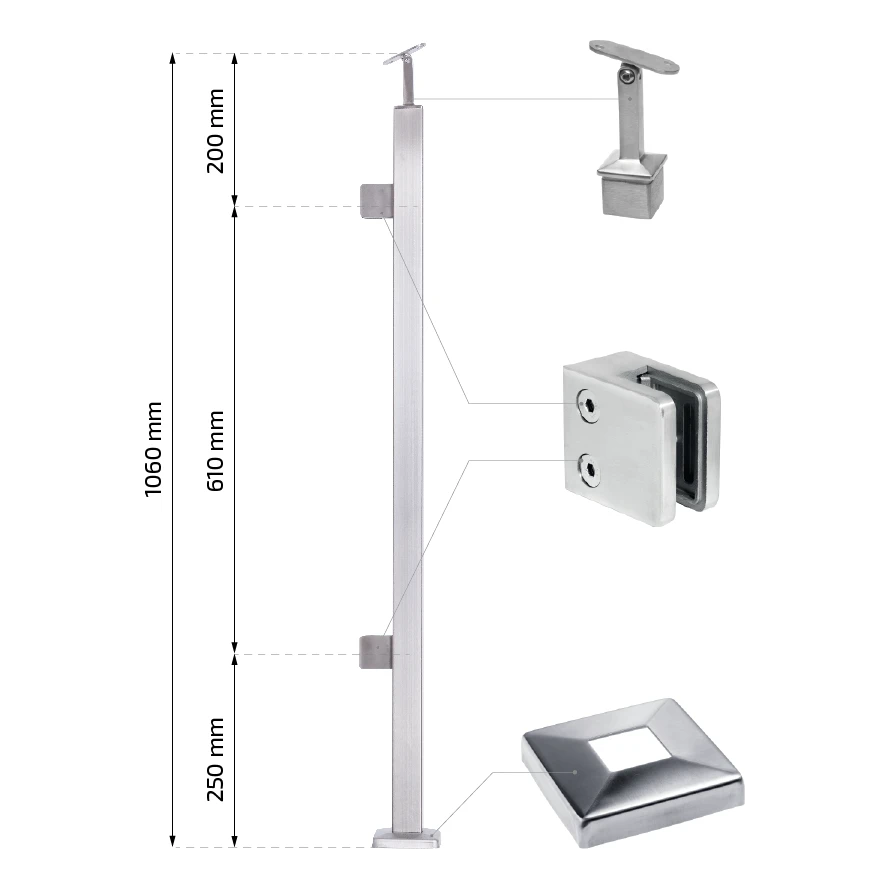

Set contents
- Stainless steel post 40×40×1060 mm
- Glass clamps — 2 pieces
- Base cover plate
- Post connector (handrail support)
- Glass rubber gaskets 8 mm

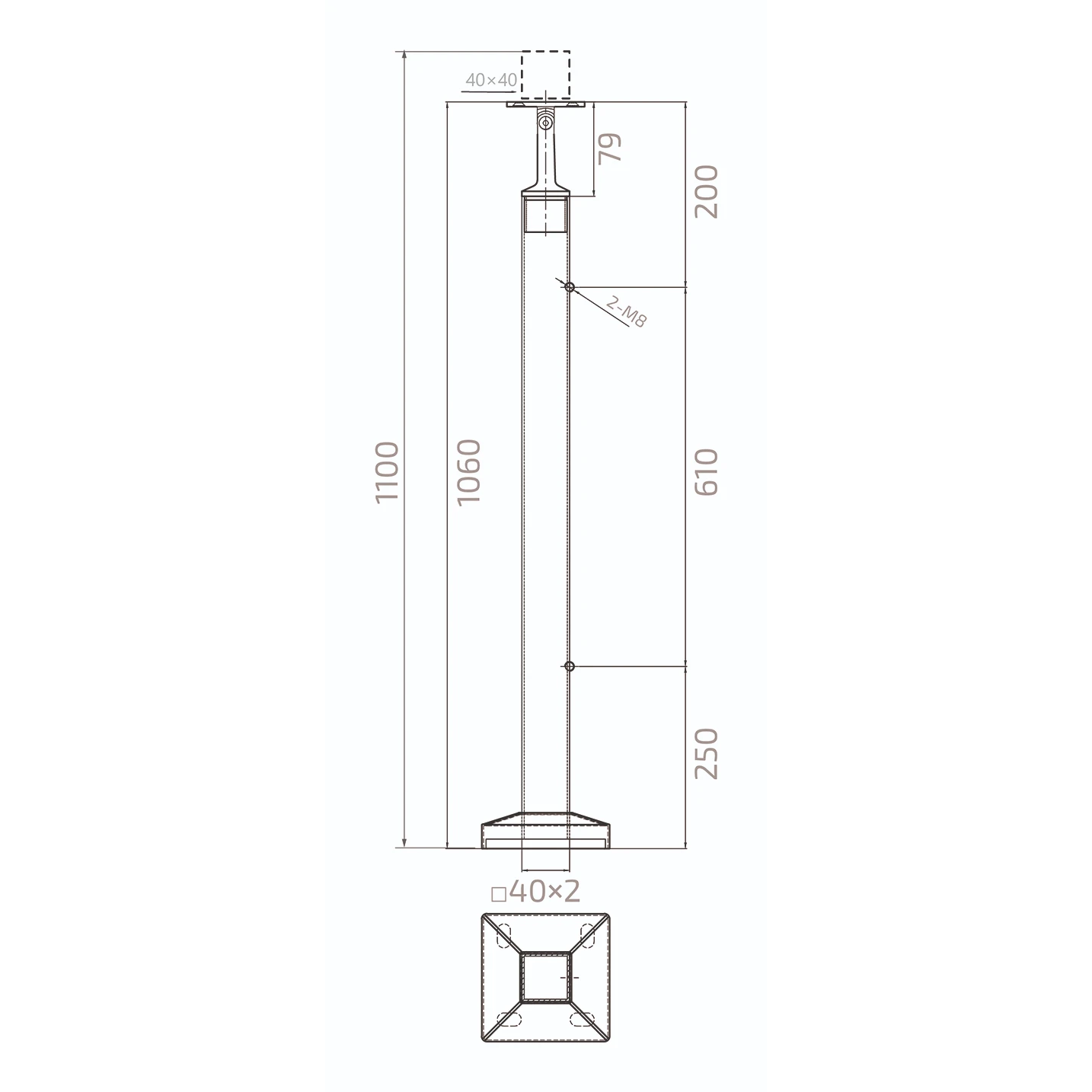

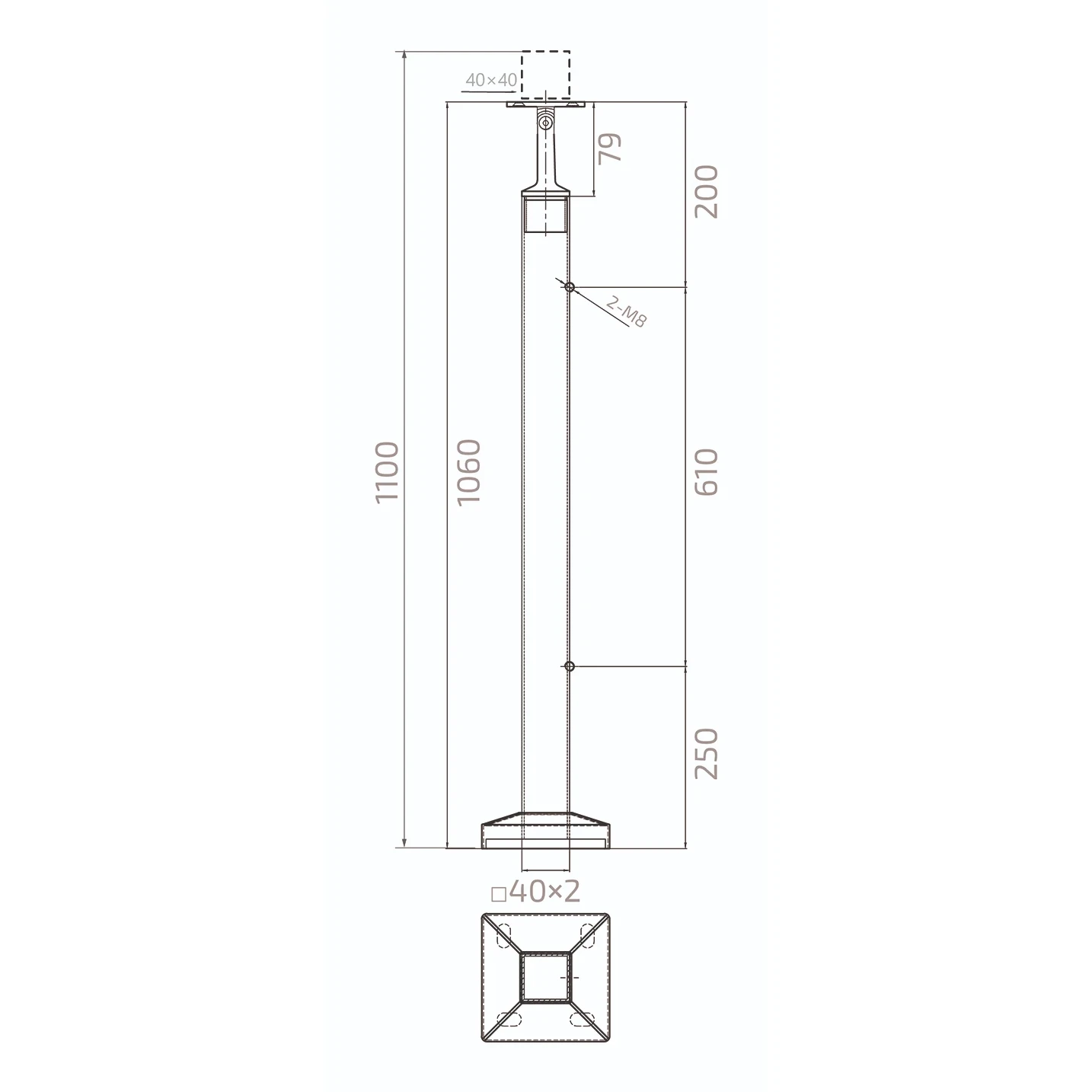

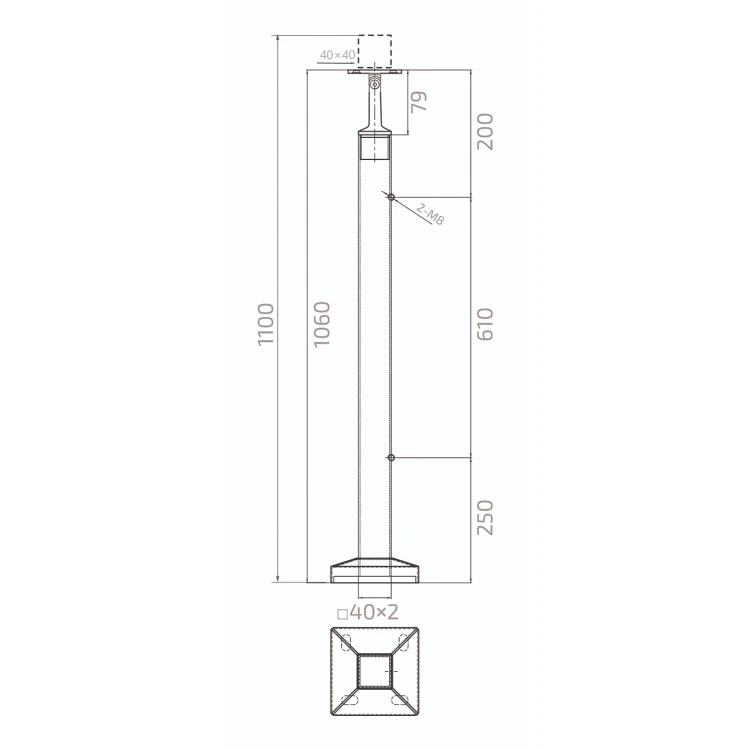

Post dimensions
- Tube profile: □ 40×40×2 mm
- Post tube height: 1060 mm
- Total height (with handrail support): 1100 mm
- Handrail bracket height: 79 mm
- Distance from top to first clamp: 200 mm
- Glass clamp spacing: 610 mm
- Distance from base to lower clamp: 250 mm
- Clamp mounting holes: 2× M8
- Weight: 3.92 kg
Component dimensions

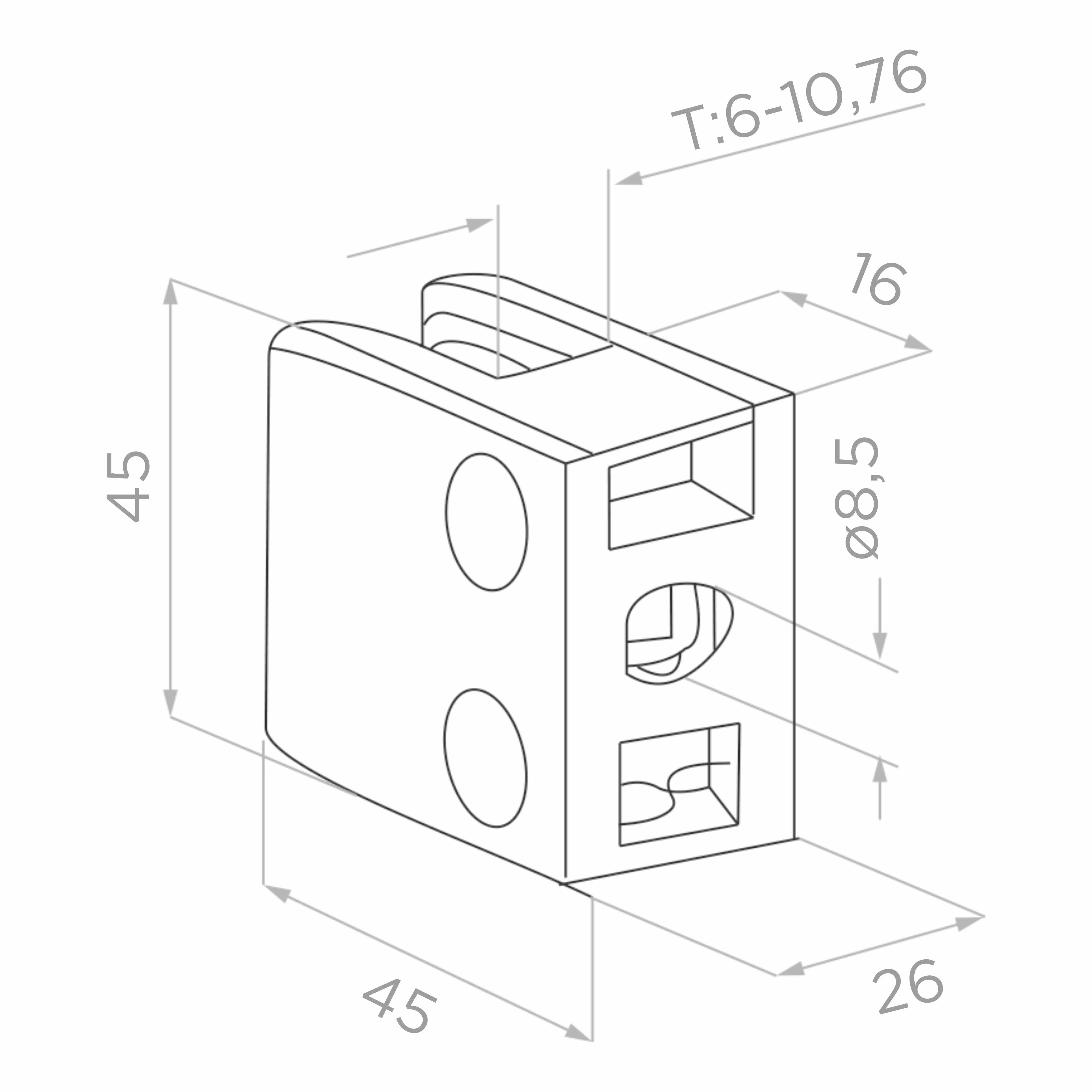

Glass clamp:
- Dimensions: 45×45×26 mm
- Mounting hole diameter: ø 8.5 mm
- Supported glass thickness: 6–10.76 mm

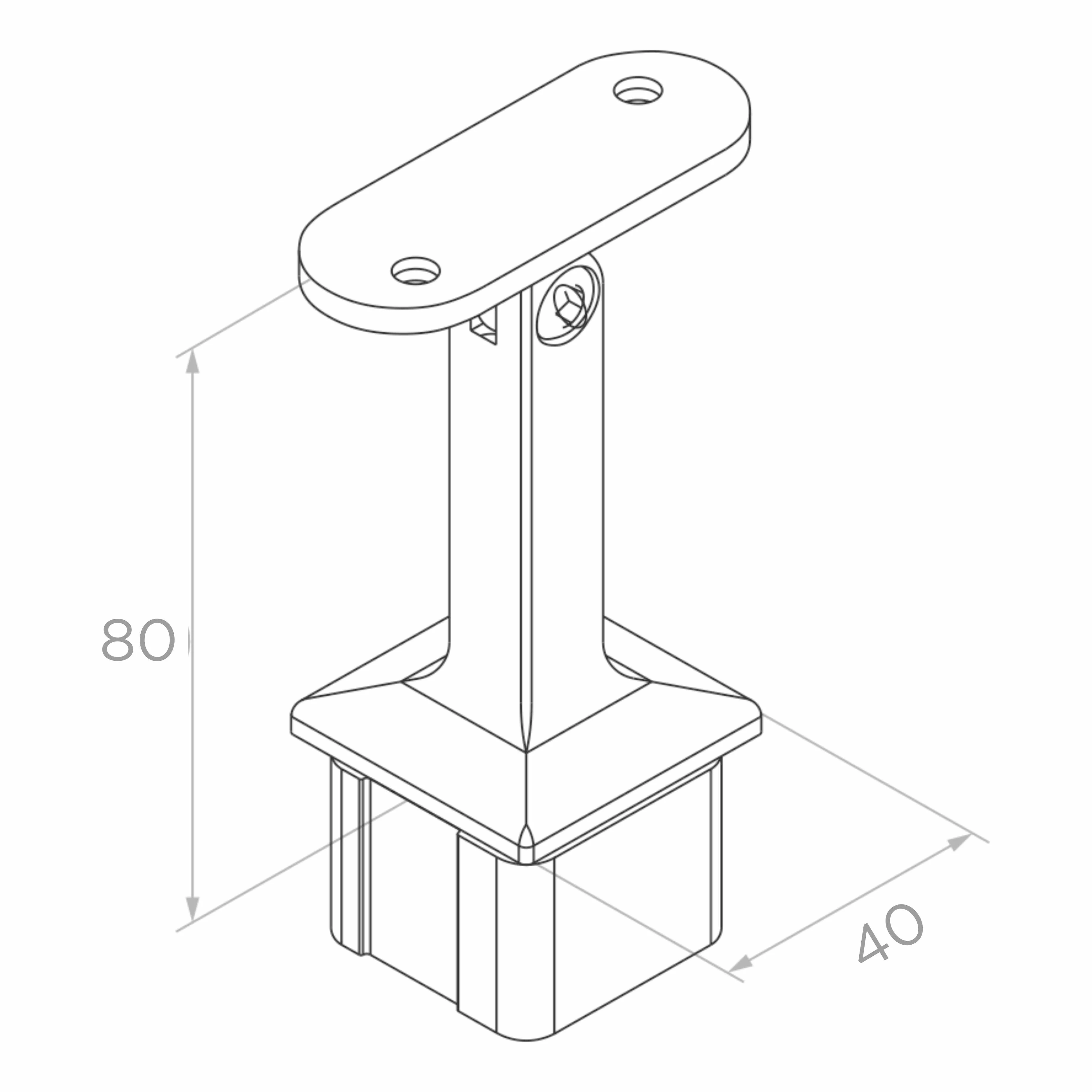

Handrail support (connector):
- Height: 80 mm
- Base width: 40 mm
- Adjustable angle

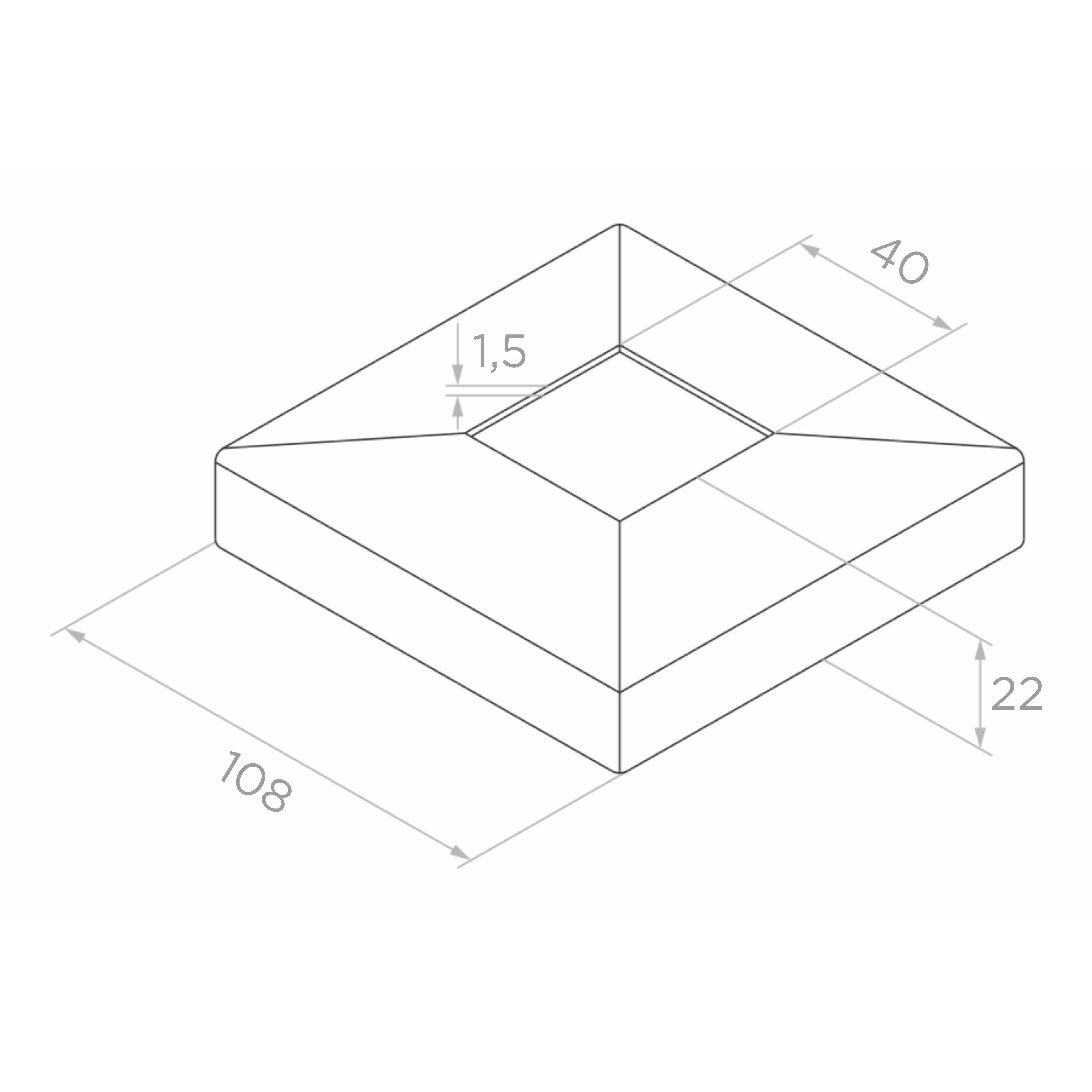

Base cover plate:
- External dimensions: 108×108 mm
- Internal opening: 40×40 mm
- Height: 22 mm
- Material thickness: 1.5 mm
Technical data
- Material: AISI 304 stainless steel
- Surface finish: brushed (satin)
- Colour: satin
- Post type: left end
- EAN: 5903313202244
Installation information
The post is fixed to the substrate using a mounting foot. The cover plate conceals the fixing point, ensuring aesthetic finish. Glass clamps have ø 8.5 mm mounting holes and are fixed to the post using M8 screws. The handrail support features angle adjustment, making it easy to adapt to stair balustrades. Thanks to the brushed AISI 304 stainless steel finish, the post is suitable for both internal and external applications.
Technical data
| Finish | Satin |
| Mounting System | Flat |
| Material | AISI 304 |
