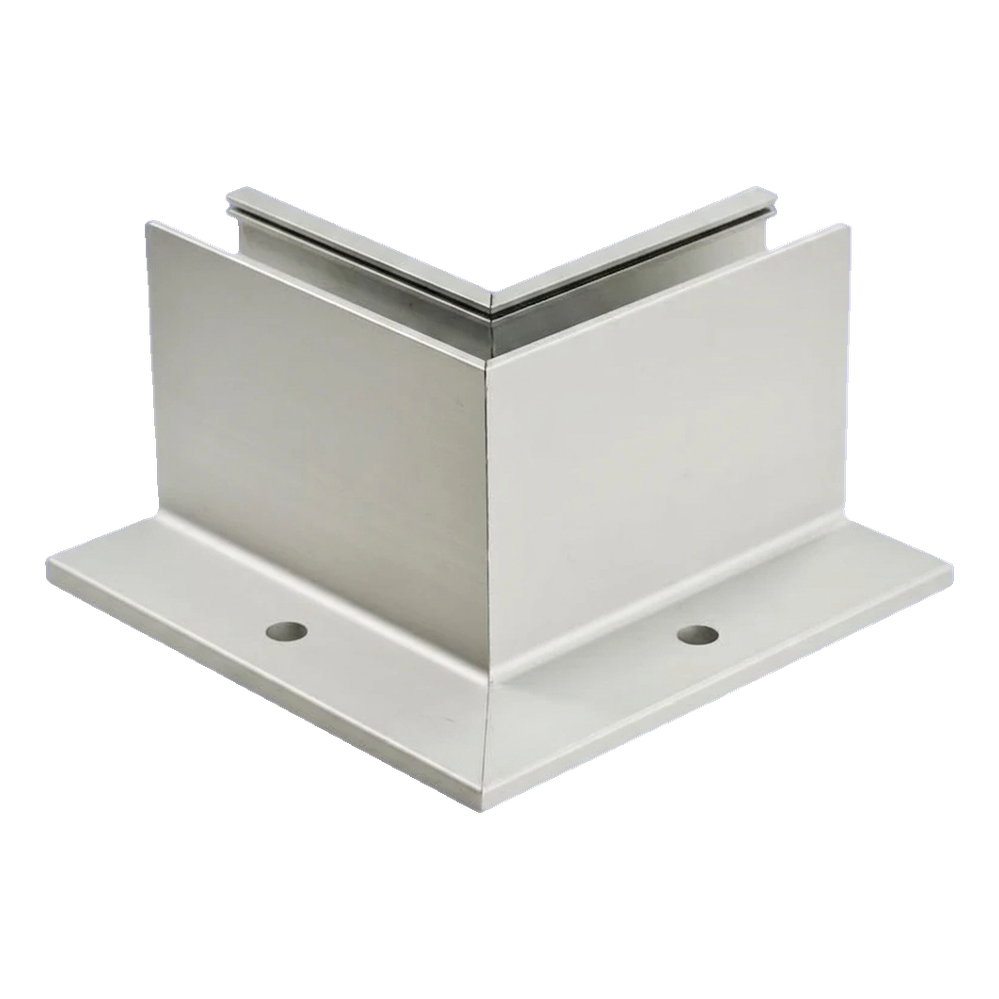

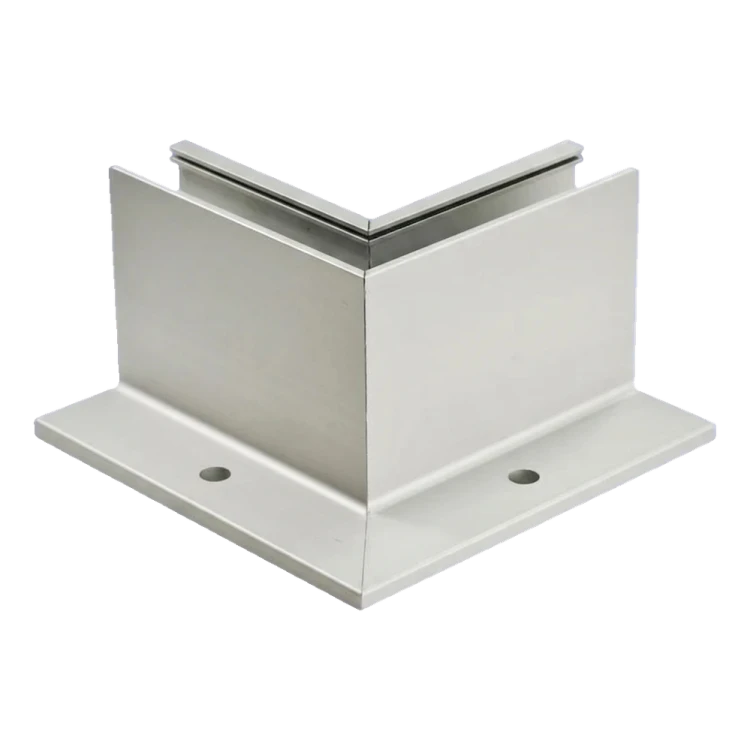

L-shaped internal corner aluminium profile for all-glass balustrades 230×120×95 mm
0
Description
L-shaped internal corner aluminium profile for all-glass balustrades 230×120×95 mm
Aluminium L-shaped internal corner profile designed for post-free (all-glass) balustrades with longitudinal mounting from above. Enables precise formation of 90° angles at internal corners, ensuring aesthetic and durable connection of glass panels without visible posts.
The profile is compatible with toughened and laminated glass with thickness from 12 mm to 21.52 mm, guaranteeing flexibility when selecting panels for various projects — from balconies to staircases and terraces. Satin finish gives it the appearance of stainless steel whilst maintaining the lightness of aluminium. Longitudinal mounting from above means the profile is mounted directly to the substrate using mounting holes in the base — quick installation without the need for additional side brackets.
Technical specification
- Profile type: internal corner L 90°
- System: flat
- Material: aluminium with satin finish
- Dimensions (L × W × H): 230 × 120 × 95 mm
- Glass thickness: 12–21.52 mm (toughened or laminated)
- Mounting method: longitudinal from above (mounting holes in base)
- Weight: 2.24 kg
- EAN: 5903313203937
Installation guidelines
For proper mounting of the profile, it is recommended to use dedicated fixing anchors designed for this balustrade system. The profile is mounted to the substrate (e.g. ceiling, parapet) through holes in the base, then glass panels are seated in the upper groove. This solution achieves a clean, minimalist effect of an all-glass balustrade without visible load-bearing elements.
Technical data
| Accessory Type | U Channel |
| Material | Aluminium |
