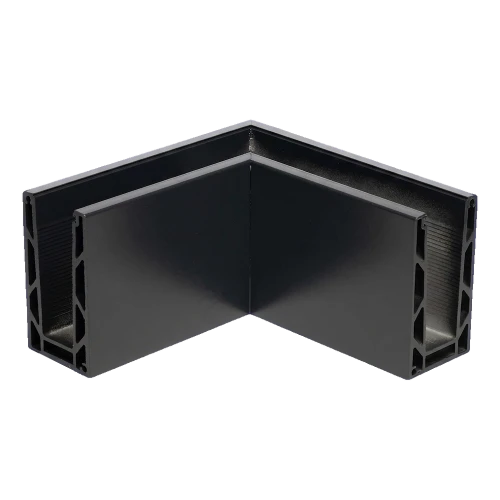

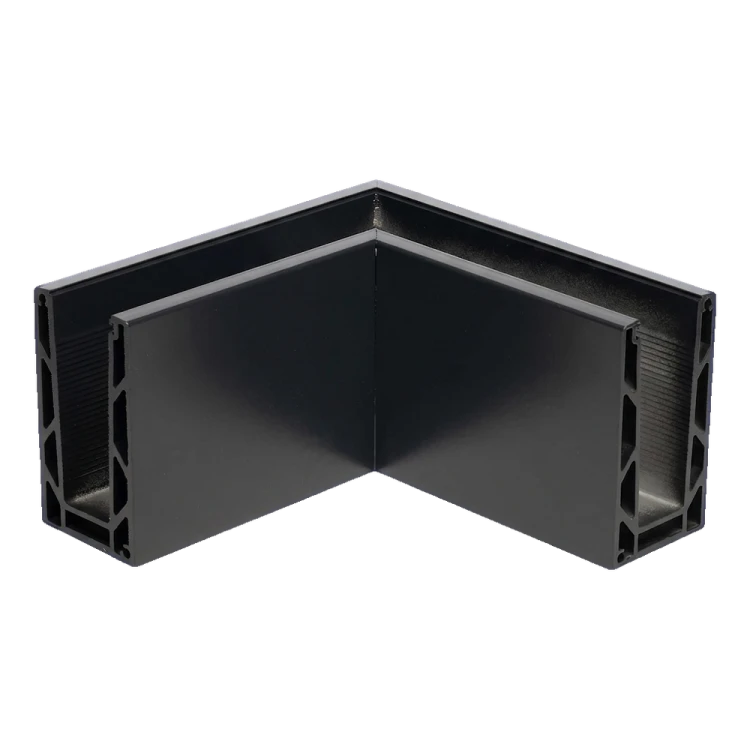

  • Kozza KE 100 – U-profile internal corner 90° for all-glass balustrades, dark grey 000-855 (1)

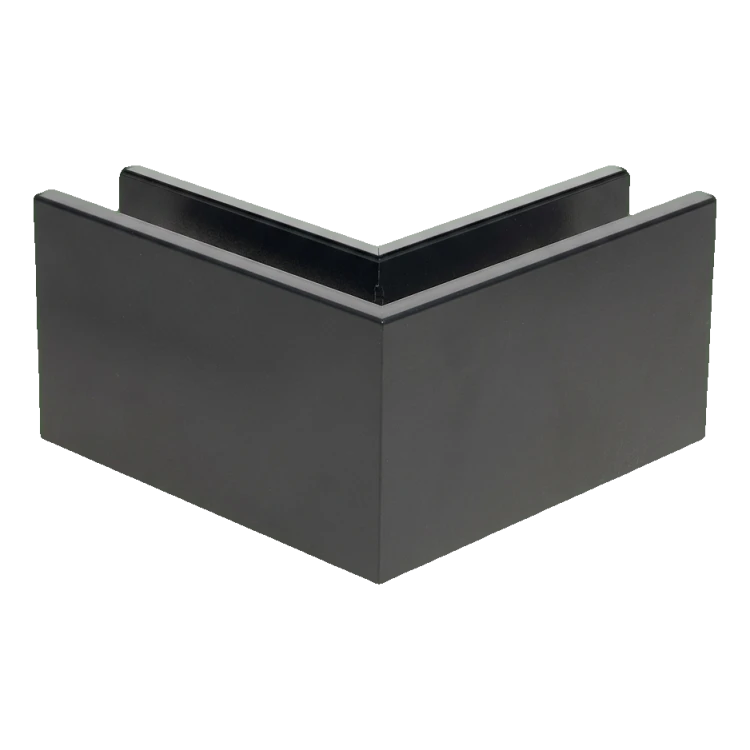

  • Kozza KE 100 – U-profile internal corner 90° for all-glass balustrades, dark grey 000-855 (2)
  • Kozza KE 100 – U-profile internal corner 90° for all-glass balustrades, dark grey 000-855 (3)
  • Kozza KE 100 – U-profile internal corner 90° for all-glass balustrades, dark grey 000-855 (4)

Kozza KE 100 – U-profile internal corner 90° for all-glass balustrades, dark grey

Go to Product feedback

U-corner profile 90° Kozza KE 100 in aluminium, dark grey. Dimensions 197 × 197 × 110 mm, weight 1.44 kg. Glass thickness range 12-21.52 mm. Flat mounting system from above. For internal all-glass balustrades.

Go to full description
with VAT without VAT
Price €79.92
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] balustrady-caloszklane #128

  • Accessory Type U Channel
  • Material Aluminium

Description

Kozza KE 100 – U-profile internal corner 90° for all-glass balustrades, dark grey

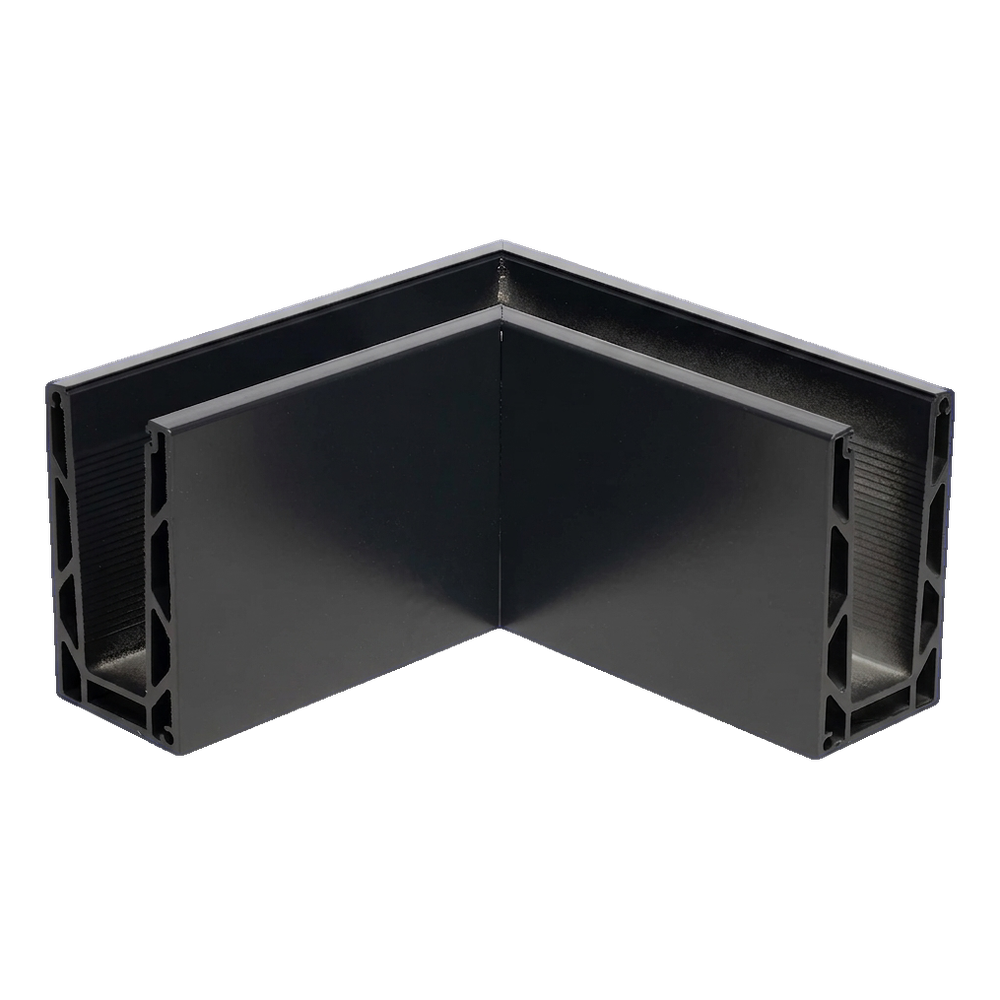

Kozza KE 100 – U-profile internal corner 90° for all-glass balustrades, view from inside the channel
Kozza KE 100 – U-profile internal corner 90° for all-glass balustrades, view from inside the channel

U-corner profile 90° Kozza KE 100 is an element of the all-glass balustrade system designed for forming internal corners. Mounted from above in a flat system, it guides glass panels in two perpendicular directions, ensuring channel continuity and rigidity of the entire balustrade edge. Thanks to the wide range of supported glass (12–21.52 mm) it allows flexible adjustment of panel thickness to project requirements — from standard glazing to reinforced acoustic packages.

The profile is made from aluminium in dark grey colour, which harmonises with modern flooring, anthracite window profiles and brushed stainless steel. The element is designed for internal applications — it performs well in corridors, lobbies, shopping centres and office buildings where clean glass lines without elaborate posts are important.

Benefits for the installer

  • Top mounting (flat system) — anchoring from the horizontal ceiling slab or crown side facilitates routing and reduces finishing time
  • Geometry 197 × 197 mm — symmetrical corner proportions eliminate the need for panel cutting and ensure optimal anchoring surface
  • Compatibility with Glassmove® kit — convenient glass position adjustment and sealing along the full profile run
  • Corrosion-resistant aluminium — dimensional stability and low weight facilitate precise machining and transport to site

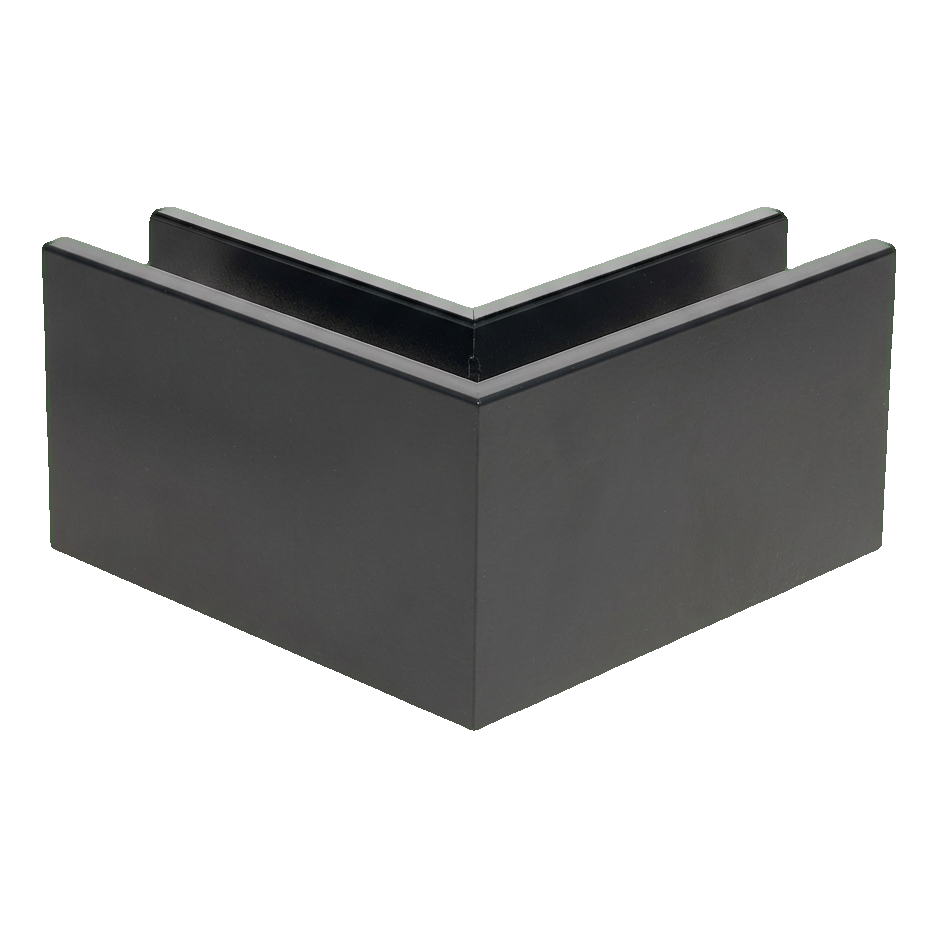

Kozza KE 100 – U-profile internal corner 90°, external view of the corner
Kozza KE 100 – U-profile internal corner 90°, external view of the corner

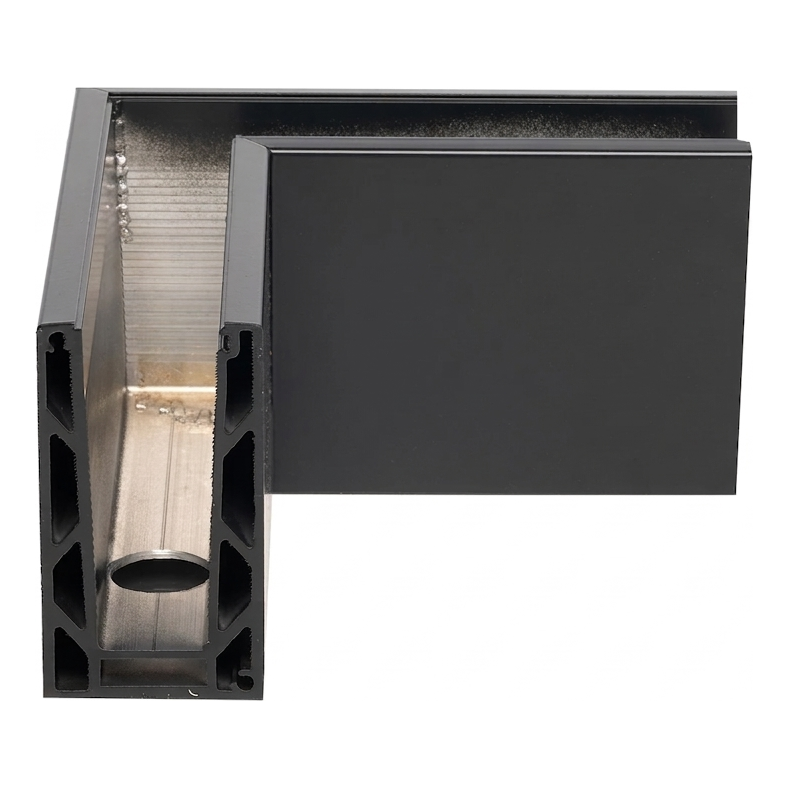

Kozza KE 100 – close-up of aluminium profile cross-section showing the chamber and glass-guiding channel
Kozza KE 100 – close-up of aluminium profile cross-section showing the chamber and glass-guiding channel

Technical specification

  • Manufacturer: Kozza
  • Series: KE 100
  • Profile type: U internal corner
  • Angle: 90°
  • Length: 197 mm
  • Width: 197 mm
  • Height: 110 mm
  • Material: aluminium
  • Colour: dark grey
  • Mounting system: flat (from above)
  • Application: internal
  • Glass thickness range: 12–21.52 mm
  • System compatibility: KE 100 + Glassmove®
  • Weight: 1.44 kg
  • EAN: 5903313208079

Durability and finish quality

The aluminium construction of the profile guarantees corrosion resistance, dimensional stability and low weight. The element maintains its properties even with long-term use in public buildings. Precise powder coating in dark grey shade ensures uniform, aesthetic appearance and coating resistance to scratches and abrasion. This ensures that balustrades maintain a consistent, modern character throughout their service life.
