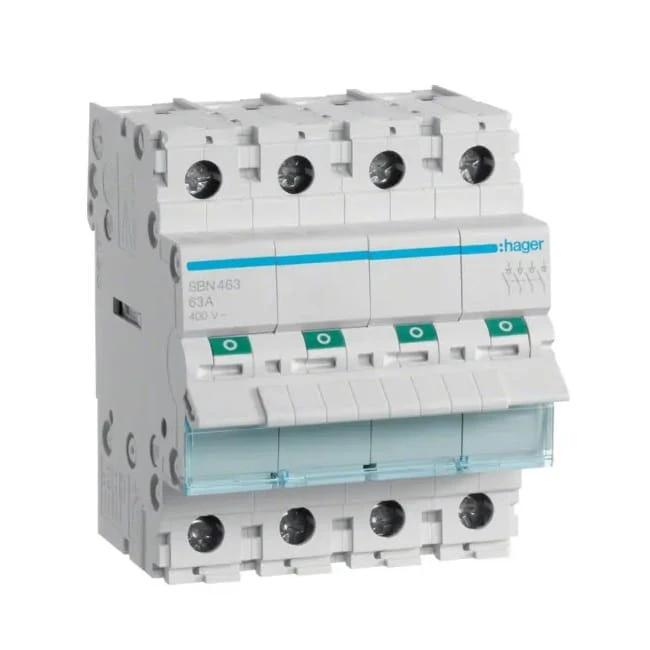

Isolator switch 3 phase 4P 63A 400V AC SBN463 HAGER

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.304 kg

Price / pcs.: £21.65 21.65

excl. shipping costs

Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!

* Packaging options:

Piece
Package: 50 pieces
Package: 100 pieces
Package: 200 pieces

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: HAGER

Product code: GPV-401-106

recommend to a friend

Description

Isolator switch 3 phase 4P 63A 400V AC SBN463 HAGER

- SBN463802

Isolator switch 3 phase 4P 63A 400V AC SBN463 by HAGER is a type of electrical switch that performs several functions: it conducts current under rated conditions and during overloads (including a short circuit for a specified period of time), disconnects the circuit under both rated and fault conditions, and insulates, meeting the insulation property requirements for safe operation of the equipment.

Each HAGER modular insulating switch disconnector has green/red fields on the actuator lever to provide clear visualisation of the disconnector position. The SBN463 apparatus is made of durable plastic and is suitable for temperatures from -20ºC to +50ºC.

SPECIFICATION

Manufacturer

HAGER

Rated current

63 A

Number of poles

4 P

Number of modules

Rated switching voltage Ue (AC)

400 V

Rated insulation voltage Ui

440 V

Rated withstand surge voltage Uimp

6000 V

Frequency

50/60 Hz

Total power loss for rated current

9,2 W

Mechanical strength (number of cycles)

60 000

Operating temperature

-20 to 50 °C

Storage temperature

-40 to 80 °C

Dimensions

69 x 83 x 70 mm

Type of connection

With screw

Number of NO contacts

Degree of protection

IP20

Standards IEC 60947-3, IEC/EN 60669-2, IEC/EN 60669-4

Compatible

European directive RoHs

Compatible

Degree of pollution according to IEC 60664 / IEC 60947-2

Available Configuration

Product code

Catalogue no.

EAN

Model

GPV-401-106

SBN463/HAG

3250615510235

SBN463

Files to download:

Technical data

Application	AC (mains)
Disconnector Type	isolator
Rated current [A]	63A
Number of poles	4P
Rated Voltage [V]	400V AC
Brand	HAGER
