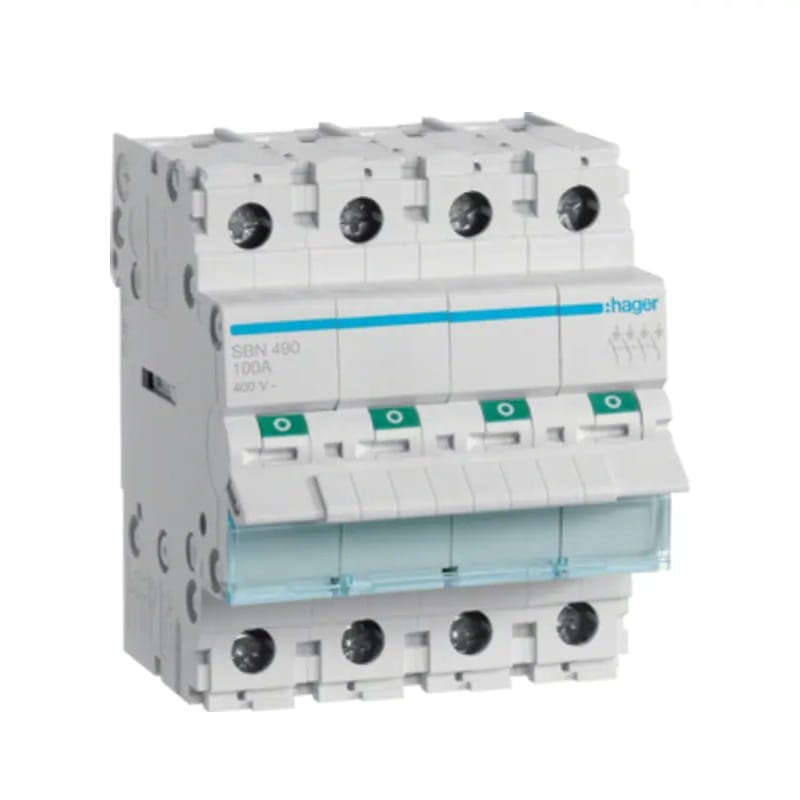

Isolator switch 3-phase 4P 100A 400V AC SBN490 HAGER

Go to Product feedback

Modular isolating disconnector 4P 100A 400VAC SBN490 HAGER is a type of electrical switch that performs several functions: it conducts current under rated conditions and during overcurrents (including short circuits for a specified time), disconnects the circuit under both rated and fault conditions, and also isolates, meeting the insulation property requirements for safe device operation.

Go to full description
with VAT without VAT
Price €34.40
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] rozlaczniki-izolacyjne #95

  • Application AC (mains)
  • Disconnector Type isolator
  • Rated current [A] 100A
  • Number of poles 4P
  • Rated Voltage [V] 400V AC
  • Brand HAGER

Description

Isolator switch 3-phase 4P 100A 400V AC SBN490 HAGER

Modular isolating disconnector 4P 100A 400VAC SBN490 HAGER is a type of electrical switch that performs several functions: it conducts current under rated conditions and during overcurrents (including short circuits for a specified time), disconnects the circuit under both rated and fault conditions, and also isolates, meeting the insulation property requirements for safe device operation.

Each HAGER modular isolating disconnector has green/red fields on the operating lever, which provide a clear visualization of the disconnector's position. The SBN463 device is made of durable plastic and is adapted for operation in temperatures from -20ºC to +50ºC.

SPECIFICATION

Manufacturer
HAGER
Rated current
100 A
Number of poles
4 P
Rated operational voltage Ue (AC)
400 V
Rated frequency
50/60 Hz
Rated insulation voltage Ui
440 V
Voltage input type 1
AC
Rated impulse withstand voltage Uimp
6000 V
AC21 current carrying capacity in category A
100 A
Rated operational current (AC23), category A
40 A
AC21 current carrying capacity in category B
100 A
Permissible AC22 current load in category A
100 A
Permissible AC22 current load in category B
100 A
Rated operational current (AC23), category B
40 A
Short-circuit current with gl-gG fuses
1200 A
Closing capacity at 400 V in AC23A
1692 A
Rated short-time withstand current 1s
1,2 kA
External enclosure supplied with thermal current
100 A
Total power losses for rated current
22 W
Power losses per pole for rated current
5,5 W
Electrical durability at nominal load in operating cycles (AC21)
2500
Electrical durability at nominal load in operating cycles (AC22)
2500
Mechanical durability (number of cycles)
40000
Flexible conductor cross-section (strand) in terminal
6 / 35 mm²
Rigid conductor cross-section (wire) in terminal
6 / 50 mm²
Tightening torque
3,6 Nm
Connection type
with screw
Number of NO contacts
4
Storage temperature
from -40ºC to +80ºC
Degree of protection
IP20
Dimensions
69 x 83 x 70 mm
Standard
IEC 60947-3
European RoHs directive
compliant
Pollution degree according to IEC 60664 / IEC 60947-2
2

Available Configuration

Product code

Catalog number
EAN
Model
GPV-401-120
next arrow image
SBN490/HAG
3250615510310
SBN490
