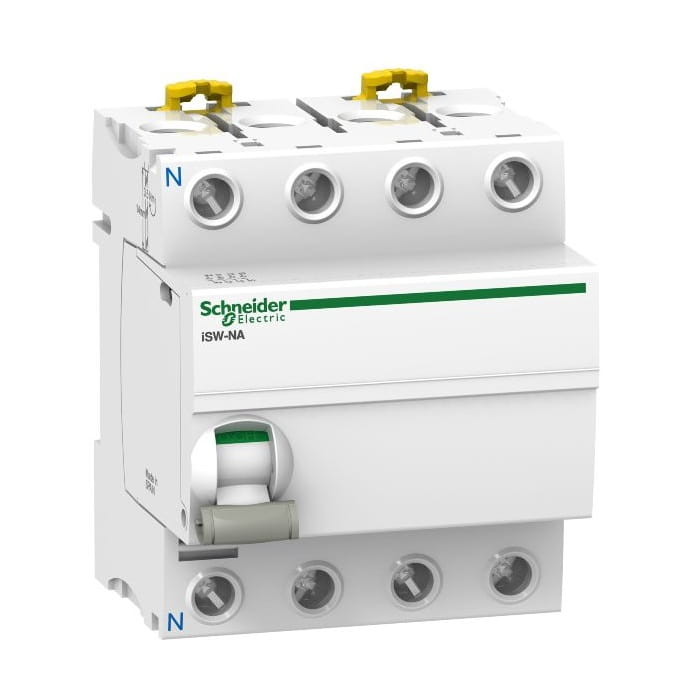

Isolator switch 3-phase 3P+N 100A 415V AC iSW-NA Acti9 A9S70790 SCHNEIDER ELECTRIC
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.3 kg
Price / pcs.:
excl. shipping costs
product unavailable
add to wish list
* - Field mandatory
Description
Isolator switch 3-phase 3P+N 100A 415V AC iSW-NA Acti9 A9S70790 SCHNEIDER ELECTRIC
Isolator switch 3-phase 3P+N 100A 415V AC iSW-NA Acti9 A9S70790 by SCHNEIDER ELECTRIC referred to by electricians as an FR-type disconnector, is the most commonly used device in residential and industrial switchgear to disconnect all circuits as the main circuit breaker.
It is found in practically every fuse box and acts mainly as a main, emergency power switch. In addition, this disconnector has a service function for permanent isolation from the power supply. It is controlled by an ON/OFF lever and the colour shown in the information window (green/red) informs the user whether the device is active.
Specification
Manufacturer
SCHNEIDER ELECTRIC
Electro club
Yes
Rated current
100 A
Number of phases
3-phase
Number of poles
3+n
Rated switching voltage (Ue)
415V AC
Number of modules
8
Additional information
Number of NO contacts 4
Series and type
Isolator switch 3-phase 3P+N 100A 415V AC iSW-NA Acti9 A9S70790 SCHNEIDER ELECTRIC
Rated short-circuit breaking current
5 kA
Rated short-lasting current
1500 A
Rated insulation voltage
500 V
Rated withstand surge voltage
6 kV
Control type
Lever
Width in modules 9 mm
8
Height
85 mm
Width
72 mm
Depth
73 mm
Degree of protection
IP20
Color
White
Available Configuration
Files to download:
Technical data
| Application | AC (mains) |
| Disconnector Type | isolator |
| Rated current [A] | 100A |
| Number of poles | 3P+N |
| Rated Voltage [V] | 415V AC |
| Brand | SCHNEIDER ELECTRIC |
