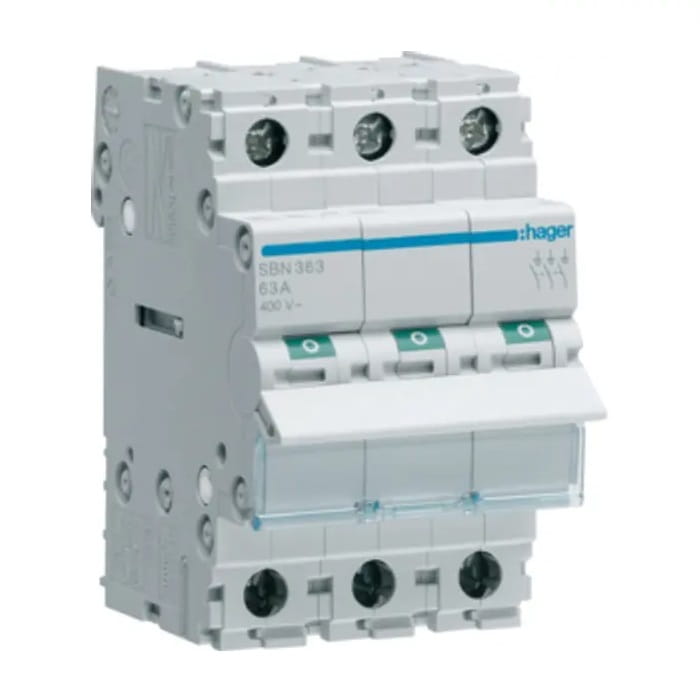

Isolator switch 3-phase 3P 63A 400V AC SBN363 HAGER

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.224 kg

Price / pcs.: £18.37 18.37

excl. shipping costs

* Packaging options:

Piece
Package: 50 pieces
Package: 100 pieces
Package: 200 pieces

quantity pcs.

Total:

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: HAGER

Product code: GPV-401-69

recommend to a friend

Description

Isolator switch 3-phase 3P 63A 400V AC SBN363 HAGER

- SBN363765

Isolator switch 3-phase 3P 63A 400V AC SBN363 HAGERR is a device that acts as an electrical switch. This device conducts current under normal rated conditions and during overstress, including a short circuit, for a specified period of time.

The isolation modular disconnect switch also has the ability to disconnect the circuit under both rated and fault conditions, as well as isolation, ensuring safe working conditions for operators.

Each HAGER modular insulating switch disconnector is equipped with a drive lever with green and red fields that offer clear and easy-to-read visualization of the disconnector's position, enhancing safety in use.

The apparatus is made of durable plastic and suitable for a wide temperature range, from -20ºC to +50ºC, making it suitable for a variety of environments and operating conditions.

Specifications

Series and type

Isolator switch 3-phase 3P 63A 400V AC SBN363 HAGER

Number of poles

3 P

Rated switching voltage Ue (AC)

400 V

Rated frequency

50/60 Hz

Rated insulation voltage Ui

440 V

Voltage input type 1

Rated withstand surge voltage Uimp

6000 V

Alternating current carrying capacity AC21, category A

63 A

Rated operating current (AC23), category A

40 A

Current carrying capacity of AC21 in category B

63 A

Permissible current carrying capacity AC22 of category A

63 A

Permissible current carrying capacity AC22 category B

63 A

Rated operating current (AC23), category B

40 A

Short-circuit current with gl-gG fuses

945 A

Closing capacity at 400 V in AC23A

1332 A

Rated short-time withstand current 1s

0.945 kA

Outer housing powered by thermal current

63 A

Total power losses for rated current

6.9 W

Power losses per pole for rated current

2.3 W

Electrical life at rated load in operating cycles (AC21)

5 000

Electrical life at rated load in working cycles (AC22)

5 000

Mechanical strength (number of cycles)

60 000

Cross section of flexible wire (wire) in the terminal

2.5 / 16 mm²

Cross section of rigid wire (wire) in the terminal

2.5 / 25 mm²

Tightening torque

2.8 Nm

Type of connection

With screw

Number of NO contacts

Storage temperature

From -40ºC to +80ºC

Degree of protection

IP20

Dimensions

68 x 83 x 52.5 mm

Device group

SBN

Key features

Complies with standards

IEC 60947-3, IEC/EN 60669-2, IEC/EN 60669-4

European directive RoHs

Compatible

Degree of pollution in accordance with IEC 60664 / IEC 60947-2

Available Configuration

Product code

Catalog no.

EAN

Model

GPV-401-69

SBN363/HAG

3250615510228

SBN363

Technical data

Application	AC (mains)
Disconnector Type	isolator
Rated current [A]	63A
Number of poles	3P
Rated Voltage [V]	400V AC
Brand	HAGER
