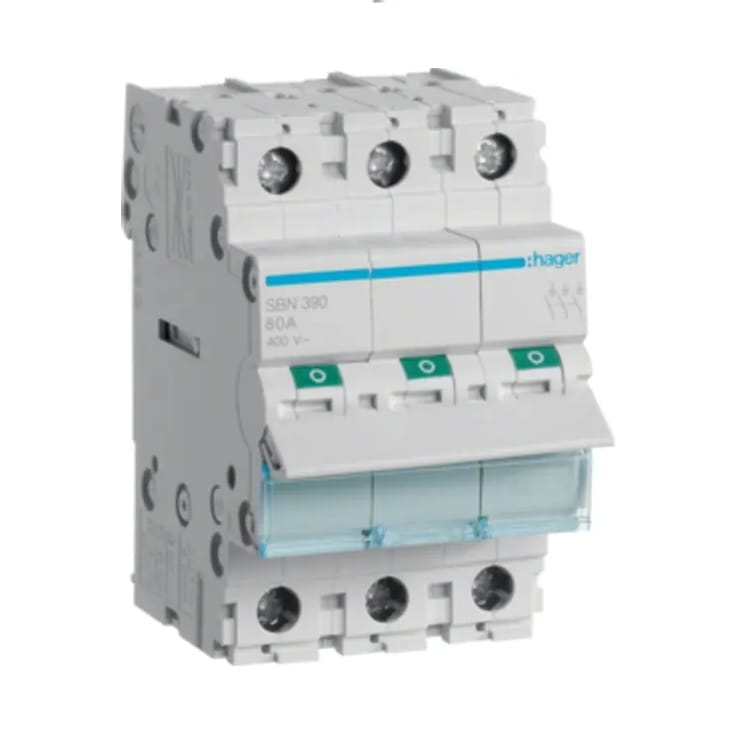

Isolator switch 3-phase 3P 100A 400V AC SBN390 HAGER

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.248 kg

Price / pcs.: £22.53 22.53

excl. shipping costs

Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!

* Packaging options:

Piece
Package: 50 pieces
Package: 100 pieces
Package: 200 pieces

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: HAGER

Product code: GPV-401-85

recommend to a friend

Description

Isolator switch 3-phase 3P 100A 400V AC SBN390 HAGER

- SBN390781

Isolator switch 3-phase 3P 100A 400V AC SBN390 by HAGER is a type of electrical switch that performs several functions: it conducts current under rated conditions and during overloads (including short circuits for a certain period of time), disconnects the circuit under both rated and fault conditions, and insulates, meeting the insulation property requirements for safe operation of the device.

Each HAGER modular insulating switch disconnector has green and red fields on the drive lever, which provide clear visualization of the disconnector's position. The SBN390 apparatus is made of durable plastic and is suitable for temperatures from -20ºC to +50ºC.

SPECIFICATION

Manufacturer

HAGER

Rated current

100 A

Number of phases

3-phase

Number of poles

3 P

Rated switching voltage Ue (AC)

400 V

Rated frequency

50/60 Hz

Rated insulation voltage Ui

440 V

Voltage input type 1

Rated withstand surge voltage Uimp

6000 V

Current carrying capacity AC21 in category A

100 A

Rated operating current (AC23), category A

40 A

AC21 current carrying capacity in category B

100 A

Permissible current carrying capacity AC22 category A

100 A

Permissible current carrying capacity AC22 category B

100 A

Rated operating current (AC23), category B

40 A

Short-circuit current with gl-gG fuses

1200 A

Closing capacity at 400 V in AC23A

1692 A

Rated short term withstand current 1s

1.2 kA

External enclosure energized by thermal current

100 A

Total power loss for rated current

16.5 W

Power loss per pole for rated current

5.5 W

Electrical life at rated load in operating cycles (AC21)

2500

Electrical life at rated load in operating cycles (AC22)

2500

Mechanical strength (number of cycles)

40 000

Cross section of flexible wire (wire) in the terminal

6 / 35 mm²

Cross section of rigid wire (wire) in the terminal

6 / 50 mm²

Tightening torque

3.6 Nm

Type of connection

With screw

Number of NO contacts

Storage temperature

From -40ºC to +80ºC

Degree of protection

IP20

Dimensions

69 x 83 x 70 mm

Device group

SBN

Standard

IEC 60947-3

European directive RoHs

Compatible

Degree of pollution in accordance with IEC 60664 / IEC 60947-2

Available Configuration

Product code

Catalog no.

EAN

Model

GPV-401-85

SBN390/HAG

3250615510303

SBN390

Technical data

Application	AC (mains)
Disconnector Type	isolator
Rated current [A]	100A
Number of poles	3P
Rated Voltage [V]	400V AC
Brand	HAGER
