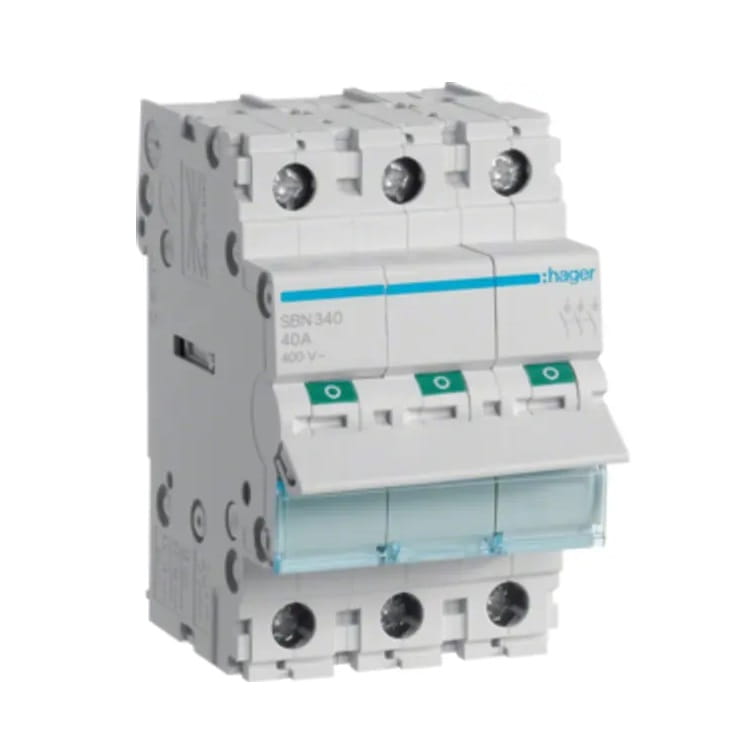

Isolating switch 3-phase 3P 40A 400V AC SBN340 HAGER

Go to Product feedback

Isolating switch 3-phase 3P 40A 400V AC SBN340 HAGER is a type of electrical switch that performs several functions: it conducts current under rated conditions and during overloads (including short circuits for a certain period of time), disconnects the circuit under both rated and fault conditions, and insulates, meeting the insulation property requirements for safe operation of the device.

Go to full description
with VAT without VAT
Price €25.00
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] rozlaczniki-izolacyjne #95

  • Application AC (mains)
  • Disconnector Type isolator
  • Rated current [A] 40A
  • Number of poles 3P
  • Rated Voltage [V] 400V AC
  • Brand HAGER

Description

Isolating switch 3-phase 3P 40A 400V AC SBN340 HAGER

Isolating switch 3-phase 3P 40A 400V AC SBN340 HAGER is a type of electrical switch that performs several functions: it conducts current under rated conditions and during overloads (including short circuits for a certain period of time), disconnects the circuit under both rated and fault conditions, and insulates, meeting the insulation property requirements for safe operation of the device.

Each HAGER modular insulating switch disconnector has green/red fields on the drive lever, which provide clear visualization of the disconnector's position. The SBN340 apparatus is made of durable plastic and is suitable for temperatures from -20ºC to +50ºC.

SPECIFICATION

Manufacturer
HAGER
Rated current
40 A
Number of poles
3 P
Rated switching voltage Ue (AC)
400 V
Rated frequency
50/60 Hz
Rated insulation voltage Ui
440 V
Voltage input type 1
AC
Rated withstand surge voltage Uimp
6000 V
Current carrying capacity AC21, category A
40 A
Rated operating current (AC23), category A
40 A
Current carrying capacity of AC21 in category B
40 A
Permissible current load AC22 category A
40 A
Permissible current load AC22 category B
40 A
Rated operating current (AC23), category B
40 A
Short-circuit current with gl-gG fuses
600 A
Closing capacity at 400 V in AC23A
846 A
Rated short term withstand current 1s
0.6 kA
External enclosure energized by thermal current
40 A
Total power losses for rated current
3.3 W
Power losses per pole for rated current
1.1 W
Electrical life at rated load in operating cycles (AC21)
5 000
Electrical life at rated load in working cycles (AC22)
5 000
Mechanical strength (number of cycles)
60 000
Cross section of flexible cable (wire) in the terminal
2.5 / 16 mm²
Cross section of rigid wire (wire) in the terminal
2.5 / 25 mm²
Tightening torque
2.8 Nm
Type of connection
With screw
Number of NO contacts
3
Storage temperature
-40ºC to +80ºC
Degree of protection
IP20
Dimensions
68 x 83 x 52.5 mm
Device group
SBN
Standard
IEC 60947-3, IEC/EN 60669-2, IEC/EN 60669-4
European RoHs Directive
Compatible
Degree of pollution in accordance with IEC 60664 / IEC 60947-2
2

Available Configuration

Product code

Catalog no.
EAN
Model
GPV-401-95
next arrow image
SBN340/HAG
3250615510181
SBN340
