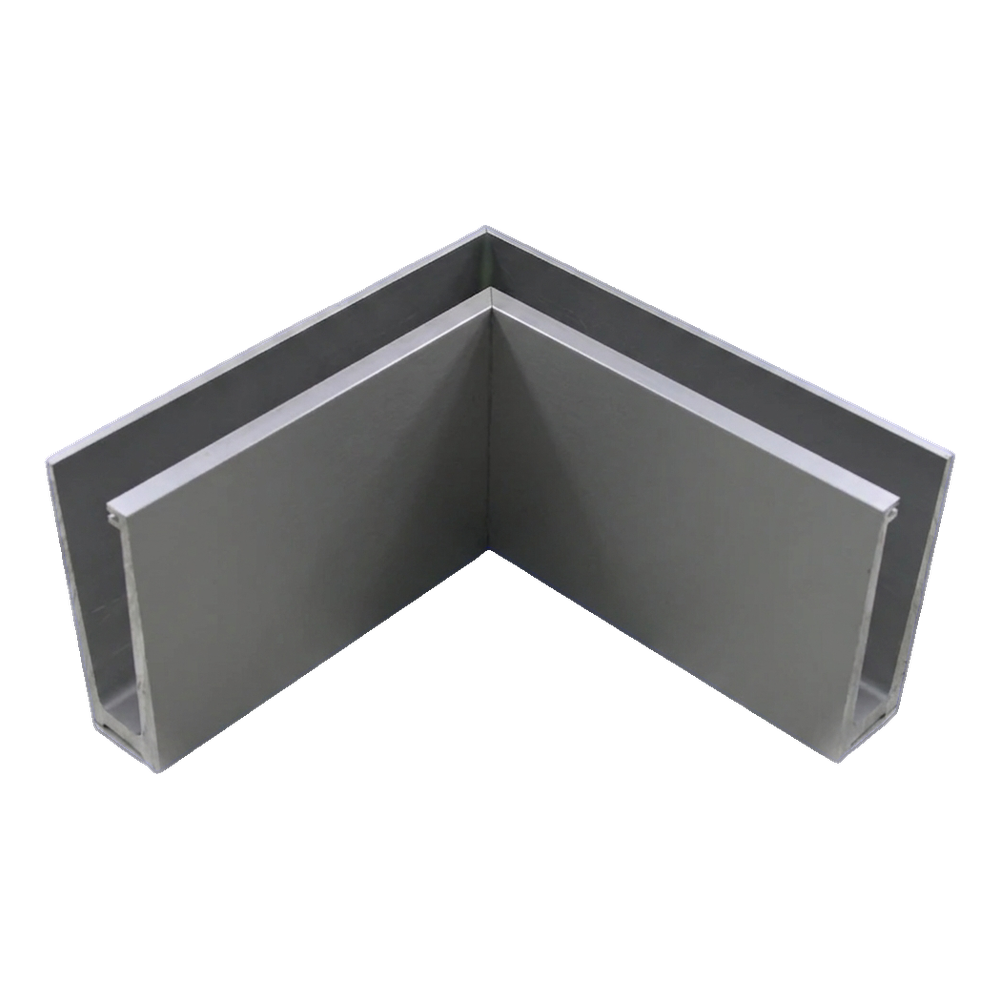

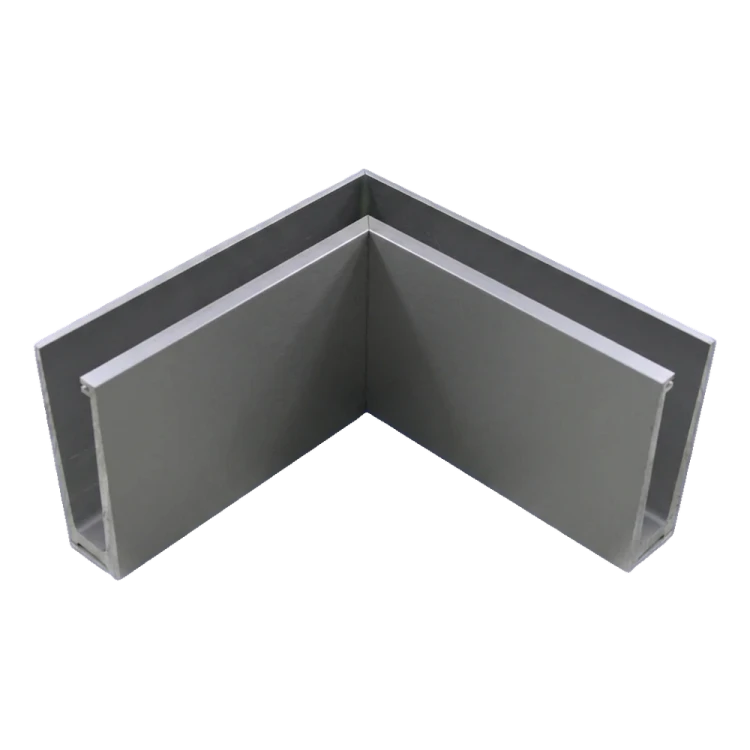

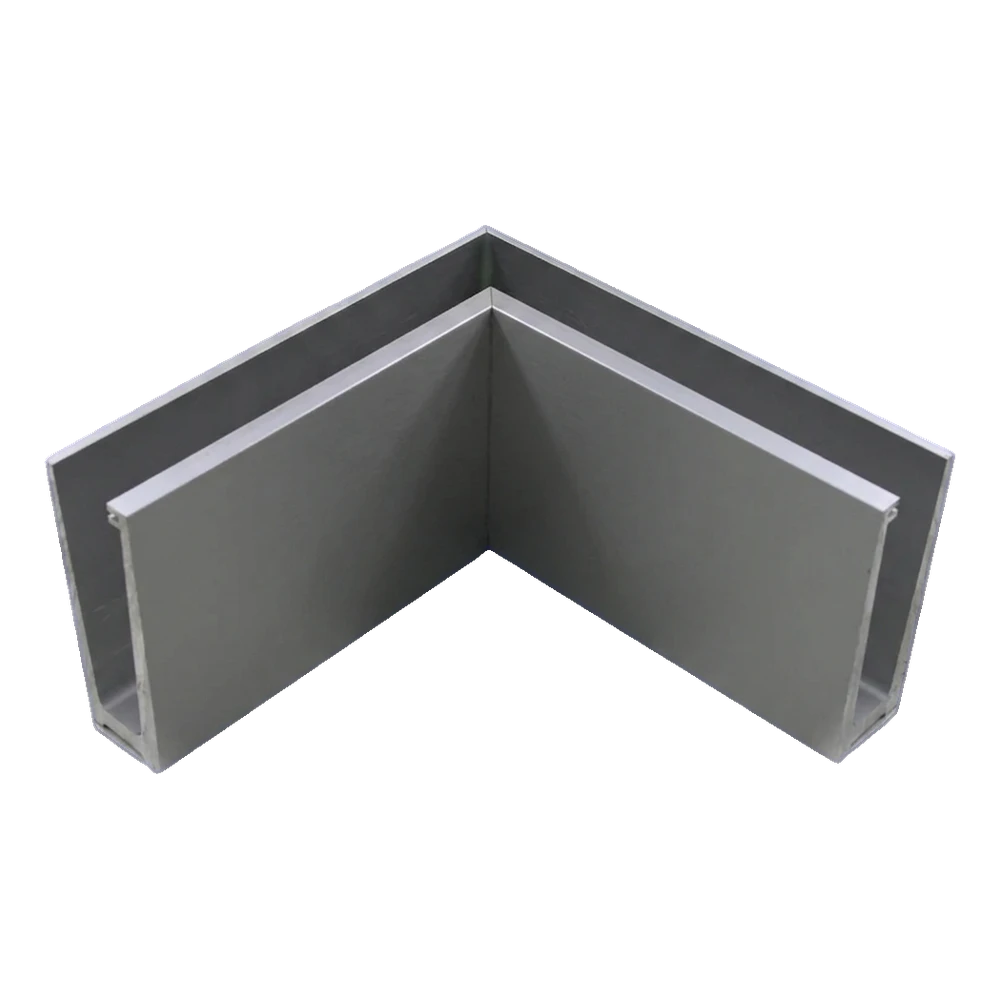

Internal corner aluminium profile for all-glass balustrades 200×120×45 mm – top mounting, satin
0
Description
Internal corner aluminium profile for all-glass balustrades 200×120×45 mm – top mounting, satin
Aluminium internal corner profile designed for constructing all-glass (structural glazing) balustrades with top mounting. Enables precise formation of 90° angles at internal corners, ensuring an aesthetic and watertight joint between two glass panels. The satin aluminium finish perfectly imitates stainless steel, allowing the balustrade to present a modern and elegant appearance without the need for more expensive materials.
The profile works with toughened or laminated glass panels with thickness from 12 to 21.52 mm. The top mounting system means that the profile is fixed directly to the substrate, and the mounting anchors are hidden beneath the glass — they are completely invisible from the outside. This solution significantly enhances the aesthetic qualities of the installation and reduces installation time, as it eliminates the need for precise masking of fixing elements.
Technical specification
- Type: internal corner profile 90°
- System: flat, top mounting
- Material: aluminium with satin finish
- Profile dimensions: 200 × 120 × 45 mm
- Glass thickness supported: 12–21.52 mm
- Glass type: toughened or laminated
- Weight: 1.9 kg
- EAN: 99916777
Installation and compatibility
Proper installation of the profile requires dedicated mounting anchors (sold separately), which ensure stable and secure connection to the substrate. The profile forms part of the all-glass balustrade system with top mounting — within the same product line, straight profiles are also available, allowing complete realisation of the entire balustrade in uniform satin aluminium aesthetics.
Technical data
| Accessory Type | U Channel |
| Material | Aluminium |
