Intermediate balustrade post ø 42.4x1060/1102.4 mm/ 4 glass clamps
Description
Intermediate balustrade post ø 42.4 mm stainless steel – 4 glass clamps
Intermediate post made from AISI 304 stainless steel with four glass clamps — a complete mounting kit for building glass balustrades. Manufactured from tube with diameter ø 42.4 mm and wall thickness 2 mm, ensuring high mechanical strength and corrosion resistance. The satin finish provides an aesthetic, modern appearance that fits perfectly in both indoor and outdoor spaces.
The universal construction allows for use in balcony and stair balustrades. The handrail support is not permanently glued — anaerobic adhesive for stainless steel is used for mounting. This solution facilitates installation, allows free adjustment of post positioning to site conditions, and if necessary enables shortening of the post without compromising the factory mounting. The total height including handrail is 1102.4 mm, which complies with safety standards for balustrades.
The kit includes complete glass gaskets for 8 mm thick panels. The clamps accommodate glass panels with thickness ranging from 6 to 10.76 mm — when using glass other than 8 mm, the appropriate gasket size must be selected.

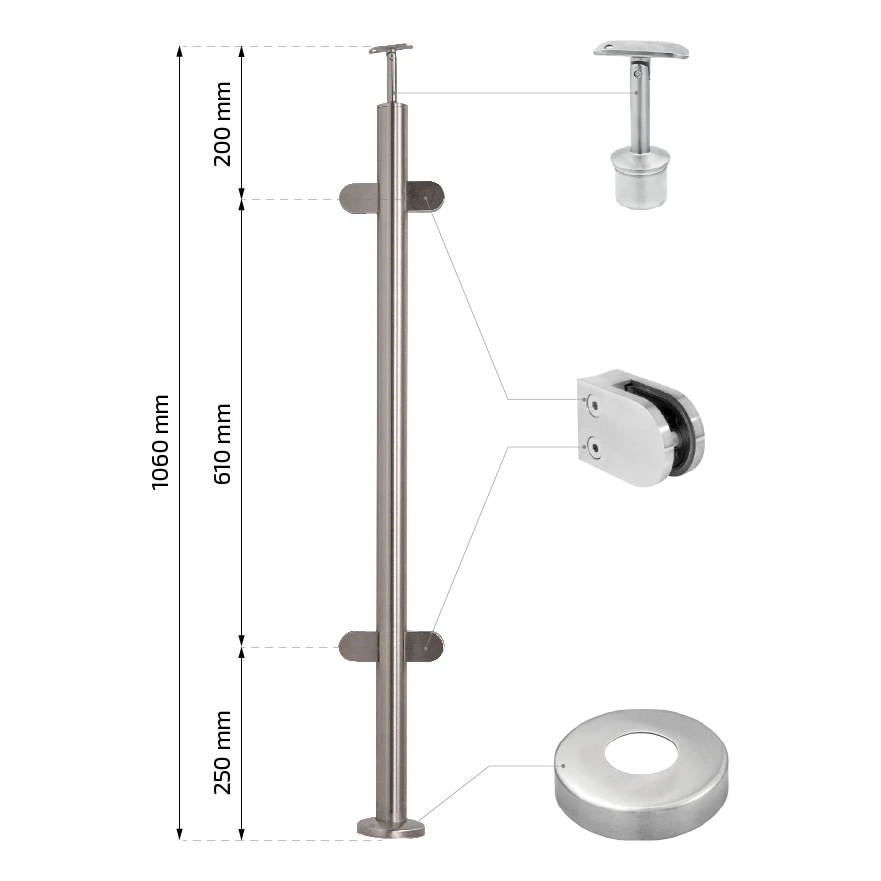

Kit contents
- Intermediate post made from stainless steel ø 42.4 mm
- Glass clamps — 4 pieces
- Post connector (handrail support)
- Base cover (rosette)
- Complete set of glass gaskets 8 mm

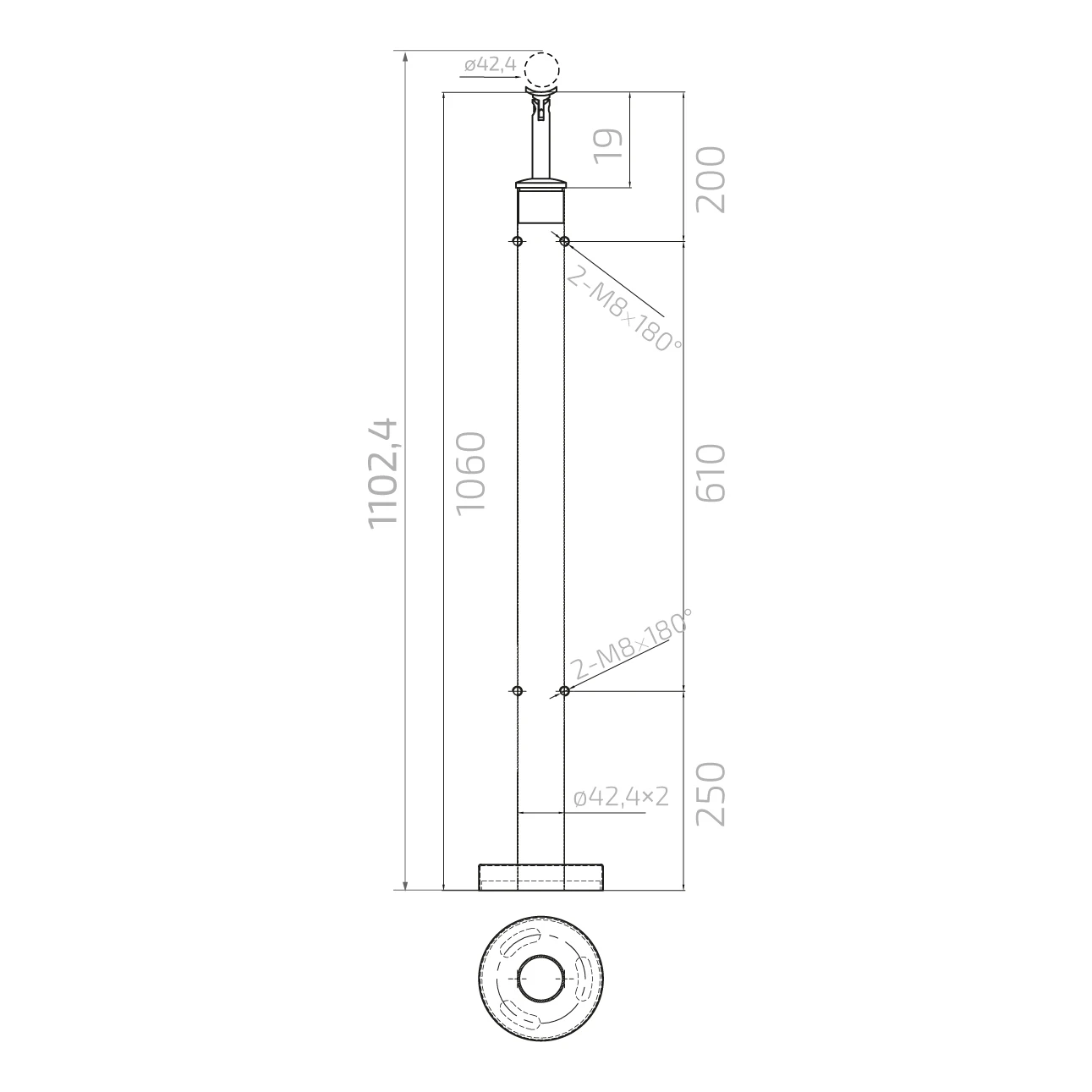

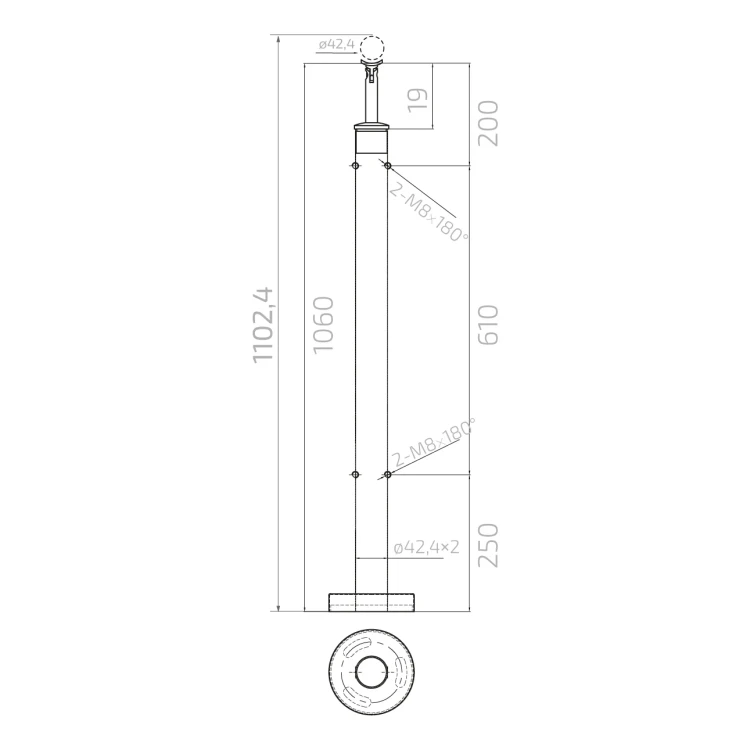

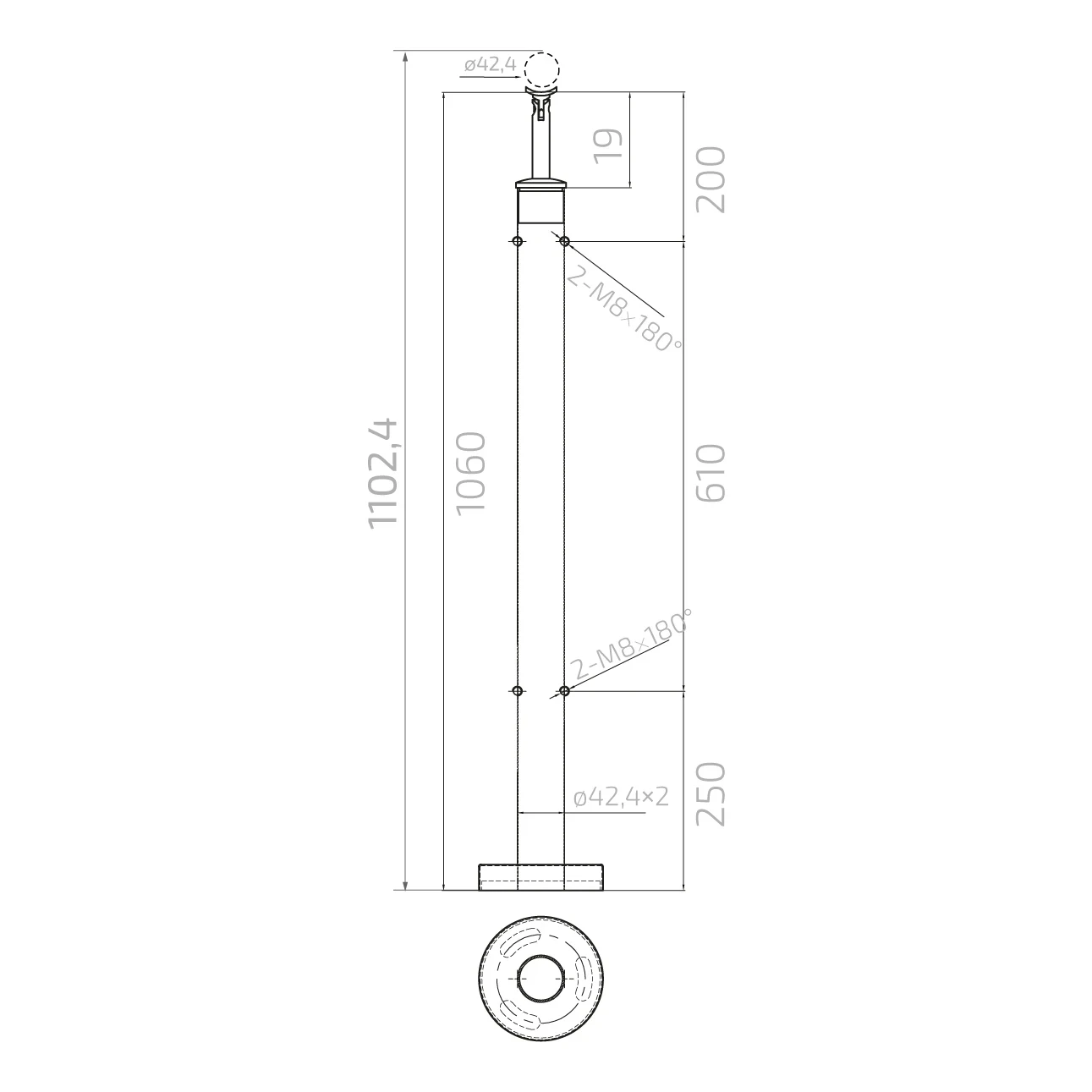

Post dimensions
- Post tube height: 1060 mm
- Total height with handrail support: 1102.4 mm
- Tube diameter: ø 42.4 mm
- Tube wall thickness: 2 mm
- Distance from base to lower clamps: 250 mm
- Spacing between clamp pairs: 610 mm
- Distance from upper clamps to tube top: 200 mm
- Mounting holes: 2× M8 spaced at 180°
- Weight: 3.64 kg

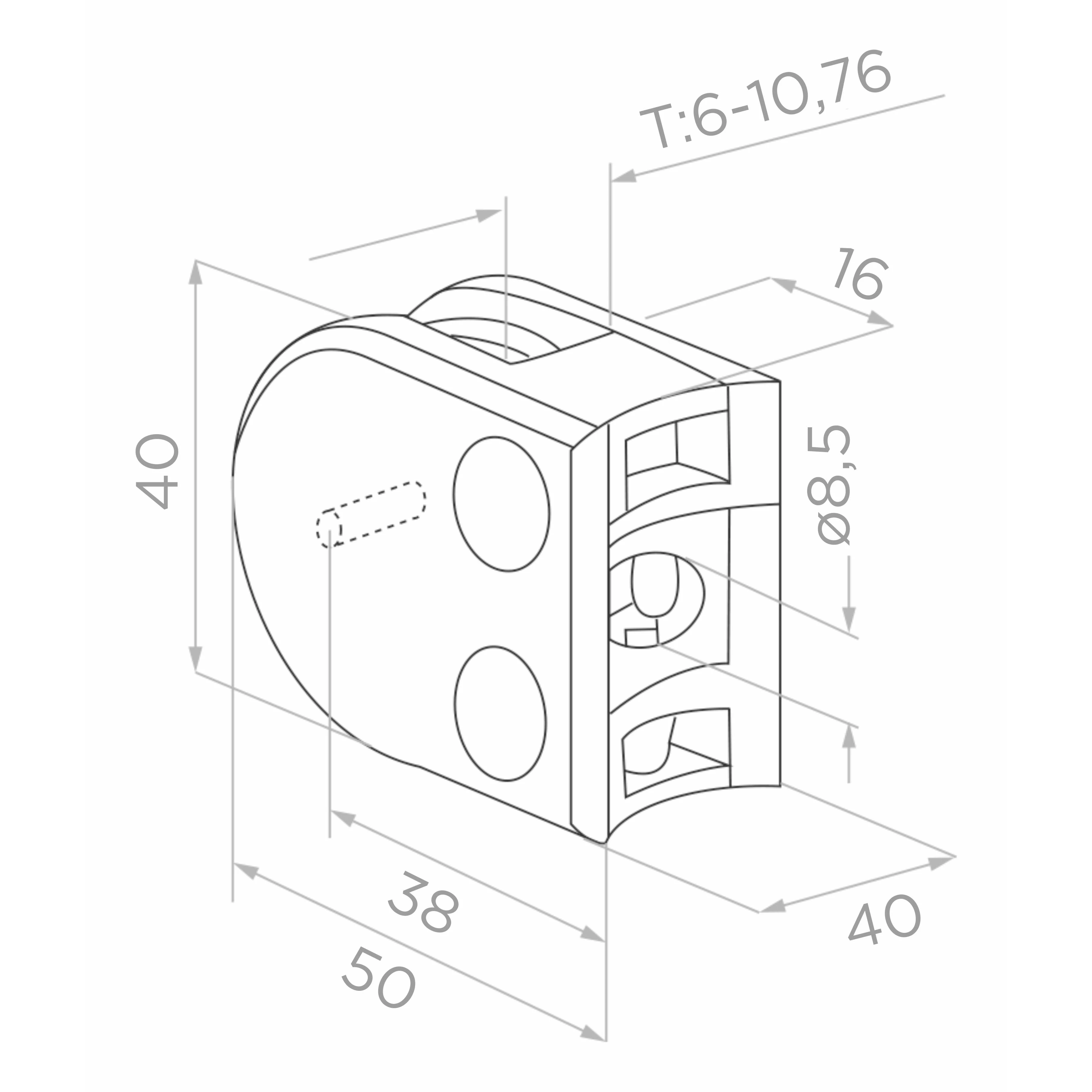

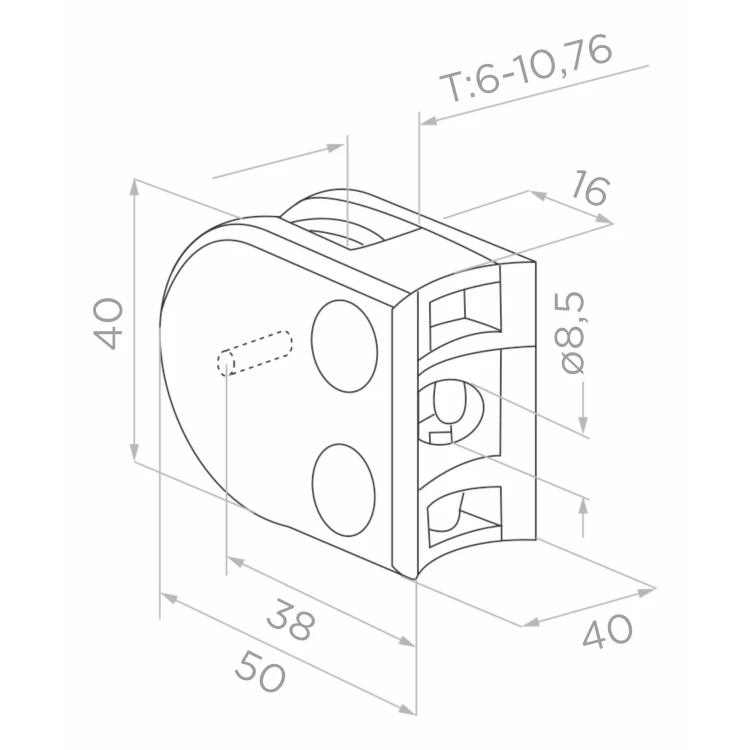

Glass clamp dimensions
- Clamp dimensions: 50 × 40 × 40 mm (L × W × H)
- Glass insertion depth: 38 mm
- Mounting hole diameter: ø 8.5 mm
- Glass thickness range: 6–10.76 mm

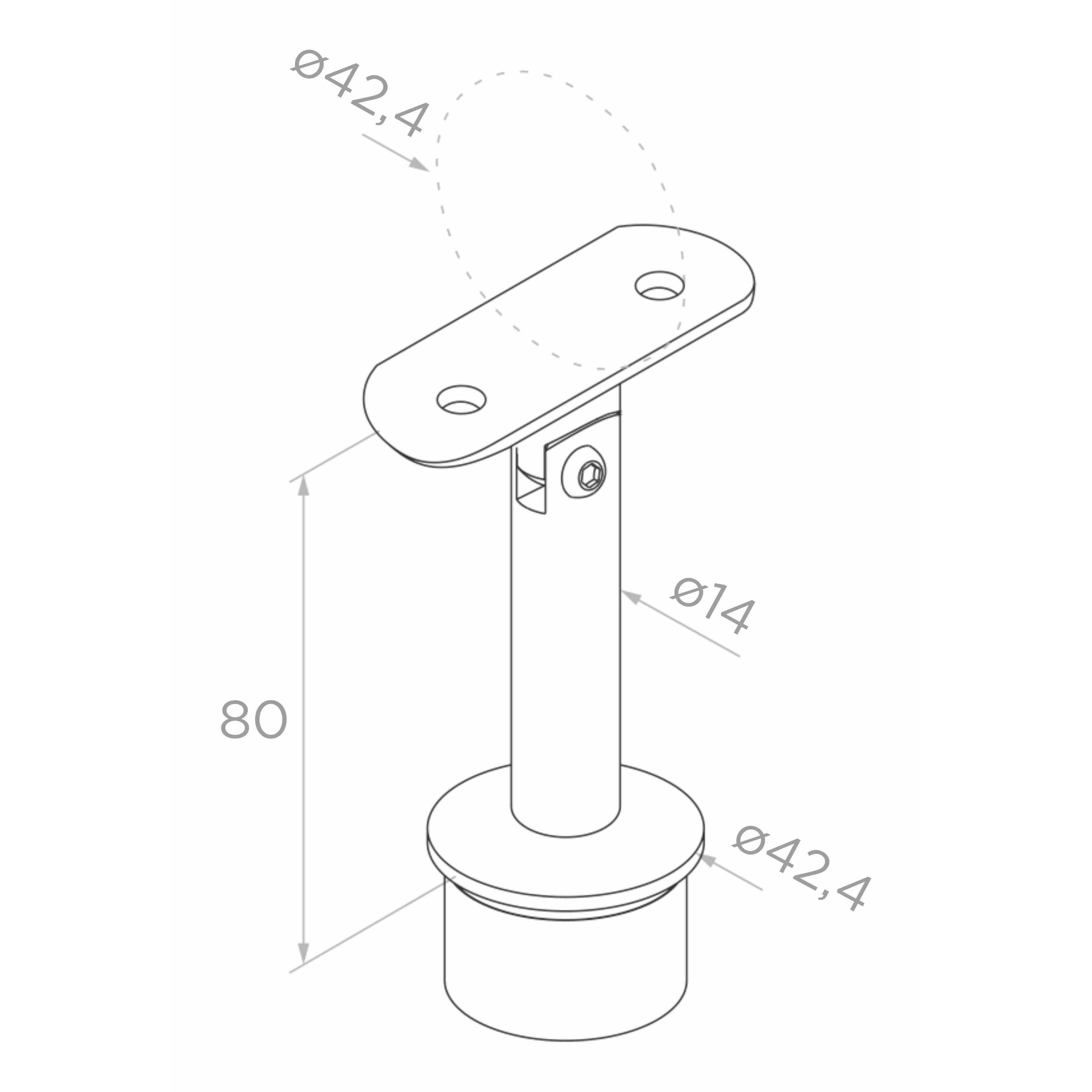

Handrail support dimensions
- Support height: 80 mm
- Stem diameter: ø 14 mm
- Base diameter (tube insertion): ø 42.4 mm
- Handrail fitting: ø 42.4 mm
- Adjustable mounting plate angle

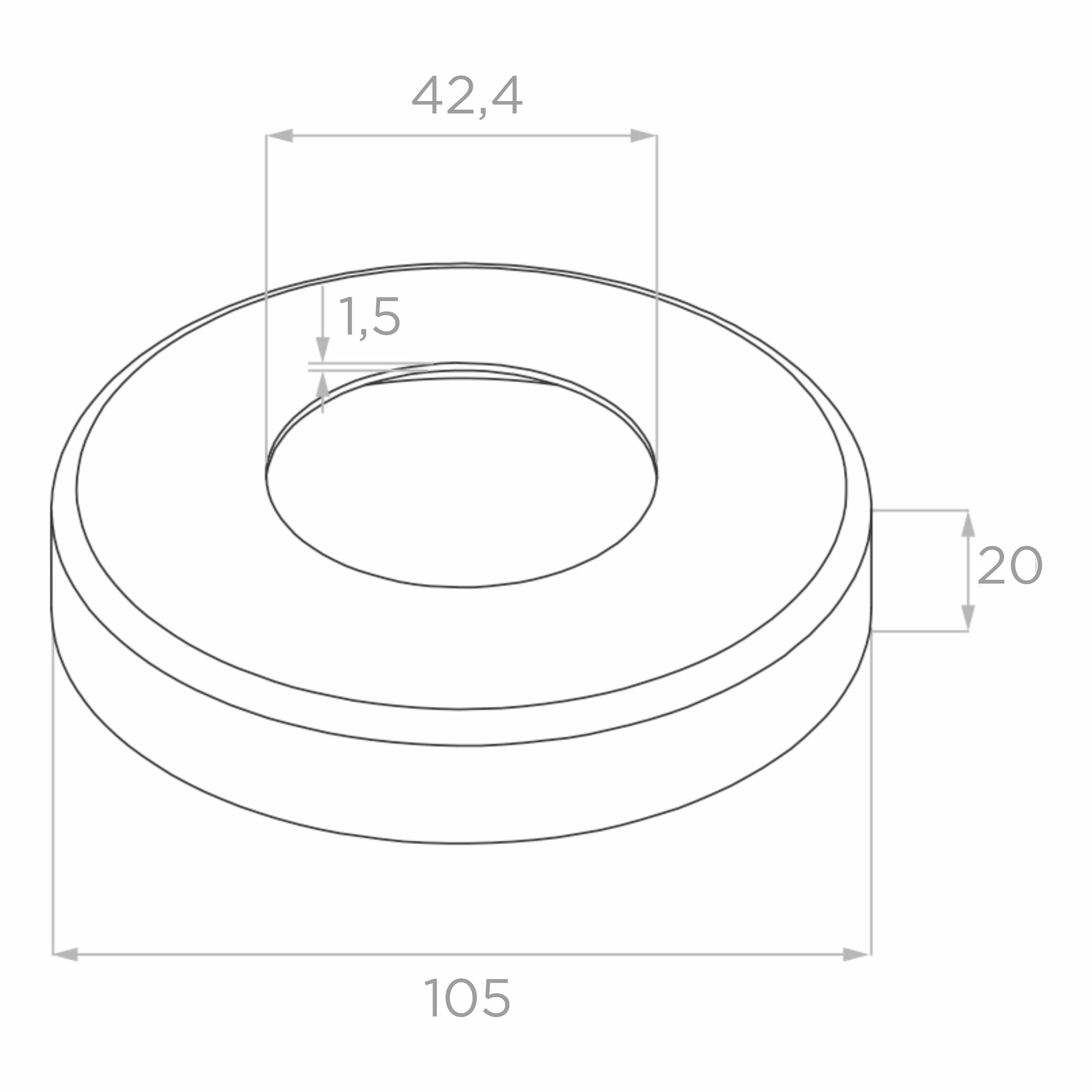

Base cover dimensions
- External diameter: 105 mm
- Internal diameter (hole): ø 42.4 mm
- Height: 20 mm
- Material thickness: 1.5 mm
Kit components in detail
The kit includes all necessary components for mounting an intermediate post in a glass balustrade. Glass clamps are equipped with rubber seals that protect the glass from damage and ensure secure mounting. The handrail support with adjustable angle allows easy adaptation to the handrail line — both in straight balustrades and on stair flights. The base cover with 105 mm diameter aesthetically conceals the post mounting point in the floor.
Material specification
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Corrosion resistance — suitable for indoor and outdoor applications
- EAN: 5903313202206
Technical data
| Finish | Satin |
| Mounting System | 42.4 mm |
| Material | AISI 304 |
